Kunshan Pioneer Spraying System Technology Co., Ltd.

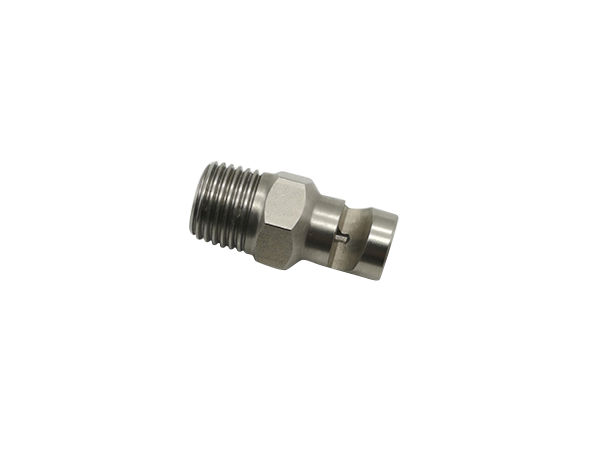

Wide Angle Flat Fan Nozzle
Wide Angle Flat Fan Nozzle
Regular price
$0.00
Regular price
Sale price
$0.00
Couldn't load pickup availability
The Wide Angle Flat Fan Nozzle is designed to produce a flat, fan-shaped spray pattern with a wide spray angle and uniform liquid distribution.
It provides large-area coverage with low to medium impact, making it ideal for washing, cooling, rinsing, coating, and dust control applications.
Technical Specifications
| Parameter | Description |
|---|---|
| Spray Pattern | Flat fan (wide angle) |
| Spray Angle | 65° – 120° |
| Flow Rate | 0.1 – 80 L/min |
| Working Pressure | 1 – 50bar |
| Connection Size | 1/8", 1/4", 3/8", 1/2", 3/4", 1" |
| Material | Stainless steel, Brass, Plastic (PP, PVDF) |
| Thread Type | BSPT / NPT |
Key Features
- Wide Spray Angle (65°–120°) – Covers large surface areas efficiently.
- Uniform Flat Fan Pattern – Ensures consistent liquid distribution for precise coverage.
- Stable Performance – Optimized internal flow path for uniform atomization.
- Durable Material Options – Stainless steel, brass,
- Versatile Installation – Compatible with standard BSPT / NPT threads.
- Low Maintenance – Simple structure, easy cleaning, and clog-resistant design.
Learn More
👉 Contact us today for more information or a custom quote on the nozzles designed to optimize your systems.
