Kunshan Pioneer Spraying System Technology Co., Ltd.
V Narrow Angle Fan Nozzle
V Narrow Angle Fan Nozzle
Regular price
$0.00
Regular price
Sale price
$0.00
Couldn't load pickup availability

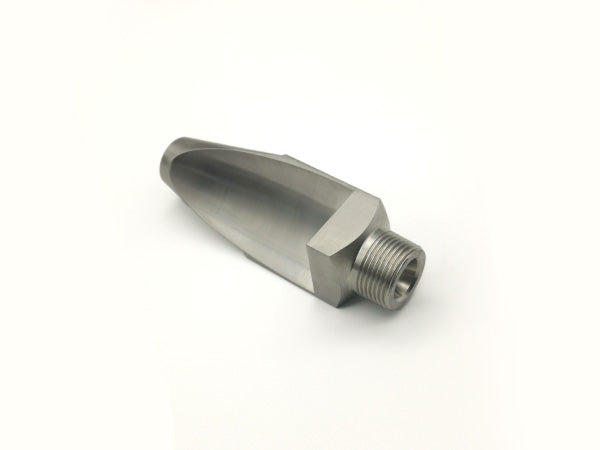

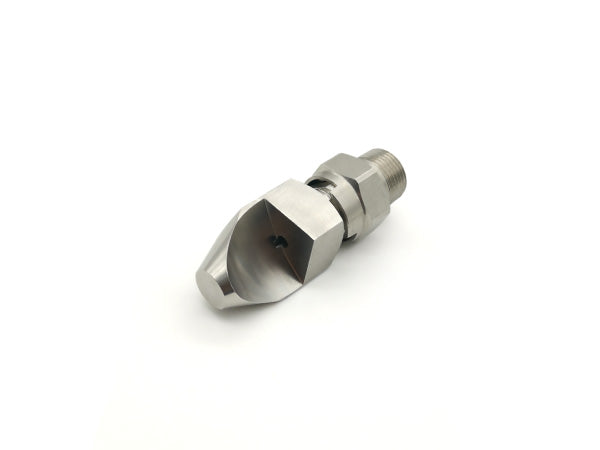

The V Narrow Angle Fan Nozzle is engineered to produce a concentrated flat fan spray pattern with a narrow spray angle, delivering high impact and precise coverage. This nozzle design provides accurate, linear spray distribution, making it ideal for cleaning, washing, cooling, coating, and high-pressure spraying applications.
Technical Specifications
| Parameter | Description |
|---|---|
| Spray Pattern | Flat (V-shaped) |
| Spray Angle | 15° – 55° |
| Flow Rate | 0.1 – 50 L/min |
| Working Pressure | 1 – 30 bar |
| Connection Size | 1/4", 3/8", 1/2" |
| Material | Stainless steel, Brass, |
| Thread Type | BSPT / NPT |
Applications
The V-shaped narrow angle spray cleaning nozzle is suitable for applications requiring precise direction and strong impact, including:
- Industrial Cleaning – Conveyor belt cleaning, bottle and tank washing
- Cooling Systems – Mold cooling, steel and metal cooling lines
- Surface Coating – Painting, lubricating, and degreasing systems
- Electronics Manufacturing – Precision component cleaning and rinsing
- Process Engineering – Chemical, food, and machinery industries
Advantages
- Focused and powerful spray for high-impact performance
- Precise control of spray direction and coverage area
- Resistant to clogging and wear under high pressure
- Multiple material and flow options available
Learn More
👉 Contact us today for more information or a custom quote on the nozzles designed to optimize your systems.
