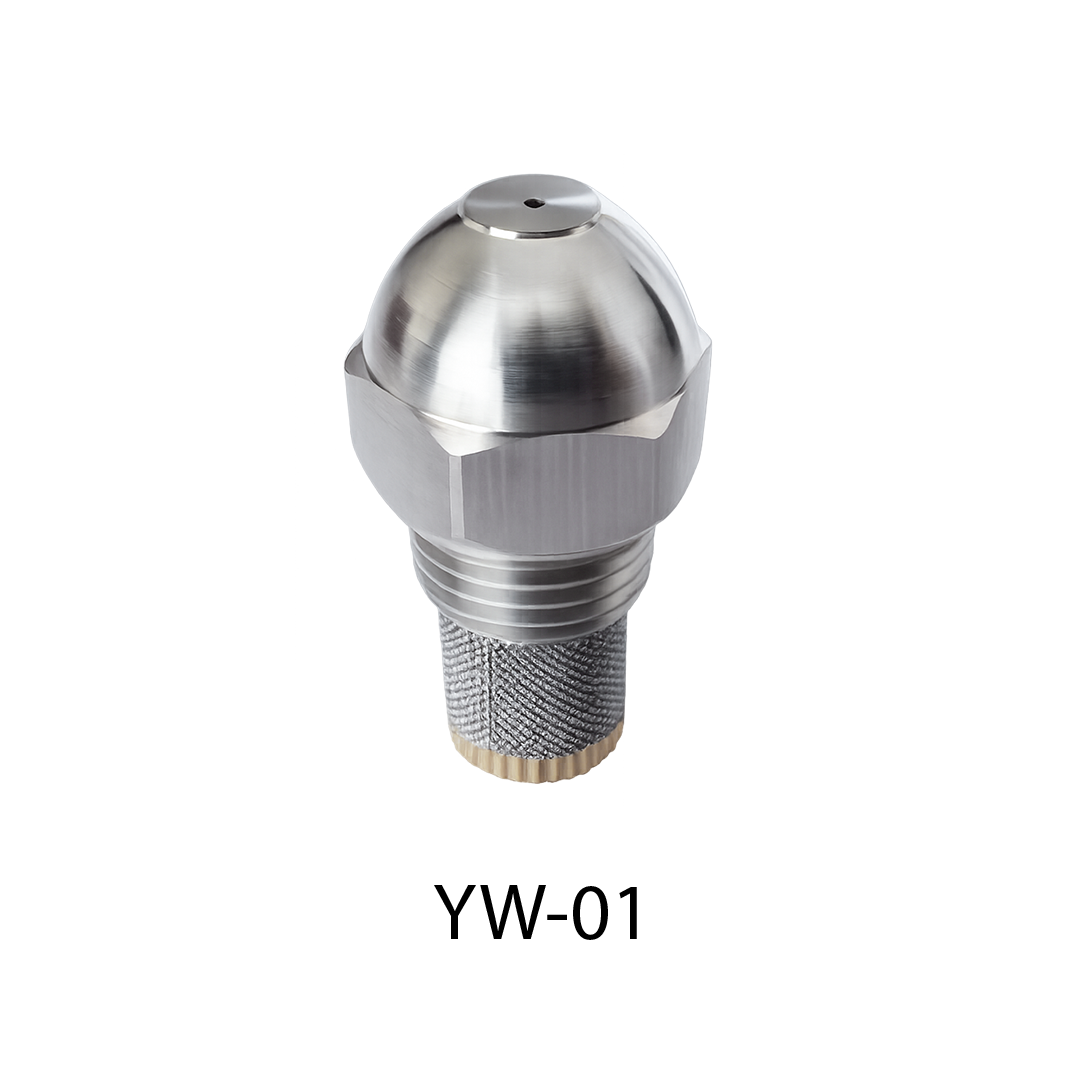

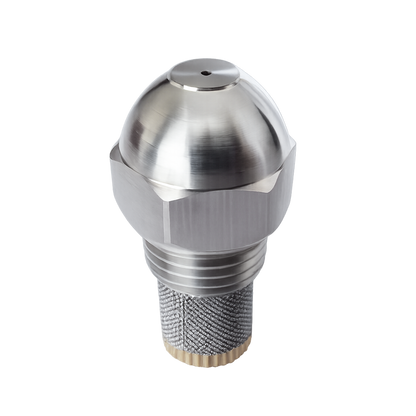

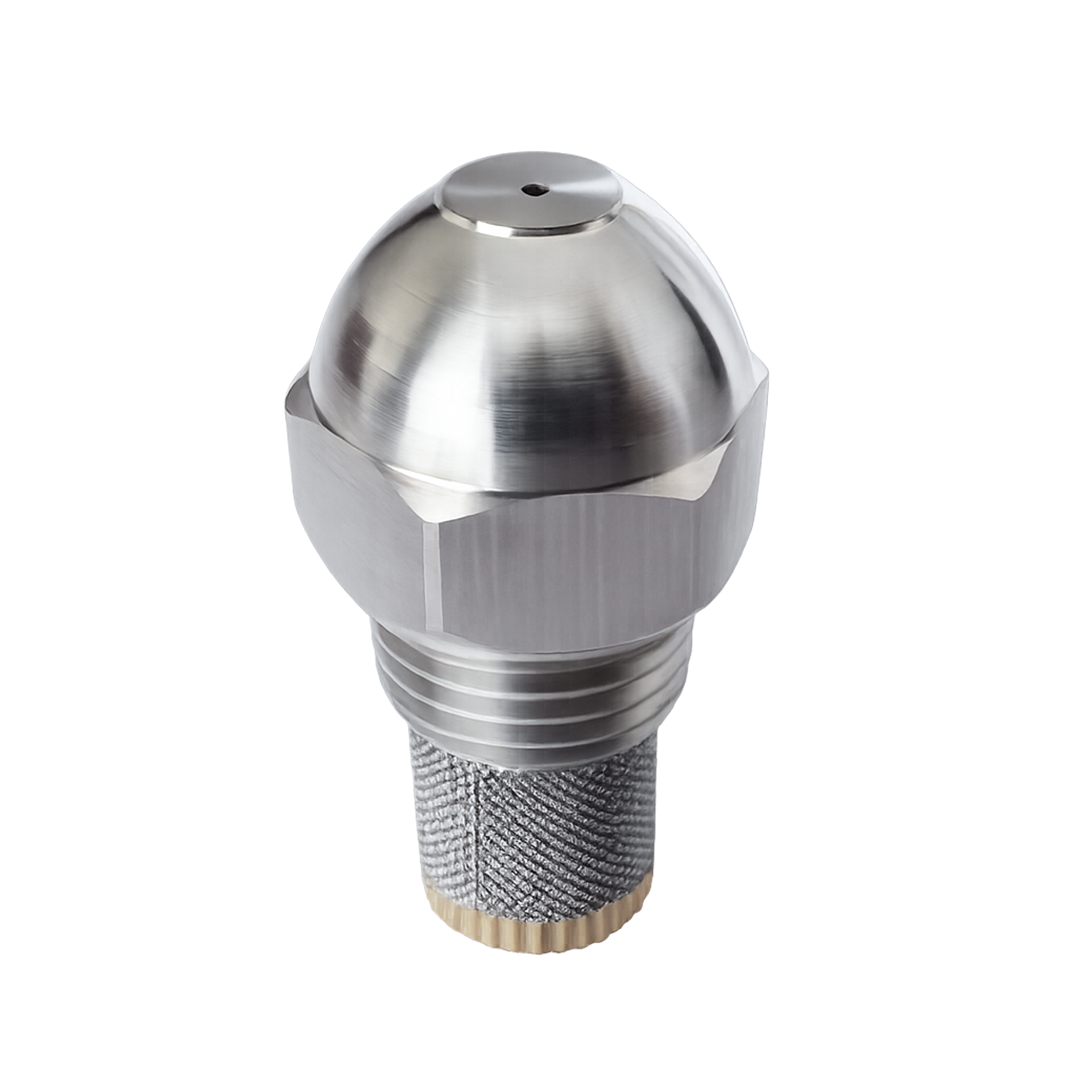

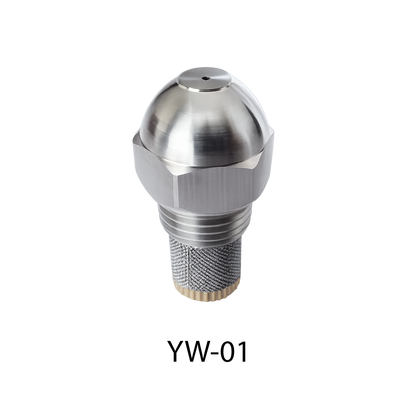

Low Pressure Atomizing Misting Nozzle

Product Description

Low Pressure Atomizing Misting Nozzle produces ultra-fine droplets as small as 20 microns for efficient mist generation and uniform coverage. Its one-piece body with an integrated filter screen provides easy installation, simplified maintenance, and enhanced clog resistance.

Key Features

• Specially designed to produce ultra-fine droplets as small as 20 microns for efficient mist generation

• One-piece body with integrated filter screen for easy installation, cleaning, and maintenance

Technical Specifications

Spray Pattern : Mist / Atomizing
Orifice Diameter : 0.21-1.78 mm.
Spray Angle : -
Flow Rate : 1.45-267 L/min
Working Pressure : -
Connection Size(s) : -
Material : Stainless Steel, Brass

Speak with our team for more information.

Applications

• Flue gas cooling

• Spray for incinerator waste gas deodorization

• Humidification in textile mills and air-conditioning system

• Chemical and disinfection of corrosion-resistant chemical raw materials
