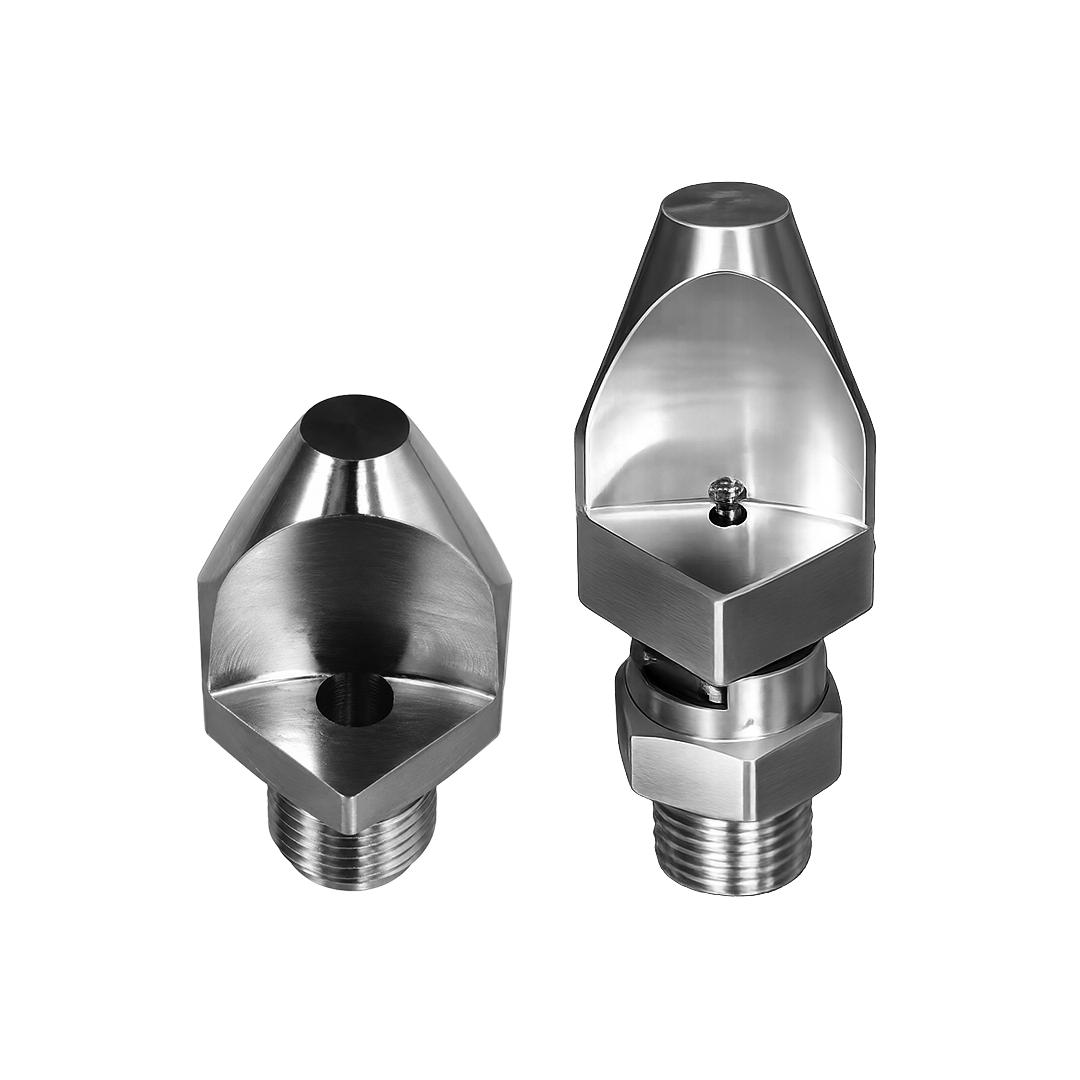

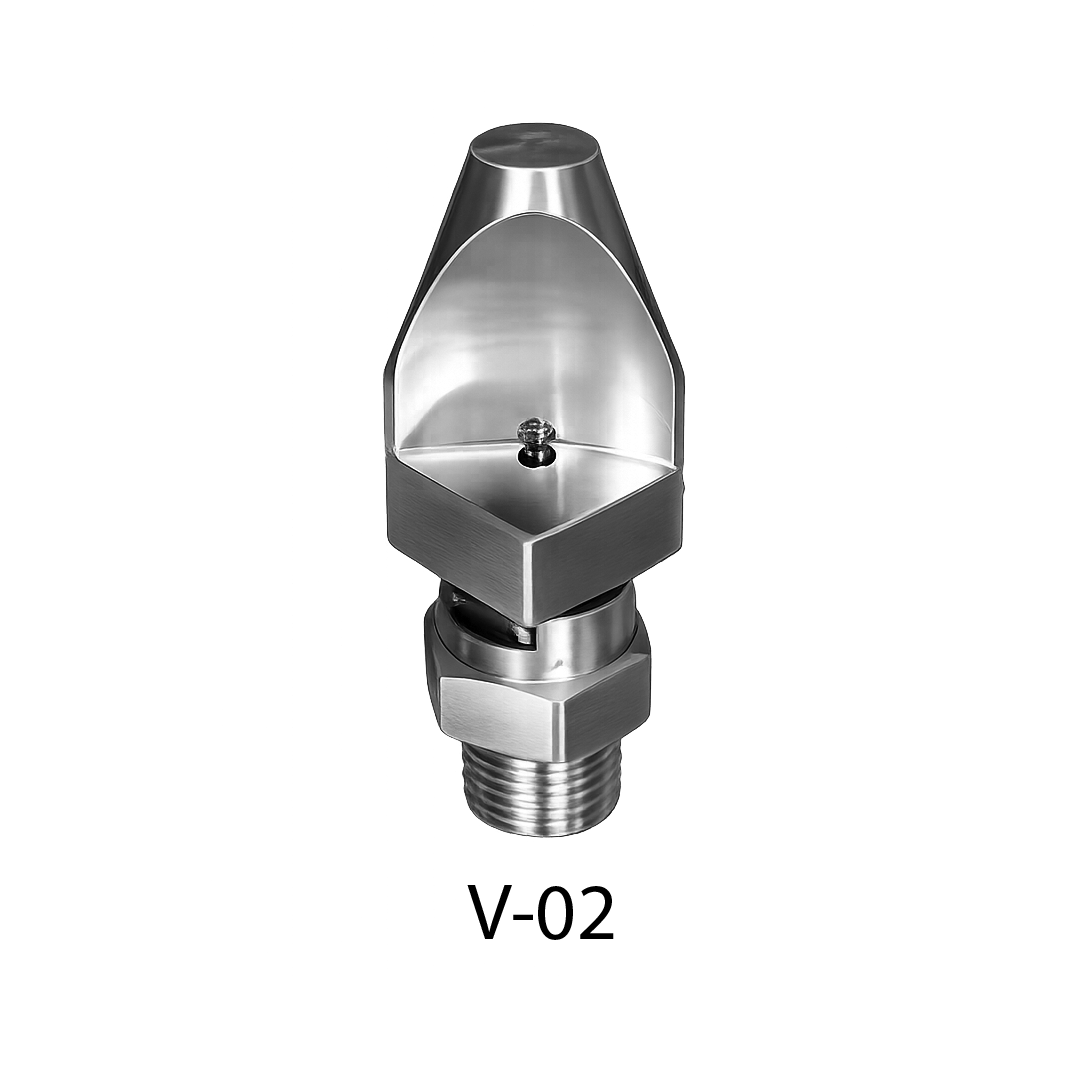

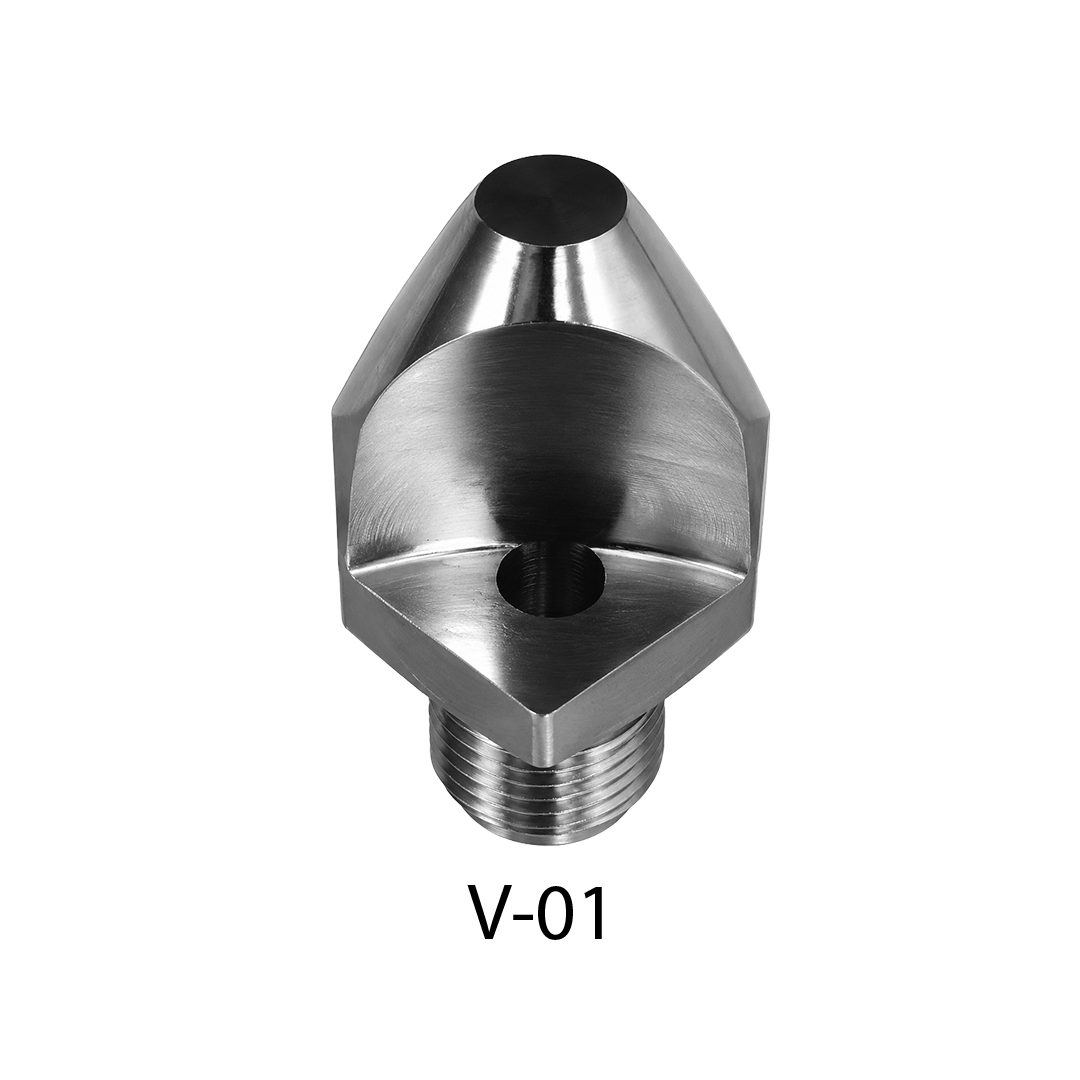

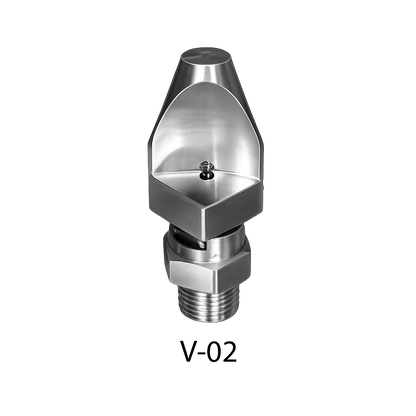

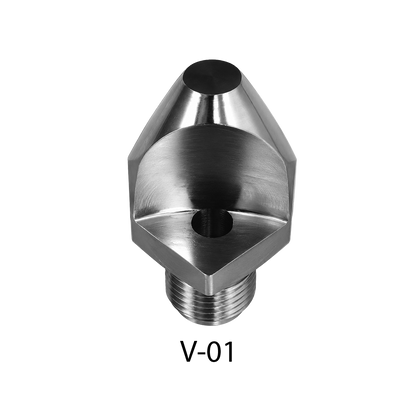

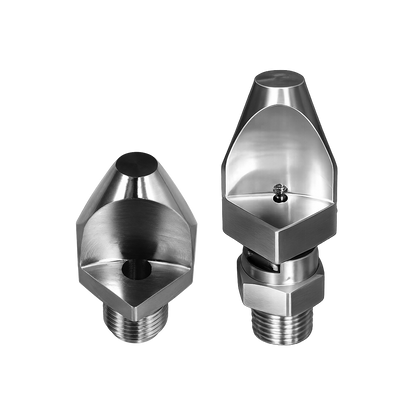

Model: V-01, V-02

V Narrow Angle Fan Nozzle | Flat Fan Spray Nozzle

Durable. Precise. Built for Performance.

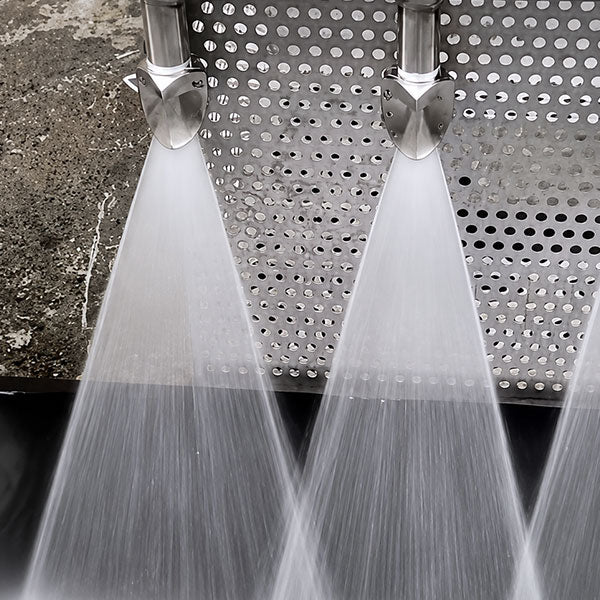

V Narrow Angle Fan Nozzle is engineered to produce a concentrated flat fan spray pattern with a narrow spray angle, this nozzle delivers high impact performance with precise spray direction, ideal for processes that require focused coverage and efficiency.
Material: Stainless Steel, Brass
Contact Us

Technical Specifications

Inlet Connector Nozzle Model No. Orifice Diameter mm Flow Rate (L/min)
0.7 kg 1 kg 2 kg 3 kg 4 kg 5 kg 10 kg 15 kg
1/8 04 1.24 0.76 0.91 1.29 1.58 1.82 2.04 2.88 3.53
1/4 10 1.98 1.91 2.28 3.22 3.95 4.56 5.10 7.21 8.83
20 2.77 3.81 4.56 6.45 7.89 9.12 10.2 14.4 17.7
25 2.77 4.77 5.70 8.06 9.87 11.4 12.7 18.0 22.1
40 3.96 7.63 9.12 12.9 15.8 18.2 20.4 28.8 35.3
3/8 20 2.77 3.81 4.56 6.45 7.89 9.12 10.2 14.4 17.7
25 2.77 4.77 5.70 8.06 9.87 11.4 12.7 18.0 22.1
30 3.18 5.72 6.84 9.67 11.8 13.7 15.3 21.6 26.5
40 3.96 7.63 9.12 12.9 15.8 18.2 20.4 28.6 35.3
50 3.96 9.53 11.4 16.1 19.7 22.8 25.5 36.0 44.1
60 4.75 11.4 13.7 19.3 23.7 27.3 30.6 43.2 53.0
70 5.16 13.3 16.0 22.6 27.6 31.9 35.7 50.4 61.8
80 5.31 15.3 18.2 25.8 31.6 36.5 40.8 57.7 70.6
90 5.54 17.2 20.5 29.0 35.5 41.0 45.9 64.9 79.4
100 5.94 19.1 22.8 32.2 39.5 45.6 51.0 72.1 88.3
120 7.14 22.9 27.3 38.7 47.4 54.7 61.1 86.5 106
125 6.76 23.8 28.5 40.3 49.3 57.0 63.7 90.1 110
160 7.54 30.5 36.5 51.6 63.2 72.9 81.5 115 141
200 8.33 38.1 45.6 64.5 78.9 91.2 102 144 177
1/2 60 4.75 11.4 13.7 19.3 23.7 27.3 30.6 43.2 53.0
80 5.16 15.3 18.2 25.8 31.6 36.5 40.8 57.7 70.6
100 5.94 19.1 22.8 32.2 39.5 45.6 51.0 72.1 88.3
140 7.52 26.7 31.9 45.1 55.3 63.8 71.3 101 124
160 7.92 30.5 36.5 51.6 63.2 72.9 81.5 115 141
3/4 160 7.92 30.5 36.5 51.6 63.2 72.9 81.5 115 141
200 8.33 38.1 45.6 64.5 78.9 91.2 102 144 177
Other sizes and material available upon request
