Durable. Precise. Built for Performance.

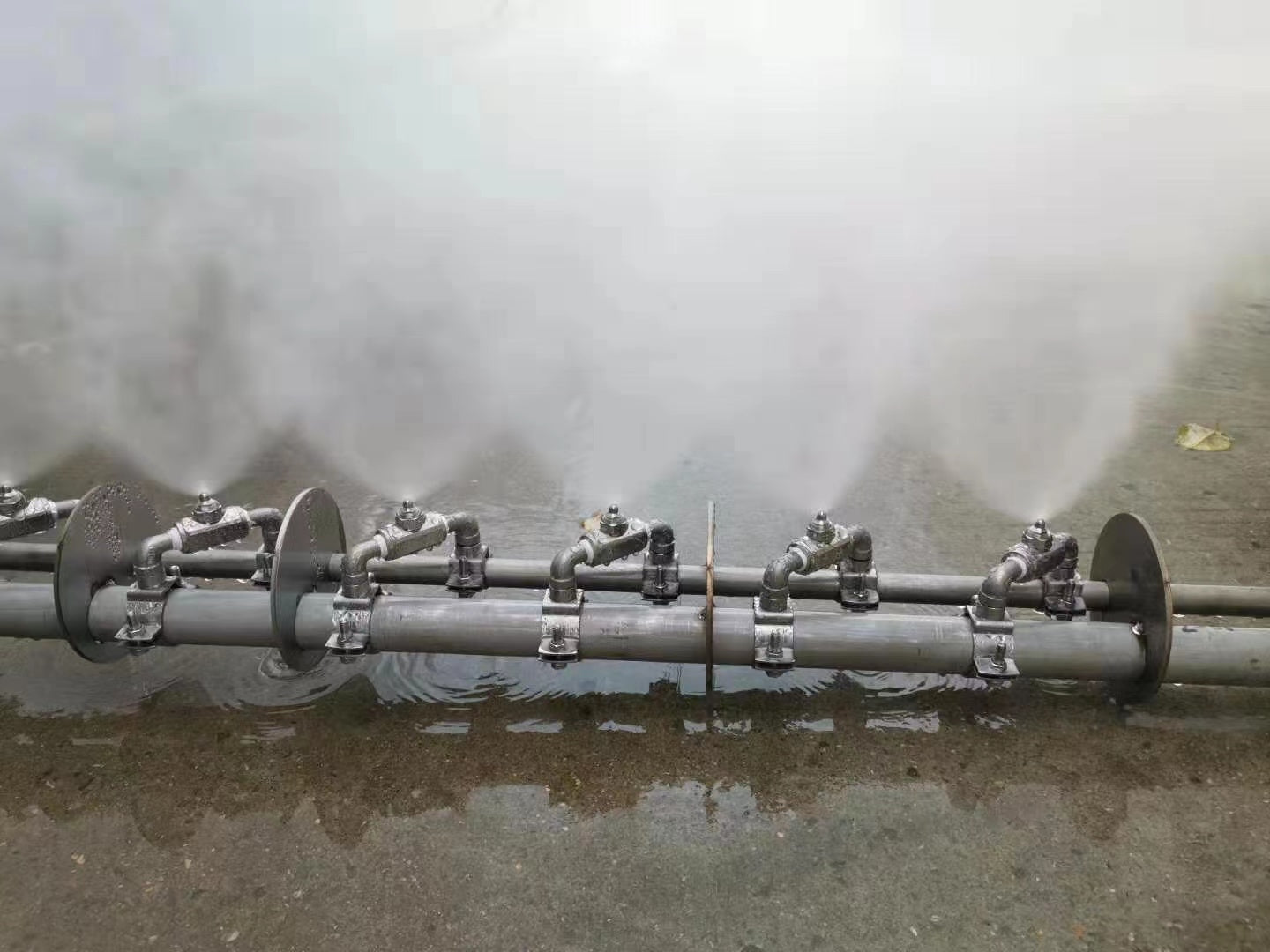

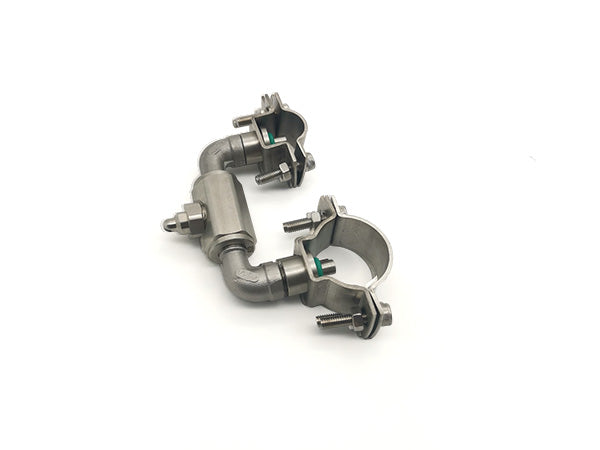

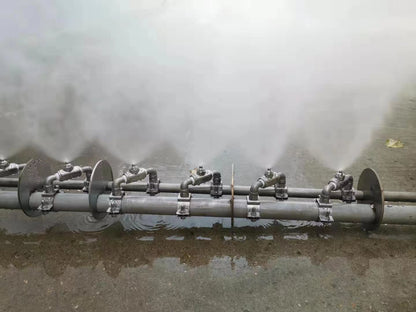

The Air-Assisted Atomizing Nozzle uses both compressed air and liquid to produce an ultra-fine, uniform mist.
By mixing air and fluid either internally or externally, it creates a precise, controlled atomization that’s ideal for cooling, humidifying, coating, and dust suppression applications.

Key Features

  • Produces ultra-fine mist with minimal air consumption
  • Adjustable atomization for precise process control
  • Low clogging design, easy maintenance and replacement
  • Wide range of models for different pressure and flow needs
  • Compatible with automated spray systems

Technical Specifications

Spray Pattern : Mist / Atomizing
Orifice Diameter : -
Spray Angle : -
Flow Rate : 0.1-10 L/Min
Working Pressure : -
Connection Size(s) : 1/8”, 1/4”, 3/8”, BSPT, NPT
Material : Stainless Steel, Brass

Speak with our team for more information.

    Learn More

    👉 Contact us today for more information or a custom quote on the nozzles designed to optimize your systems.

    Contact Us

    Technical Specifications

    Nozzle Model No. Liquid Cap and Air Cap No. Flow Rate at Different Pressure (L/min) Jet Size
    Air Pressure (kg) Water (L/hr) Air (L/min) Air Pressure (kg) Water (L/hr) Air (L/min) Air Pressure (kg) Water (L/hr) Air (L/min) Air Pressure (kg) Water (L/hr) Air (L/min) Air Pressure (kg) Water (L/hr) Air (L/min) Air (kg) Liquid (kg) A (cm) B (cm) C (cm) D (cm)
    SU13A Liquid Cap 2050 Air Cap 73328 0.7 5.5 24 1.3 9.1 31 2.0 8.6 42 2.7 11.2 52 3.9 12.0 69 1.1 0.7 25 38 46 2.6
    0.85 4.7 27 1.5 7.7 36 2.2 7.5 47 3.0 10.1 56 4.6 9.7 81 2.1 1.5 36 48 66 3.0
    1.0 4.1 31 1.8 6.5 42 2.5 6.2 52 3.2 9.1 62 5.3 7.5 93 2.8 2.0 38 53 76 3.2
    1.1 3.5 34 2.1 5.4 47 2.8 5.2 57 3.5 8.1 66 6.0 5.3 104 3.5 3.0 47 61 86 3.4
    1.3 3.0 37 2.4 4.3 52 3.1 4.2 63 4.2 5.4 78 6.3 4.3 110 6.0 4.0 56 74 94 4.0
    1.4 2.5 40 2.7 3.3 57 3.2 3.7 65 4.6 4.2 85 6.7 3.3 116
    1.5 2.0 44 2.8 2.8 60 3.4 3.2 68 4.9 3.1 91 7.0 2.4 122
    SU13 Liquid Cap 2850 Air Cap 73328 0.85 8.2 19.8 1.4 14.4 27 2.1 13.5 36 2.7 19.1 42 4.6 16.1 69 1.1 0.7 36 46 71 2.1
    1.0 6.8 23 1.7 11.9 32 2.4 11.4 42 3.0 17.1 46 4.9 13.8 76 2.1 1.5 43 61 81 2.4
    1.1 5.5 27 2.0 9.5 37 2.7 9.2 47 3.2 15.1 52 5.3 11.5 83 3.0 2.0 51 66 89 2.6
    1.3 4.1 30 2.1 8.3 40 3.0 7.1 53 3.2 13.1 57 5.6 9.3 90 3.5 3.0 58 76 97 2.7
    1.4 2.9 34 2.2 7.1 43 3.2 5.0 59 4.2 8.1 72 6.0 7.3 97 5.6 4.0 58 76 97 3.2
    2.4 6.1 46 3.4 4.0 63 4.6 5.9 79 6.3 5.6 104
    2.5 5.1 49 3.5 3.3 66 4.9 4.0 86 6.7 4.3 112
    SUN13 Liquid Cap 2850 Air Cap 73325 1.0 9.0 25 2.0 10.4 41 2.4 11.6 48 3.1 15.6 56 4.2 17.1 73 1.4 0.7 10 13 17 3.0
    1.1 7.8 30 2.1 9.3 45 2.5 10.4 51 3.2 14.6 59 4.6 15.0 80 2.5 1.5 13 15 20 3.7
    1.3 6.6 32 2.2 8.2 48 2.7 9.4 54 3.4 13.7 62 4.9 12.8 87 3.2 2.0 13 17 22 4.0
    1.4 5.2 36 2.5 6.1 55 3.0 7.3 61 3.8 10.8 71 5.3 11.0 94 3.8 3.0 15 22 28 4.2
    1.7 3.1 44 2.8 4.3 62 3.2 5.3 68 4.2 8.5 82 5.6 9.4 103 5.3 4.0 20 25 33 4.8
    2.0 2.0 50 3.1 3.0 69 3.5 4.1 75 4.9 5.2 98 6.3 7.2 119
    2.2 1.1 56 3.4 2.0 75 3.8 2.9 81 6.0 2.3 120 7.0 6.1 134
    SU14 Liquid Cap 2850 Air Cap 73320 1.3 3.9 30 2.1 7.4 40 3.0 6.1 52 3.9 9.4 60 5.3 10.2 78 1.5 0.7 23 33 46 1.8
    1.4 3.0 33 2.4 5.3 45 3.1 5.3 54 4.2 7.2 67 5.6 8.3 84 2.7 1.5 36 51 69 2.0
    1.5 2.3 35 2.5 4.4 47 3.2 4.5 57 4.6 5.3 73 6.0 6.6 89 3.2 2.0 58 74 91 2.0
    1.7 1.8 38 2.7 3.7 50 3.4 3.8 59 4.9 3.8 80 6.3 5.1 98 4.2 3.0 61 74 94 2.1
    1.8 1.3 41 2.8 3.1 52 3.5 3.2 62 5.6 4.0 64 76 97 2.3
    2.0 0.95 44 3.0 2.6 55 3.9 1.8 68
    SUN23 Liquid Cap 60100 Air Cap 125340 1.0 17.0 23 2.0 24 44 2.4 28 51 3.4 38 72 3.9 65 75 1.1 0.7 10 13 15 2.4
    1.1 11.0 27 2.1 18.9 50 2.5 23 59 3.5 33 80 4.2 53 89 2.1 1.5 10 13 17 3.0
    1.3 7.6 33 2.2 14.4 56 2.7 18.9 66 3.7 28 89 4.6 40 108 2.8 2.0 13 17 22 3.4
    1.4 3.2 40 2.4 10.6 63 2.8 15.1 74 3.8 23 97 4.9 30 127 3.7 3.0 15 20 28 3.6
    2.5 7.2 71 3.0 11.7 79 3.9 19.7 105 5.3 21 149 4.9 4.0 20 25 35 4.0
    4.2 13.1 120 5.6 13.8 173
    4.6 7.2 138 6.3 3.2 225
    SU23B Liquid Cap 40100 Air Cap 125328 2.7 19.6 93 3.5 27 112 4.6 3.3 137 1.4 0.7 15 18 20 3.0
    1.1 11.2 54 2.1 18.0 79 2.7 19.6 93 3.5 27 112 4.6 3.3 137 1.4 0.7 15 18 20 3.0
    1.3 8.5 60 2.2 15.8 84 2.8 17.3 98 3.7 25 116 4.9 28 149 2.4 1.5 23 28 33 3.2
    1.4 6.5 65 2.4 13.6 89 3.0 15.2 103 3.8 23 121 5.3 24 161 3.0 2.0 25 33 46 3.4
    1.5 5.0 71 2.5 11.6 95 3.1 13.2 109 3.9 21 126 5.6 19.7 174 3.7 3.0 30 38 46 3.5
    1.7 3.8 77 3.2 11.4 114 4.1 18.9 132 6.0 15.7 187 5.3 4.0 33 41 48 4.0
    4.2 17.0 137 6.3 12.4 200
    SU23 Liquid Cap 60100 Air Cap 125328 0.85 27 33 1.8 38 55 2.4 39 67 3.2 58 76 4.6 59 106 1.1 0.7 18 23 30 3.4
    1.0 20 38 2.1 28 66 2.7 30 87 3.5 47 87 5.3 40 132 2.4 1.5 23 30 41 3.5
    1.1 15.9 45 2.2 24 71 3.0 24 97 3.8 38 97 5.6 32 145 3.2 2.0 25 33 43 3.7
    1.3 12.5 48 2.4 21 76 3.2 17.8 103 3.9 34 103 6.0 26 158 3.9 3.0 30 38 48 3.8
    1.4 10.2 56 2.5 17.8 82 3.4 15.1 113 4.2 27 113 6.3 20 172 6.0 4.0 33 41 51 4.4
    1.5 7.6 62 2.7 15.1 87 3.5 12.9 126 4.6 20 126 6.7 15.9 185
    3.7 10.6 140 4.9 14.8 140 7.0 12.7 198
    SU43 Liquid Cap 100150 Air Cap 189351 1.0 29 90 1.8 56 117 2.1 100 119 3.0 126 140 181 4.1 140 1.0 0.7 18 20 25 3.4
    1.1 18.9 108 2.0 40 133 2.2 79 133 3.1 110 151 193 4.2 125 1.8 1.5 25 20 43 3.8
    2.4 62 147 3.2 95 163 225 4.6 89 2.4 2.0 25 30 46 4.3
    2.5 48 162 3.4 78 184 265 4.9 58 3.4 3.0 33 41 53 4.6
    2.7 36 177 3.5 62 193 305 5.3 34 4.9 4.0 36 43 58 5.2
    Other sizes and material available upon request
