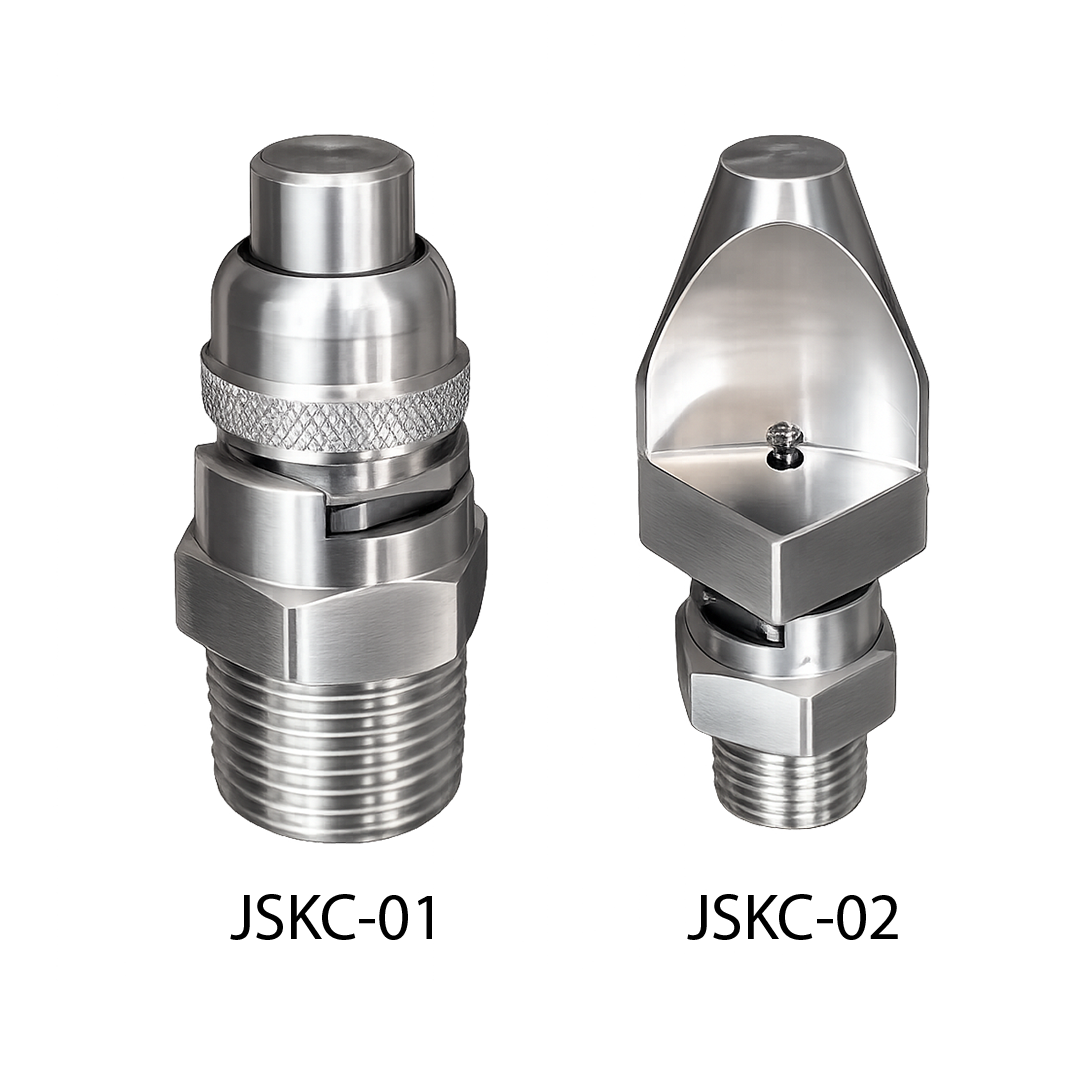

Model:
JSKC-01, JSKC-02
Stainless Steel Quick-Connect Spray Nozzle Base
Durable. Precise. Built for Performance.
The Stainless Steel Quick-Connect Spray Nozzle Base is designed for fast and secure installation of compatible spray nozzle tips. Its quick-connect structure allows convenient nozzle removal and replacement while the base remains installed on the pipe or spray header, helping reduce maintenance time in industrial spray systems.
Material:
Stainless Steel, Brass, Ceramic, Plastic
Contact Us
Key Features
- Stainless steel construction for durability
- Quick-connect design for easy installation and removal
- Reduces nozzle replacement and maintenance time
- Secure connection for industrial spray systems
- Suitable for spray headers and manifolds
- Easy replacement of compatible nozzle tips
- Multiple thread sizes available
- OEM and custom configurations available
Applications

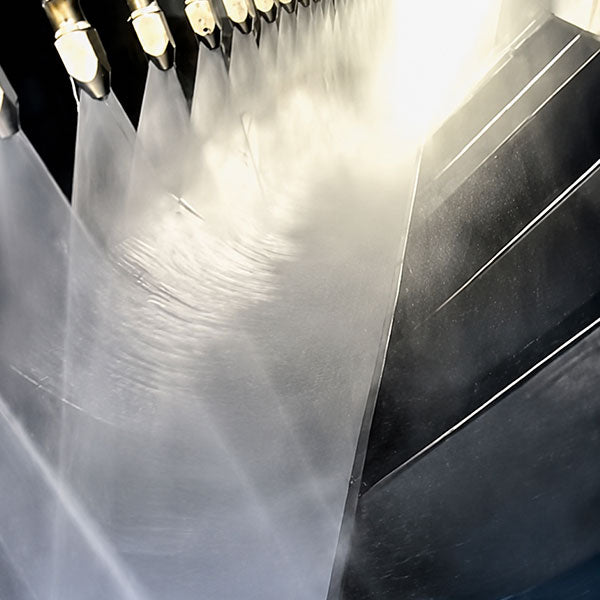

- Industrial cleaning and washing
- Surface treatment and pretreatment
- Cooling and rinsing
- Coating and chemical spraying
- Dust suppression
- Degreasing and phosphating

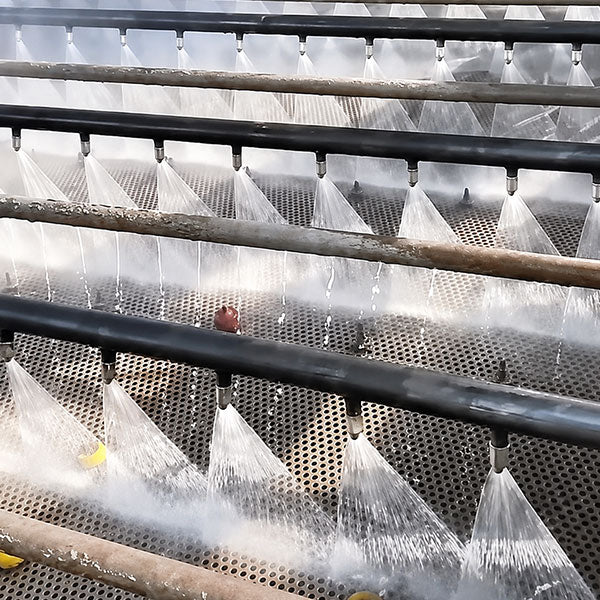

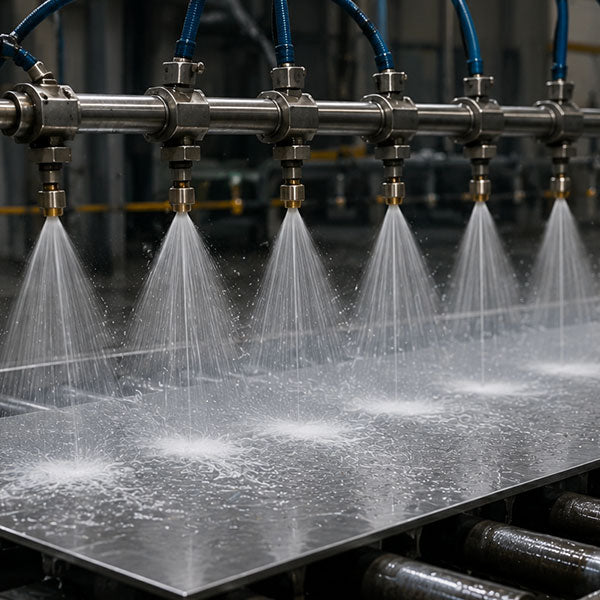

- Spray header and manifold systems
- Equipment requiring adjustable spray positioning
Technical Specifications
| External Thread | Nozzle Model No. | Orifice Diameter mm | Flow Rate (L/min) | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 65° | 80° | 95° | 110° | 1 kg | 2 kg | 3 kg | 4 kg | 5 kg | 6 kg | 7 kg | 10 kg | ||
|
1/8
1/4
3/8
1/2
|
6501 | 8001 | 9501 | 11001 | 0.66 | 0.23 | 0.32 | 0.39 | 0.46 | 0.51 | 0.56 | 0.60 | 0.72 |
| 6502 | 8002 | 9502 | 11002 | 0.91 | 0.46 | 0.64 | 0.79 | 0.91 | 1.0 | 1.1 | 1.2 | 1.4 | |
| 6503 | 8003 | 9503 | 11003 | 1.1 | 0.68 | 0.97 | 1.2 | 1.4 | 1.5 | 1.7 | 1.8 | 2.2 | |
| 6504 | 8004 | 9504 | 11004 | 1.3 | 0.91 | 1.3 | 1.6 | 1.8 | 2.0 | 2.2 | 2.4 | 2.9 | |
| 6505 | 8005 | 9505 | 11005 | 1.4 | 1.1 | 1.6 | 2.0 | 2.3 | 2.5 | 2.8 | 3.0 | 3.6 | |
| 6506 | 8006 | 9506 | 11006 | 1.6 | 1.4 | 1.9 | 2.4 | 2.7 | 3.1 | 3.3 | 3.6 | 4.3 | |
| 6508 | 8008 | 9508 | 11008 | 1.8 | 1.8 | 2.6 | 3.2 | 3.6 | 4.1 | 4.5 | 4.8 | 5.8 | |
| 6510 | 8010 | 9510 | 11010 | 2.0 | 2.3 | 3.2 | 3.9 | 4.6 | 5.1 | 5.6 | 6.0 | 7.2 | |
| 6515 | 8015 | 9515 | 11015 | 2.4 | 3.4 | 4.8 | 5.9 | 6.8 | 7.6 | 8.4 | 9.0 | 10.8 | |
| 6520 | 8020 | 9520 | 11020 | 2.8 | 4.6 | 6.5 | 7.9 | 9.1 | 10.2 | 11.2 | 12.1 | 14.4 | |
| 6530 | 8030 | 9530 | 3.6 | 6.8 | 9.7 | 11.8 | 13.7 | 15.3 | 16.7 | 18.1 | 22 | ||
| 6540 | 8040 | 9540 | 4.0 | 9.1 | 12.9 | 15.8 | 18.2 | 20 | 22 | 24 | 29 | ||
| 6550 | 8050 | 9550 | 4.4 | 11.4 | 16.1 | 19.7 | 23 | 25 | 28 | 30 | 36 | ||
| 6560 | 8060 | 9560 | 4.8 | 13.7 | 19.3 | 24 | 27 | 31 | 33 | 36 | 43 | ||
| 6570 | 8070 | 9570 | 5.2 | 16.0 | 23 | 28 | 32 | 36 | 39 | 42 | 50 | ||
| 65100 | 80100 | 95100 | 6.4 | 23 | 32 | 39 | 46 | 51 | 56 | 60 | 72 | ||
| 65150 | 80150 | 95150 | 7.5 | 34 | 48 | 59 | 68 | 76 | 84 | 90 | 108 | ||
| 65200 | 80200 | 8.7 | 46 | 64 | 79 | 91 | 102 | 112 | 121 | 144 | |||
