Stainless Steel Flat Fan Spray Nozzle
Durable. Precise. Built for Performance.
The Stainless Steel Flat Fan Spray Nozzle produces a uniform flat fan spray pattern with stable and reliable performance. Its durable stainless steel construction provides excellent corrosion and wear resistance, making it suitable for continuous industrial use. Designed for efficient liquid distribution, it is ideal for cleaning, washing, cooling, rinsing, and general industrial spraying applications.
Material:
Stainless Steel
Contact Us
Key Features
- Stable Flow – Internal guide vane ensures consistent spray performance.
- Wear Resistant – Hardened stainless steel construction for extended service life.
- Tungsten Carbide Option – Available for highly abrasive.
- 0°–110° Spray Angles – Multiple angles for different coverage
- Easy Installation – Male thread design for convenient
Applications

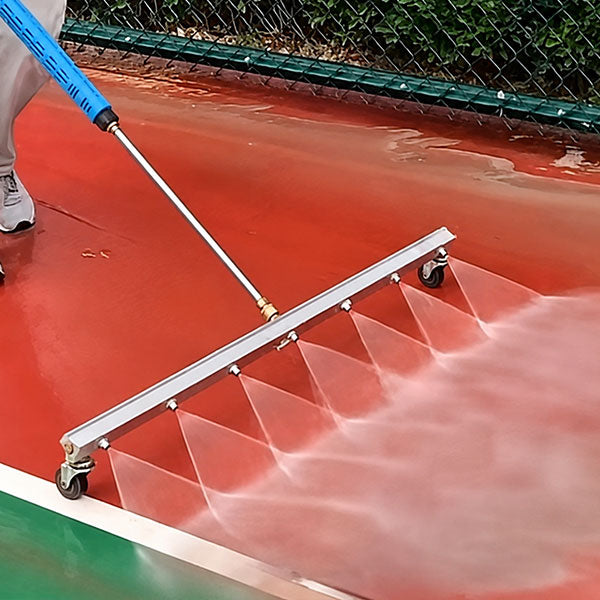

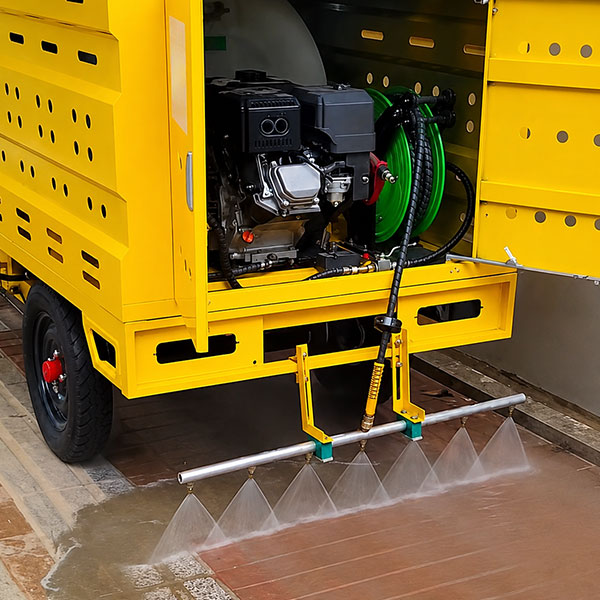

- Industrial Cleaning – Effective surface and equipment cleaning.
- Washing & Rinsing – Uniform liquid distribution for washing processes.
- Cooling – Reliable spray coverage for industrial process cooling.
- Surface Treatment – Controlled spraying for pretreatment and processing.
- Parts Cleaning – Suitable for machinery and component washing.
- General Spraying – Ideal for various industrial spray systems and manifolds.
Technical Specifications
| Spray Angle | Nozzle Model No. | Flow Rate (L/min) | |||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 0° | 5° | 15° | 25° | 40° | 50° | 65° | 20 bar | 25 bar | 35 bar | 40 bar | 45 bar | 60 bar | 80 bar | 100 bar | 140 bar | 170 bar | 200 bar | ||
| ● | 01 | 1.0 | 1.1 | 1.3 | 1.4 | 1.5 | 1.8 | 2.0 | 2.3 | 2.7 | 3.0 | 3.2 | |||||||
| ● | 015 | 1.5 | 1.7 | 2.0 | 2.2 | 2.3 | 2.6 | 3.1 | 3.4 | 4.0 | 4.5 | 4.8 | |||||||
| ● | ● | ● | ● | ● | ● | 02 | 2.0 | 2.3 | 2.7 | 2.9 | 3.1 | 3.5 | 4.1 | 4.6 | 5.4 | 5.9 | 6.4 | ||
| ● | 025 | 2.5 | 2.8 | 3.4 | 3.6 | 3.8 | 4.4 | 5.1 | 5.7 | 6.7 | 7.4 | 8.1 | |||||||
| ● | ● | ● | ● | ● | ● | ● | 03 | 3.1 | 3.4 | 4.0 | 4.3 | 4.6 | 5.3 | 6.1 | 6.8 | 8.1 | 8.9 | 9.7 | |
| ● | ● | ● | 035 | 3.6 | 4.0 | 4.7 | 5.0 | 5.4 | 6.2 | 7.1 | 8.0 | 9.4 | 10.4 | 11.3 | |||||
| ● | ● | ● | ● | ● | ● | 04 | 4.1 | 4.6 | 5.4 | 5.8 | 6.1 | 7.1 | 8.2 | 9.1 | 10.8 | 11.9 | 12.9 | ||
| ● | ● | ● | ● | 045 | 4.6 | 5.1 | 6.1 | 6.5 | 6.9 | 7.9 | 9.2 | 10.3 | 12.1 | 13.4 | 14.5 | ||||
| ● | ● | ● | ● | ● | ● | 05 | 5.1 | 5.7 | 6.7 | 7.2 | 7.6 | 8.8 | 10.2 | 11.4 | 13.5 | 14.9 | 16.1 | ||
| ● | ● | ● | ● | ● | ● | 055 | 5.6 | 6.3 | 7.4 | 7.9 | 8.4 | 9.7 | 11.2 | 12.5 | 14.8 | 16.3 | 17.7 | ||
| ● | ● | ● | ● | ● | ● | 06 | 6.1 | 6.8 | 8.1 | 8.6 | 9.2 | 10.6 | 12.2 | 13.7 | 16.2 | 17.8 | 19.3 | ||
| ● | ● | ● | ● | 065 | 6.6 | 7.4 | 8.8 | 9.4 | 9.9 | 11.5 | 13.3 | 14.8 | 17.5 | 19.3 | 21 | ||||
| ● | ● | ● | ● | ● | ● | 07 | 7.1 | 8.0 | 9.4 | 10.1 | 10.7 | 12.4 | 14.3 | 16.0 | 18.9 | 21 | 23 | ||
| ● | ● | ● | 075 | 7.6 | 8.5 | 10.1 | 10.8 | 11.5 | 13.2 | 15.3 | 17.1 | 20 | 22 | 24 | |||||
| ● | ● | ● | ● | ● | ● | 08 | 8.2 | 9.1 | 10.8 | 11.5 | 12.2 | 14.1 | 16.3 | 18.2 | 22 | 24 | 26 | ||
| ● | ● | ● | 085 | 8.7 | 9.7 | 11.5 | 12.3 | 13.0 | 15.0 | 17.3 | 19.4 | 23 | 25 | 27 | |||||
| ● | ● | ● | ● | ● | ● | 09 | 9.2 | 10.3 | 12.1 | 13.0 | 13.8 | 15.9 | 18.3 | 21 | 24 | 27 | 29 | ||
| ● | 095 | 9.7 | 10.8 | 12.8 | 13.7 | 14.5 | 16.8 | 19.4 | 22 | 26 | 28 | 31 | |||||||
| ● | ● | ● | ● | ● | 10 | 10.2 | 11.4 | 13.5 | 14.4 | 15.3 | 17.7 | 20 | 23 | 27 | 30 | 32 | |||
| ● | ● | ● | 11 | 11.2 | 12.5 | 14.8 | 15.9 | 16.8 | 19.4 | 22 | 25 | 30 | 33 | 35 | |||||
| 115 | 11.7 | 13.1 | 15.5 | 16.6 | 17.6 | 20 | 23 | 26 | 31 | 34 | 37 | ||||||||
| ● | ● | ● | ● | ● | ● | ● | 12 | 12.2 | 13.7 | 16.2 | 17.3 | 18.3 | 21 | 24 | 27 | 32 | 36 | 39 | |
| ● | ● | ● | 125 | 12.7 | 14.2 | 16.9 | 18.0 | 19.1 | 22 | 25 | 28 | 34 | 37 | 40 | |||||
