Model:
FX-02

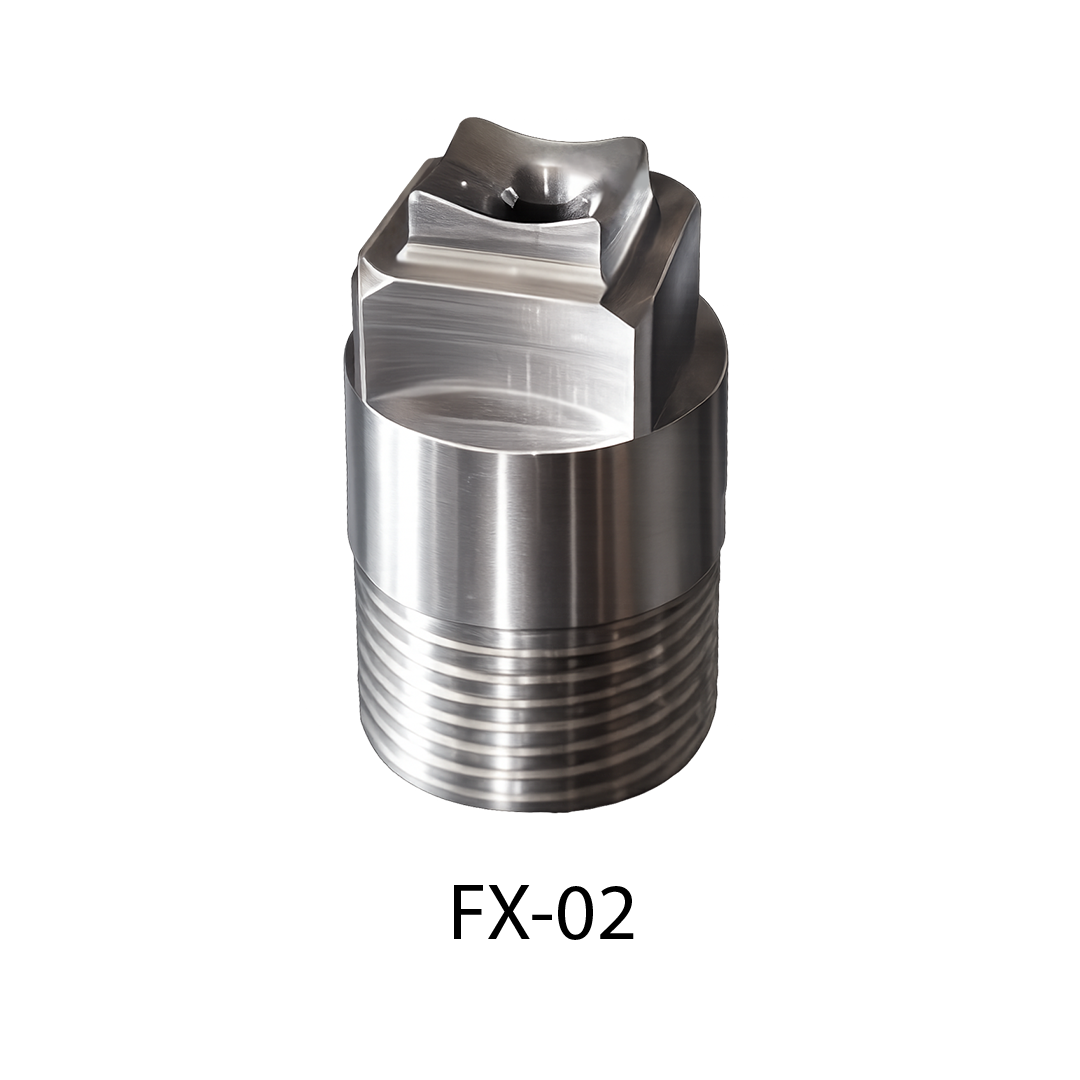

Square Full Cone Spray Nozzle
Durable. Precise. Built for Performance.
The Square Full Cone Spray Nozzle features a unique internal vane design that produces a solid cone spray with a square-shaped coverage area. With spray angles from 40° to 115° and medium to large droplets, it provides stable spray distribution and reliable performance for demanding industrial applications.
Material:
Stainless Steel, Brass
Contact Us
Key Features
- Square full cone spray pattern
- Unique internal vane design
- Spray angle: 40°–115°
- Medium to large droplet size
- Stable and uniform spray coverage
- Multiple thread sizes available
Applications
- Cooling and quenching
- Gas scrubbing
- Dust suppression
- Product washing and cleaning
Technical Specifications
| Nozzle Inlet inches | Nozzle Type | Flow Code | Orifice Diameter mm | Maximum Passage Diameter mm | Flow Rate (L/min) | Spray Angle | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| FX-01 | FX-02 | 0.3 kg | 0.5 kg | 1 kg | 2 kg | 3 kg | 4 kg | 5 kg | 6 kg | 7 kg | 10 kg | 0.5 kg | 1.5 kg | 6 kg | ||||
| 1/8 | ● | ● | 3.6 | 1.6 | 1.3 | 0.93 | 1.2 | 1.6 | 2.2 | 2.7 | 3.1 | 3.4 | 3.7 | 4.0 | 4.7 | 40° | 52° | 47° |
| ● | ● | 4.8 | 1.9 | 1.3 | 1.2 | 1.6 | 2.2 | 3.0 | 3.6 | 4.1 | 4.5 | 4.9 | 5.3 | 6.2 | 48° | 63° | 57° | |
| ● | ● | 6 | 2.4 | 1.3 | 1.5 | 2.0 | 2.7 | 3.7 | 4.5 | 5.1 | 5.6 | 6.1 | 6.6 | 7.8 | 60° | 66° | 60° | |
| 1/4 | ● | ● | 10 | 2.8 | 1.6 | 2.6 | 3.3 | 4.5 | 6.2 | 7.4 | 8.5 | 9.4 | 10.2 | 11.0 | 13.0 | 62° | 67° | 61° |
| ● | ● | 12 | 3.2 | 1.6 | 3.1 | 3.9 | 5.4 | 7.4 | 8.9 | 10.2 | 11.3 | 12.3 | 13.2 | 15.5 | 70° | 75° | 68° | |
| ● | ● | 14.5 | 3.9 | 1.6 | 3.7 | 4.7 | 6.5 | 9.0 | 10.8 | 12.3 | 13.7 | 14.8 | 15.9 | 18.8 | 78° | 82° | 75° | |
| 3/8 | ● | ● | 18 | 4.0 | 2.4 | 4.6 | 5.9 | 8.1 | 11.1 | 13.4 | 15.3 | 17.0 | 18.4 | 19.8 | 23 | 71° | 75° | 68° |
| 1/2 | ● | ● | 29 | 5.6 | 3.2 | 7.5 | 9.5 | 13.0 | 17.9 | 22 | 25 | 27 | 30 | 32 | 38 | 71° | 75° | 68° |
| ● | ● | 36 | 6.4 | 3.2 | 9.3 | 11.8 | 16.2 | 22 | 27 | 31 | 34 | 37 | 40 | 47 | 78° | 82° | 75° | |
| 3/4 | ● | ● | 50 | 6.7 | 4.4 | 12.9 | 16.3 | 22 | 31 | 37 | 42 | 47 | 51 | 55 | 65 | 71° | 75° | 68° |
| 1 | ● | ● | 106 | 9.9 | 5.6 | 27 | 35 | 48 | 65 | 79 | 90 | 100 | 109 | 117 | 137 | 78° | 80° | 73° |
| 1-1/4 | ● | 177 | 12.7 | 6.4 | 46 | 58 | 79 | 109 | 132 | 150 | 167 | 181 | 195 | 230 | 78° | 80° | 73° | |
| 1-1/2 | ● | 23 | 14.3 | 8.7 | 59 | 75 | 103 | 142 | 171 | 195 | 220 | 235 | 255 | 300 | 73° | 77° | 70° | |
| 2 | ● | 290 | 15.5 | 11.1 | 75 | 95 | 130 | 179 | 215 | 250 | 275 | 300 | 320 | 375 | 66° | 70° | 64° | |
| ● | 360 | 17.4 | 11.1 | 93 | 118 | 162 | 225 | 270 | 305 | 340 | 370 | 395 | 470 | 70° | 74° | 67° | ||
| ● | 480 | 21.0 | 11.1 | 124 | 157 | 215 | 300 | 360 | 410 | 455 | 495 | 530 | 630 | 79° | 82° | 74° | ||
