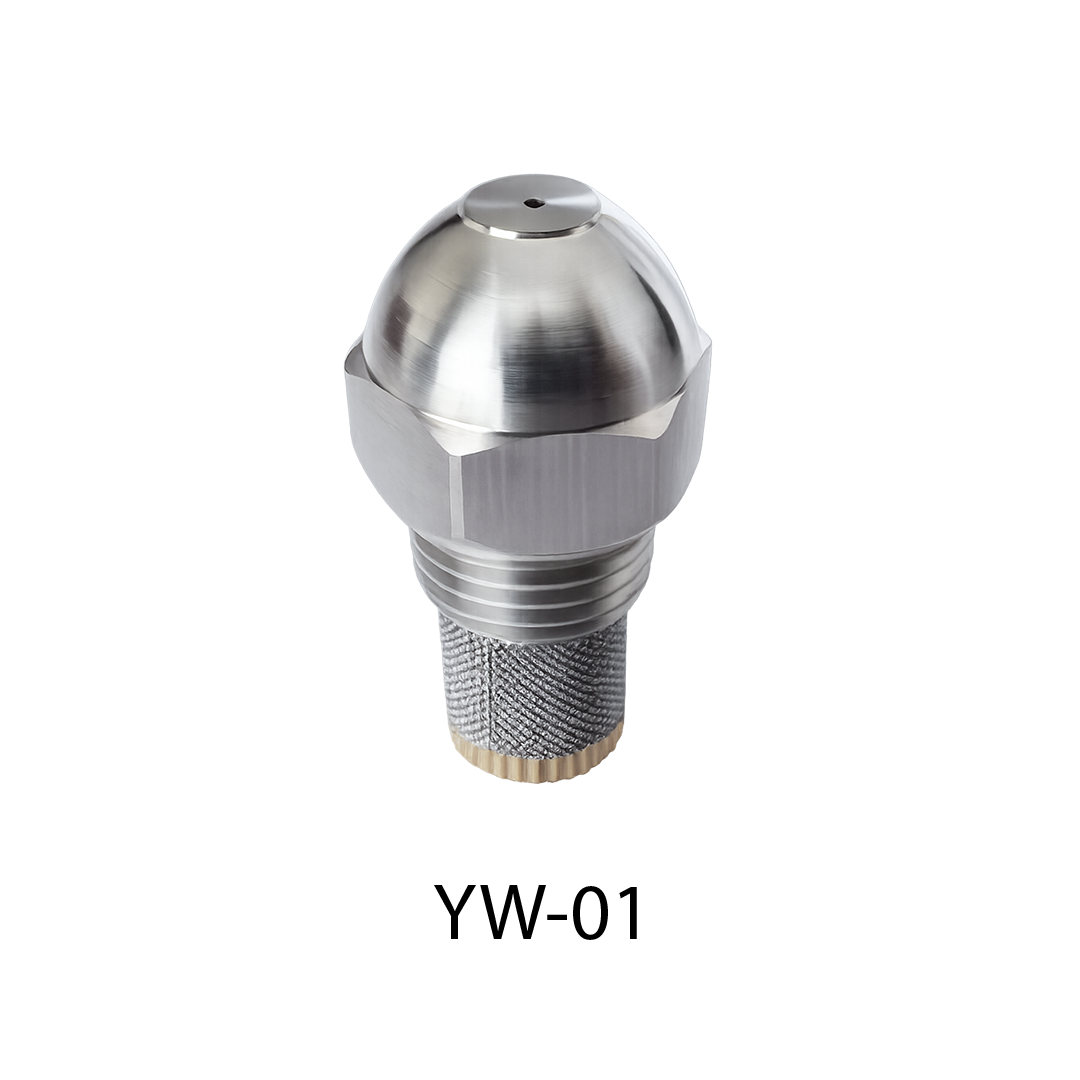

Model:
YW-01
Single-Fluid Fine Mist Atomizing Nozzle | Pressure Misting Nozzle
Durable. Precise. Built for Performance.
The Single-Fluid Fine Mist Atomizing Nozzle produces ultra-fine droplets of approximately 20 μm using liquid pressure only, with no compressed air required. Its precision internal structure provides stable atomization and uniform fine mist for industrial cooling, humidification and spraying applications.
Material:
Stainless Steel, Brass, Ceramic, Plastic
Contact Us
Key Features
- Atomization Type: Single-fluid
- Droplet Size: Approx. 20 μm
- Fine Mist: Uniform and consistent atomization
- No Compressed Air: Operates using liquid pressure only
- Internal Filter: Helps reduce clogging
- Low Flow: Efficient water consumption

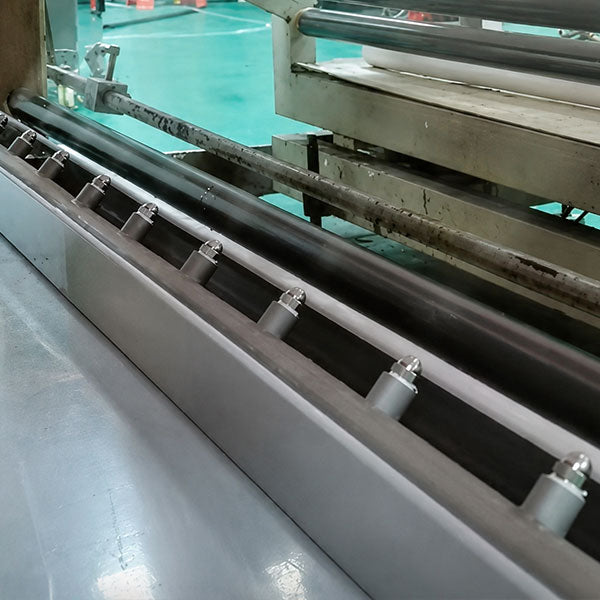

Applications

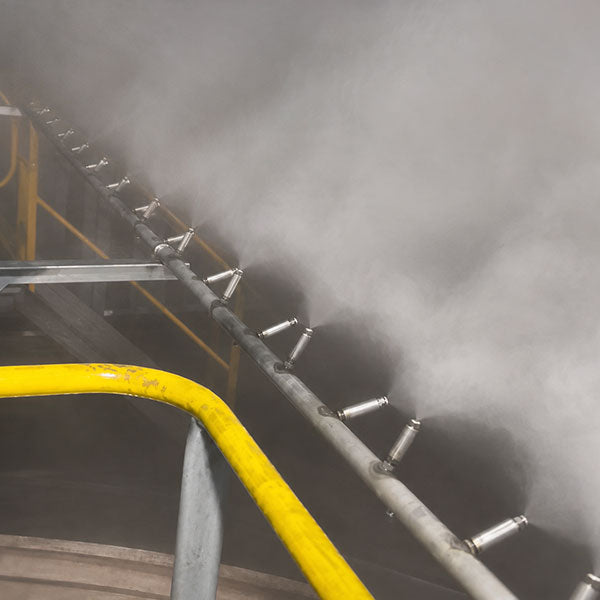

- Factory and equipment cooling
- Flue gas cooling
- Textile humidification
- Disinfection and sanitation
- Dust suppression
- Industrial fine mist systems
Technical Specifications
| Flow Code | Orifice Diameter mm | Flow Rate (L/h) | |||||||
|---|---|---|---|---|---|---|---|---|---|
| 2 kg | 3 kg | 5 kg | 7 kg | 10 kg | 15 kg | 20 kg | 35 kg | ||
| 0.5 | 0.21 | 1.45 | 1.72 | 2.05 | 2.51 | 2.87 | 3.82 | ||
| 0.75 | 0.23 | 2.16 | 2.56 | 3.05 | 3.74 | 4.32 | 5.72 | ||
| 1.0 | 0.28 | 2.87 | 3.40 | 4.10 | 5.02 | 5.77 | 7.63 | ||
| 1.5 | 0.33 | 4.32 | 5.11 | 6.15 | 7.53 | 8.64 | 11.4 | ||
| 2.0 | 0.38 | 5.77 | 6.83 | 8.19 | 10.0 | 11.6 | 15.3 | ||
| 2.5 | 0.41 | 7.19 | 8.55 | 10.2 | 12.5 | 14.5 | 19.1 | ||
| 3.0 | 0.46 | 8.64 | 10.2 | 12.3 | 15.1 | 17.3 | 22.9 | ||
| 4.0 | 0.64 | 8.69 | 11.5 | 13.7 | 16.4 | 20.1 | 23.1 | 30.5 | |
| 5.0 | 0.64 | 11.1 | 14.5 | 17.2 | 20.5 | 25.1 | 28.7 | 38.2 | |
| 6.0 | 0.74 | 14.2 | 17.5 | 20.6 | 24.6 | 30.1 | 34.6 | 45.8 | |
| 8.0 | 0.81 | 17.8 | 23.1 | 27.5 | 33.1 | 40.6 | 46.2 | 61.1 | |
| 10.0 | 1.89 | 17.9 | 22.1 | 28.7 | 34.0 | 41.0 | 50.2 | 57.7 | 76.3 |
| 12.0 | 1.02 | 21.6 | 26.9 | 34.6 | 40.8 | 49.2 | 60.2 | 69.3 | 91.6 |
| 14.0 | 1.02 | 25.3 | 31.2 | 40.2 | 47.7 | 57.0 | 69.8 | 80.8 | 107 |
| 16.0 | 1.17 | 29.1 | 35.6 | 46.2 | 54.6 | 65.2 | 79.8 | 92.4 | 122 |
| 18.0 | 1.32 | 32.8 | 39.9 | 51.8 | 61.4 | 73.4 | 89.9 | 104 | 137 |
| 20.0 | 1.40 | 36.5 | 44.6 | 57.8 | 68.3 | 81.6 | 99.9 | 115 | 153 |
| 24.0 | 1.52 | 45.8 | 53.3 | 69.3 | 82.1 | 98.0 | 120 | 139 | 183 |
| 30.0 | 1.70 | 54.4 | 66.8 | 86.4 | 102 | 123 | 150 | 173 | 229 |
| 35.0 | 1.78 | 64.1 | 78.2 | 101 | 120 | 143 | 175 | 202 | 267 |
