Model:

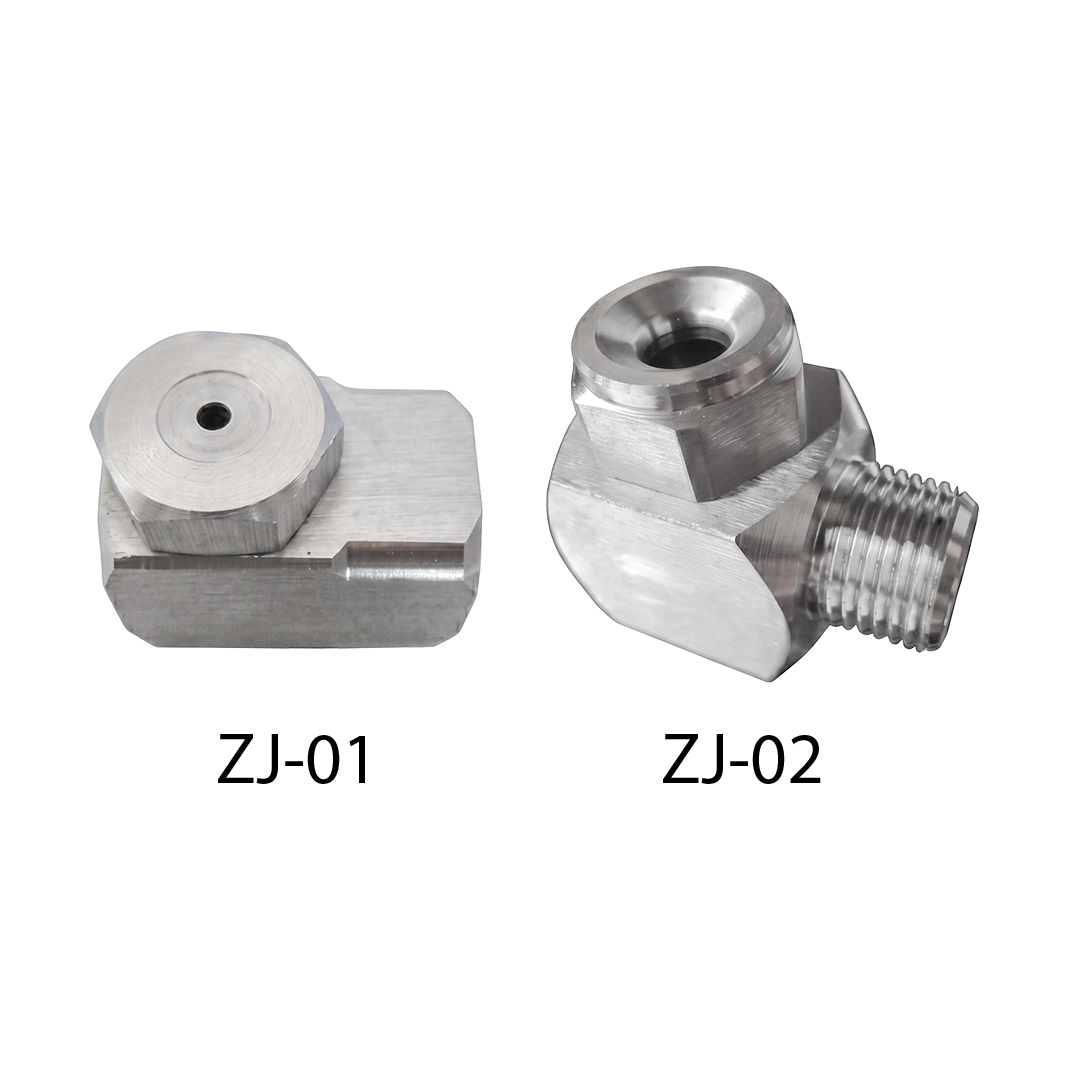

ZJ-01, ZJ-02
Right Angle Hollow Cone Spray Nozzle
Durable. Precise. Built for Performance.
The Right Angle Hollow Cone Spray Nozzle uses a tangential-flow design to generate strong centrifugal force inside the swirl chamber, producing a uniform hollow cone spray with fine atomization. Its vane-free internal structure provides a large, unobstructed flow passage, helping reduce clogging and ensuring reliable operation in demanding industrial environments.
Material:
Stainless Steel, Brass, Ceramic, Plastic
Contact Us
Key Features
- Tangential-flow design for efficient atomization
- Uniform hollow cone spray pattern
- Strong centrifugal action inside the swirl chamber
- Vane-free internal structure for reduced clogging
- Large, unobstructed flow passage
- Suitable for continuous industrial spraying
- Reliable performance under demanding conditions

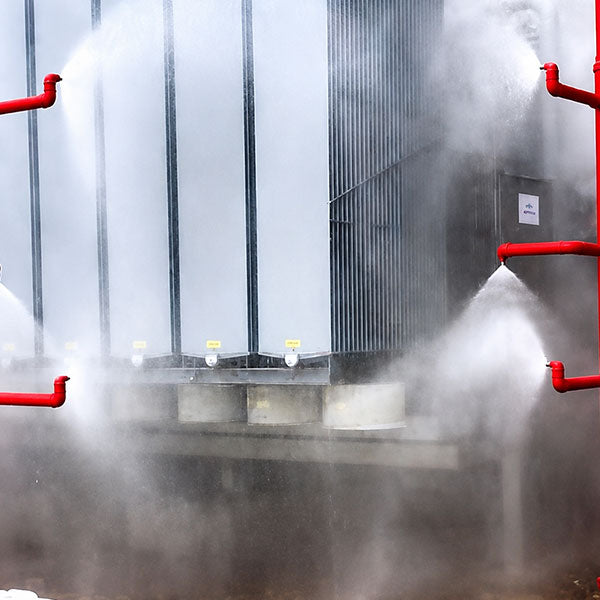

Applications
- Exhaust gas scrubbing
- High-temperature gas cooling
- Product cooling
- Gas cleaning
- Industrial pollution control
Technical Specifications (Full cone spray)
| Inlet Connector | Nozzle Model No. | Nozzle Inlet Diameter | Nozzle Outlet Diameter | Flow Rate (L/min) | Spray Angle | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 0.3 kg | 0.5 kg | 1 kg | 1.5 kg | 2 kg | 3 kg | 4 kg | 5 kg | 6 kg | 0.5 kg | 1.5 kg | 6 kg | ||||
| 1/8 | 0.5-0.5W | 0.79 | 1.2 | 0.23 | 0.28 | 0.32 | 0.39 | 0.46 | 0.51 | 0.56 | 117° | 98° | |||
| 1-1W | 1.6 | 1.6 | 0.46 | 0.56 | 0.64 | 0.79 | 0.91 | 1.0 | 1.1 | 125° | 110° | ||||
| 2-3W | 2.0 | 2.8 | 0.81 | 1.1 | 1.4 | 1.6 | 2.0 | 2.3 | 2.5 | 2.8 | 114° | 114° | 97° | ||
| 3-3W | 2.4 | 2.8 | 0.97 | 1.4 | 1.7 | 1.9 | 2.4 | 2.7 | 3.1 | 3.3 | 114° | 114° | 97° | ||
| 3-5W | 2.4 | 3.2 | 1.1 | 1.5 | 1.9 | 2.2 | 2.7 | 3.1 | 3.5 | 3.8 | 116° | 110° | 95° | ||
| 2-10W | 2.0 | 4.4 | 1.3 | 1.9 | 2.3 | 2.6 | 3.2 | 3.7 | 4.2 | 4.6 | 130° | 135° | 120° | ||
| 5-5W | 3.2 | 3.2 | 1.6 | 2.3 | 2.8 | 3.2 | 3.9 | 4.6 | 5.1 | 5.5 | 116° | 110° | 92° | ||
| 5-10W | 3.2 | 4.4 | 1.6 | 2.1 | 3.0 | 3.6 | 4.2 | 5.1 | 5.9 | 6.6 | 7.3 | 126° | 121° | 95° | |
| 8-10W | 4.0 | 4.4 | 2.2 | 2.9 | 4.1 | 5.0 | 5.8 | 7.1 | 8.2 | 9.2 | 10.0 | 124° | 112° | 90° | |
| 1/4 | 1-1W | 1.6 | 1.6 | 0.46 | 0.56 | 0.64 | 0.79 | 0.91 | 1.0 | 1.1 | 117° | 111° | |||
| 1-5W | 1.6 | 3.2 | 0.77 | 0.95 | 1.1 | 1.3 | 1.5 | 1.7 | 1.9 | 123° | 124° | ||||
| 1-10W | 1.6 | 4.4 | 0.96 | 1.2 | 1.4 | 1.7 | 1.9 | 2.1 | 2.3 | 144° | 139° | ||||
| 1-15W | 1.6 | 5.6 | 1.1 | 1.3 | 1.5 | 1.9 | 2.2 | 2.4 | 2.7 | 128° | 132° | ||||
| 5-5W | 2.0 | 3.2 | 1.1 | 1.5 | 1.9 | 2.2 | 2.7 | 3.1 | 3.5 | 3.8 | 123° | 113° | |||
| 2-10W | 2.0 | 4.4 | 1.3 | 1.9 | 2.3 | 2.6 | 3.2 | 3.7 | 4.2 | 4.6 | 118° | 136° | 126° | ||
| 5-5W | 3.6 | 3.2 | 1.6 | 2.3 | 2.8 | 3.2 | 3.9 | 4.6 | 5.1 | 5.6 | 138° | 113° | 104° | ||
| 5-10W | 3.6 | 4.4 | 1.6 | 2.1 | 3.0 | 3.6 | 4.2 | 5.1 | 5.9 | 6.6 | 7.3 | 114° | 130° | 119° | |
| 5-15W | 3.6 | 5.6 | 1.9 | 2.5 | 3.5 | 4.3 | 5.0 | 6.1 | 7.0 | 7.8 | 8.6 | 130° | 132° | 120° | |
| 8-10W | 4.0 | 4.4 | 2.2 | 2.9 | 4.1 | 5.0 | 5.8 | 7.1 | 8.2 | 9.2 | 10.0 | 129° | 122° | 103° | |
| 10-10W | 4.8 | 4.4 | 2.5 | 3.2 | 4.6 | 5.6 | 6.4 | 7.9 | 9.1 | 10.2 | 11.2 | 120° | 108° | 95° | |
| 8-15W | 4.0 | 5.6 | 2.7 | 3.5 | 5.0 | 6.1 | 7.1 | 8.7 | 10.0 | 11.2 | 12.3 | 129° | 122° | 107° | |
| 10-15W | 4.8 | 5.6 | 3.0 | 3.9 | 5.5 | 6.7 | 7.7 | 9.5 | 10.9 | 12.2 | 13.4 | 120° | 108° | 97° | |
| 15-15W | 6.0 | 5.6 | 3.7 | 4.8 | 6.8 | 8.4 | 9.7 | 11.8 | 13.7 | 15.3 | 16.7 | 101° | 95° | 88° | |
| 3/8 | 8-15W | 4.4 | 5.6 | 2.7 | 3.5 | 5.0 | 6.1 | 7.1 | 8.7 | 10.0 | 11.2 | 12.3 | 133° | 120° | 105° |
| 10-15W | 5.2 | 5.6 | 3.0 | 3.9 | 5.5 | 6.7 | 7.7 | 9.5 | 10.9 | 12.2 | 13.4 | 126° | 115° | 100° | |
| 8-25W | 4.4 | 7.9 | 3.2 | 4.2 | 5.9 | 7.3 | 8.4 | 10.3 | 11.9 | 13.3 | 14.5 | 122° | 118° | 109° | |
| 10-20W | 5.2 | 6.0 | 3.5 | 4.5 | 6.4 | 7.8 | 9.0 | 11.1 | 12.8 | 14.3 | 15.6 | 118° | 112° | 102° | |
| 15-15W | 6.0 | 5.6 | 3.7 | 4.8 | 6.8 | 8.4 | 9.7 | 11.8 | 13.7 | 15.3 | 16.7 | 116° | 106° | 95° | |
| 15-20W | 6.0 | 6.0 | 4.2 | 5.5 | 7.7 | 9.5 | 11.0 | 13.4 | 15.5 | 17.3 | 19.0 | 113° | 108° | 98° | |
| 20-20W | 7.1 | 6.0 | 5.0 | 6.4 | 9.1 | 11.2 | 12.9 | 15.8 | 18.2 | 20 | 22 | 106° | 102° | 95° | |
| 15-30W | 6.0 | 7.9 | 5.5 | 7.1 | 10.0 | 12.3 | 14.2 | 17.4 | 20 | 22 | 25 | 116° | 110° | 102° | |
| 25-25W | 7.5 | 7.5 | 6.2 | 8.1 | 11.4 | 14.0 | 16.1 | 19.7 | 23 | 25 | 28 | 105° | 100° | 93° | |
| 25-30W | 7.5 | 7.9 | 7.0 | 9.0 | 12.8 | 15.6 | 18.0 | 22 | 26 | 29 | 31 | 105° | 101° | 94° | |
| 1/2 | 50-50W | 9.5 | 11.1 | 12.5 | 16.1 | 23 | 28 | 32 | 39 | 46 | 51 | 56 | 110° | 102° | 93° |
| 3/4 | 80-80W | 12.7 | 14.3 | 20 | 26 | 36 | 45 | 52 | 63 | 73 | 82 | 89 | 115° | 107° | 97° |
| 1/8 | 4.3W | 2.0 | 1.0 | 1.6 | 1.9 | 2.6 | 3.1 | 3.5 | 3.9 | 4.2 | 120° | 102° | |||
| 5.6W | 2.4 | 1.0 | 1.8 | 2.1 | 2.5 | 3.4 | 4.0 | 4.6 | 5.1 | 5.5 | 120° | 102° | |||
| 8W | 2.4 | 1.3 | 2.6 | 3.0 | 3.6 | 3.6 | 4.8 | 5.8 | 6.6 | 7.2 | 120° | 103° | |||
| 1/4 | 10W | 2.8 | 1.3 | 2.6 | 3.3 | 3.8 | 4.5 | 6.0 | 7.2 | 8.2 | 9.1 | 9.8 | 112° | 120° | 103° |
| 12W | 3.2 | 1.3 | 3.1 | 3.9 | 4.6 | 5.3 | 7.3 | 8.7 | 9.8 | 10.9 | 11.8 | 114° | 120° | 103° | |
| 14W | 3.6 | 1.6 | 3.7 | 4.6 | 5.3 | 6.2 | 8.5 | 10.1 | 11.5 | 12.7 | 13.7 | 114° | 120° | 103° | |
| 3/8 | 20W | 4.4 | 2.4 | 5.2 | 6.6 | 7.6 | 8.9 | 12.1 | 14.5 | 16.5 | 18.1 | 19.6 | 114° | 120° | 104° |
| 24W | 4.8 | 2.4 | 6.3 | 7.9 | 9.1 | 10.7 | 14.5 | 17.3 | 19.7 | 22 | 24 | 114° | 120° | 104° | |
| 27W | 5.2 | 2.8 | 7.1 | 8.9 | 10.3 | 12.0 | 16.3 | 19.5 | 22 | 24 | 26 | 114° | 120° | 106° | |
| 1/2 | 35W | 6.0 | 3.2 | 9.2 | 11.5 | 13.3 | 15.6 | 21 | 25 | 29 | 32 | 34 | 114° | 120° | 108° |
| 40W | 6.4 | 3.2 | 10.5 | 13.1 | 15.2 | 17.8 | 24 | 29 | 33 | 36 | 39 | 114° | 120° | 108° | |
| 45W | 6.4 | 3.6 | 11.8 | 14.8 | 17.1 | 20 | 27 | 33 | 37 | 41 | 44 | 114° | 120° | 110° | |
| 50W | 6.7 | 4.0 | 13.1 | 16.4 | 19.1 | 22 | 30 | 36 | 41 | 45 | 49 | 114° | 120° | 112° | |
