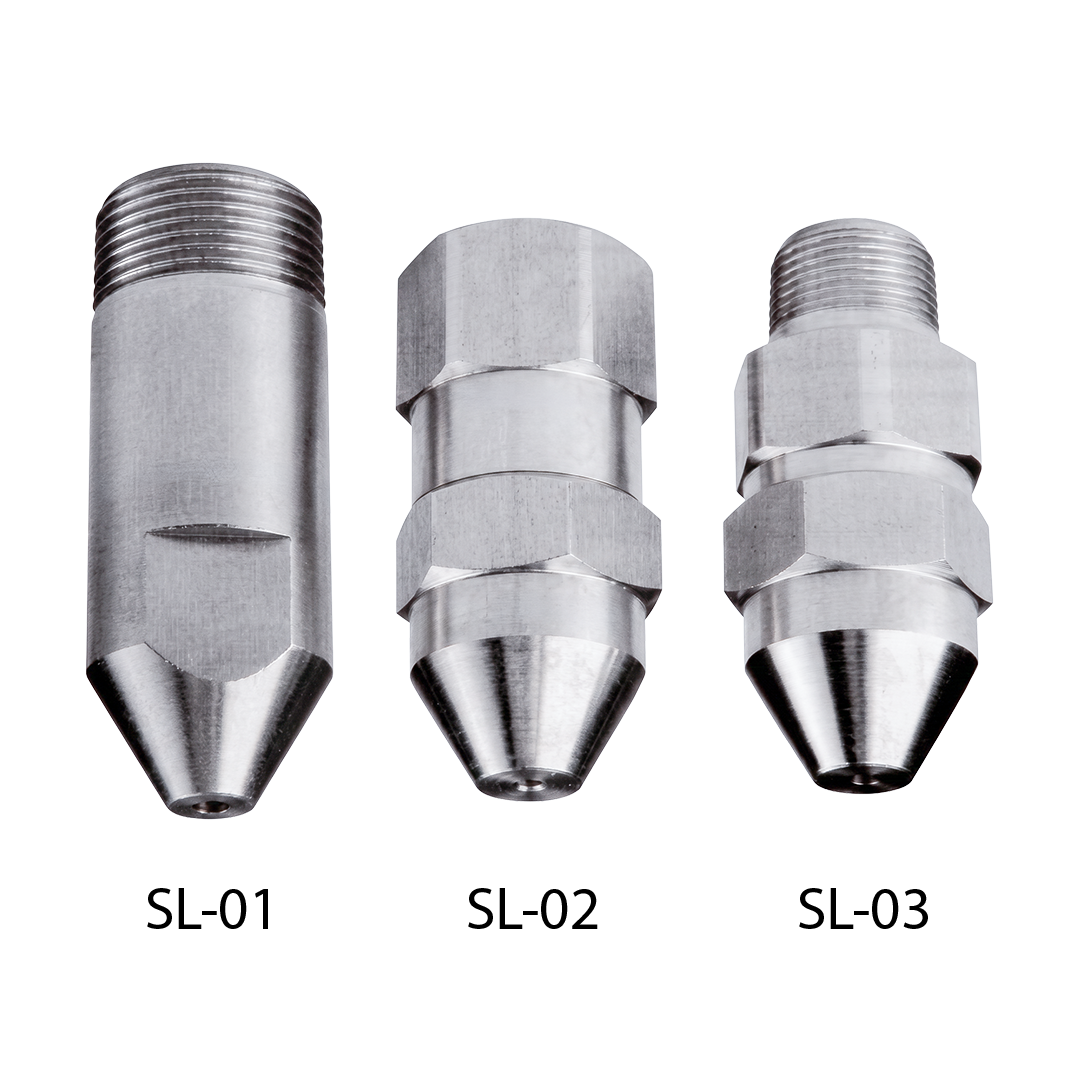

Model: SL-01, SL-02, SL-03

Narrow Angle Full Cone Nozzle | Jet Spray Nozzle

Durable. Precise. Built for Performance.

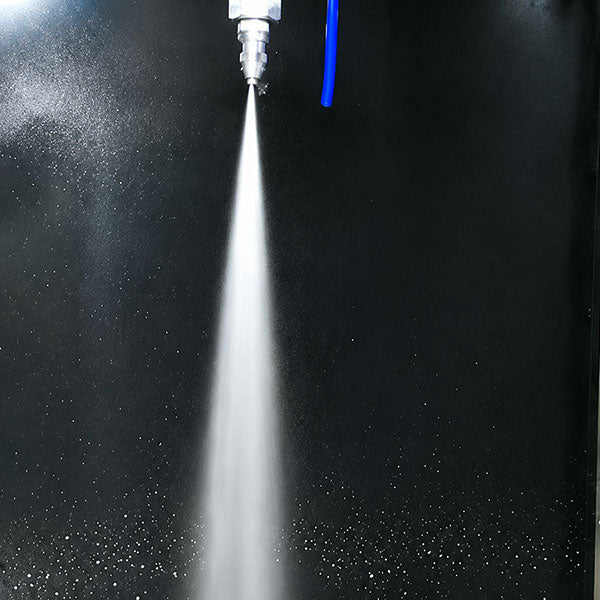

The Narrow Angle Full Cone Jet Spray Nozzle produces concentrated 15° or 30° full cone spray patterns with large droplets and strong impact. Designed for powerful washing and rinsing, it delivers concentrated spray performance where extended reach and high impact are required. The removable internal vane allows quick access for cleaning, helping reduce maintenance time when clogging occurs.
Material: Stainless Steel, Brass, Ceramic, Plastic
Contact Us

Key Features

  • 15° and 30° narrow-angle full cone spray
  • Strong spray impact and concentrated coverage
  • Large droplets for powerful washing
  • Extended spray reach
  • Removable vane for easy cleaning
  • Easy maintenance when clogging occurs
  • Suitable for demanding industrial cleaning

Applications

  • Parts cleaning
  • Deep hole cleaning
  • Internal pipe rinsing

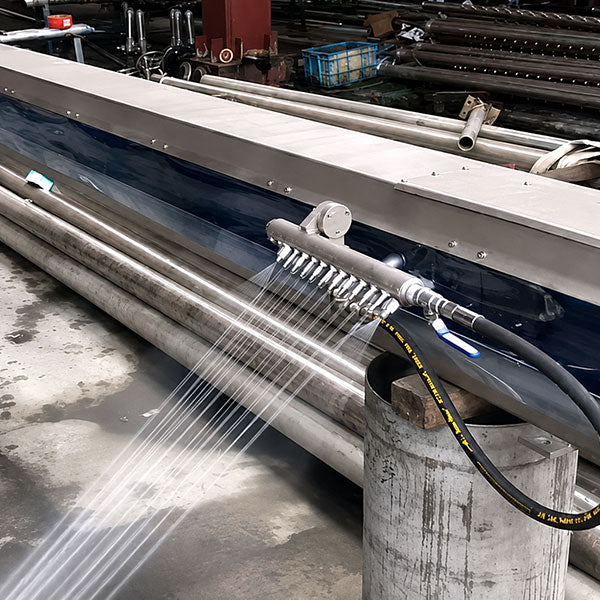

  • Steel plate washing
  • Industrial washing and rinsing

Technical Specification (15°)

Inlet Connector Nozzle Model No. Orifice Diameter mm Flow Rate (L/min) Spray Angle
0.7 kg 1.5 kg 2 kg 3 kg 4 kg 5 kg 6 kg 7 kg 10 kg 20 kg 0.7 kg 3 kg 7 kg
1/8 1507 1.6 1.3 2.0 2.3 2.8 3.2 3.6 3.9 4.2 5.0 7.1 13° 15° 15°
1514 2.4 2.7 3.9 4.5 5.5 6.4 7.1 7.8 8.4 10.1 14.3 13° 15° 15°
1/4 1530 3.2 5.7 8.4 9.7 11.8 13.7 15.3 16.7 18.1 22 31 13° 15° 15°
3/8 1550 4.4 9.5 14.0 16.1 19.7 23 25 28 30 36 51 13° 15° 15°
1/2 1590 5.6 17.2 25 29 36 41 46 50 54 65 92 13° 15° 15°
3/4 15150 7.5 29 42 48 59 68 76 84 90 108 153 13° 15° 15°

Technical Specification (30°)

Inlet Connector Nozzle Model No. Orifice Diameter mm Flow Rate (L/min) Spray Angle
1 kg 2 kg 3 kg 4 kg 5 kg 6 kg 7 kg 10 kg 15 kg 20 kg 0.5 kg 1.5 kg 6 kg
1/8 3001.4 0.79 0.32 0.45 0.55 0.64 0.71 0.78 0.84 1.0 1.2 1.4 17° 30° 31°
3002.5 0.79 0.57 0.81 0.99 1.1 1.3 1.4 1.5 1.8 2.2 2.5 17° 30° 32°
3004 1.2 0.91 1.3 1.6 1.8 2.0 2.2 2.4 2.9 3.5 4.1 26° 30° 32°
3007 1.6 1.6 2.3 2.8 3.2 3.6 3.9 4.2 5.0 6.2 7.1 23° 30° 30°
1/4 3009 2.0 2.1 2.9 3.6 4.1 4.6 5.0 5.4 6.5 7.9 9.2 23° 30° 30°
3/8 3014 2.4 3.2 4.5 5.5 6.4 7.1 7.8 8.4 10.1 12.4 14.3 25° 30° 30°
1/2 3030 3.2 6.8 9.7 11.8 13.7 15.3 16.7 18.1 22 26 31 26° 30° 31°
3/4 3050 4.4 11.4 16.1 19.7 23 25 28 30 36 44 51 26° 30° 31°
1 3070 5.2 16.0 23 28 32 36 39 42 50 62 71 27° 30° 30°
30100 6.4 23 32 39 46 51 56 60 72 88 102 27° 30° 30°
1-1/4 30150 7.5 34 48 59 68 76 84 90 108 132 153 27° 30° 30°
30200 8.7 46 64 79 91 102 112 121 144 177 205 27° 30° 30°
1-1/2 30250 9.5 57 81 99 114 127 140 151 180 220 255 27° 30° 30°
30300 10.3 68 97 118 137 153 167 181 220 265 305 27° 30° 30°
2 30350 11.1 80 113 138 160 178 195 215 255 310 360 28° 30° 30°
30400 11.9 91 129 158 182 205 225 245 290 355 410 28° 30° 30°
30500 13.5 114 161 197 230 255 280 305 360 445 510 28° 30° 30°
2-1/2 30600 14.7 137 193 235 275 305 335 365 435 530 620 28° 30° 30°
30700 15.9 160 225 280 320 360 390 425 510 620 720 28° 30° 30°
301000 19.1 230 325 395 455 510 560 610 720 890 1020 28° 30° 30°
301100 19.8 250 355 435 510 560 620 670 800 970 1120 28° 30° 30°
301200 20.6 275 390 475 550 620 670 730 870 1060 1230 28° 30° 30°
Other sizes and material available upon request
