Model:
V-01
V-Type Narrow Angle Flat Fan Spray Nozzle
Durable. Precise. Built for Performance.

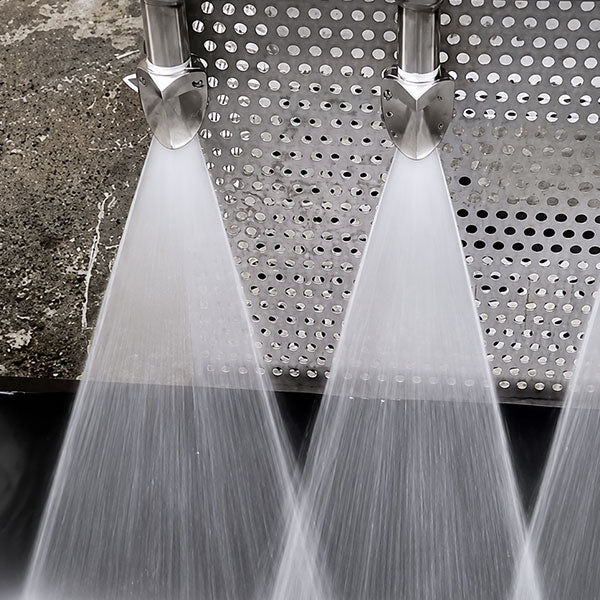

The V-Type Narrow Angle Flat Fan Spray Nozzle produces a concentrated flat fan spray with high impact and strong penetration. Its narrow spray angle focuses the liquid over a smaller area, making it ideal for applications requiring powerful and precise spraying. Designed for reliable industrial operation, it is suitable for cleaning, washing, descaling, and other high-impact spray processes.
Material:
Stainless Steel, Brass
Contact Us
Key Features
- Narrow Angle Spray – Concentrated flat fan pattern for focused coverage.
- High Impact – Delivers powerful spray force for demanding applications.
- Precise Spraying – Focuses liquid onto targeted working areas.
- Stable Performance – Designed for consistent industrial operation.
- Durable Construction – Suitable for demanding working environments.
- Easy Installation – Compatible with industrial spray systems and manifolds
Applications

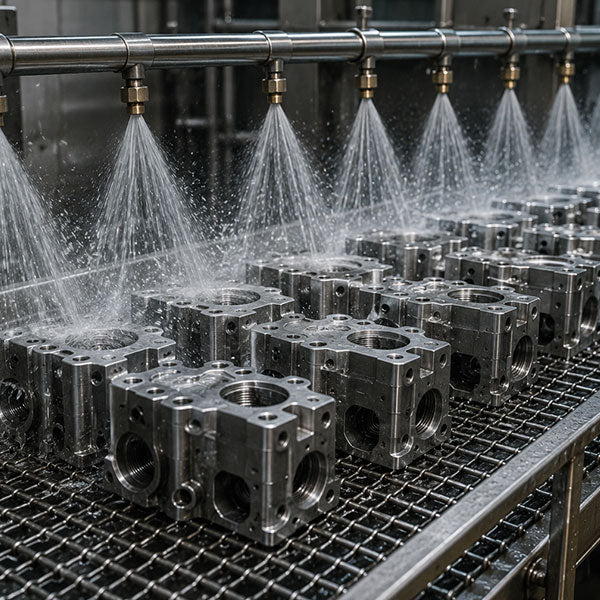

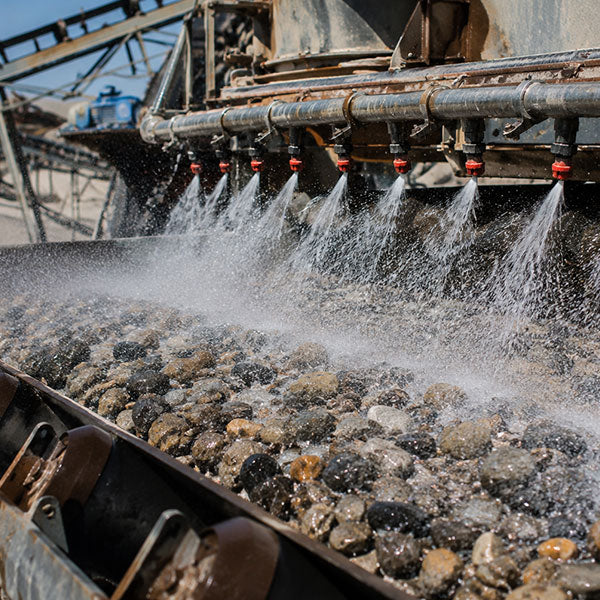

- Sand & Aggregate Washing – High-impact spraying for material cleaning.

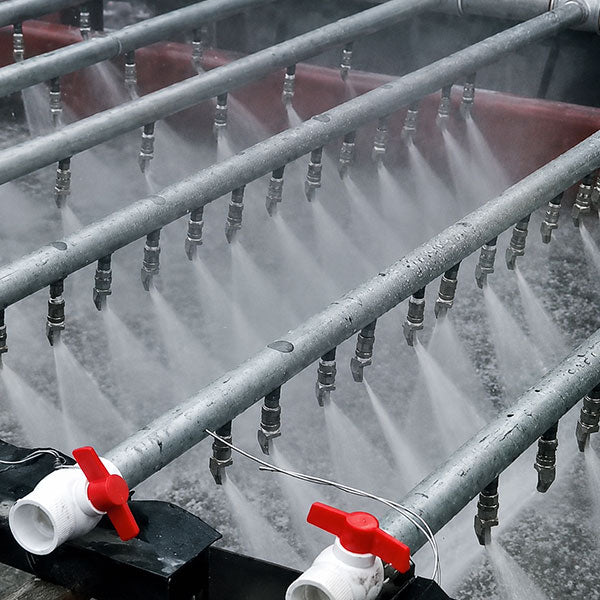

- Industrial Cleaning – Removes dirt and deposits from equipment and surfaces.
- Descaling – Concentrated spray impact for scale and residue removal.
- Parts Washing – Focused cleaning of industrial components.
- Surface Treatment – Controlled high-impact spraying for process applications.
- High-Impact Rinsing – Powerful rinsing where concentrated spray force is required.
Technical Specifications
| Inlet Connector | Nozzle Model No. | Orifice Diameter mm | Flow Rate (L/min) | |||||||
|---|---|---|---|---|---|---|---|---|---|---|
| 0.7 kg | 1 kg | 2 kg | 3 kg | 4 kg | 5 kg | 10 kg | 15 kg | |||
| 1/8 | 04 | 1.24 | 0.76 | 0.91 | 1.29 | 1.58 | 1.82 | 2.04 | 2.88 | 3.53 |
| 1/4 | 10 | 1.98 | 1.91 | 2.28 | 3.22 | 3.95 | 4.56 | 5.10 | 7.21 | 8.83 |
| 20 | 2.77 | 3.81 | 4.56 | 6.45 | 7.89 | 9.12 | 10.2 | 14.4 | 17.7 | |
| 25 | 2.77 | 4.77 | 5.70 | 8.06 | 9.87 | 11.4 | 12.7 | 18.0 | 22.1 | |
| 40 | 3.96 | 7.63 | 9.12 | 12.9 | 15.8 | 18.2 | 20.4 | 28.8 | 35.3 | |
| 3/8 | 20 | 2.77 | 3.81 | 4.56 | 6.45 | 7.89 | 9.12 | 10.2 | 14.4 | 17.7 |
| 25 | 2.77 | 4.77 | 5.70 | 8.06 | 9.87 | 11.4 | 12.7 | 18.0 | 22.1 | |
| 30 | 3.18 | 5.72 | 6.84 | 9.67 | 11.8 | 13.7 | 15.3 | 21.6 | 26.5 | |
| 40 | 3.96 | 7.63 | 9.12 | 12.9 | 15.8 | 18.2 | 20.4 | 28.6 | 35.3 | |
| 50 | 3.96 | 9.53 | 11.4 | 16.1 | 19.7 | 22.8 | 25.5 | 36.0 | 44.1 | |
| 60 | 4.75 | 11.4 | 13.7 | 19.3 | 23.7 | 27.3 | 30.6 | 43.2 | 53.0 | |
| 70 | 5.16 | 13.3 | 16.0 | 22.6 | 27.6 | 31.9 | 35.7 | 50.4 | 61.8 | |
| 80 | 5.31 | 15.3 | 18.2 | 25.8 | 31.6 | 36.5 | 40.8 | 57.7 | 70.6 | |
| 90 | 5.54 | 17.2 | 20.5 | 29.0 | 35.5 | 41.0 | 45.9 | 64.9 | 79.4 | |
| 100 | 5.94 | 19.1 | 22.8 | 32.2 | 39.5 | 45.6 | 51.0 | 72.1 | 88.3 | |
| 120 | 7.14 | 22.9 | 27.3 | 38.7 | 47.4 | 54.7 | 61.1 | 86.5 | 106 | |
| 125 | 6.76 | 23.8 | 28.5 | 40.3 | 49.3 | 57.0 | 63.7 | 90.1 | 110 | |
| 160 | 7.54 | 30.5 | 36.5 | 51.6 | 63.2 | 72.9 | 81.5 | 115 | 141 | |
| 200 | 8.33 | 38.1 | 45.6 | 64.5 | 78.9 | 91.2 | 102 | 144 | 177 | |
| 1/2 | 60 | 4.75 | 11.4 | 13.7 | 19.3 | 23.7 | 27.3 | 30.6 | 43.2 | 53.0 |
| 80 | 5.16 | 15.3 | 18.2 | 25.8 | 31.6 | 36.5 | 40.8 | 57.7 | 70.6 | |
| 100 | 5.94 | 19.1 | 22.8 | 32.2 | 39.5 | 45.6 | 51.0 | 72.1 | 88.3 | |
| 140 | 7.52 | 26.7 | 31.9 | 45.1 | 55.3 | 63.8 | 71.3 | 101 | 124 | |
| 160 | 7.92 | 30.5 | 36.5 | 51.6 | 63.2 | 72.9 | 81.5 | 115 | 141 | |
| 3/4 | 160 | 7.92 | 30.5 | 36.5 | 51.6 | 63.2 | 72.9 | 81.5 | 115 | 141 |
| 200 | 8.33 | 38.1 | 45.6 | 64.5 | 78.9 | 91.2 | 102 | 144 | 177 | |
