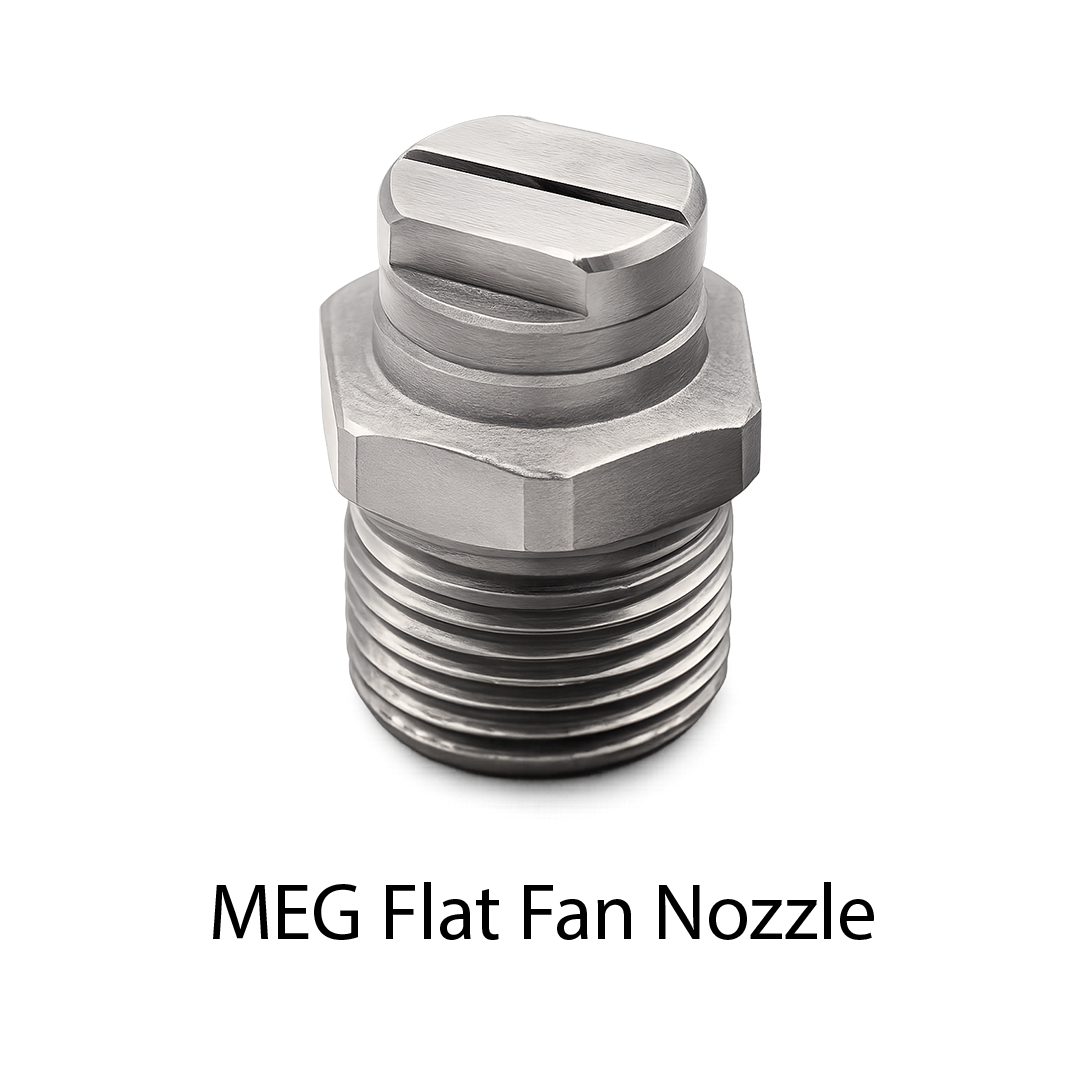

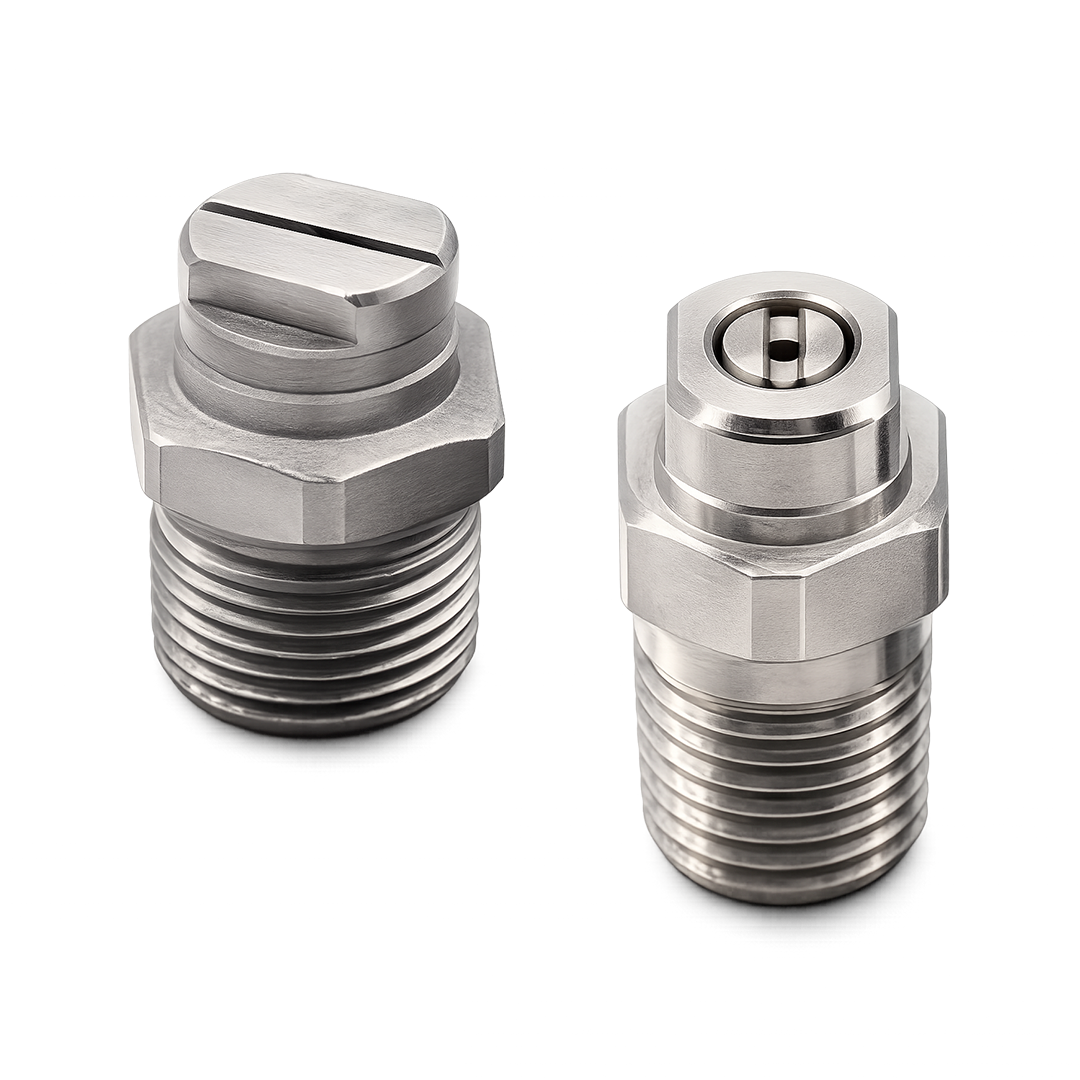

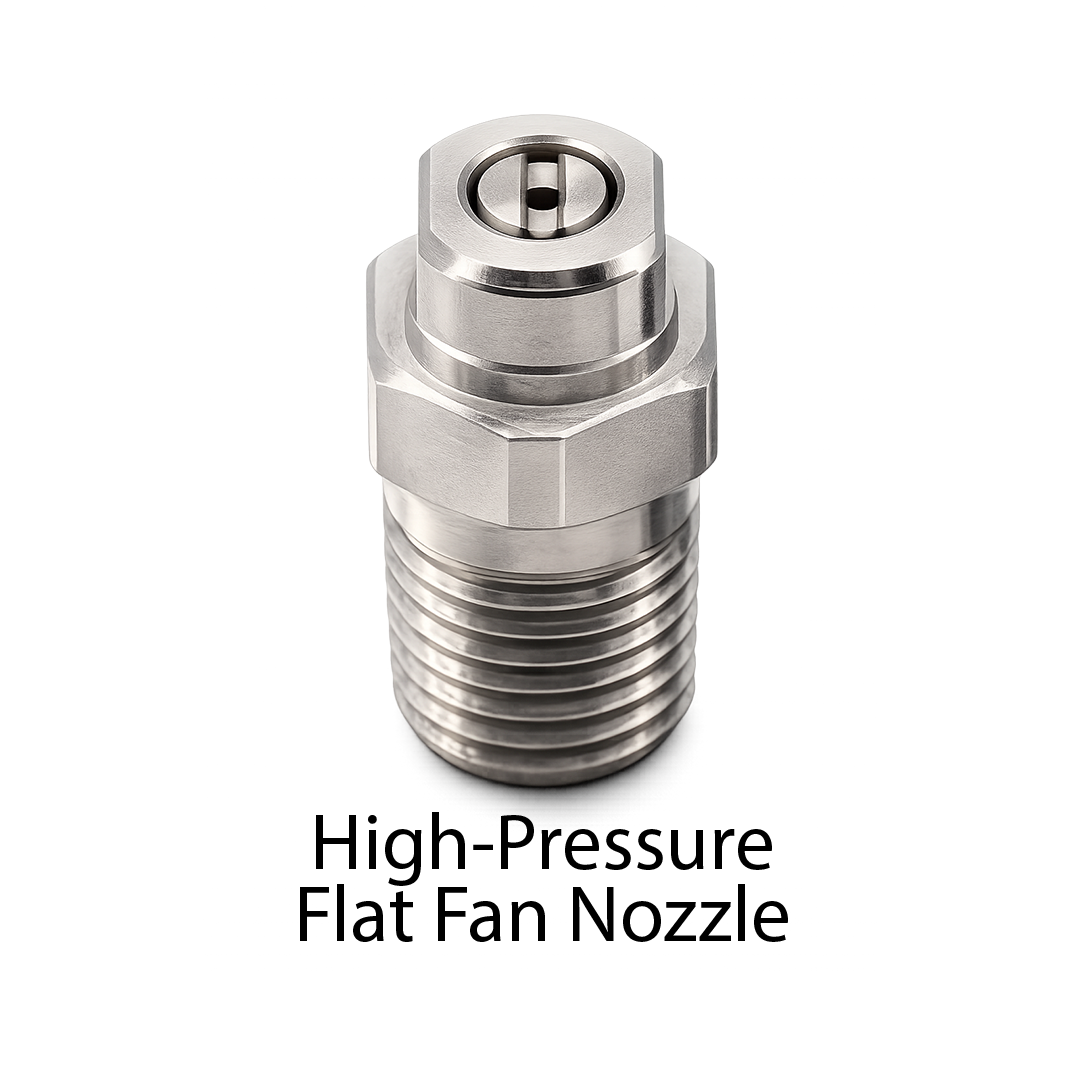

MEG Flat Fan Nozzle & High-Pressure Flat Fan Nozzle | Flat Fan Spray Nozzle
Durable. Precise. Built for Performance.
Material:
Stainless Steel
Contact Us
Technical Specifications
| Spray Angle | Nozzle Model No. | Flow Rate (L/min) | |||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 0° | 5° | 15° | 25° | 40° | 50° | 65° | 20 bar | 25 bar | 35 bar | 40 bar | 45 bar | 60 bar | 80 bar | 100 bar | 140 bar | 170 bar | 200 bar | ||
| ● | 01 | 1.0 | 1.1 | 1.3 | 1.4 | 1.5 | 1.8 | 2.0 | 2.3 | 2.7 | 3.0 | 3.2 | |||||||
| ● | 015 | 1.5 | 1.7 | 2.0 | 2.2 | 2.3 | 2.6 | 3.1 | 3.4 | 4.0 | 4.5 | 4.8 | |||||||
| ● | ● | ● | ● | ● | ● | 02 | 2.0 | 2.3 | 2.7 | 2.9 | 3.1 | 3.5 | 4.1 | 4.6 | 5.4 | 5.9 | 6.4 | ||
| ● | 025 | 2.5 | 2.8 | 3.4 | 3.6 | 3.8 | 4.4 | 5.1 | 5.7 | 6.7 | 7.4 | 8.1 | |||||||
| ● | ● | ● | ● | ● | ● | ● | 03 | 3.1 | 3.4 | 4.0 | 4.3 | 4.6 | 5.3 | 6.1 | 6.8 | 8.1 | 8.9 | 9.7 | |
| ● | ● | ● | 035 | 3.6 | 4.0 | 4.7 | 5.0 | 5.4 | 6.2 | 7.1 | 8.0 | 9.4 | 10.4 | 11.3 | |||||
| ● | ● | ● | ● | ● | ● | 04 | 4.1 | 4.6 | 5.4 | 5.8 | 6.1 | 7.1 | 8.2 | 9.1 | 10.8 | 11.9 | 12.9 | ||
| ● | ● | ● | ● | 045 | 4.6 | 5.1 | 6.1 | 6.5 | 6.9 | 7.9 | 9.2 | 10.3 | 12.1 | 13.4 | 14.5 | ||||
| ● | ● | ● | ● | ● | ● | 05 | 5.1 | 5.7 | 6.7 | 7.2 | 7.6 | 8.8 | 10.2 | 11.4 | 13.5 | 14.9 | 16.1 | ||
| ● | ● | ● | ● | ● | ● | 055 | 5.6 | 6.3 | 7.4 | 7.9 | 8.4 | 9.7 | 11.2 | 12.5 | 14.8 | 16.3 | 17.7 | ||
| ● | ● | ● | ● | ● | ● | 06 | 6.1 | 6.8 | 8.1 | 8.6 | 9.2 | 10.6 | 12.2 | 13.7 | 16.2 | 17.8 | 19.3 | ||
| ● | ● | ● | ● | 065 | 6.6 | 7.4 | 8.8 | 9.4 | 9.9 | 11.5 | 13.3 | 14.8 | 17.5 | 19.3 | 21 | ||||
| ● | ● | ● | ● | ● | ● | 07 | 7.1 | 8.0 | 9.4 | 10.1 | 10.7 | 12.4 | 14.3 | 16.0 | 18.9 | 21 | 23 | ||
| ● | ● | ● | 075 | 7.6 | 8.5 | 10.1 | 10.8 | 11.5 | 13.2 | 15.3 | 17.1 | 20 | 22 | 24 | |||||
| ● | ● | ● | ● | ● | ● | 08 | 8.2 | 9.1 | 10.8 | 11.5 | 12.2 | 14.1 | 16.3 | 18.2 | 22 | 24 | 26 | ||
| ● | ● | ● | 085 | 8.7 | 9.7 | 11.5 | 12.3 | 13.0 | 15.0 | 17.3 | 19.4 | 23 | 25 | 27 | |||||
| ● | ● | ● | ● | ● | ● | 09 | 9.2 | 10.3 | 12.1 | 13.0 | 13.8 | 15.9 | 18.3 | 21 | 24 | 27 | 29 | ||
| ● | 095 | 9.7 | 10.8 | 12.8 | 13.7 | 14.5 | 16.8 | 19.4 | 22 | 26 | 28 | 31 | |||||||
| ● | ● | ● | ● | ● | 10 | 10.2 | 11.4 | 13.5 | 14.4 | 15.3 | 17.7 | 20 | 23 | 27 | 30 | 32 | |||
| ● | ● | ● | 11 | 11.2 | 12.5 | 14.8 | 15.9 | 16.8 | 19.4 | 22 | 25 | 30 | 33 | 35 | |||||
| 115 | 11.7 | 13.1 | 15.5 | 16.6 | 17.6 | 20 | 23 | 26 | 31 | 34 | 37 | ||||||||
| ● | ● | ● | ● | ● | ● | ● | 12 | 12.2 | 13.7 | 16.2 | 17.3 | 18.3 | 21 | 24 | 27 | 32 | 36 | 39 | |
| ● | ● | ● | 125 | 12.7 | 14.2 | 16.9 | 18.0 | 19.1 | 22 | 25 | 28 | 34 | 37 | 40 | |||||

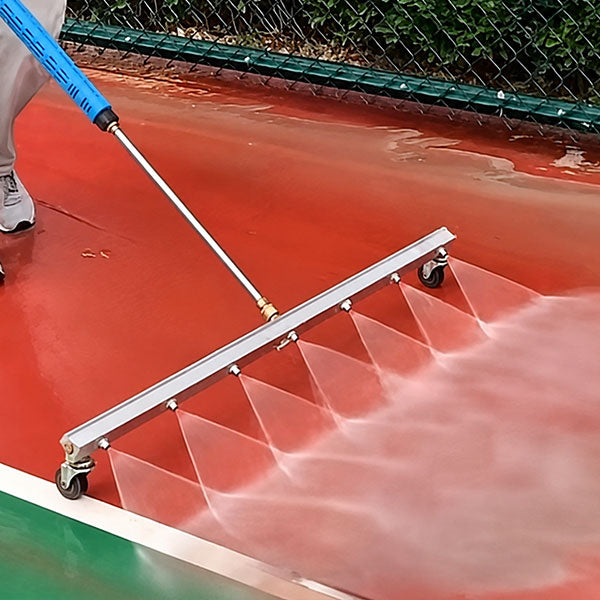

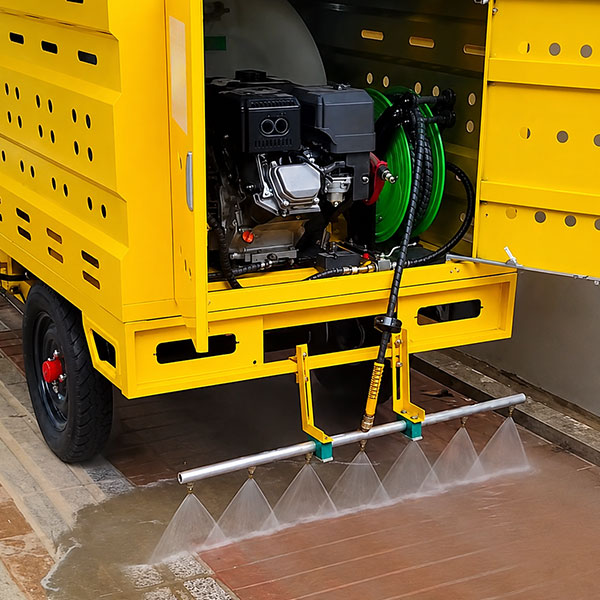

Applications
