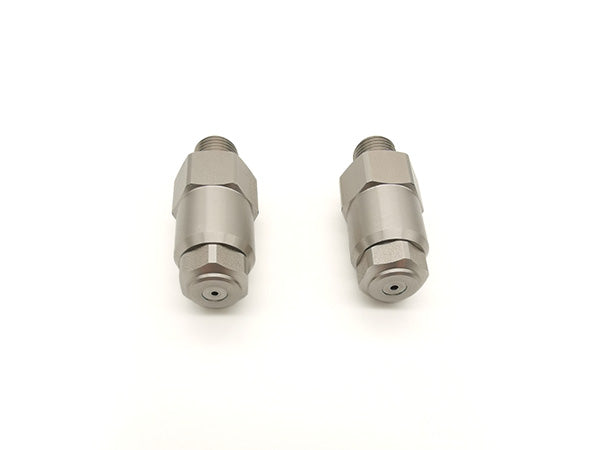

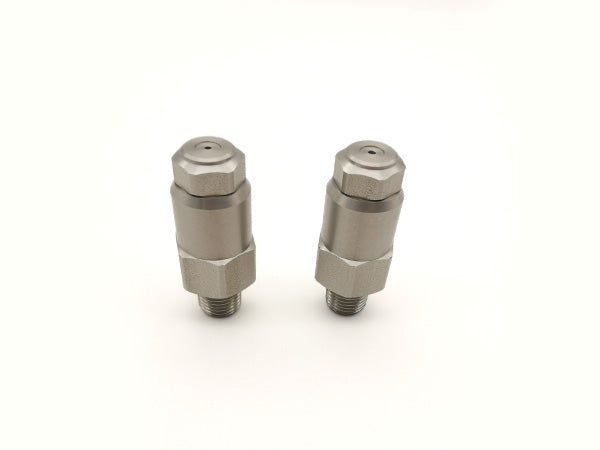

Fine Mist Nozzle
Fine Mist Nozzle

Fine Mist Nozzle

Durable. Precise. Built for Performance.

The Fine Mist Nozzle, also known as a Micro Atomizing Nozzle, is engineered to produce ultra-fine mist droplets for precise and efficient spray control.
Using advanced atomization technology, it converts liquid into a uniform mist with droplets as small as 10–50 microns, ensuring maximum coverage and minimal water consumption.

Technical Specifications

Spray Pattern : Full Cone / Flat Fan / Round Mist
Orifice Diameter : -
Spray Angle : -
Flow Rate : 0.1-5.0 L/min
Working Pressure : -
Connection Size(s) : 1/8", 1/4", 3/8", BSPT or NPT
Material : Stainless Steel, Brass, Nickel-Plated Brass

Speak with our team for more information.

Advantages

  • Produces consistent, ultra-fine mist for efficient performance
  • Low clogging rate with self-cleaning options available
  • Compact and lightweight design for versatile installation
  • Long service life and corrosion-resistant construction
  • Custom flow rates and spray angles available upon request

Learn More

👉 Contact us today for more information or a custom quote on the nozzles designed to optimize your systems.

Contact Us

Technical Specifications (Full Cone)

Nozzle Model No. Liquid Cap and Air Cap No. Flow Rate at Different Pressure (L/min) Jet Size
Air Pressure (kg) Water (L/hr) Air (L/min) Air Pressure (kg) Water (L/hr) Air (L/min) Air Pressure (kg) Water (L/hr) Air (L/min) Air Pressure (kg) Water (L/hr) Air (L/min) Air Pressure (kg) Water (L/hr) Air (L/min) Air (kg) Liquid (kg) A Jet Angle B (cm) D (m)
SUII Liquid Cap 2050 Air Cap 62147 0.7 2.5 15.6 1.1 6.4 11.9 1.4 6.4 13.9 2.7 6.2 23 3.5 7.8 28 0.85 0.7 13° 30 2.7
0.85 1.8 19.0 1.4 5.0 15.0 1.7 5.5 16.7 2.8 5.7 25 3.7 7.3 29 1.7 1.5 13° 33 3.0
1.0 1.4 22 1.7 4.1 18.9 2.0 4.5 19.8 3.0 5.2 27 3.9 6.4 33 2.5 2.0 13° 36 3.4
1.8 3.4 20 2.2 3.4 24 3.1 4.7 29 4.2 5.5 38 3.1 3.0 14° 39 3.8
2.0 3.0 23 2.4 3.0 26 3.2 4.3 31 4.5 4.5 43 4.5 4.0 15° 44 4.4
2.1 2.6 25 2.5 2.5 28 3.4 3.9 33 4.6 4.1 45
2.2 2.0 27 2.7 2.3 31 3.7 3.0 38 4.8 3.7 47
SU12A Liquid Cap 2050 Air Cap 73160 0.7 2.5 18.7 1.4 5.7 27 1.7 6.7 29 2.2 9.2 34 2.8 11.9 39 0.85 0.7 12° 43 3.7
0.85 2.0 22 1.5 5.2 29 1.8 6.4 31 2.5 8.2 39 3.1 11.0 43 1.5 1.5 13° 46 4.0
1.0 1.6 26 1.7 4.8 32 2.0 5.9 34 2.8 7.2 44 3.4 10.1 47 2.4 2.0 13° 48 4.3
1.8 4.3 35 2.1 5.2 37 3.0 6.7 47 3.7 9.2 52 3.0 3.0 13° 51 4.6
2.0 3.9 37 2.2 4.8 40 3.1 6.3 49 3.9 8.4 58 3.9 4.0 15° 56 5.2
2.1 3.4 40 2.4 4.3 43 3.2 5.9 52 4.2 7.6 62
2.7 3.6 48 3.4 5.5 55 4.5 6.8 68
SU12 Liquid Cap 2050 Air Cap 73160 0.85 4.8 1.7 8.4 31 2.0 10.7 33 2.7 16.5 37 3.4 20 43 1.5 0.7 12° 48 4.0
1.1 4.1 21 1.8 7.5 35 2.1 9.8 37 2.8 15.4 38 3.7 18.4 47 2.5 1.5 13° 51 4.3
1.4 3.4 27 2.0 7.0 37 2.4 8.2 42 3.1 13.6 43 3.9 16.8 50 3.0 2.0 13° 53 4.6
1.5 3.1 33 2.2 5.7 44 2.7 6.8 48 3.4 11.8 49 4.2 15.2 55 3.4 3.0 14° 56 4.9
1.7 3.0 35 2.5 4.8 49 3.0 5.9 55 3.7 10.4 55 4.5 13.8 60 4.2 4.0 15° 60 5.3
1.8 2.9 39 2.8 4.1 54 3.2 5.0 59 3.9 9.1 61 4.8 12.4 65
2.0 2.8 41 3.1 3.6 59 3.5 4.1 65 4.2 7.9 65 4.9 11.8 68
SU22B Liquid Cap 40100 Air Cap 1401110 1.1 13.0 44 2.2 17.8 116 2.8 20 136 3.4 32 149 4.6 37 193 1.7 0.7 18° 66 4.9
1.4 8.9 76 2.5 13.1 130 3.1 16.3 149 3.9 25 170 5.3 29 220 2.8 1.5 20° 76 5.8
1.5 7.2 91 2.8 9.5 143 3.4 11.9 163 4.6 15.9 205 5.6 25 235 3.9 2.0 20° 81 6.7
1.7 5.8 98 3.1 7.0 157 3.9 7.0 187 5.3 9.1 240 6.0 21 250 5.3 3.0 21° 91 7.0
1.8 4.7 105 3.4 4.9 171 4.2 4.7 205 5.6 6.8 255 6.3 17.4 270 6.0 4.0 21° 97 8.5
2.0 3.6 112 3.5 4.2 178 4.6 3.0 220 6.0 5.0 275 6.7 14.0 290
2.1 2.7 119 6.3 3.6 290 7.0 11.0 305
SU22 Liquid Cap 60100 Air Cap 1401110 0.85 31 127 1.4 61 69 2.1 53 96 2.7 80 103 3.8 88 135 1.0 0.7 17° 61 6.1
1.0 25 57 1.5 54 76 2.4 41 112 3.0 69 117 4.2 73 156 1.8 1.5 18° 69 7.0
1.1 18.5 66 1.7 48 85 2.7 31 127 3.2 59 130 4.6 61 176 2.8 2.0 20° 76 7.6
1.3 12.9 75 1.8 41 93 2.8 26 136 3.5 49 146 4.9 48 196 3.5 3.0 20° 79 7.9
85 2.0 35 102 3.0 22 144 3.7 44 154 5.3 39 215 4.9 4.0 21° 91 9.1
2.1 30 110 3.8 37 161 5.6 31 240
2.2 25 119 3.9 35 170 6.0 23 260
SU42 Liquid Cap 100150 Air Cap 1891125 1.0 44 1.4 125 79 2.0 123 108 2.2 199 88 3.0 250 99 1.0 0.7 19° 89 6.1
1.1 32 86 1.5 106 91 2.1 108 119 2.5 174 110 3.2 225 120 1.7 1.5 20° 99 7.0
102 1.7 87 105 2.2 95 130 2.8 146 133 3.5 205 141 2.4 2.0 21° 104 7.6
1.8 70 118 2.4 79 143 3.1 121 154 3.8 182 163 3.1 3.0 21° 107 7.9
2.0 55 130 2.5 64 155 3.2 108 166 4.1 159 184 3.8 4.0 22° 117 9.1
2.7 52 166 3.4 95 176 4.6 121 225
2.8 42 178 3.5 84 187 4.9 93 255

Technical Specifications (Flat Fan)

Nozzle Model No. Liquid Cap and Air Cap No. Flow Rate at Different Pressure (L/min) Jet Size
Air Pressure (kg) Water (L/hr) Air (L/min) Air Pressure (kg) Water (L/hr) Air (L/min) Air Pressure (kg) Water (L/hr) Air (L/min) Air Pressure (kg) Water (L/hr) Air (L/min) Air Pressure (kg) Water (L/hr) Air (L/min) Air (kg) Liquid (kg) A (cm) B (cm) C (cm) D (cm)
SU13A Liquid Cap 2050 Air Cap 73328 0.7 5.5 24 1.3 9.1 31 2.0 8.6 42 2.7 11.2 52 3.9 12.0 69 1.1 0.7 25 38 46 2.6
0.85 4.7 27 1.5 7.7 36 2.2 7.5 47 3.0 10.1 56 4.6 9.7 81 2.1 1.5 36 48 66 3.0
1.0 4.1 31 1.8 6.5 42 2.5 6.2 52 3.2 9.1 62 5.3 7.5 93 2.8 2.0 38 53 76 3.2
1.1 3.5 34 2.1 5.4 47 2.8 5.2 57 3.5 8.1 66 6.0 5.3 104 3.5 3.0 47 61 86 3.4
1.3 3.0 37 2.4 4.3 52 3.1 4.2 63 4.2 5.4 78 6.3 4.3 110 6.0 4.0 56 74 94 4.0
1.4 2.5 40 2.7 3.3 57 3.2 3.7 65 4.6 4.2 85 6.7 3.3 116
1.5 2.0 44 2.8 2.8 60 3.4 3.2 68 4.9 3.1 91 7.0 2.4 122
SU13 Liquid Cap 2850 Air Cap 73328 0.85 8.2 19.8 1.4 14.4 27 2.1 13.5 36 2.7 19.1 42 4.6 16.1 69 1.1 0.7 36 46 71 2.1
1.0 6.8 23 1.7 11.9 32 2.4 11.4 42 3.0 17.1 46 4.9 13.8 76 2.1 1.5 43 61 81 2.4
1.1 5.5 27 2.0 9.5 37 2.7 9.2 47 3.2 15.1 52 5.3 11.5 83 3.0 2.0 51 66 89 2.6
1.3 4.1 30 2.1 8.3 40 3.0 7.1 53 3.2 13.1 57 5.6 9.3 90 3.5 3.0 58 76 97 2.7
1.4 2.9 34 2.2 7.1 43 3.2 5.0 59 4.2 8.1 72 6.0 7.3 97 5.6 4.0 58 76 97 3.2
2.4 6.1 46 3.4 4.0 63 4.6 5.9 79 6.3 5.6 104
2.5 5.1 49 3.5 3.3 66 4.9 4.0 86 6.7 4.3 112
SUN13 Liquid Cap 2850 Air Cap 73325 1.0 9.0 25 2.0 10.4 41 2.4 11.6 48 3.1 15.6 56 4.2 17.1 73 1.4 0.7 10 13 17 3.0
1.1 7.8 30 2.1 9.3 45 2.5 10.4 51 3.2 14.6 59 4.6 15.0 80 2.5 1.5 13 15 20 3.7
1.3 6.6 32 2.2 8.2 48 2.7 9.4 54 3.4 13.7 62 4.9 12.8 87 3.2 2.0 13 17 22 4.0
1.4 5.2 36 2.5 6.1 55 3.0 7.3 61 3.8 10.8 71 5.3 11.0 94 3.8 3.0 15 22 28 4.2
1.7 3.1 44 2.8 4.3 62 3.2 5.3 68 4.2 8.5 82 5.6 9.4 103 5.3 4.0 20 25 33 4.8
2.0 2.0 50 3.1 3.0 69 3.5 4.1 75 4.9 5.2 98 6.3 7.2 119
2.2 1.1 56 3.4 2.0 75 3.8 2.9 81 6.0 2.3 120 7.0 6.1 134
SU14 Liquid Cap 2850 Air Cap 73320 1.3 3.9 30 2.1 7.4 40 3.0 6.1 52 3.9 9.4 60 5.3 10.2 78 1.5 0.7 23 33 46 1.8
1.4 3.0 33 2.4 5.3 45 3.1 5.3 54 4.2 7.2 67 5.6 8.3 84 2.7 1.5 36 51 69 2.0
1.5 2.3 35 2.5 4.4 47 3.2 4.5 57 4.6 5.3 73 6.0 6.6 89 3.2 2.0 58 74 91 2.0
1.7 1.8 38 2.7 3.7 50 3.4 3.8 59 4.9 3.8 80 6.3 5.1 98 4.2 3.0 61 74 94 2.1
1.8 1.3 41 2.8 3.1 52 3.5 3.2 62 5.6 4.0 64 76 97 2.3
2.0 0.95 44 3.0 2.6 55 3.9 1.8 68
SUN23 Liquid Cap 60100 Air Cap 125340 1.0 17.0 23 2.0 24 44 2.4 28 51 3.4 38 72 3.9 65 75 1.1 0.7 10 13 15 2.4
1.1 11.0 27 2.1 18.9 50 2.5 23 59 3.5 33 80 4.2 53 89 2.1 1.5 10 13 17 3.0
1.3 7.6 33 2.2 14.4 56 2.7 18.9 66 3.7 28 89 4.6 40 108 2.8 2.0 13 17 22 3.4
1.4 3.2 40 2.4 10.6 63 2.8 15.1 74 3.8 23 97 4.9 30 127 3.7 3.0 15 20 28 3.6
2.5 7.2 71 3.0 11.7 79 3.9 19.7 105 5.3 21 149 4.9 4.0 20 25 35 4.0
4.2 13.1 120 5.6 13.8 173
4.6 7.2 138 6.3 3.2 225
SU23B Liquid Cap 40100 Air Cap 125328 2.7 19.6 93 3.5 27 112 4.6 3.3 137 1.4 0.7 15 18 20 3.0
1.1 11.2 54 2.1 18.0 79 2.7 19.6 93 3.5 27 112 4.6 3.3 137 1.4 0.7 15 18 20 3.0
1.3 8.5 60 2.2 15.8 84 2.8 17.3 98 3.7 25 116 4.9 28 149 2.4 1.5 23 28 33 3.2
1.4 6.5 65 2.4 13.6 89 3.0 15.2 103 3.8 23 121 5.3 24 161 3.0 2.0 25 33 46 3.4
1.5 5.0 71 2.5 11.6 95 3.1 13.2 109 3.9 21 126 5.6 19.7 174 3.7 3.0 30 38 46 3.5
1.7 3.8 77 3.2 11.4 114 4.1 18.9 132 6.0 15.7 187 5.3 4.0 33 41 48 4.0
4.2 17.0 137 6.3 12.4 200
SU23 Liquid Cap 60100 Air Cap 125328 0.85 27 33 1.8 38 55 2.4 39 67 3.2 58 76 4.6 59 106 1.1 0.7 18 23 30 3.4
1.0 20 38 2.1 28 66 2.7 30 87 3.5 47 87 5.3 40 132 2.4 1.5 23 30 41 3.5
1.1 15.9 45 2.2 24 71 3.0 24 97 3.8 38 97 5.6 32 145 3.2 2.0 25 33 43 3.7
1.3 12.5 48 2.4 21 76 3.2 17.8 103 3.9 34 103 6.0 26 158 3.9 3.0 30 38 48 3.8
1.4 10.2 56 2.5 17.8 82 3.4 15.1 113 4.2 27 113 6.3 20 172 6.0 4.0 33 41 51 4.4
1.5 7.6 62 2.7 15.1 87 3.5 12.9 126 4.6 20 126 6.7 15.9 185
3.7 10.6 140 4.9 14.8 140 7.0 12.7 198
SU43 Liquid Cap 100150 Air Cap 189351 1.0 29 90 1.8 56 117 2.1 100 119 3.0 126 140 181 4.1 140 1.0 0.7 18 20 25 3.4
1.1 18.9 108 2.0 40 133 2.2 79 133 3.1 110 151 193 4.2 125 1.8 1.5 25 20 43 3.8
2.4 62 147 3.2 95 163 225 4.6 89 2.4 2.0 25 30 46 4.3
2.5 48 162 3.4 78 184 265 4.9 58 3.4 3.0 33 41 53 4.6
2.7 36 177 3.5 62 193 305 5.3 34 4.9 4.0 36 43 58 5.2

Technical Specifications

Nozzle Model No. Liquid Cap and Air Cap No. Flow Rate at Different Pressure (L/min) Jet Size
Air Pressure (kg) Water (L/hr) Air (L/min) Air Pressure (kg) Water (L/hr) Air (L/min) Air Pressure (kg) Water (L/hr) Air (L/min) Air Pressure (kg) Water (L/hr) Air (L/min) Air Pressure (kg) Water (L/hr) Air (L/min) Air (kg) Liquid (kg) A (cm) B (cm) C (cm) D (cm)
SUE15B Liquid Cap 1650 Air Cap 67228-45° 0.2 25.2 0.35 26.3 0.7 31.2 1.4 45.3 2.8 73.6 0.2 0.2 9 15 23 0.9
0.35 26.3 0.7 31.2 1.05 39.6 1.75 53.8 3.5 85.0 1.05 0.2 9 15 23 1.2
0.7 31.2 1.05 39.6 1.4 45.3 2.1 59.5 4.2 102 1.4 0.35 10 15 23 1.2
1.05 39.6 2.8 1.4 45.3 3.5 1.75 53.8 5.3 2.8 73.6 7.8 4.9 119 11.0 1.4 1.4 11.5 18 25 1.5
1.4 45.3 1.75 53.8 2.1 59.4 3.5 85.0 5.3 127.5 1.75 0.7 11.5 15 24 1.5
1.75 53.8 2.1 59.4 2.8 73.6 4.2 102 5.6 139 2.8 1.4 13 18 28 1.8
2.1 59.4 2.8 73.6 3.5 85.0 5.6 139 6.3 159 4.9 2.8 15 18 24 2.4
SUE18B Liquid Cap 1650 Air Cap 62240-60° 0.35 22 0.35 22 0.4 25 0.6 28 0.7 34 0.4 0.3 20 28 33 1.2
0.4 25 0.4 25 0.6 28 0.7 34 1.1 45 0.6 0.7 23 30 40 1.8
2.8 3.5 5.3 7.8 11.0 1.1 1.5 28 35 46 1.8
0.5 27.5 0.6 28 0.7 34 1.1 45 1.8 62 1.4 1.5 25 30 41 2.7
0.6 28 0.7 34 0.85 40 1.4 54 2.5 79 1.1 2.0 28 35 48 2.6
1.4 3.0 30 38 51 2.7
SUE15A Liquid Cap 2050 Air Cap 67228-45° 0.35 26.3 0.7 31.2 1.05 39.6 1.75 53.8 3.15 82 0.35 0.2 7.5 14 22 1.0
0.7 31.2 1.05 39.6 1.4 45.3 2.1 59.4 3.5 85 1.4 0.2 9 15 22 1.0
1.05 39.6 1.4 45.3 1.75 53.8 2.8 73.6 4.2 102 1.75 0.35 10 16.5 23 1.8
1.4 45.3 4.5 1.75 53.8 5.5 2.1 59.4 8.3 3.5 85.0 12.2 4.9 119 16.6 1.75 1.4 13 19 29 2.1
1.75 53.8 2.1 59.4 2.8 73.6 4.2 102 5.25 132.7 2.1 0.7 13 18 25 1.8
2.1 59.4 2.8 73.6 3.5 85.0 4.9 119 6.3 159 3.5 1.4 13 22 30 2.4
2.8 73.6 3.5 85.0 4.2 102 6.3 159 6.7 164 5.3 2.8 15 19 25 3.0
SUE18A Liquid Cap 2050 Air Cap 62240-60° 0.35 22 0.35 22 0.6 28 0.7 34 1.1 45 0.7 0.3 28 33 40 1.5
0.6 28 0.7 34 0.7 34 1.4 54 1.4 54 1.1 0.7 30 38 48 2.1
4.5 5.5 8.3 12.2 17.2 0.7 1.5 38 46 58 1.8
0.7 34 1.1 45 1.4 54 2.1 71 2.1 71 1.4 1.5 35 43 56 2.4
1.1 45 1.4 54 2.1 71 2.5 79 2.5 79 2.5 1.5 33 40 51 3.0
1.8 2.0 38 46 58 2.7
1.8 3.0 41 48 66 2.9
SUE15 Liquid Cap 2850 Air Cap 67228-45° 0.7 31.2 1.05 39.6 1.4 45.3 2.5 68 3.5 85 0.7 0.2 13 16.5 25 1.2
1.05 39.6 1.4 45.3 1.75 53.8 2.8 73.6 4.2 102 1.75 0.2 13 16.5 25 1.8
1.4 45.3 1.75 53.8 2.1 59.4 3.5 85 4.9 119 2.1 0.35 13 18.0 24 1.8
1.75 53.8 8.5 2.1 59.4 10.4 2.8 73.6 15.9 4.2 102 23 5.3 127 33 2.5 1.4 14 20 32 1.8
2.1 59.4 2.8 73.6 3.5 85.0 4.9 119 5.6 138 2.8 0.7 14 19 30 2.3
2.8 73.6 3.5 85.0 4.2 102 5.6 139 6.3 159 4.2 1.4 14 20 36 3.0
3.5 85 4.2 102 4.9 119 6.3 159 7.0 176 5.3 2.8 16.5 20 30 4.0
SUE18 Liquid Cap 2850 Air Cap 67240-60° 0.4 25 0.4 25 0.4 25 0.7 34 1.4 54 0.6 0.3 35 48 61 1.8
0.5 27.5 0.6 28 0.6 28 0.85 40 1.8 62 0.7 1.5 38 48 63 1.5
8.5 10.4 15.9 23 33 1.1 1.5 41 51 66 2.1
0.6 28 0.65 31 0.7 34 1.1 45 2.1 71 1.4 1.5 43 53 66 2.4
0.7 34 0.7 34 0.85 40 1.4 54 2.5 79 1.8 2.0 41 51 69 2.7
2.1 3.0 41 51 69 2.9
Other sizes and material available upon request
