Durable. Precise. Built for Performance.

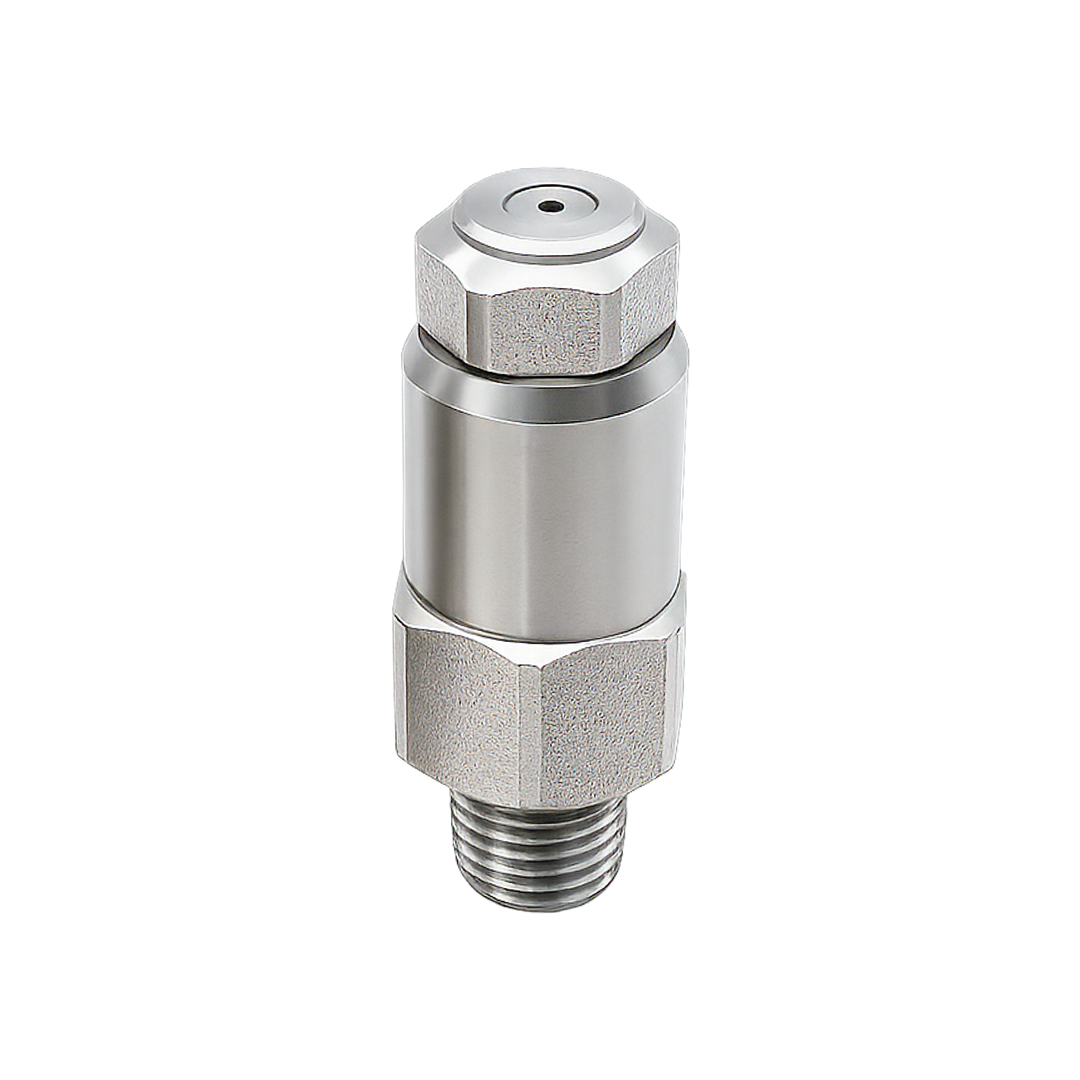

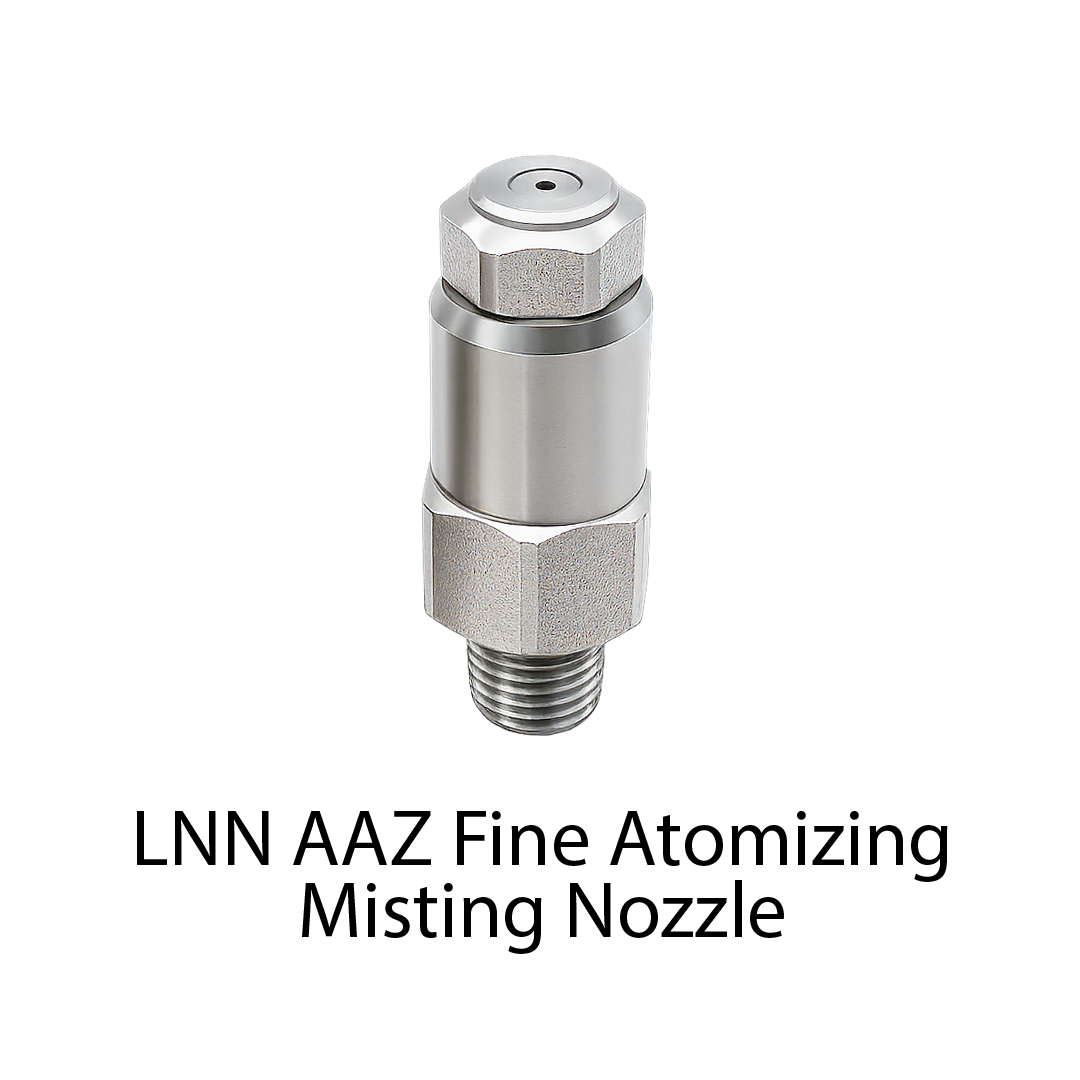

LNN AAZ Fine Atomizing Misting Nozzle delivers a finely atomized cone-shaped spray with adjustable coverage and spray characteristics. Its versatile design allows for a wide range of flow rates and operating conditions, making it suitable for diverse industrial and commercial applications.
Material: Stainless Steel, Brass
Contact Us

Technical Specifications

Connector Diameter inches LNN Nozzle Model Nozzle Diameter mm Model No. Flow Rate (L/min) Spray Angle (°)
2 bar 3 bar 4 bar 7 bar 15 bar 20 bar 35 bar 45 bar 80 bar 3 6 20
1/4 ● 0.30 0.41 106 3.1 4.0 4.6 6.1 51
● 0.40 0.41 108 4.1 5.4 6.1 8.2 58
0.50 0.41 109 4.4 5.1 6.7 7.6 10.2 63
● 0.60 0.41 206 3.6 5.3 6.1 8.1 9.2 12.2 35 65
● 1 0.51 210 3.9 4.6 6.0 6.8 10.2 13.5 15.3 20 45 62 72
● 1.5 0.51 216 4.8 5.9 6.8 9.0 13.2 15.3 20 23 31 65 70 72
● 2 0.71 216 6.4 7.9 9.1 12.1 17.7 20 27 31 41 70 75 77
● 3 0.71 220 9.7 11.8 13.7 18.1 26 31 40 46 61 65 70 73
● 4 1.1 220 12.9 15.8 18.2 24 35 41 54 61 82 72 81 84
● 6 1.1 225 19.3 24 27 36 53 61 81 92 122 73 79 81
● 8 1.5 225 26 32 36 48 71 82 108 122 163 85 89 91
● 10 1.6 420 32 39 46 60 88 102 135 204 204 82 84 86
● 12 1.9 420 39 47 55 72 106 122 162 183 245 78 82 85
● 14 1.9 421 45 55 64 84 124 143 189 214 285 85 88 90
16 2.2 421 52 63 73 96 141 163 216 245 326 83 86 88
● 18 1.9 422 58 71 82 109 159 183 243 275 367 81 84 86
20 2.1 422 64 79 91 121 177 204 270 306 408 75 78 80
● 22 1.9 625 71 87 100 133 194 224 297 336 449 70 72 75
● 26 2.2 625 84 103 119 157 230 265 361 398 530 73 74 77
Other sizes and material available upon request
