Industrial Air Atomizing Nozzle | Air Atomizing Spray Nozzle
Durable. Precise. Built for Performance.

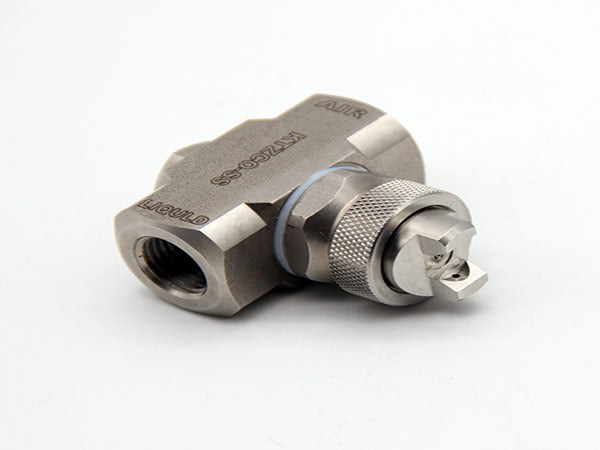

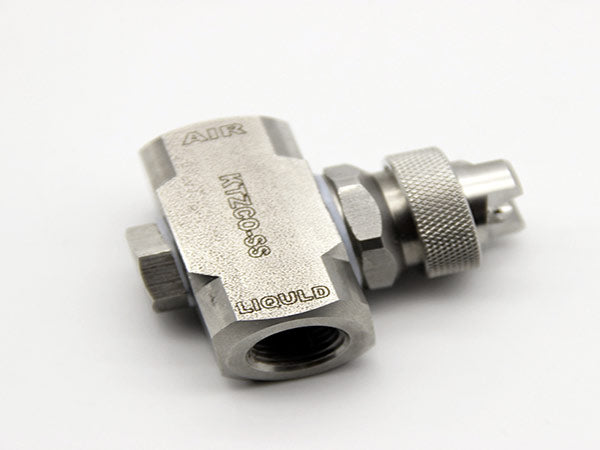

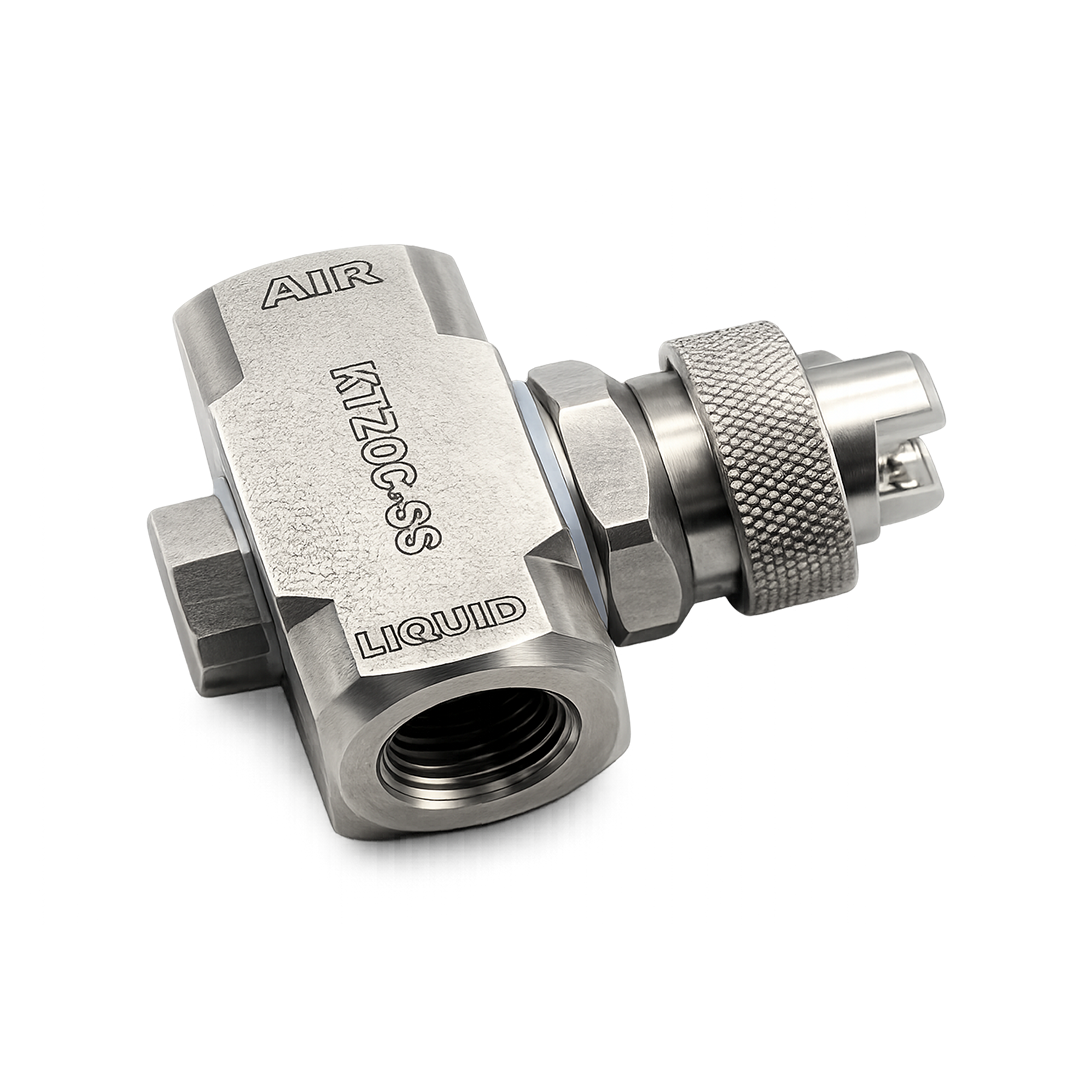

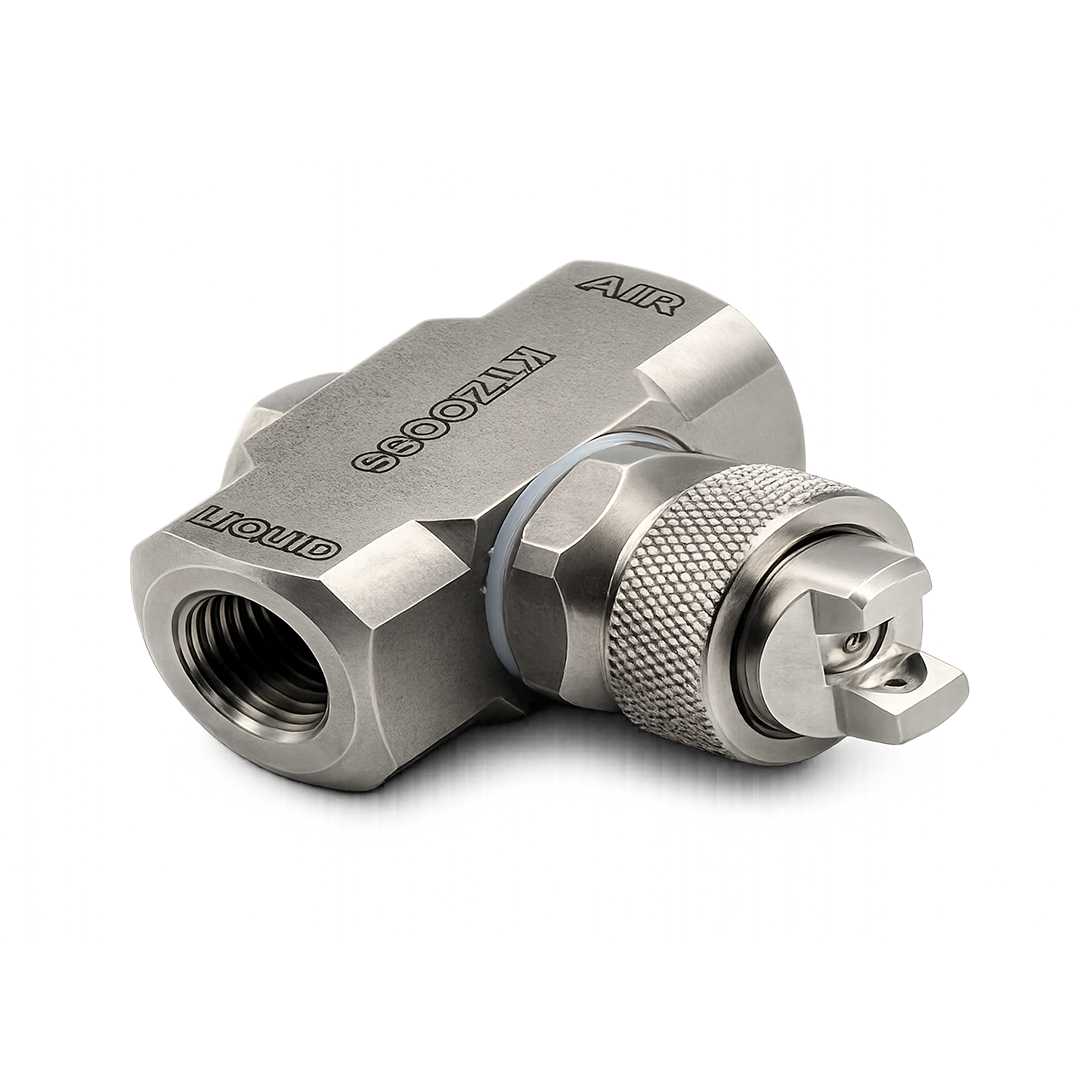

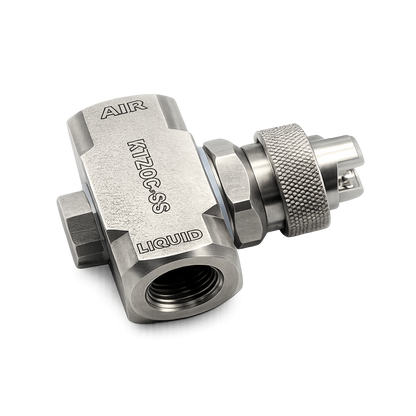

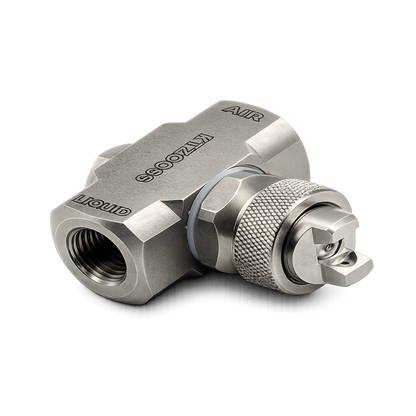

The Air Atomizing Nozzle is a high-performance two-fluid spray device that uses compressed air and liquid to produce extremely fine, uniform droplets. With precise atomization, adjustable flow control, and excellent spray coverage, it is ideal for cooling, humidification, dust suppression, coating, lubrication, and other industrial spraying applications.
Key Features
- Fine and uniform atomization
- Adjustable flow rate and spray control
- Excellent spray coverage
- Efficient two-fluid design
- Stable industrial performance
- Suitable for continuous operation
Technical Specifications
Spray Pattern : Mist / Atomizing
Orifice Diameter : -
Spray Angle : 30°, 60°, 120°
Flow Rate : 0.1-5.0 L/Min
Working Pressure : -
Connection Size(s) : 1/8”, 1/4”, 1/2”
Material : Stainless Steel, Brass
Speak with our team for more information.
Applications
- Cooling and humidification
- Dust suppression
- Coating and painting
- Lubrication
- Disinfection and sanitization
- Industrial process spraying
Learn More
👉 Contact us today for more information or a custom quote on the nozzles designed to optimize your systems.
Technical Specifications
| Nozzle Model No. | Liquid Cap and Air Cap No. | Flow Rate at Different Pressure (L/min) | Jet Size | |||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Air Pressure (kg) | Water (L/hr) | Air (L/min) | Air Pressure (kg) | Water (L/hr) | Air (L/min) | Air Pressure (kg) | Water (L/hr) | Air (L/min) | Air Pressure (kg) | Water (L/hr) | Air (L/min) | Air Pressure (kg) | Water (L/hr) | Air (L/min) | Air (kg) | Liquid (kg) | A (cm) | B (cm) | C (cm) | D (cm) | ||
| SUE15B | Liquid Cap 1650 Air Cap 67228-45° | 0.2 | 25.2 | 0.35 | 26.3 | 0.7 | 31.2 | 1.4 | 45.3 | 2.8 | 73.6 | 0.2 | 0.2 | 9 | 15 | 23 | 0.9 | |||||
| 0.35 | 26.3 | 0.7 | 31.2 | 1.05 | 39.6 | 1.75 | 53.8 | 3.5 | 85.0 | 1.05 | 0.2 | 9 | 15 | 23 | 1.2 | |||||||
| 0.7 | 31.2 | 1.05 | 39.6 | 1.4 | 45.3 | 2.1 | 59.5 | 4.2 | 102 | 1.4 | 0.35 | 10 | 15 | 23 | 1.2 | |||||||
| 1.05 | 39.6 | 2.8 | 1.4 | 45.3 | 3.5 | 1.75 | 53.8 | 5.3 | 2.8 | 73.6 | 7.8 | 4.9 | 119 | 11.0 | 1.4 | 1.4 | 11.5 | 18 | 25 | 1.5 | ||
| 1.4 | 45.3 | 1.75 | 53.8 | 2.1 | 59.4 | 3.5 | 85.0 | 5.3 | 127.5 | 1.75 | 0.7 | 11.5 | 15 | 24 | 1.5 | |||||||
| 1.75 | 53.8 | 2.1 | 59.4 | 2.8 | 73.6 | 4.2 | 102 | 5.6 | 139 | 2.8 | 1.4 | 13 | 18 | 28 | 1.8 | |||||||
| 2.1 | 59.4 | 2.8 | 73.6 | 3.5 | 85.0 | 5.6 | 139 | 6.3 | 159 | 4.9 | 2.8 | 15 | 18 | 24 | 2.4 | |||||||
| SUE18B | Liquid Cap 1650 Air Cap 62240-60° | 0.35 | 22 | 0.35 | 22 | 0.4 | 25 | 0.6 | 28 | 0.7 | 34 | 0.4 | 0.3 | 20 | 28 | 33 | 1.2 | |||||
| 0.4 | 25 | 0.4 | 25 | 0.6 | 28 | 0.7 | 34 | 1.1 | 45 | 0.6 | 0.7 | 23 | 30 | 40 | 1.8 | |||||||
| 2.8 | 3.5 | 5.3 | 7.8 | 11.0 | 1.1 | 1.5 | 28 | 35 | 46 | 1.8 | ||||||||||||
| 0.5 | 27.5 | 0.6 | 28 | 0.7 | 34 | 1.1 | 45 | 1.8 | 62 | 1.4 | 1.5 | 25 | 30 | 41 | 2.7 | |||||||
| 0.6 | 28 | 0.7 | 34 | 0.85 | 40 | 1.4 | 54 | 2.5 | 79 | 1.1 | 2.0 | 28 | 35 | 48 | 2.6 | |||||||
| 1.4 | 3.0 | 30 | 38 | 51 | 2.7 | |||||||||||||||||
| SUE15A | Liquid Cap 2050 Air Cap 67228-45° | 0.35 | 26.3 | 0.7 | 31.2 | 1.05 | 39.6 | 1.75 | 53.8 | 3.15 | 82 | 0.35 | 0.2 | 7.5 | 14 | 22 | 1.0 | |||||
| 0.7 | 31.2 | 1.05 | 39.6 | 1.4 | 45.3 | 2.1 | 59.4 | 3.5 | 85 | 1.4 | 0.2 | 9 | 15 | 22 | 1.0 | |||||||
| 1.05 | 39.6 | 1.4 | 45.3 | 1.75 | 53.8 | 2.8 | 73.6 | 4.2 | 102 | 1.75 | 0.35 | 10 | 16.5 | 23 | 1.8 | |||||||
| 1.4 | 45.3 | 4.5 | 1.75 | 53.8 | 5.5 | 2.1 | 59.4 | 8.3 | 3.5 | 85.0 | 12.2 | 4.9 | 119 | 16.6 | 1.75 | 1.4 | 13 | 19 | 29 | 2.1 | ||
| 1.75 | 53.8 | 2.1 | 59.4 | 2.8 | 73.6 | 4.2 | 102 | 5.25 | 132.7 | 2.1 | 0.7 | 13 | 18 | 25 | 1.8 | |||||||
| 2.1 | 59.4 | 2.8 | 73.6 | 3.5 | 85.0 | 4.9 | 119 | 6.3 | 159 | 3.5 | 1.4 | 13 | 22 | 30 | 2.4 | |||||||
| 2.8 | 73.6 | 3.5 | 85.0 | 4.2 | 102 | 6.3 | 159 | 6.7 | 164 | 5.3 | 2.8 | 15 | 19 | 25 | 3.0 | |||||||
| SUE18A | Liquid Cap 2050 Air Cap 62240-60° | 0.35 | 22 | 0.35 | 22 | 0.6 | 28 | 0.7 | 34 | 1.1 | 45 | 0.7 | 0.3 | 28 | 33 | 40 | 1.5 | |||||
| 0.6 | 28 | 0.7 | 34 | 0.7 | 34 | 1.4 | 54 | 1.4 | 54 | 1.1 | 0.7 | 30 | 38 | 48 | 2.1 | |||||||
| 4.5 | 5.5 | 8.3 | 12.2 | 17.2 | 0.7 | 1.5 | 38 | 46 | 58 | 1.8 | ||||||||||||
| 0.7 | 34 | 1.1 | 45 | 1.4 | 54 | 2.1 | 71 | 2.1 | 71 | 1.4 | 1.5 | 35 | 43 | 56 | 2.4 | |||||||
| 1.1 | 45 | 1.4 | 54 | 2.1 | 71 | 2.5 | 79 | 2.5 | 79 | 2.5 | 1.5 | 33 | 40 | 51 | 3.0 | |||||||
| 1.8 | 2.0 | 38 | 46 | 58 | 2.7 | |||||||||||||||||
| 1.8 | 3.0 | 41 | 48 | 66 | 2.9 | |||||||||||||||||
| SUE15 | Liquid Cap 2850 Air Cap 67228-45° | 0.7 | 31.2 | 1.05 | 39.6 | 1.4 | 45.3 | 2.5 | 68 | 3.5 | 85 | 0.7 | 0.2 | 13 | 16.5 | 25 | 1.2 | |||||
| 1.05 | 39.6 | 1.4 | 45.3 | 1.75 | 53.8 | 2.8 | 73.6 | 4.2 | 102 | 1.75 | 0.2 | 13 | 16.5 | 25 | 1.8 | |||||||
| 1.4 | 45.3 | 1.75 | 53.8 | 2.1 | 59.4 | 3.5 | 85 | 4.9 | 119 | 2.1 | 0.35 | 13 | 18.0 | 24 | 1.8 | |||||||
| 1.75 | 53.8 | 8.5 | 2.1 | 59.4 | 10.4 | 2.8 | 73.6 | 15.9 | 4.2 | 102 | 23 | 5.3 | 127 | 33 | 2.5 | 1.4 | 14 | 20 | 32 | 1.8 | ||
| 2.1 | 59.4 | 2.8 | 73.6 | 3.5 | 85.0 | 4.9 | 119 | 5.6 | 138 | 2.8 | 0.7 | 14 | 19 | 30 | 2.3 | |||||||
| 2.8 | 73.6 | 3.5 | 85.0 | 4.2 | 102 | 5.6 | 139 | 6.3 | 159 | 4.2 | 1.4 | 14 | 20 | 36 | 3.0 | |||||||
| 3.5 | 85 | 4.2 | 102 | 4.9 | 119 | 6.3 | 159 | 7.0 | 176 | 5.3 | 2.8 | 16.5 | 20 | 30 | 4.0 | |||||||
| SUE18 | Liquid Cap 2850 Air Cap 67240-60° | 0.4 | 25 | 0.4 | 25 | 0.4 | 25 | 0.7 | 34 | 1.4 | 54 | 0.6 | 0.3 | 35 | 48 | 61 | 1.8 | |||||
| 0.5 | 27.5 | 0.6 | 28 | 0.6 | 28 | 0.85 | 40 | 1.8 | 62 | 0.7 | 1.5 | 38 | 48 | 63 | 1.5 | |||||||
| 8.5 | 10.4 | 15.9 | 23 | 33 | 1.1 | 1.5 | 41 | 51 | 66 | 2.1 | ||||||||||||
| 0.6 | 28 | 0.65 | 31 | 0.7 | 34 | 1.1 | 45 | 2.1 | 71 | 1.4 | 1.5 | 43 | 53 | 66 | 2.4 | |||||||
| 0.7 | 34 | 0.7 | 34 | 0.85 | 40 | 1.4 | 54 | 2.5 | 79 | 1.8 | 2.0 | 41 | 51 | 69 | 2.7 | |||||||
| 2.1 | 3.0 | 41 | 51 | 69 | 2.9 | |||||||||||||||||
