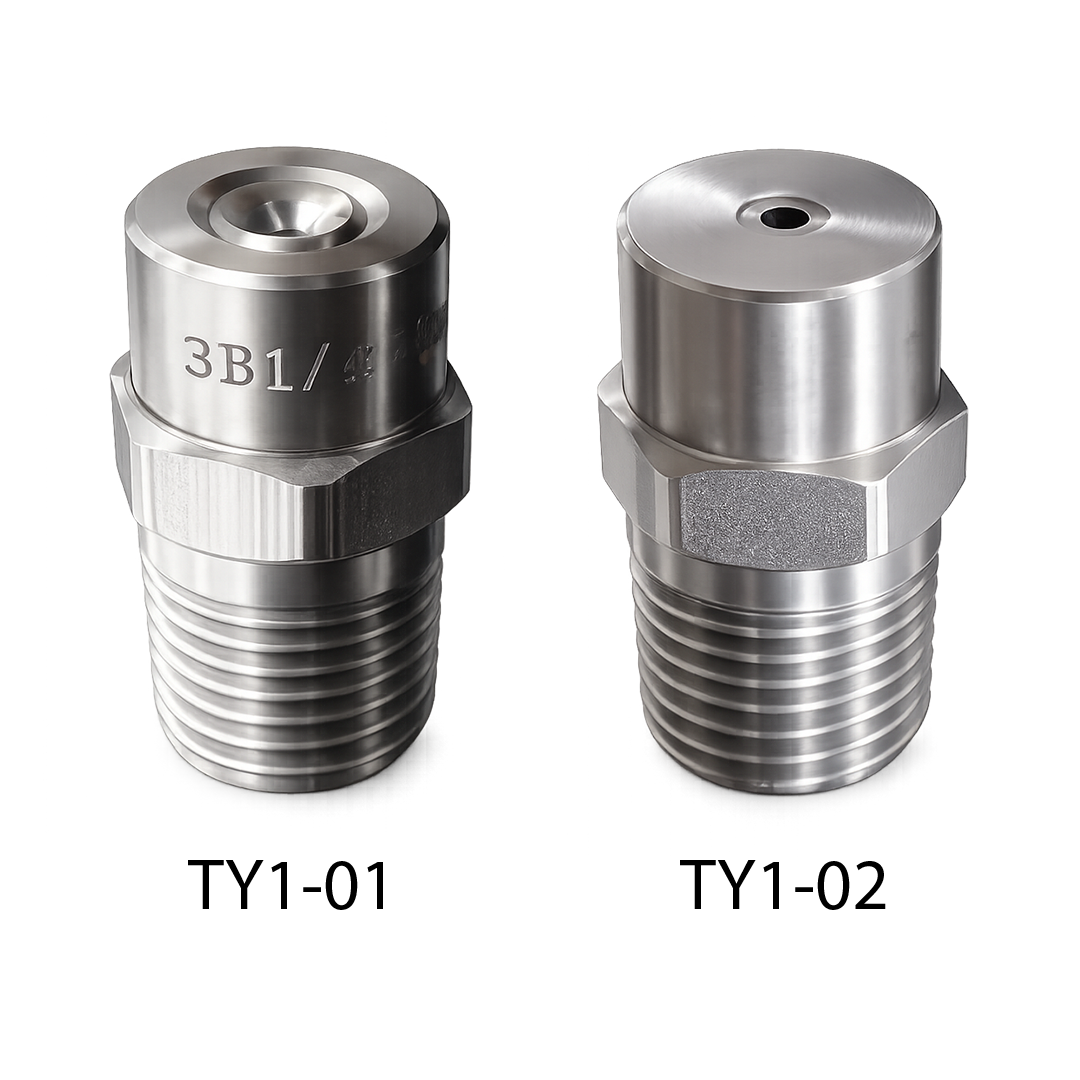

Model:
TY1-01, TY1-02
Full Cone Spray Nozzle | Stainless Steel Industrial Nozzles
Durable. Precise. Built for Performance.
The Full Cone Spray Nozzle produces a uniform, round full cone spray pattern with spray angles from 30° to 120°. Its specially designed internal vane and large flow passage provide stable flow control and even liquid distribution across the spray area. Available with multiple flow capacities and small to medium droplet sizes, this nozzle provides reliable spray performance for cleaning, rinsing, cooling, fire protection, foam control, aeration, deaeration, and chemical processing applications. Available in stainless steel, brass, and plastic materials for different operating environments.
Material:
Stainless Steel, Brass, Plastic
Contact Us
Key Features
- Spray Pattern: Full Cone
- Spray Angle: 30°–120°
- Droplet Size: Small to Medium
- Flow Rate: Multiple Flow Options
- Thread Type: BSPT, NPT, 1/8-2
- Materials: Stainless Steel, Brass, Plastic
- Spray Coverage: Uniform Circular Coverage
- Design: Internal Vane with Large Flow Passage
- Customization: OEM Available

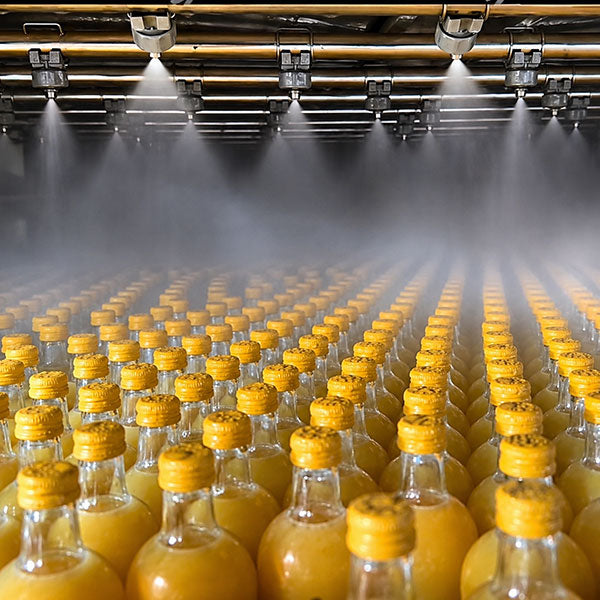

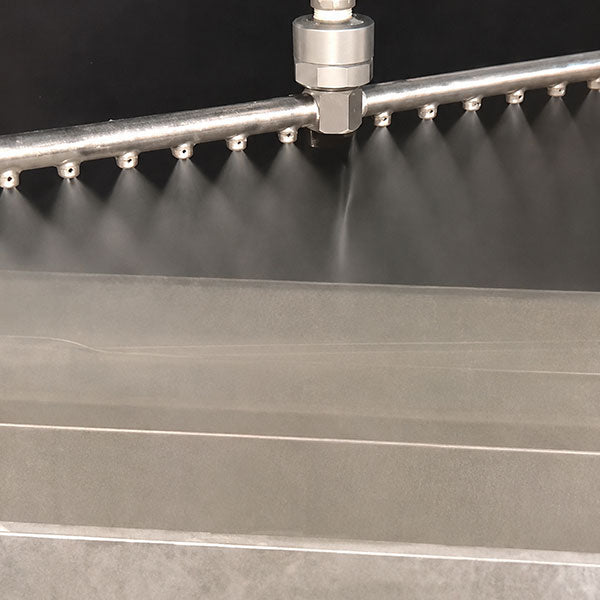

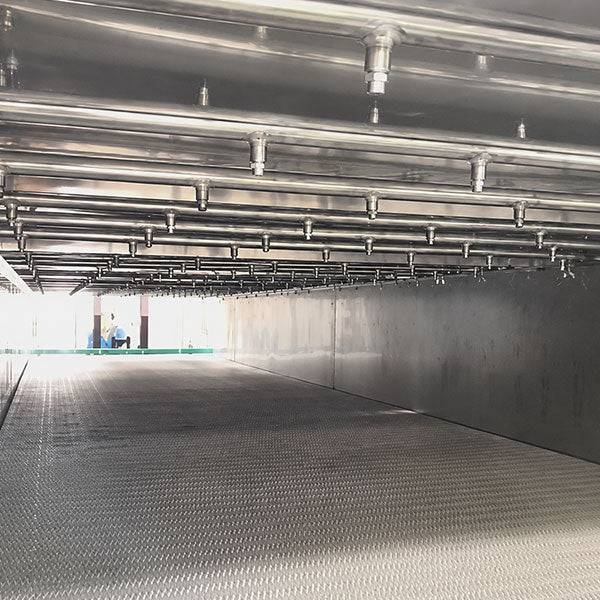

Applications
- Cleaning & Rinsing：Uniform liquid distribution for equipment, components, surfaces, and industrial washing processes.
- Cooling：Consistent spray coverage for process cooling, equipment cooling, and temperature control.
- Fire Protection：Full cone water distribution for applicable industrial fire protection and suppression systems.
- Foam Control：Uniform spraying for foam breakdown and foam control in industrial processing and wastewater applications.
Technical Specification (Standard spray)
| External Thread | Flow Code | Flow Rate (L/min) | Spray Angle | ||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| 1.5 kg | 2 kg | 3 kg | 4 kg | 5 kg | 6 kg | 7 kg | 10 kg | 1.5 kg | 6.0 kg | ||
| 1/8 | 2.0B | 1.1 | 1.2 | 1.5 | 1.7 | 1.9 | 2.0 | 2.2 | 2.6 | 50° | 46° |
| 3.0B | 1.6 | 1.9 | 2.2 | 2.5 | 2.8 | 3.1 | 3.3 | 3.9 | 65° | 59° | |
| 1/4 | 3.5B | 1.9 | 2.2 | 2.6 | 3.0 | 3.3 | 3.6 | 3.9 | 4.5 | 50° | 46° |
| 3.9B | 2.1 | 2.4 | 2.9 | 3.3 | 3.7 | 4.0 | 4.3 | 5.1 | 84° | 79° | |
| 5B | 2.7 | 3.1 | 3.7 | 4.2 | 4.7 | 5.1 | 5.5 | 6.5 | 65° | 59° | |
| 6.1B | 3.3 | 3.8 | 4.5 | 5.2 | 5.7 | 6.2 | 6.7 | 7.9 | 74° | 68° | |
| 3/8 | 6.5B | 3.5 | 4.0 | 4.8 | 5.5 | 6.1 | 6.7 | 7.1 | 8.4 | 50° | 46° |
| 10B | 5.4 | 6.2 | 7.4 | 8.5 | 9.4 | 10.2 | 11.0 | 13.0 | 67° | 61° | |
| 12.5B | 6.8 | 7.7 | 9.3 | 10.6 | 11.8 | 12.8 | 13.7 | 16.2 | 74° | 68° | |
| 9.5B | 5.1 | 5.9 | 7.1 | 8.1 | 8.9 | 9.7 | 10.4 | 12.3 | 50° | 46° | |
| 1/2 | 15 | 8.1 | 9.3 | 11.2 | 12.7 | 14.1 | 15.4 | 16.5 | 19.4 | 67° | 61° |
| 20B | 10.8 | 12.4 | 14.9 | 17 | 18.8 | 20 | 22 | 26 | 80° | 73° | |
| 22B | 11.9 | 13.6 | 16.4 | 18.7 | 21 | 23 | 24 | 28 | 90° | 82° | |
| 16B | 8.7 | 9.9 | 11.9 | 13.6 | 15.1 | 16.4 | 17.6 | 21 | 50° | 46° | |
| 3/4 | 25B | 13.5 | 15.4 | 18.6 | 21 | 24 | 26 | 27 | 32 | 67° | 61° |
| 32B | 17.3 | 19.8 | 24 | 27 | 30 | 33 | 35 | 41 | 80° | 80° | |
| 40B | 22 | 25 | 30 | 34 | 38 | 41 | 44 | 52 | 91° | 83° | |
| 50B | 27 | 31 | 37 | 42 | 47 | 51 | 55 | 65 | 94° | 86° | |
Technical Specification (Wide angle spray)
| External Thread | Nozzle Model No. | Flow Rate (L/min) | Spray Angle | ||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| 1.5 kg | 2 kg | 3 kg | 4 kg | 5 kg | 6 kg | 7 kg | 10 kg | 1.5 kg | 6.0 kg | ||
| 1/8 | 2.8WB | 1.5 | 1.7 | 2.0 | 2.3 | 2.5 | 2.7 | 2.9 | 3.5 | 120° | 102° |
| 4.3WB | 2.3 | 2.6 | 3.1 | 3.5 | 3.9 | 4.2 | 4.5 | 5.4 | 120° | 102° | |
| 1/4 | 5.6WB | 3.1 | 3.4 | 4.0 | 4.6 | 5.1 | 5.5 | 5.9 | 7.1 | 120° | 102° |
| 8WB | 4.4 | 4.8 | 5.8 | 6.6 | 7.2 | 7.8 | 8.4 | 10.1 | 120° | 103° | |
| 10WB | 5.5 | 6.0 | 7.2 | 8.2 | 9.1 | 9.8 | 10.6 | 12.7 | 120° | 103° | |
| 12WB | 6.5 | 7.3 | 8.7 | 9.8 | 10.9 | 11.8 | 12.7 | 15.2 | 120° | 103° | |
| 3/8 | 14WB | 7.6 | 8.5 | 10.1 | 11.5 | 12.7 | 13.7 | 14.8 | 17.7 | 120° | 103° |
| 17WB | 9.3 | 10.3 | 12.3 | 13.9 | 15.4 | 16.7 | 18.0 | 21.6 | 120° | 103° | |
| 20WB | 10.9 | 12.1 | 14.5 | 16.5 | 18.1 | 19.6 | 21.2 | 25.3 | 120° | 104° | |
| 24WB | 13.1 | 14.5 | 17.3 | 19.7 | 22 | 24 | 25.9 | 31.0 | 120° | 104° | |
| 1/2 | 27WB | 14.7 | 16.3 | 19.5 | 22 | 24 | 26 | 28.1 | 33.6 | 120° | 106° |
| 30WB | 16.4 | 18.1 | 22 | 25 | 27 | 29 | 31.3 | 37.4 | 120° | 108° | |
| 3/4 | 35WB | 19.1 | 21 | 25 | 29 | 32 | 34 | 36.7 | 43.9 | 120° | 108° |
| 40WB | 21.8 | 24 | 29 | 33 | 36 | 39 | 42.1 | 50.3 | 120° | 108° | |
| 45WB | 24.5 | 27 | 33 | 37 | 41 | 44 | 47.5 | 56.8 | 120° | 110° | |
| 50WB | 26.9 | 30 | 36 | 41 | 45 | 49 | 52.9 | 63.3 | 120° | 112° | |
