Flat Fan Spray Nozzle
Flat Fan Spray Nozzle
Flat Fan Spray Nozzle

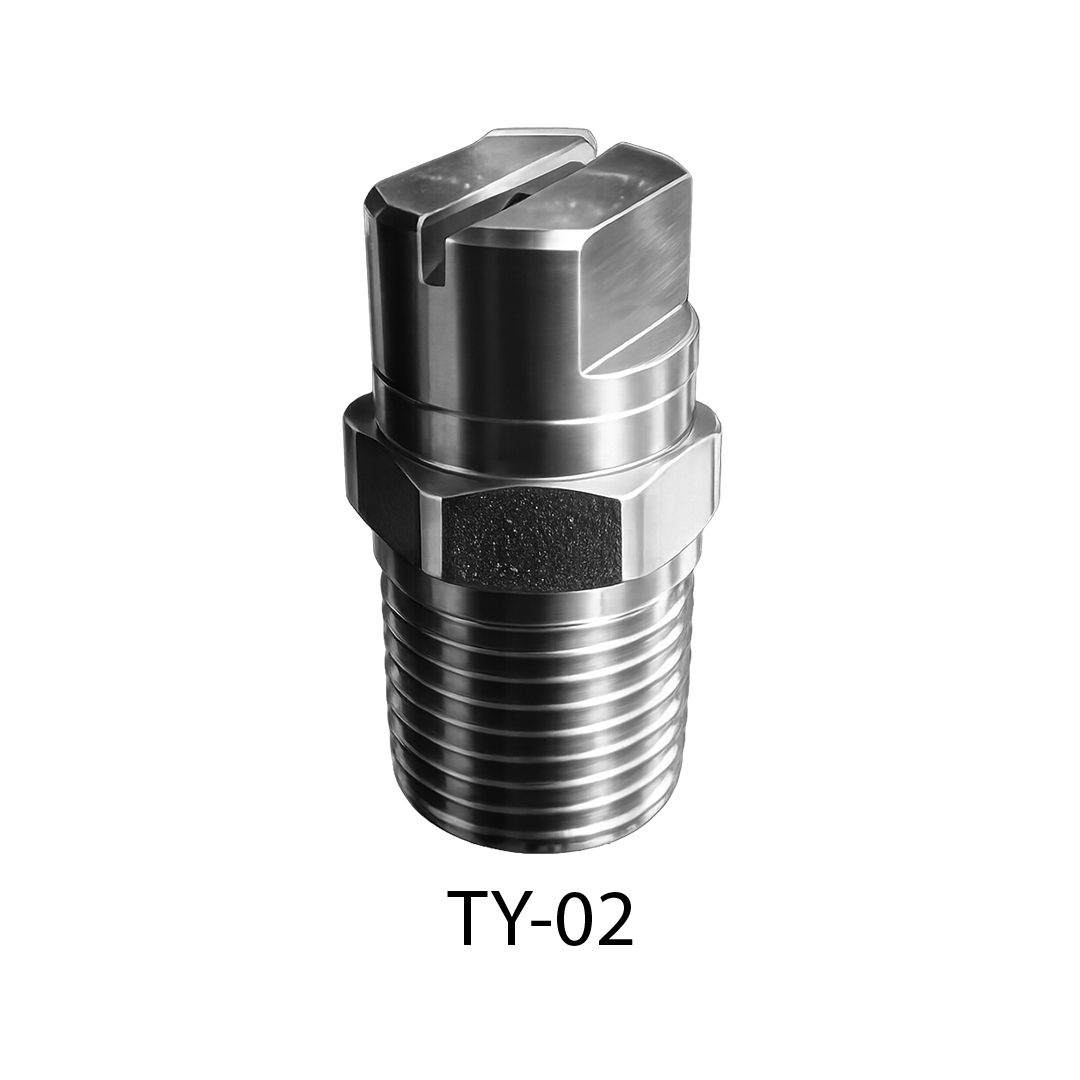

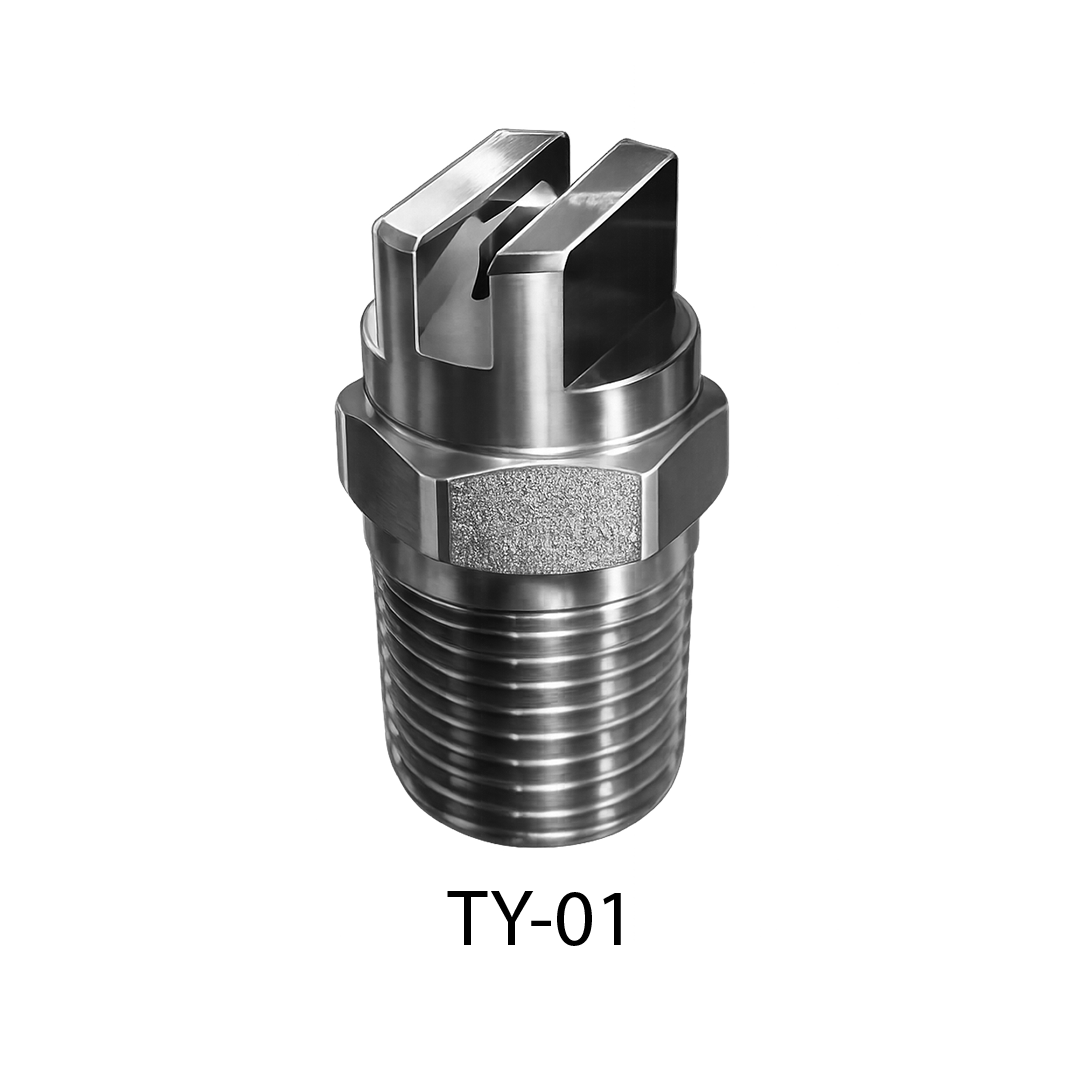

Model: TY-01, TY-02

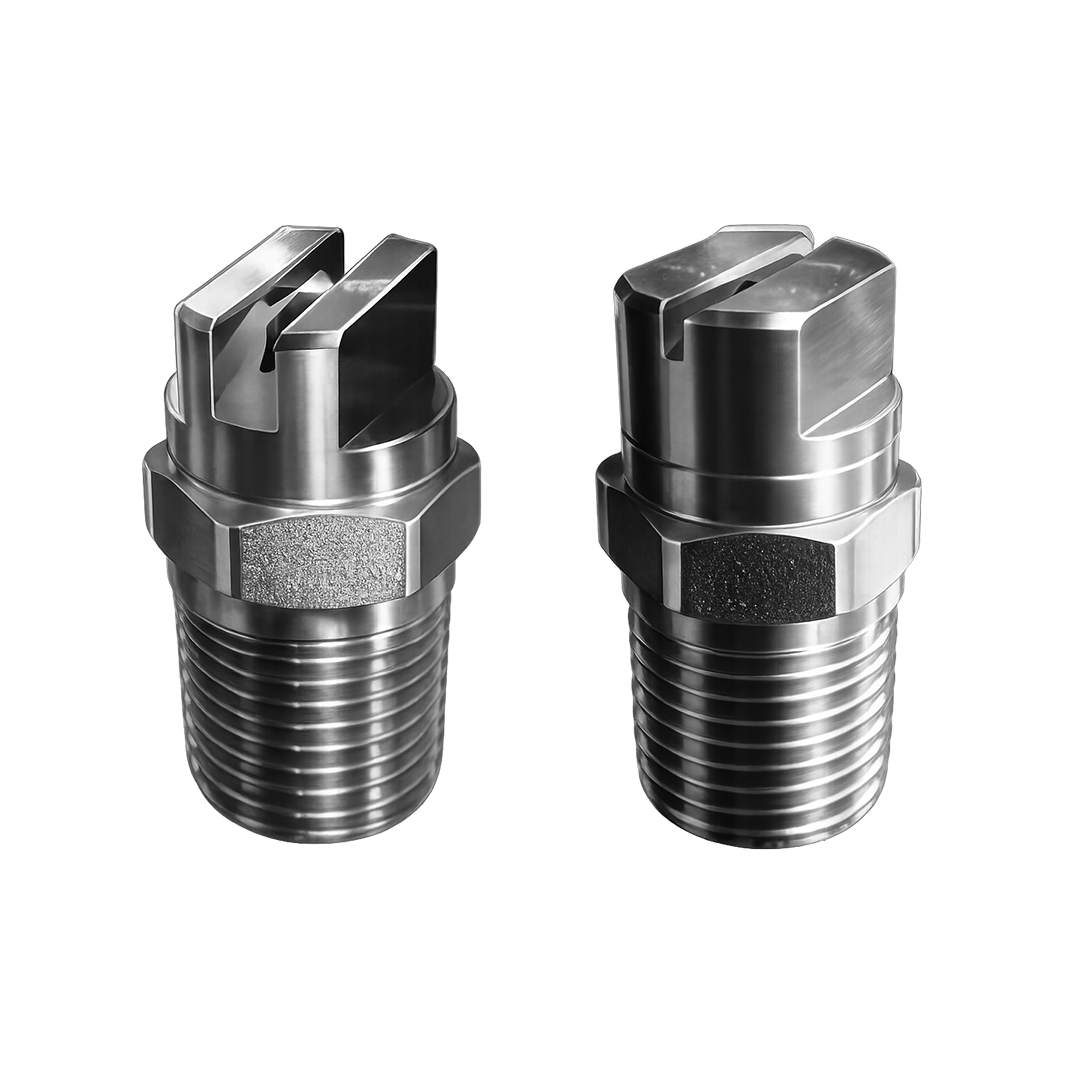

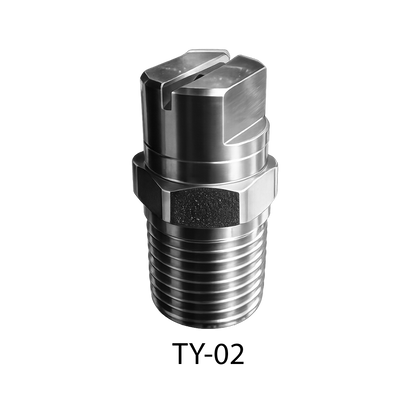

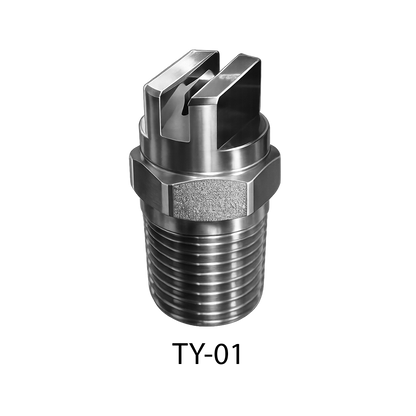

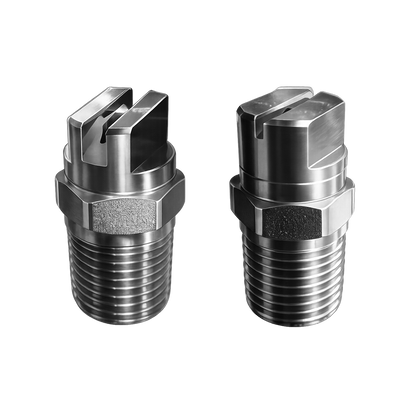

Flat Fan Spray Nozzle

Durable. Precise. Built for Performance.
Flat Fan Spray Nozzle is engineered to deliver a concentrated, high-impact spray pattern with a narrow fan angle, making it ideal for precision cleaning, spot rinsing, high-pressure washing, and targeted spraying applications. Designed for stable performance and long service life, it ensures uniform distribution and excellent spray impact even under demanding industrial conditions.
Material: Stainless Steel, Plastic
Contact Us

Technical Specifications

Spray Angle 3 kg Flow Code Orifice Diameter mm Flow Rate (L/min) Spray Angle
1 kg 2 kg 3 kg 4 kg 5 kg 6 kg 7 kg 10 kg 20 kg 35 kg 1.5 kg 3 kg 6 kg 14 kg
110° 11001 0.66 0.23 0.32 0.39 0.46 0.51 0.56 0.60 0.72 1.0 1.3 94° 110° 121° 124°
110015 0.79 0.34 0.48 0.59 0.68 0.76 0.84 0.90 1.1 1.5 2.0 97° 110° 121° 124°
11002 0.91 0.46 0.64 0.79 0.91 1.0 1.1 1.2 1.4 2.0 2.7 98° 110° 120° 123°
11003 1.1 0.68 0.97 1.2 1.4 1.5 1.7 1.8 2.2 3.1 4.0 99° 110° 120° 123°
11004 1.3 0.91 1.3 1.6 1.8 2.0 2.2 2.4 2.9 4.1 5.4 100° 110° 119° 122°
11005 1.4 1.1 1.6 2.0 2.3 2.5 2.8 3.0 3.6 5.1 6.7 100° 110° 118° 122°
11006 1.6 1.4 1.9 2.4 2.7 3.1 3.3 3.6 4.3 6.1 8.1 101° 110° 117° 122°
11008 1.8 1.8 2.6 3.2 3.6 4.1 4.5 4.8 5.8 8.2 10.8 102° 110° 117° 121°
11010 2.0 2.3 3.2 3.9 4.6 5.1 5.6 6.0 7.0 10.2 13.5 103° 110° 117° 119°
11015 2.4 3.4 4.8 5.9 6.8 7.6 8.4 9.0 10.8 15.3 20 104° 110° 117° 118°
11020 2.8 4.6 6.5 7.9 9.1 10.2 11.2 12.1 14.4 20 27 105° 110° 117° 118°
95° 950050 0.46 0.23 0.16 0.20 0.23 0.25 0.28 0.30 0.36 0.51 0.67 81° 95° 105° 113°
9501 0.66 0.34 0.32 0.39 0.46 0.51 0.56 0.60 0.72 1.0 1.3 81° 95° 105° 113°
95015 0.79 0.46 0.48 0.59 0.68 0.76 0.84 0.90 1.1 1.5 2.0 82° 95° 105° 113°
9502 0.91 0.68 0.64 0.79 0.91 1.0 1.1 1.2 1.4 2.0 2.7 82° 95° 105° 113°
9503 1.1 0.91 0.97 1.2 1.4 1.5 1.7 1.8 2.2 3.1 4.0 83° 95° 104° 111°
9504 1.3 1.1 1.3 1.6 1.8 2.0 2.2 2.4 2.9 4.1 5.4 84° 95° 103° 108°
9505 1.4 1.4 1.6 2.0 2.3 2.5 2.8 3.0 3.6 5.1 6.7 84° 95° 102° 107°
9506 1.6 1.8 1.9 2.4 2.7 3.1 3.3 3.6 4.3 6.1 8.1 86° 95° 101° 106°
9508 1.8 2.3 2.6 3.2 3.6 4.1 4.5 4.8 5.8 8.1 10.8 87° 95° 100° 105°
9510 2.0 3.4 3.2 3.9 4.6 5.1 5.6 3.0 7.2 10.2 13.5 89° 95° 100° 105°
9515 2.4 4.6 4.8 5.9 6.8 7.6 8.4 9.0 10.8 15.2 20 90° 95° 100° 105°
9520 2.8 6.8 6.5 7.9 9.1 10.2 11.2 12.1 14.4 20 27 90° 95° 100° 105°
9530 3.6 9.1 9.7 11.8 13.7 15.3 16.7 18.1 22 31 40 91° 95° 101° 105°
9540 4.0 11.4 12.9 15.8 18.2 20 22 24 29 41 54 92° 95° 100° 105°
9550 4.4 13.7 16.1 19.7 23 25 28 30 36 51 68 93° 95° 99° 103°
9560 4.8 16.0 19.3 24 27 31 33 36 43 61 81 93° 95° 99° 103°
9570 5.2 23 23 28 32 36 39 42 50 71 94 93° 95° 99° 103°
95100 6.4 34 32 39 46 51 56 60 72 102 135 93° 95° 99° 102°
95150 7.5 48 59 68 76 84 90 108 153 205 93° 95° 99° 102°
65° 650017 0.28 0.05 0.06 0.07 0.08 0.09 0.10 0.12 0.17 0.23 44° 65° 77° 86°
650033 0.38 0.11 0.13 0.15 0.17 0.18 0.20 0.24 0.34 0.44 47° 65° 76° 83°
650067 0.53 0.15 0.22 0.26 0.31 0.34 0.37 0.40 0.48 0.68 0.90 50° 65° 75° 81°
6501 0.66 0.25 0.32 0.39 0.46 0.51 0.56 0.60 0.72 1.0 1.3 51° 65° 74° 80°
65015 0.79 0.34 0.48 0.59 0.68 0.76 0.84 0.90 1.1 1.5 2.0 51° 65° 74° 80°
6502 0.91 0.46 0.64 0.79 0.91 1.0 1.1 1.2 1.4 2.0 2.7 52° 65° 73° 79°
65025 1.0 0.57 0.81 0.99 1.1 1.3 1.4 1.5 1.8 2.5 3.4 52° 65° 73° 79°
6503 1.1 0.68 0.97 1.2 1.4 1.5 1.7 1.8 2.2 3.1 4.0 53° 65° 72° 78°
6504 1.3 0.91 1.3 1.6 1.8 2.0 2.2 2.4 2.9 4.1 5.4 53° 65° 72° 76°
6505 1.4 1.1 1.6 2.0 2.3 2.5 2.8 3.0 3.6 5.1 6.7 53° 65° 72° 76°
6506 1.6 1.4 1.9 2.4 2.7 3.1 3.3 3.6 4.3 6.1 8.1 54° 65° 72° 75°
6508 1.8 1.8 2.6 3.2 3.6 4.1 4.5 4.8 5.8 8.2 10.8 55° 65° 71° 74°
6510 2.0 2.3 3.2 3.9 4.6 5.1 5.6 6.0 7.2 10.2 13.5 56° 65° 71° 74°
6515 2.4 3.4 4.8 5.9 6.8 7.6 8.4 9.0 10.8 15.3 20 56° 65° 70° 73°
6520 2.8 4.6 6.5 7.9 9.1 10.2 11.2 12.1 14.4 20 27 57° 65° 70° 73°
6530 3.6 6.8 9.7 11.8 13.7 15.3 16.7 18.1 22 31 40 58° 65° 69° 72°
6540 4.0 9.1 12.9 15.8 18.2 20 22 24 29 41 54 59° 65° 68° 72°
6550 4.4 11.4 16.1 19.7 23 25 28 30 36 51 68 60° 65° 68° 71°
6560 4.8 13.7 19.3 24 27 31 33 36 43 61 81 60° 65° 68° 71°
6570 5.2 16.0 23 28 32 36 39 42 50 71 94 60° 65° 68° 71°
65100 6.4 23 32 39 46 51 56 60 72 102 135 58° 65° 69° 70°
65150 7.5 34 48 59 68 76 84 90 108 153 205 59° 65° 68° 70°
65200 8.7 43 64 79 91 102 112 121 144 205 270 60° 65° 67° 69°
Other sizes and material available upon request
