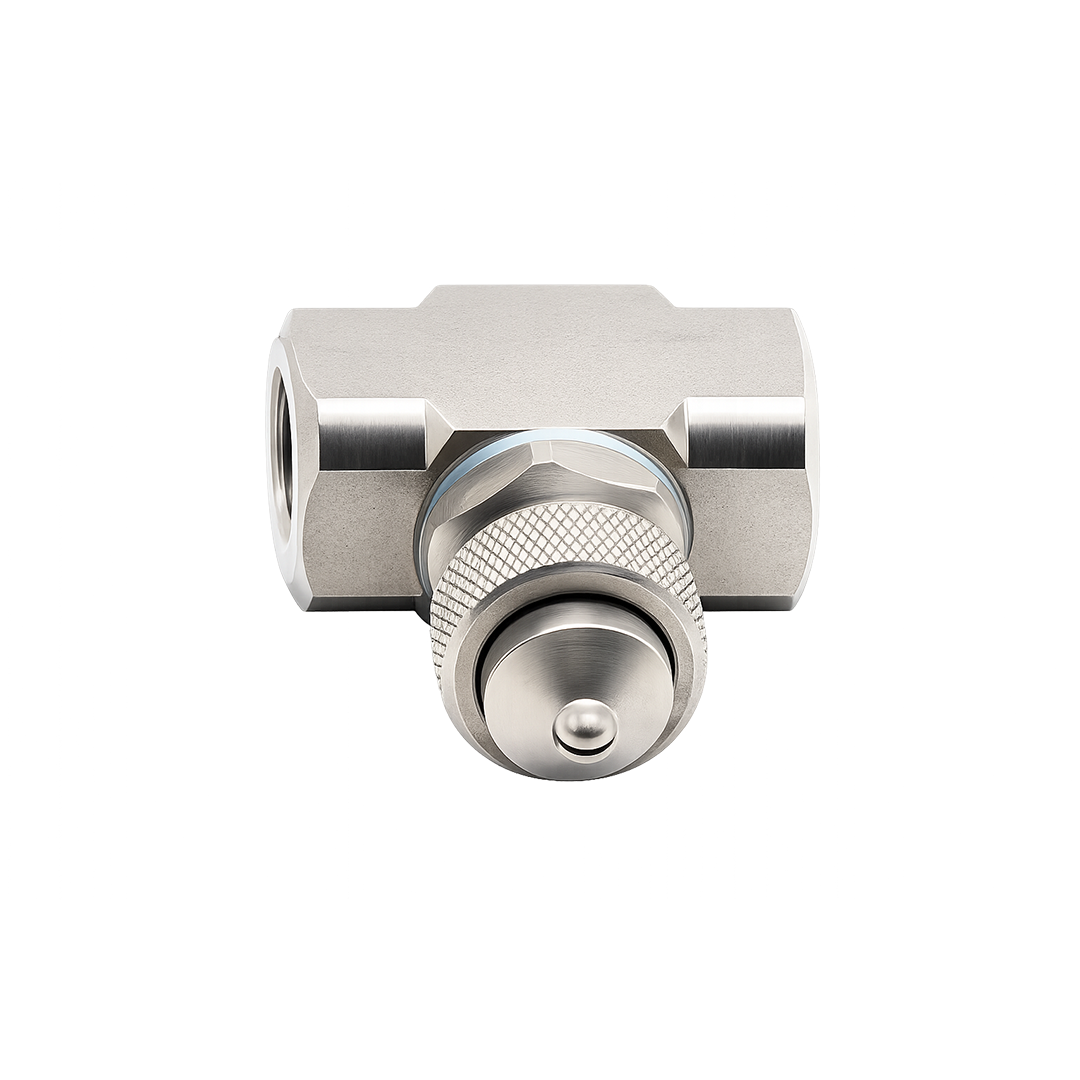

Flat Fan Air Atomizing Spray Nozzle Cap | Air Atomizing Spray Nozzle
Durable. Precise. Built for Performance.

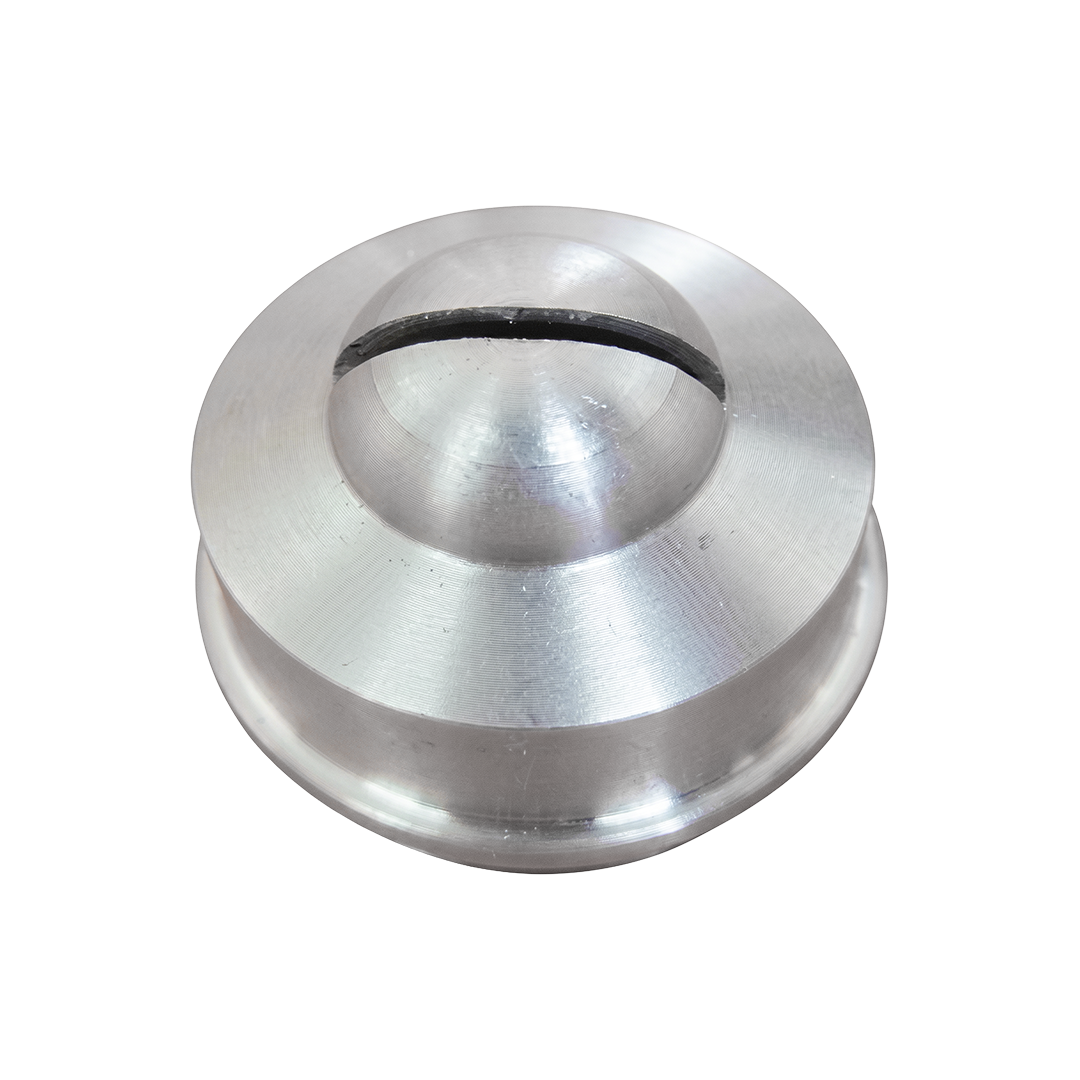

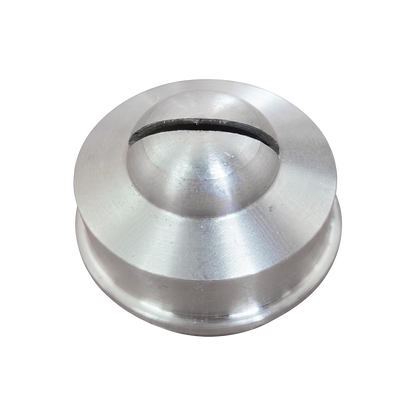

Flat Fan Air Atomizing Spray Nozzle Cap delivers a finely atomized fan-shaped spray with excellent coverage and control. Its modular design allows for easy assembly and cleaning, while optional adjustable flow control and manual or automatic clean-out mechanisms provide enhanced versatility and clog resistance.
Customizable components designed to work seamlessly with our compatible products
Customizable components designed to work seamlessly with our compatible products
Material:
Stainless Steel
Contact Us

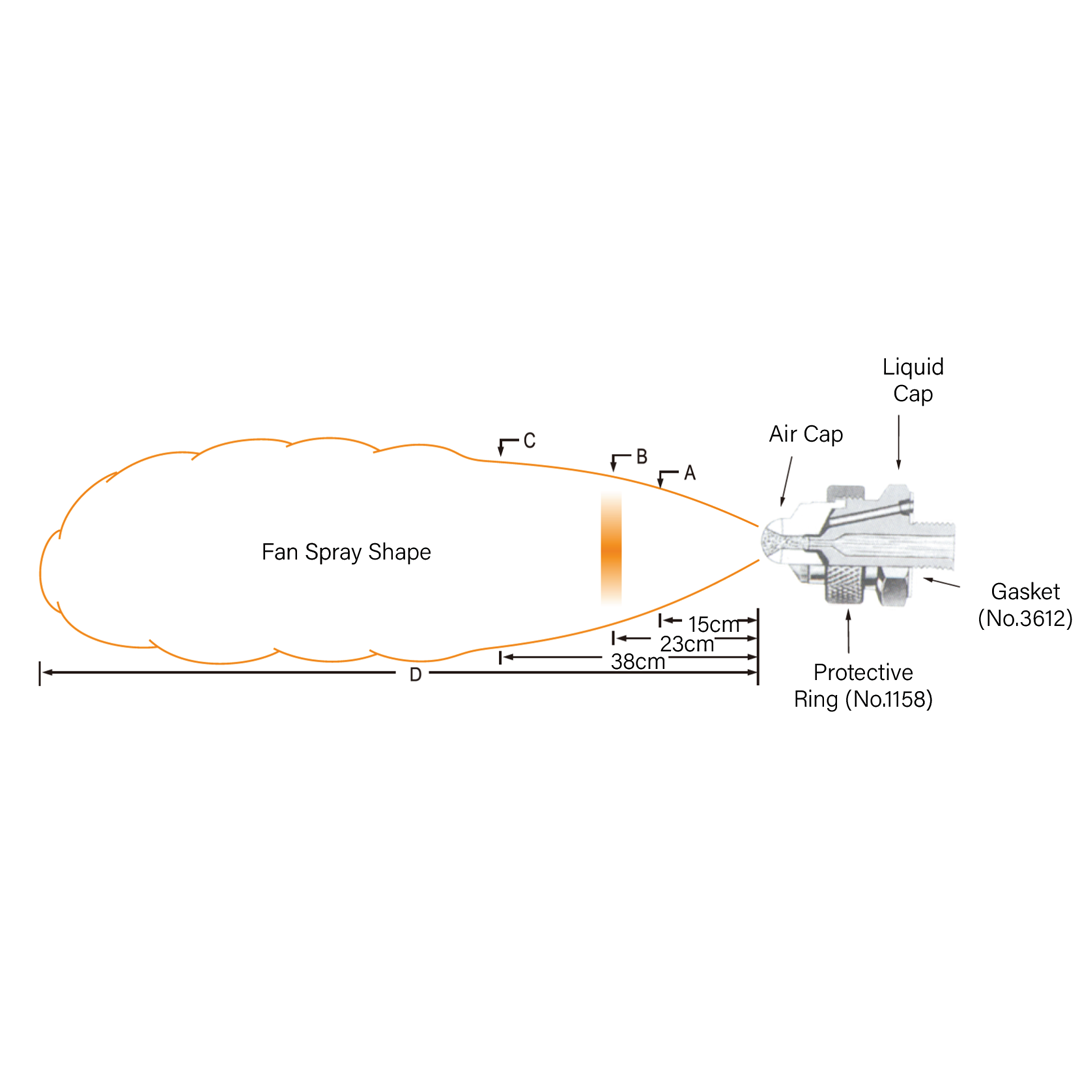

Technical Specifications
| Nozzle Model No. | Liquid Cap and Air Cap No. | Flow Rate at Different Pressure (L/min) | Jet Size | |||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Air Pressure (kg) | Water (L/hr) | Air (L/min) | Air Pressure (kg) | Water (L/hr) | Air (L/min) | Air Pressure (kg) | Water (L/hr) | Air (L/min) | Air Pressure (kg) | Water (L/hr) | Air (L/min) | Air Pressure (kg) | Water (L/hr) | Air (L/min) | Air (kg) | Liquid (kg) | A (cm) | B (cm) | C (cm) | D (cm) | ||
| SU13A | Liquid Cap 2050 Air Cap 73328 | 0.7 | 5.5 | 24 | 1.3 | 9.1 | 31 | 2.0 | 8.6 | 42 | 2.7 | 11.2 | 52 | 3.9 | 12.0 | 69 | 1.1 | 0.7 | 25 | 38 | 46 | 2.6 |
| 0.85 | 4.7 | 27 | 1.5 | 7.7 | 36 | 2.2 | 7.5 | 47 | 3.0 | 10.1 | 56 | 4.6 | 9.7 | 81 | 2.1 | 1.5 | 36 | 48 | 66 | 3.0 | ||
| 1.0 | 4.1 | 31 | 1.8 | 6.5 | 42 | 2.5 | 6.2 | 52 | 3.2 | 9.1 | 62 | 5.3 | 7.5 | 93 | 2.8 | 2.0 | 38 | 53 | 76 | 3.2 | ||
| 1.1 | 3.5 | 34 | 2.1 | 5.4 | 47 | 2.8 | 5.2 | 57 | 3.5 | 8.1 | 66 | 6.0 | 5.3 | 104 | 3.5 | 3.0 | 47 | 61 | 86 | 3.4 | ||
| 1.3 | 3.0 | 37 | 2.4 | 4.3 | 52 | 3.1 | 4.2 | 63 | 4.2 | 5.4 | 78 | 6.3 | 4.3 | 110 | 6.0 | 4.0 | 56 | 74 | 94 | 4.0 | ||
| 1.4 | 2.5 | 40 | 2.7 | 3.3 | 57 | 3.2 | 3.7 | 65 | 4.6 | 4.2 | 85 | 6.7 | 3.3 | 116 | ||||||||
| 1.5 | 2.0 | 44 | 2.8 | 2.8 | 60 | 3.4 | 3.2 | 68 | 4.9 | 3.1 | 91 | 7.0 | 2.4 | 122 | ||||||||
| SU13 | Liquid Cap 2850 Air Cap 73328 | 0.85 | 8.2 | 19.8 | 1.4 | 14.4 | 27 | 2.1 | 13.5 | 36 | 2.7 | 19.1 | 42 | 4.6 | 16.1 | 69 | 1.1 | 0.7 | 36 | 46 | 71 | 2.1 |
| 1.0 | 6.8 | 23 | 1.7 | 11.9 | 32 | 2.4 | 11.4 | 42 | 3.0 | 17.1 | 46 | 4.9 | 13.8 | 76 | 2.1 | 1.5 | 43 | 61 | 81 | 2.4 | ||
| 1.1 | 5.5 | 27 | 2.0 | 9.5 | 37 | 2.7 | 9.2 | 47 | 3.2 | 15.1 | 52 | 5.3 | 11.5 | 83 | 3.0 | 2.0 | 51 | 66 | 89 | 2.6 | ||
| 1.3 | 4.1 | 30 | 2.1 | 8.3 | 40 | 3.0 | 7.1 | 53 | 3.2 | 13.1 | 57 | 5.6 | 9.3 | 90 | 3.5 | 3.0 | 58 | 76 | 97 | 2.7 | ||
| 1.4 | 2.9 | 34 | 2.2 | 7.1 | 43 | 3.2 | 5.0 | 59 | 4.2 | 8.1 | 72 | 6.0 | 7.3 | 97 | 5.6 | 4.0 | 58 | 76 | 97 | 3.2 | ||
| 2.4 | 6.1 | 46 | 3.4 | 4.0 | 63 | 4.6 | 5.9 | 79 | 6.3 | 5.6 | 104 | |||||||||||
| 2.5 | 5.1 | 49 | 3.5 | 3.3 | 66 | 4.9 | 4.0 | 86 | 6.7 | 4.3 | 112 | |||||||||||
| SUN13 | Liquid Cap 2850 Air Cap 73325 | 1.0 | 9.0 | 25 | 2.0 | 10.4 | 41 | 2.4 | 11.6 | 48 | 3.1 | 15.6 | 56 | 4.2 | 17.1 | 73 | 1.4 | 0.7 | 10 | 13 | 17 | 3.0 |
| 1.1 | 7.8 | 30 | 2.1 | 9.3 | 45 | 2.5 | 10.4 | 51 | 3.2 | 14.6 | 59 | 4.6 | 15.0 | 80 | 2.5 | 1.5 | 13 | 15 | 20 | 3.7 | ||
| 1.3 | 6.6 | 32 | 2.2 | 8.2 | 48 | 2.7 | 9.4 | 54 | 3.4 | 13.7 | 62 | 4.9 | 12.8 | 87 | 3.2 | 2.0 | 13 | 17 | 22 | 4.0 | ||
| 1.4 | 5.2 | 36 | 2.5 | 6.1 | 55 | 3.0 | 7.3 | 61 | 3.8 | 10.8 | 71 | 5.3 | 11.0 | 94 | 3.8 | 3.0 | 15 | 22 | 28 | 4.2 | ||
| 1.7 | 3.1 | 44 | 2.8 | 4.3 | 62 | 3.2 | 5.3 | 68 | 4.2 | 8.5 | 82 | 5.6 | 9.4 | 103 | 5.3 | 4.0 | 20 | 25 | 33 | 4.8 | ||
| 2.0 | 2.0 | 50 | 3.1 | 3.0 | 69 | 3.5 | 4.1 | 75 | 4.9 | 5.2 | 98 | 6.3 | 7.2 | 119 | ||||||||
| 2.2 | 1.1 | 56 | 3.4 | 2.0 | 75 | 3.8 | 2.9 | 81 | 6.0 | 2.3 | 120 | 7.0 | 6.1 | 134 | ||||||||
| SU14 | Liquid Cap 2850 Air Cap 73320 | 1.3 | 3.9 | 30 | 2.1 | 7.4 | 40 | 3.0 | 6.1 | 52 | 3.9 | 9.4 | 60 | 5.3 | 10.2 | 78 | 1.5 | 0.7 | 23 | 33 | 46 | 1.8 |
| 1.4 | 3.0 | 33 | 2.4 | 5.3 | 45 | 3.1 | 5.3 | 54 | 4.2 | 7.2 | 67 | 5.6 | 8.3 | 84 | 2.7 | 1.5 | 36 | 51 | 69 | 2.0 | ||
| 1.5 | 2.3 | 35 | 2.5 | 4.4 | 47 | 3.2 | 4.5 | 57 | 4.6 | 5.3 | 73 | 6.0 | 6.6 | 89 | 3.2 | 2.0 | 58 | 74 | 91 | 2.0 | ||
| 1.7 | 1.8 | 38 | 2.7 | 3.7 | 50 | 3.4 | 3.8 | 59 | 4.9 | 3.8 | 80 | 6.3 | 5.1 | 98 | 4.2 | 3.0 | 61 | 74 | 94 | 2.1 | ||
| 1.8 | 1.3 | 41 | 2.8 | 3.1 | 52 | 3.5 | 3.2 | 62 | 5.6 | 4.0 | 64 | 76 | 97 | 2.3 | ||||||||
| 2.0 | 0.95 | 44 | 3.0 | 2.6 | 55 | 3.9 | 1.8 | 68 | ||||||||||||||
| SUN23 | Liquid Cap 60100 Air Cap 125340 | 1.0 | 17.0 | 23 | 2.0 | 24 | 44 | 2.4 | 28 | 51 | 3.4 | 38 | 72 | 3.9 | 65 | 75 | 1.1 | 0.7 | 10 | 13 | 15 | 2.4 |
| 1.1 | 11.0 | 27 | 2.1 | 18.9 | 50 | 2.5 | 23 | 59 | 3.5 | 33 | 80 | 4.2 | 53 | 89 | 2.1 | 1.5 | 10 | 13 | 17 | 3.0 | ||
| 1.3 | 7.6 | 33 | 2.2 | 14.4 | 56 | 2.7 | 18.9 | 66 | 3.7 | 28 | 89 | 4.6 | 40 | 108 | 2.8 | 2.0 | 13 | 17 | 22 | 3.4 | ||
| 1.4 | 3.2 | 40 | 2.4 | 10.6 | 63 | 2.8 | 15.1 | 74 | 3.8 | 23 | 97 | 4.9 | 30 | 127 | 3.7 | 3.0 | 15 | 20 | 28 | 3.6 | ||
| 2.5 | 7.2 | 71 | 3.0 | 11.7 | 79 | 3.9 | 19.7 | 105 | 5.3 | 21 | 149 | 4.9 | 4.0 | 20 | 25 | 35 | 4.0 | |||||
| 4.2 | 13.1 | 120 | 5.6 | 13.8 | 173 | |||||||||||||||||
| 4.6 | 7.2 | 138 | 6.3 | 3.2 | 225 | |||||||||||||||||
| SU23B | Liquid Cap 40100 Air Cap 125328 | 2.7 | 19.6 | 93 | 3.5 | 27 | 112 | 4.6 | 3.3 | 137 | 1.4 | 0.7 | 15 | 18 | 20 | 3.0 | ||||||
| 1.1 | 11.2 | 54 | 2.1 | 18.0 | 79 | 2.7 | 19.6 | 93 | 3.5 | 27 | 112 | 4.6 | 3.3 | 137 | 1.4 | 0.7 | 15 | 18 | 20 | 3.0 | ||
| 1.3 | 8.5 | 60 | 2.2 | 15.8 | 84 | 2.8 | 17.3 | 98 | 3.7 | 25 | 116 | 4.9 | 28 | 149 | 2.4 | 1.5 | 23 | 28 | 33 | 3.2 | ||
| 1.4 | 6.5 | 65 | 2.4 | 13.6 | 89 | 3.0 | 15.2 | 103 | 3.8 | 23 | 121 | 5.3 | 24 | 161 | 3.0 | 2.0 | 25 | 33 | 46 | 3.4 | ||
| 1.5 | 5.0 | 71 | 2.5 | 11.6 | 95 | 3.1 | 13.2 | 109 | 3.9 | 21 | 126 | 5.6 | 19.7 | 174 | 3.7 | 3.0 | 30 | 38 | 46 | 3.5 | ||
| 1.7 | 3.8 | 77 | 3.2 | 11.4 | 114 | 4.1 | 18.9 | 132 | 6.0 | 15.7 | 187 | 5.3 | 4.0 | 33 | 41 | 48 | 4.0 | |||||
| 4.2 | 17.0 | 137 | 6.3 | 12.4 | 200 | |||||||||||||||||
| SU23 | Liquid Cap 60100 Air Cap 125328 | 0.85 | 27 | 33 | 1.8 | 38 | 55 | 2.4 | 39 | 67 | 3.2 | 58 | 76 | 4.6 | 59 | 106 | 1.1 | 0.7 | 18 | 23 | 30 | 3.4 |
| 1.0 | 20 | 38 | 2.1 | 28 | 66 | 2.7 | 30 | 87 | 3.5 | 47 | 87 | 5.3 | 40 | 132 | 2.4 | 1.5 | 23 | 30 | 41 | 3.5 | ||
| 1.1 | 15.9 | 45 | 2.2 | 24 | 71 | 3.0 | 24 | 97 | 3.8 | 38 | 97 | 5.6 | 32 | 145 | 3.2 | 2.0 | 25 | 33 | 43 | 3.7 | ||
| 1.3 | 12.5 | 48 | 2.4 | 21 | 76 | 3.2 | 17.8 | 103 | 3.9 | 34 | 103 | 6.0 | 26 | 158 | 3.9 | 3.0 | 30 | 38 | 48 | 3.8 | ||
| 1.4 | 10.2 | 56 | 2.5 | 17.8 | 82 | 3.4 | 15.1 | 113 | 4.2 | 27 | 113 | 6.3 | 20 | 172 | 6.0 | 4.0 | 33 | 41 | 51 | 4.4 | ||
| 1.5 | 7.6 | 62 | 2.7 | 15.1 | 87 | 3.5 | 12.9 | 126 | 4.6 | 20 | 126 | 6.7 | 15.9 | 185 | ||||||||
| 3.7 | 10.6 | 140 | 4.9 | 14.8 | 140 | 7.0 | 12.7 | 198 | ||||||||||||||
| SU43 | Liquid Cap 100150 Air Cap 189351 | 1.0 | 29 | 90 | 1.8 | 56 | 117 | 2.1 | 100 | 119 | 3.0 | 126 | 140 | 181 | 4.1 | 140 | 1.0 | 0.7 | 18 | 20 | 25 | 3.4 |
| 1.1 | 18.9 | 108 | 2.0 | 40 | 133 | 2.2 | 79 | 133 | 3.1 | 110 | 151 | 193 | 4.2 | 125 | 1.8 | 1.5 | 25 | 20 | 43 | 3.8 | ||
| 2.4 | 62 | 147 | 3.2 | 95 | 163 | 225 | 4.6 | 89 | 2.4 | 2.0 | 25 | 30 | 46 | 4.3 | ||||||||
| 2.5 | 48 | 162 | 3.4 | 78 | 184 | 265 | 4.9 | 58 | 3.4 | 3.0 | 33 | 41 | 53 | 4.6 | ||||||||
| 2.7 | 36 | 177 | 3.5 | 62 | 193 | 305 | 5.3 | 34 | 4.9 | 4.0 | 36 | 43 | 58 | 5.2 | ||||||||
