Model:

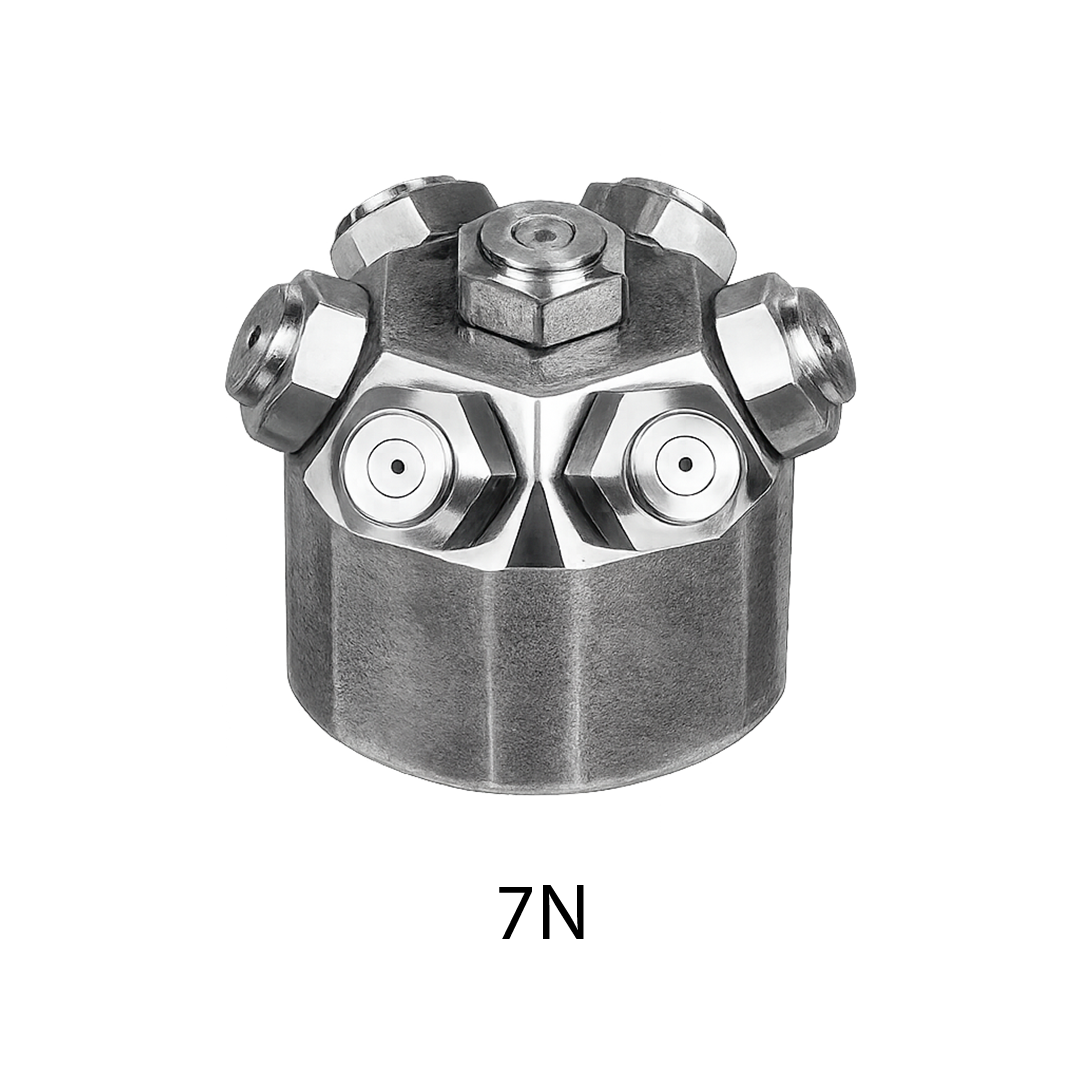

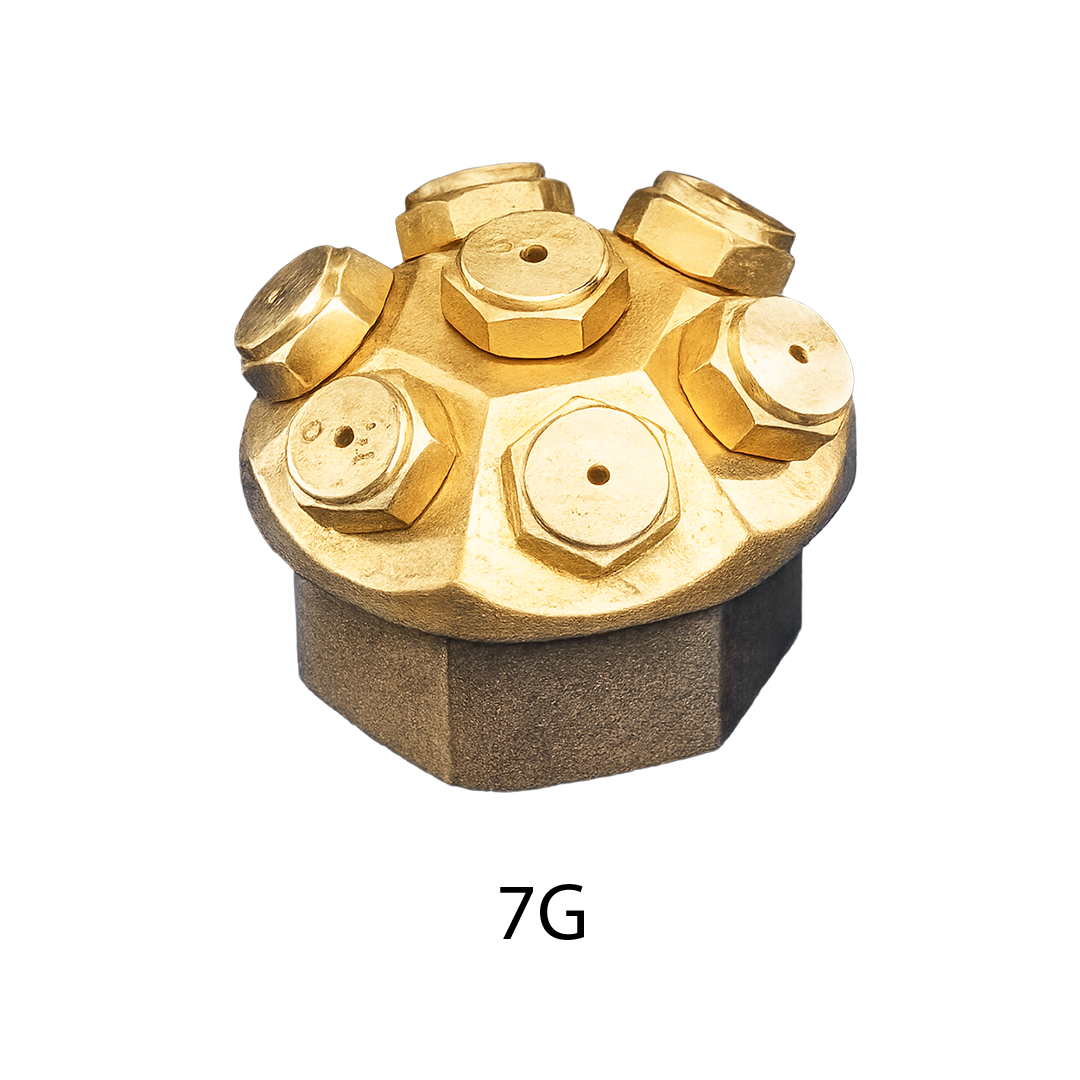

7N, 7G

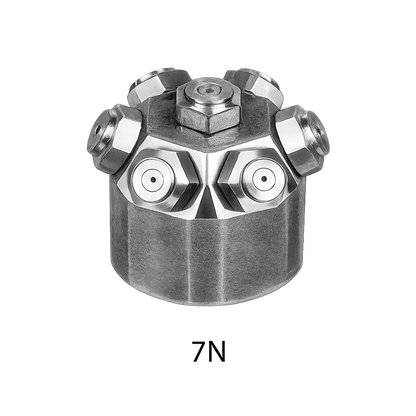

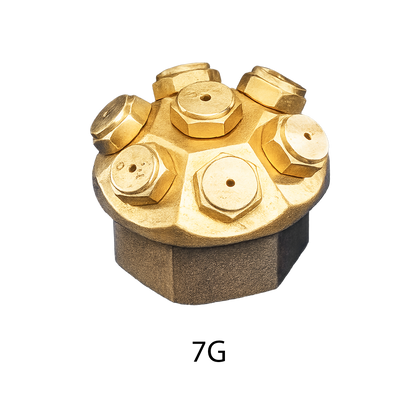

Fine Water Mist Nozzle | Air Atomizing Spray Nozzle
Durable. Precise. Built for Performance.
Fine Water Mist Nozzle designed to generate a hollow cone spray with broad coverage, this nozzle is ideal for applications requiring efficient distribution over large areas. Its simple, serviceable design allows for easy cleaning and maintenance, minimizing downtime and improving operational efficiency.

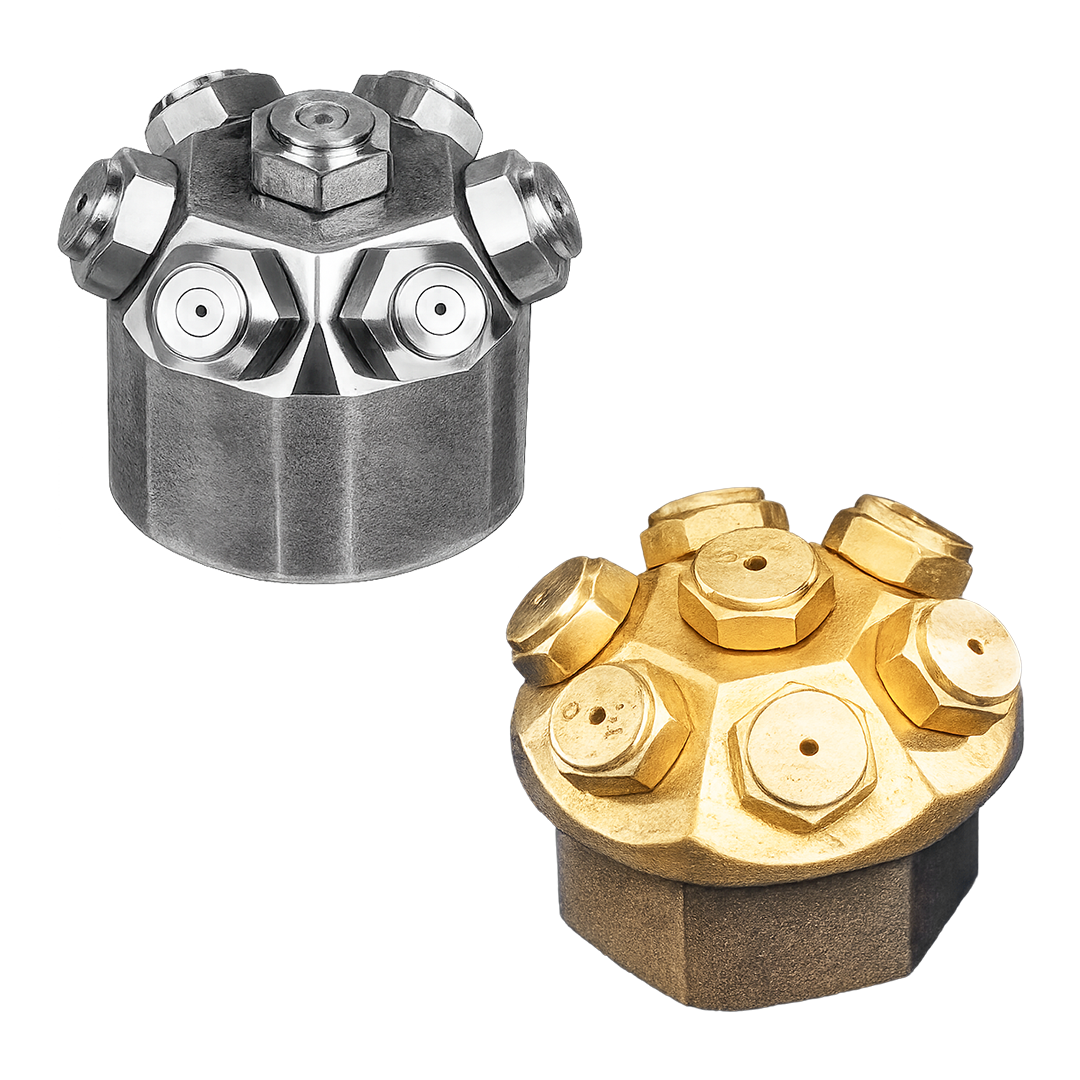

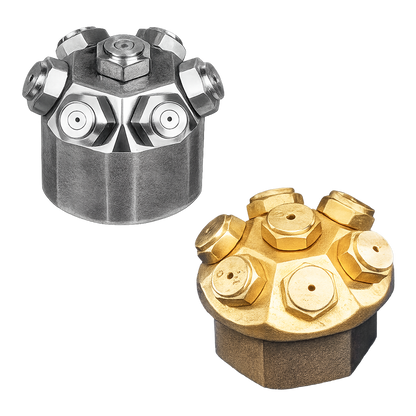

Material:
Stainless Steel, Brass
Contact Us
Technical Specifications
| Nozzle Model | Inlet Diameter | Nozzle Model No. | Flow Rate (L/min) | ||||||
|---|---|---|---|---|---|---|---|---|---|
| 1.5 bar | 3 bar | 4 bar | 6 bar | 7 bar | 8 bar | 10 bar | |||
| 7N | 1 | 0.6 | 0.42 | 0.45 | 0.5 | ||||
| 1 | 0.46 | 0.56 | 0.65 | 0.7 | 0.75 | 0.84 | |||
| 1.5 | 0.69 | 0.85 | 0.98 | 1 | 1.1 | 1.3 | |||
| 2 | 0.92 | 1.1 | 1.3 | 1.4 | 1.5 | 1.7 | |||
| 3 | 1.1 | 1.4 | 1.7 | 2 | 2.1 | 2.3 | 2.5 | ||
| 4 | 1.5 | 1.8 | 2.2 | 2.6 | 2.8 | 3 | 3.4 | ||
| 6 | 2.2 | 2.8 | 3.4 | 3.9 | 4.2 | 4.5 | 5 | ||
| 8 | 2.9 | 3.7 | 4.5 | 5.2 | 5.6 | 6 | 6.7 | ||
| 10 | 3.7 | 4.5 | 5.6 | 6.5 | 7 | 7.5 | 8.4 | ||
| 12 | 4.4 | 5.5 | 6.7 | 7.8 | 8.4 | 9 | 10.1 | ||
| 14 | 5.1 | 6.4 | 7.9 | 9.1 | 9.8 | 10.5 | 11.8 | ||
| 16 | 5.9 | 7.4 | 9.1 | 10.4 | 11.2 | 12 | 13.5 | ||
| 18 | 6.6 | 8.3 | 10.2 | 11.7 | 12.6 | 13.5 | 15.1 | ||
| 22 | 8 | 10.1 | 12.4 | 14.3 | 15.3 | 16.5 | 18.5 | ||
| 26 | 9.5 | 12 | 14.7 | 16.9 | 18.1 | 19.6 | 22 | ||
| 7G | 3/4 | 1 | 4.3 | 5.2 | 6.4 | 7.2 | 7.7 | 8.2 | 9.1 |
| 1.5 | 6.5 | 7.8 | 9.6 | 10.8 | 11.6 | 12.3 | 13.6 | ||
| 3 | 13 | 15.6 | 19.1 | 22 | 24 | 25 | 27 | ||
| 5 | 22 | 26 | 32 | 39 | 39 | 41 | 45 | ||
