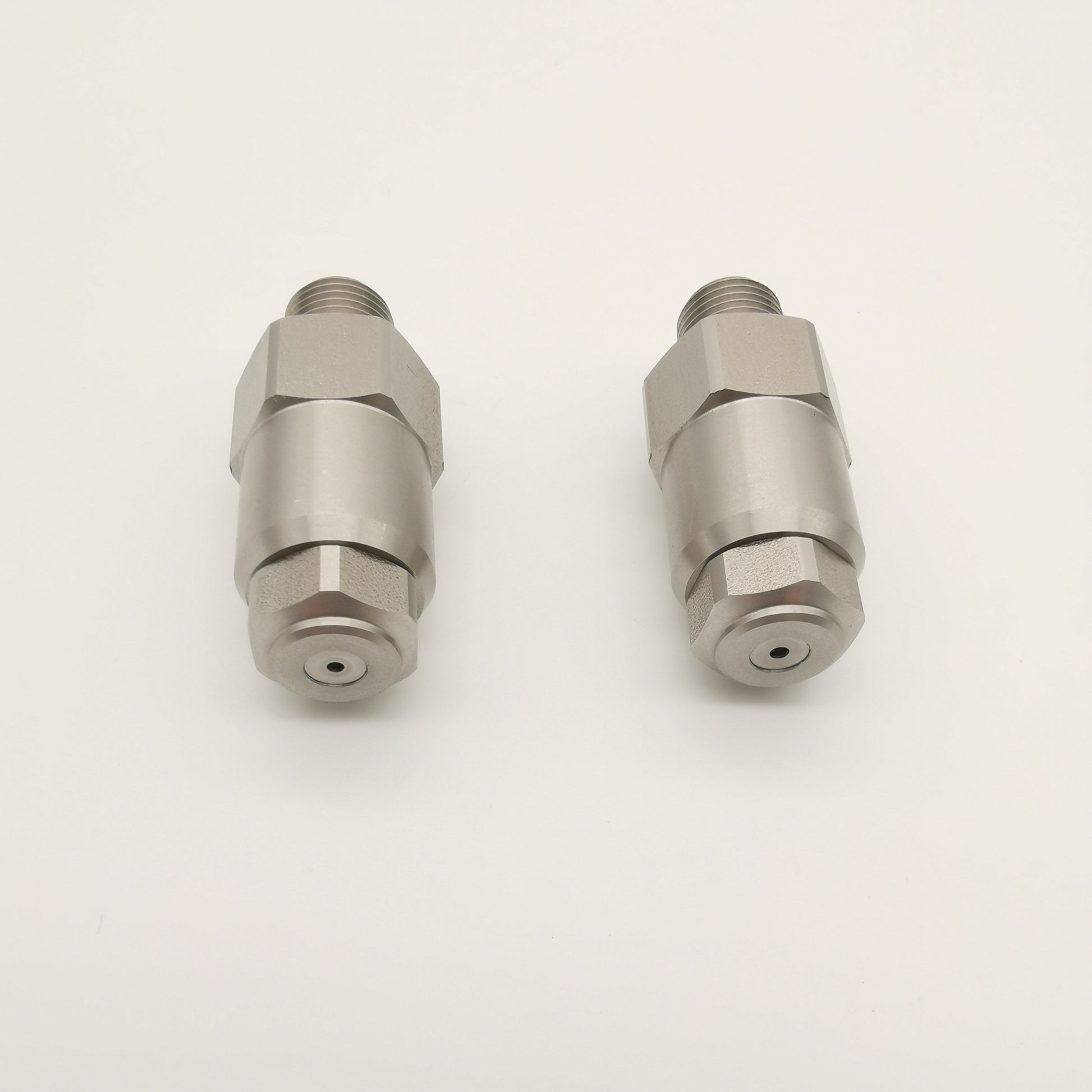

Pressure Type Fine Mist Nozzle
The Pressure Type Fine Mist Nozzle is a high-performance atomizing nozzle that produces ultra-fine droplets through liquid pressure without the need for compressed air. Designed for efficient cooling, humidification, dust suppression, and coating applications, this nozzle ensures a uniform and consistent spray pattern even at low flow rates.
Manufactured from high-quality stainless steel or brass, it offers excellent wear resistance, corrosion protection, and a long service life. Its compact design and simple structure make it easy to install and maintain, making it ideal for continuous industrial use
Technical Specifications
Spray Pattern : Mist / Atomizing
Orifice Diameter : -
Spray Angle : 30°-120°
Flow Rate : 0.05-2.0 L/min
Working Pressure : 3-70 bar
Connection Size(s) : 1/4", Thread
Material : Stainless Steel, Brass
Speak with our team for more information.
Advantages
- Consistent fine mist with high atomization efficiency
- Compact, clog-resistant design for long-term reliability
- No external air supply required, reducing maintenance and cost
- Suitable for automatic and manual spraying systems
- Customizable flow rate and spray angle upon request
Learn More
👉 Contact us today for more information or a custom quote on the nozzles designed to optimize your systems.
Technical Specifications
| Nozzle Model No. | Liquid Cap and Air Cap No. | Flow Rate at Different Pressure (L/min) | Jet Size | ||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Air Pressure (kg) | Water (L/hr) | Air (L/min) | Air Pressure (kg) | Water (L/hr) | Air (L/min) | Air Pressure (kg) | Water (L/hr) | Air (L/min) | Air Pressure (kg) | Water (L/hr) | Air (L/min) | Air Pressure (kg) | Water (L/hr) | Air (L/min) | Air (kg) | Liquid (kg) | A Jet Angle | B (cm) | D (m) | ||
| SUII | Liquid Cap 2050 Air Cap 62147 | 0.7 | 2.5 | 15.6 | 1.1 | 6.4 | 11.9 | 1.4 | 6.4 | 13.9 | 2.7 | 6.2 | 23 | 3.5 | 7.8 | 28 | 0.85 | 0.7 | 13° | 30 | 2.7 |
| 0.85 | 1.8 | 19.0 | 1.4 | 5.0 | 15.0 | 1.7 | 5.5 | 16.7 | 2.8 | 5.7 | 25 | 3.7 | 7.3 | 29 | 1.7 | 1.5 | 13° | 33 | 3.0 | ||
| 1.0 | 1.4 | 22 | 1.7 | 4.1 | 18.9 | 2.0 | 4.5 | 19.8 | 3.0 | 5.2 | 27 | 3.9 | 6.4 | 33 | 2.5 | 2.0 | 13° | 36 | 3.4 | ||
| 1.8 | 3.4 | 20 | 2.2 | 3.4 | 24 | 3.1 | 4.7 | 29 | 4.2 | 5.5 | 38 | 3.1 | 3.0 | 14° | 39 | 3.8 | |||||
| 2.0 | 3.0 | 23 | 2.4 | 3.0 | 26 | 3.2 | 4.3 | 31 | 4.5 | 4.5 | 43 | 4.5 | 4.0 | 15° | 44 | 4.4 | |||||
| 2.1 | 2.6 | 25 | 2.5 | 2.5 | 28 | 3.4 | 3.9 | 33 | 4.6 | 4.1 | 45 | ||||||||||
| 2.2 | 2.0 | 27 | 2.7 | 2.3 | 31 | 3.7 | 3.0 | 38 | 4.8 | 3.7 | 47 | ||||||||||
| SU12A | Liquid Cap 2050 Air Cap 73160 | 0.7 | 2.5 | 18.7 | 1.4 | 5.7 | 27 | 1.7 | 6.7 | 29 | 2.2 | 9.2 | 34 | 2.8 | 11.9 | 39 | 0.85 | 0.7 | 12° | 43 | 3.7 |
| 0.85 | 2.0 | 22 | 1.5 | 5.2 | 29 | 1.8 | 6.4 | 31 | 2.5 | 8.2 | 39 | 3.1 | 11.0 | 43 | 1.5 | 1.5 | 13° | 46 | 4.0 | ||
| 1.0 | 1.6 | 26 | 1.7 | 4.8 | 32 | 2.0 | 5.9 | 34 | 2.8 | 7.2 | 44 | 3.4 | 10.1 | 47 | 2.4 | 2.0 | 13° | 48 | 4.3 | ||
| 1.8 | 4.3 | 35 | 2.1 | 5.2 | 37 | 3.0 | 6.7 | 47 | 3.7 | 9.2 | 52 | 3.0 | 3.0 | 13° | 51 | 4.6 | |||||
| 2.0 | 3.9 | 37 | 2.2 | 4.8 | 40 | 3.1 | 6.3 | 49 | 3.9 | 8.4 | 58 | 3.9 | 4.0 | 15° | 56 | 5.2 | |||||
| 2.1 | 3.4 | 40 | 2.4 | 4.3 | 43 | 3.2 | 5.9 | 52 | 4.2 | 7.6 | 62 | ||||||||||
| 2.7 | 3.6 | 48 | 3.4 | 5.5 | 55 | 4.5 | 6.8 | 68 | |||||||||||||
| SU12 | Liquid Cap 2050 Air Cap 73160 | 0.85 | 4.8 | 1.7 | 8.4 | 31 | 2.0 | 10.7 | 33 | 2.7 | 16.5 | 37 | 3.4 | 20 | 43 | 1.5 | 0.7 | 12° | 48 | 4.0 | |
| 1.1 | 4.1 | 21 | 1.8 | 7.5 | 35 | 2.1 | 9.8 | 37 | 2.8 | 15.4 | 38 | 3.7 | 18.4 | 47 | 2.5 | 1.5 | 13° | 51 | 4.3 | ||
| 1.4 | 3.4 | 27 | 2.0 | 7.0 | 37 | 2.4 | 8.2 | 42 | 3.1 | 13.6 | 43 | 3.9 | 16.8 | 50 | 3.0 | 2.0 | 13° | 53 | 4.6 | ||
| 1.5 | 3.1 | 33 | 2.2 | 5.7 | 44 | 2.7 | 6.8 | 48 | 3.4 | 11.8 | 49 | 4.2 | 15.2 | 55 | 3.4 | 3.0 | 14° | 56 | 4.9 | ||
| 1.7 | 3.0 | 35 | 2.5 | 4.8 | 49 | 3.0 | 5.9 | 55 | 3.7 | 10.4 | 55 | 4.5 | 13.8 | 60 | 4.2 | 4.0 | 15° | 60 | 5.3 | ||
| 1.8 | 2.9 | 39 | 2.8 | 4.1 | 54 | 3.2 | 5.0 | 59 | 3.9 | 9.1 | 61 | 4.8 | 12.4 | 65 | |||||||
| 2.0 | 2.8 | 41 | 3.1 | 3.6 | 59 | 3.5 | 4.1 | 65 | 4.2 | 7.9 | 65 | 4.9 | 11.8 | 68 | |||||||
| SU22B | Liquid Cap 40100 Air Cap 1401110 | 1.1 | 13.0 | 44 | 2.2 | 17.8 | 116 | 2.8 | 20 | 136 | 3.4 | 32 | 149 | 4.6 | 37 | 193 | 1.7 | 0.7 | 18° | 66 | 4.9 |
| 1.4 | 8.9 | 76 | 2.5 | 13.1 | 130 | 3.1 | 16.3 | 149 | 3.9 | 25 | 170 | 5.3 | 29 | 220 | 2.8 | 1.5 | 20° | 76 | 5.8 | ||
| 1.5 | 7.2 | 91 | 2.8 | 9.5 | 143 | 3.4 | 11.9 | 163 | 4.6 | 15.9 | 205 | 5.6 | 25 | 235 | 3.9 | 2.0 | 20° | 81 | 6.7 | ||
| 1.7 | 5.8 | 98 | 3.1 | 7.0 | 157 | 3.9 | 7.0 | 187 | 5.3 | 9.1 | 240 | 6.0 | 21 | 250 | 5.3 | 3.0 | 21° | 91 | 7.0 | ||
| 1.8 | 4.7 | 105 | 3.4 | 4.9 | 171 | 4.2 | 4.7 | 205 | 5.6 | 6.8 | 255 | 6.3 | 17.4 | 270 | 6.0 | 4.0 | 21° | 97 | 8.5 | ||
| 2.0 | 3.6 | 112 | 3.5 | 4.2 | 178 | 4.6 | 3.0 | 220 | 6.0 | 5.0 | 275 | 6.7 | 14.0 | 290 | |||||||
| 2.1 | 2.7 | 119 | 6.3 | 3.6 | 290 | 7.0 | 11.0 | 305 | |||||||||||||
| SU22 | Liquid Cap 60100 Air Cap 1401110 | 0.85 | 31 | 127 | 1.4 | 61 | 69 | 2.1 | 53 | 96 | 2.7 | 80 | 103 | 3.8 | 88 | 135 | 1.0 | 0.7 | 17° | 61 | 6.1 |
| 1.0 | 25 | 57 | 1.5 | 54 | 76 | 2.4 | 41 | 112 | 3.0 | 69 | 117 | 4.2 | 73 | 156 | 1.8 | 1.5 | 18° | 69 | 7.0 | ||
| 1.1 | 18.5 | 66 | 1.7 | 48 | 85 | 2.7 | 31 | 127 | 3.2 | 59 | 130 | 4.6 | 61 | 176 | 2.8 | 2.0 | 20° | 76 | 7.6 | ||
| 1.3 | 12.9 | 75 | 1.8 | 41 | 93 | 2.8 | 26 | 136 | 3.5 | 49 | 146 | 4.9 | 48 | 196 | 3.5 | 3.0 | 20° | 79 | 7.9 | ||
| 85 | 2.0 | 35 | 102 | 3.0 | 22 | 144 | 3.7 | 44 | 154 | 5.3 | 39 | 215 | 4.9 | 4.0 | 21° | 91 | 9.1 | ||||
| 2.1 | 30 | 110 | 3.8 | 37 | 161 | 5.6 | 31 | 240 | |||||||||||||
| 2.2 | 25 | 119 | 3.9 | 35 | 170 | 6.0 | 23 | 260 | |||||||||||||
| SU42 | Liquid Cap 100150 Air Cap 1891125 | 1.0 | 44 | 1.4 | 125 | 79 | 2.0 | 123 | 108 | 2.2 | 199 | 88 | 3.0 | 250 | 99 | 1.0 | 0.7 | 19° | 89 | 6.1 | |
| 1.1 | 32 | 86 | 1.5 | 106 | 91 | 2.1 | 108 | 119 | 2.5 | 174 | 110 | 3.2 | 225 | 120 | 1.7 | 1.5 | 20° | 99 | 7.0 | ||
| 102 | 1.7 | 87 | 105 | 2.2 | 95 | 130 | 2.8 | 146 | 133 | 3.5 | 205 | 141 | 2.4 | 2.0 | 21° | 104 | 7.6 | ||||
| 1.8 | 70 | 118 | 2.4 | 79 | 143 | 3.1 | 121 | 154 | 3.8 | 182 | 163 | 3.1 | 3.0 | 21° | 107 | 7.9 | |||||
| 2.0 | 55 | 130 | 2.5 | 64 | 155 | 3.2 | 108 | 166 | 4.1 | 159 | 184 | 3.8 | 4.0 | 22° | 117 | 9.1 | |||||
| 2.7 | 52 | 166 | 3.4 | 95 | 176 | 4.6 | 121 | 225 | |||||||||||||
| 2.8 | 42 | 178 | 3.5 | 84 | 187 | 4.9 | 93 | 255 | |||||||||||||
