Model:

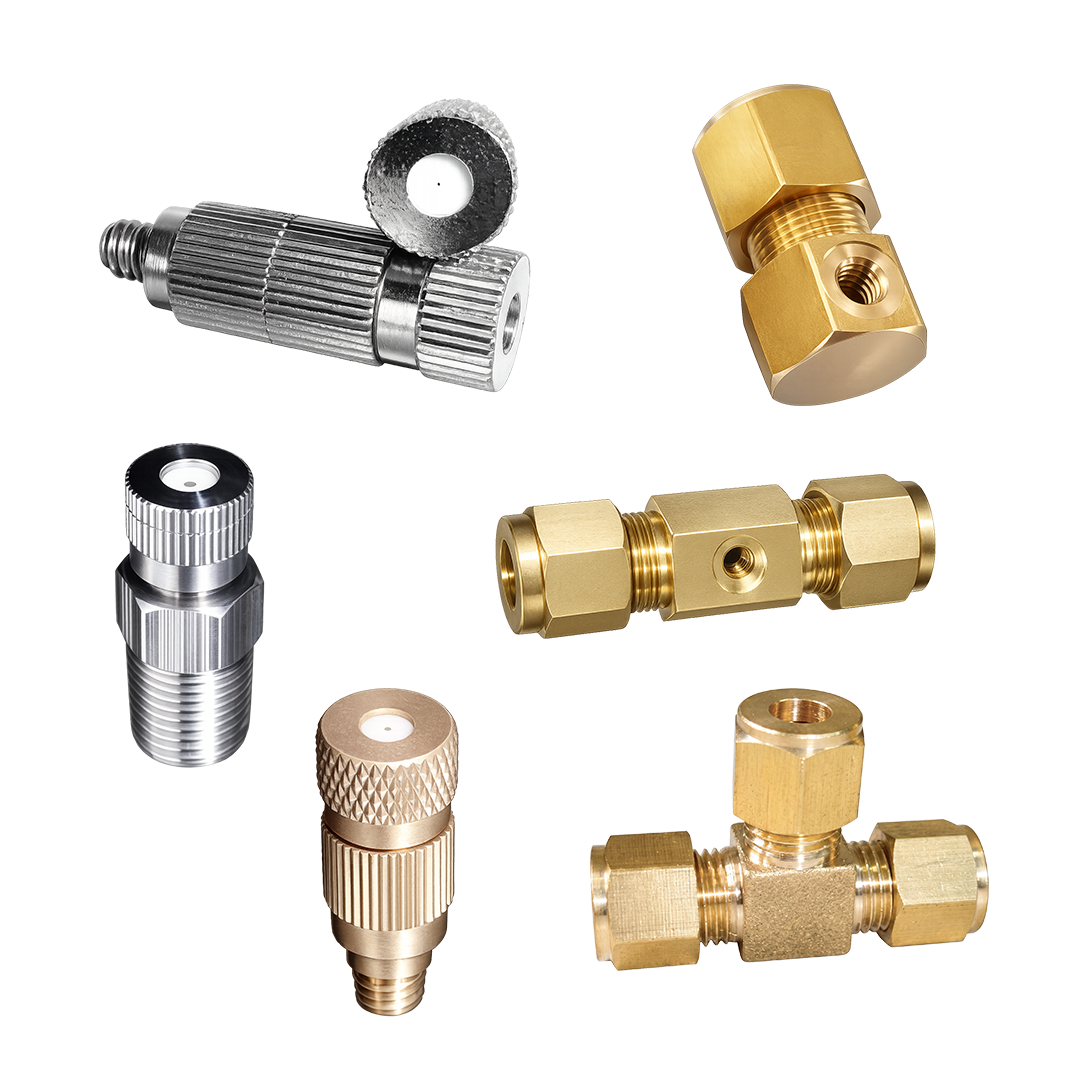

KWD-01, KWD-02, KWD-03, KWD-20, KWD-22, KWD-24
FD High Pressure Fog Misting Nozzle | Air Atomizing Spray Nozzle
Durable. Precise. Built for Performance.

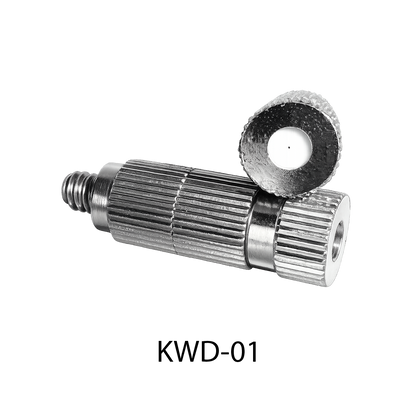

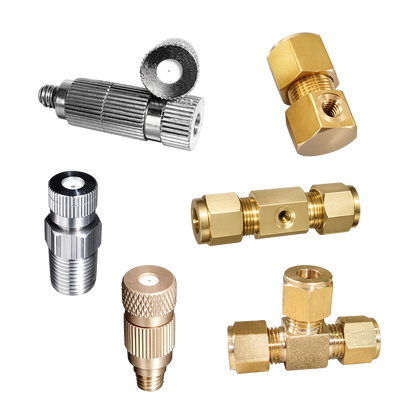

FD High Pressure Fog Misting Nozzle combines a stainless steel body with a ceramic insert orifice to deliver reliable fine atomization and long service life. Its modular design allows for easy cleaning and integration into multi-nozzle spray systems.
Material:
Stainless Steel, Ceramic
Contact Us
Technical Specifications
| Model | Nozzle Model No. | Nozzle Diameter mm | Thread | Working Pressure bar/cm² | Spray Volume |
|---|---|---|---|---|---|

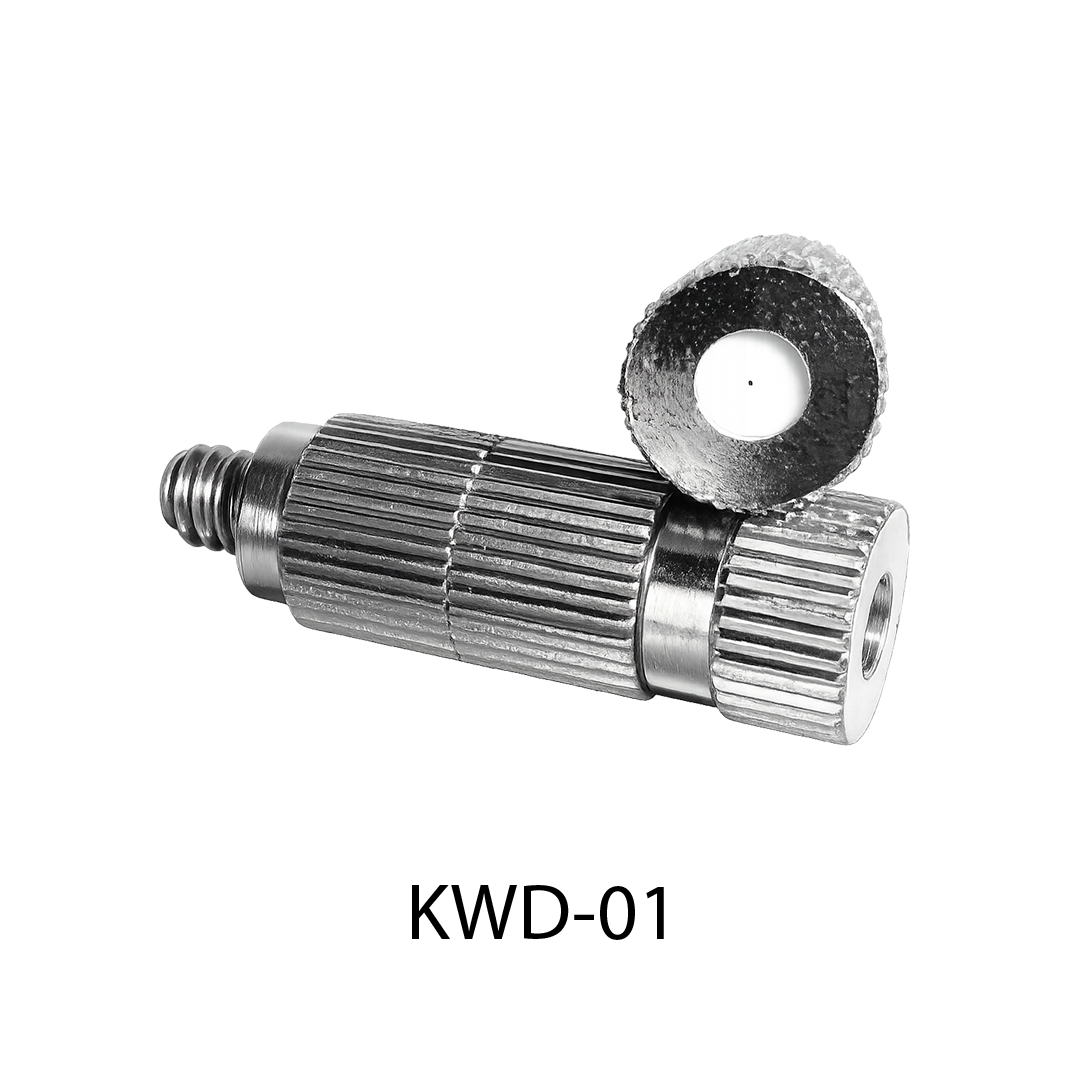

| KWD-01 | 1010AS | 0.10 | 3/16unc | 20~70 | 10~25 |
| 1510AS | 0.15 | 3/16unc | 20~70 | 20~46 | |
| 2010AS | 0.20 | 3/16unc | 20~70 | 49~89 | |
| 3010AS | 0.30 | 3/16unc | 20~70 | 80~145 | |
| 4010AS | 0.40 | 3/16unc | 20~70 | 95~178 | |
| 5010AS | 0.50 | 3/16unc | 20~70 | 130~243 | |

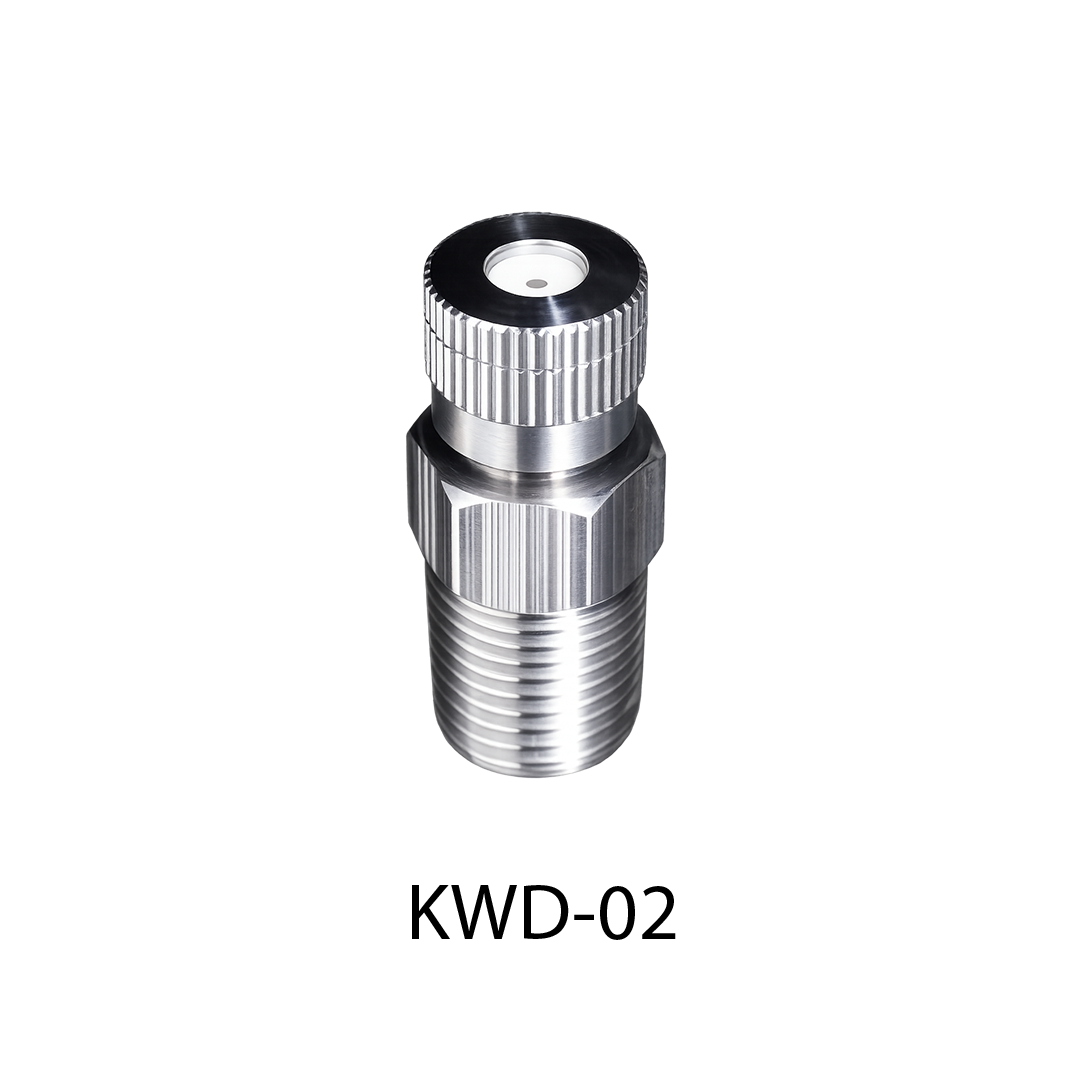

| KWD-02 | 1010AS | 0.10 | 1/8unc | 20~70 | 10~25 |
| 1510AS | 0.15 | 1/8unc | 20~70 | 20~46 | |
| 2010AS | 0.20 | 1/8unc | 20~70 | 49~89 | |
| 3010AS | 0.30 | 1/8unc | 20~70 | 80~145 | |
| 4010AS | 0.40 | 1/8unc | 20~70 | 95~178 | |
| 5010AS | 0.50 | 1/8unc | 20~70 | 130~243 | |

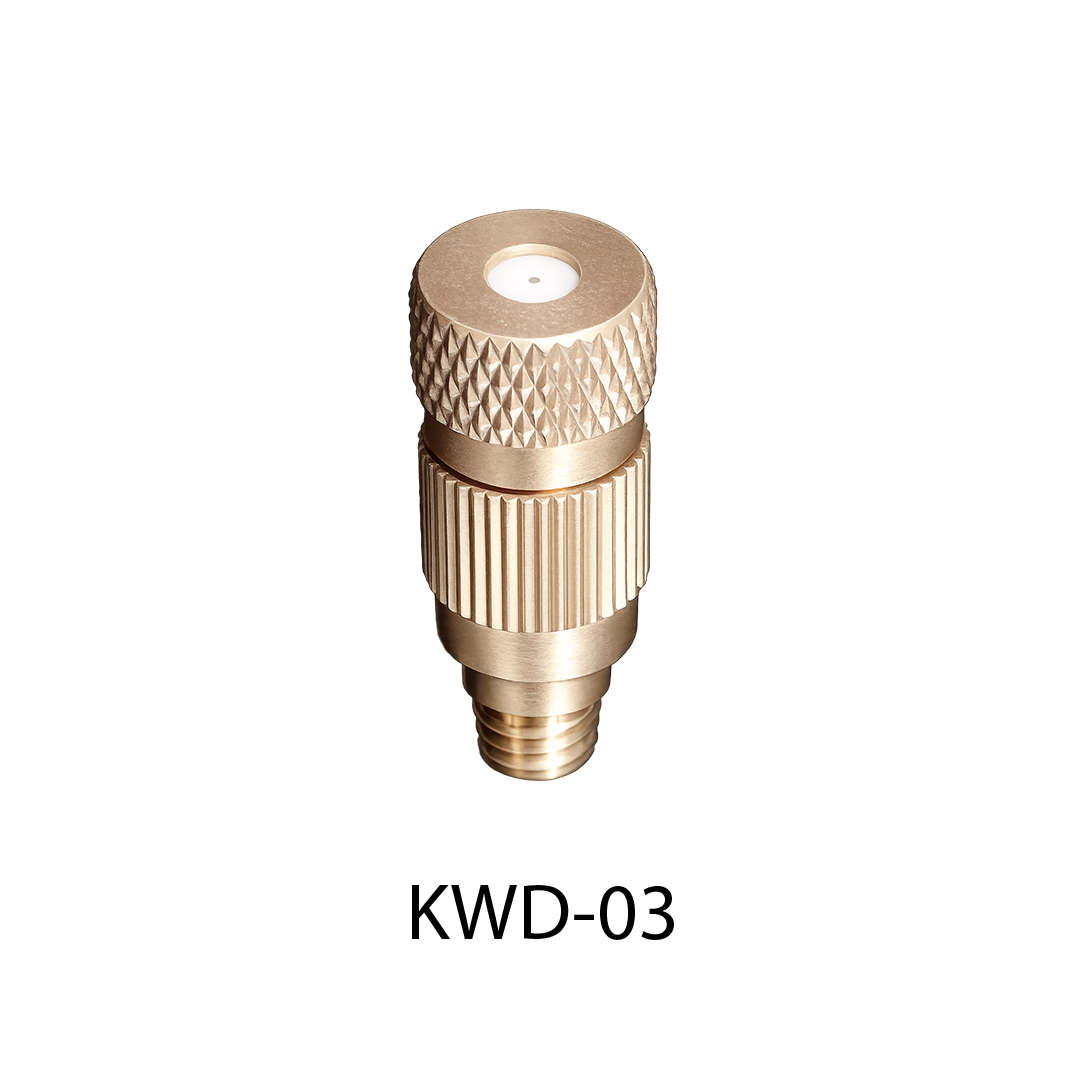

| KWD-03 | 1010AS | 0.10 | 3/16unc | 20~70 | 10~25 |
| 1510AS | 0.15 | 3/16unc | 20~70 | 20~46 | |
| 2010AS | 0.20 | 3/16unc | 20~70 | 49~89 | |
| 3010AS | 0.30 | 3/16unc | 20~70 | 80~145 | |
| 4010AS | 0.40 | 3/16unc | 20~70 | 95~178 | |
| 5010AS | 0.50 | 3/16unc | 20~70 | 130~243 |
Technical Specifications
| Model | Nozzle Model | Nozzle Diameter mm | Material | Pressure |
|---|---|---|---|---|

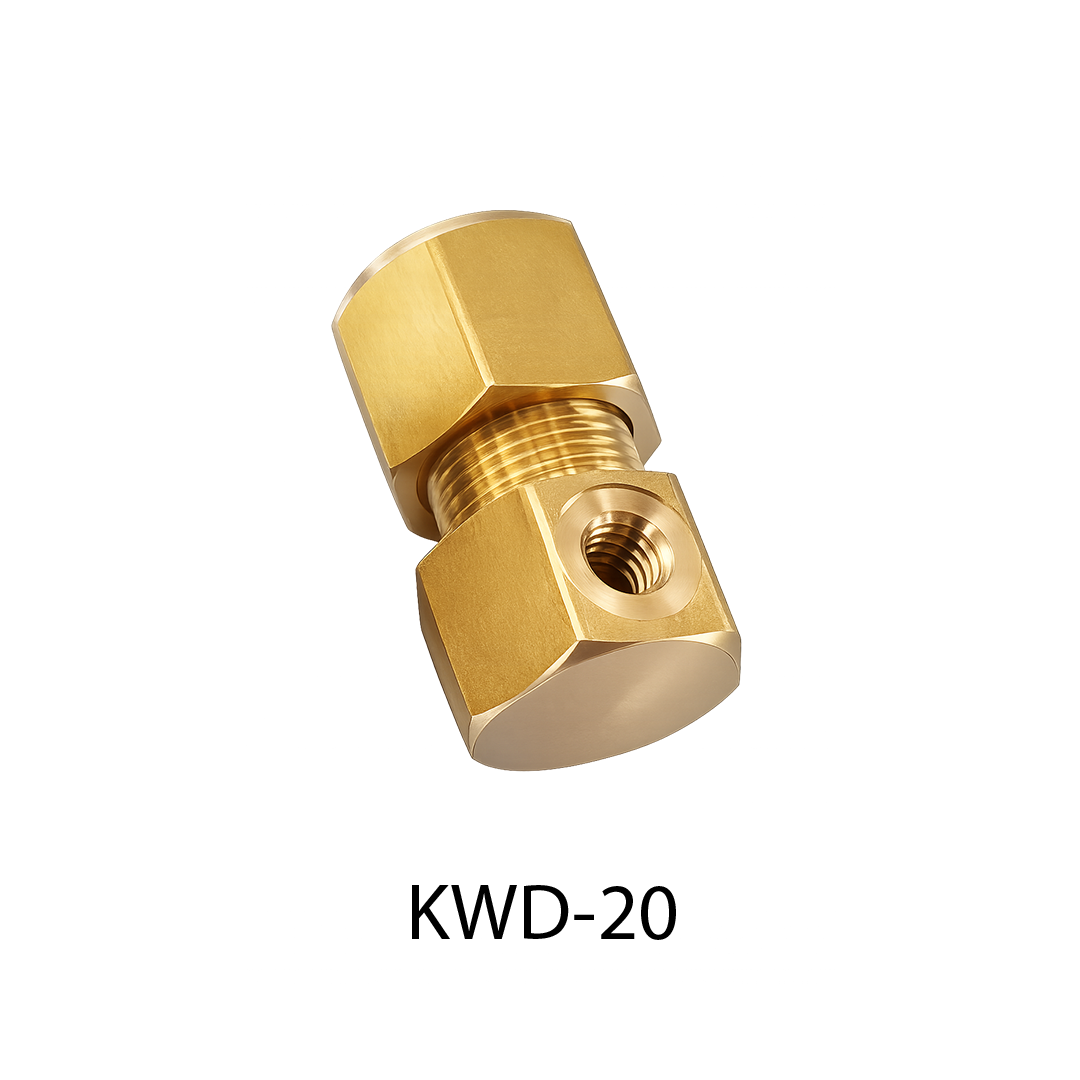

| KWD-20 | FW-ZJ 3/16 Single Spray | 6 | H59 | 130 bar |
| 8 | H59 | 130 bar | ||
| 9.52 | H59 | 130 bar | ||

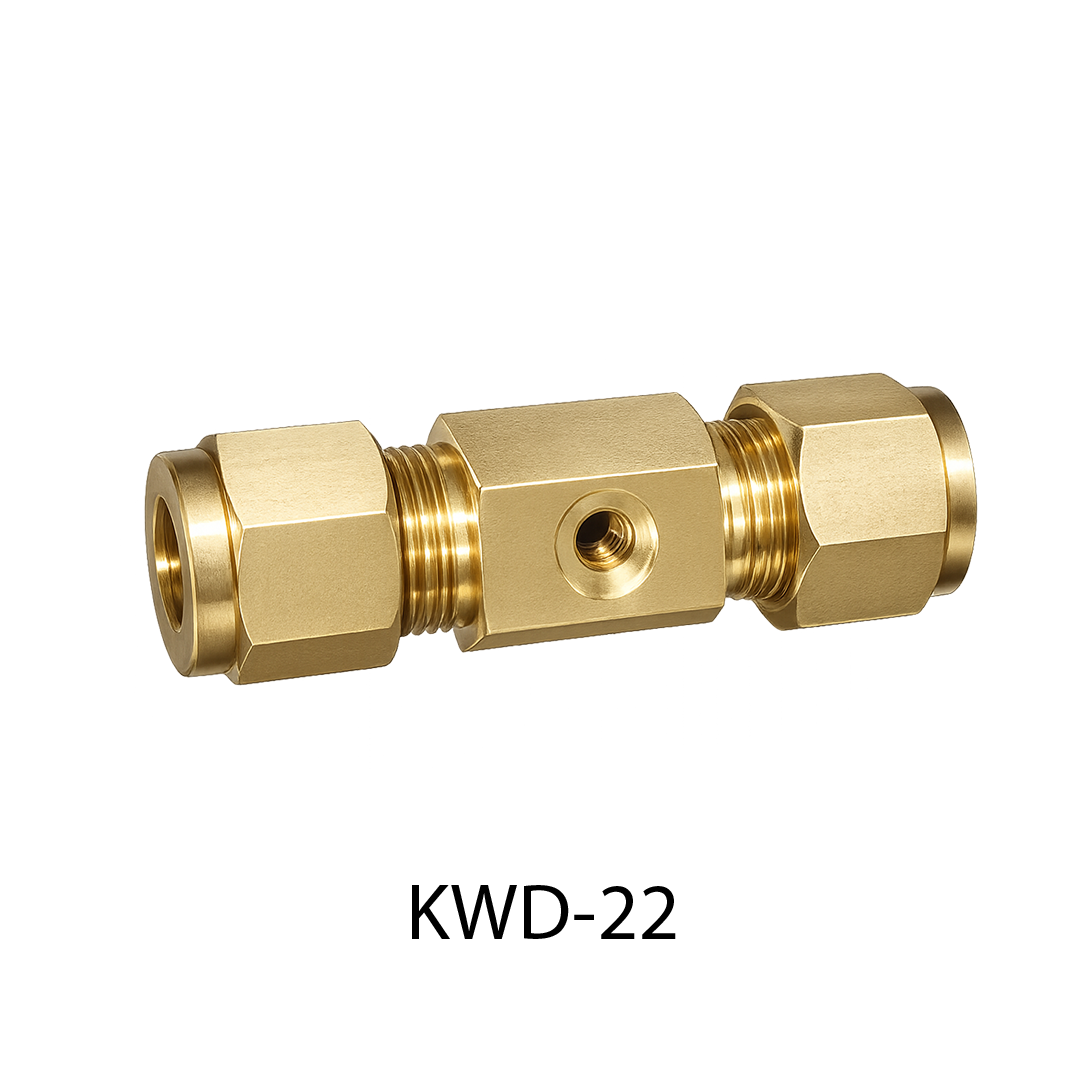

| KWD-22 | FW-ZJ 3/16 Direct Single Spray Double Spray | 6 | H59 | 130 bar |
| 8 | H59 | 130 bar | ||
| 9.52 | H59 | 130 bar | ||

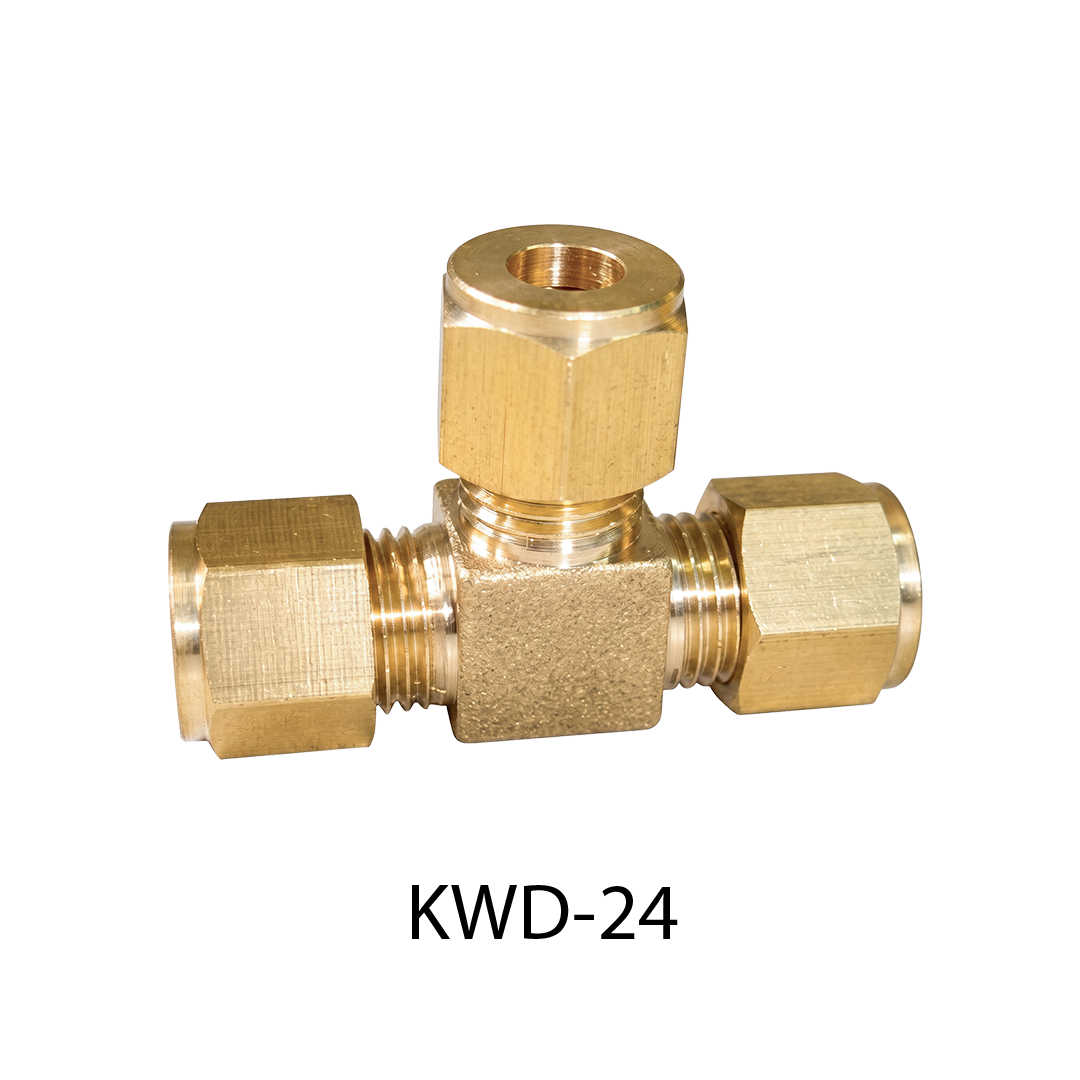

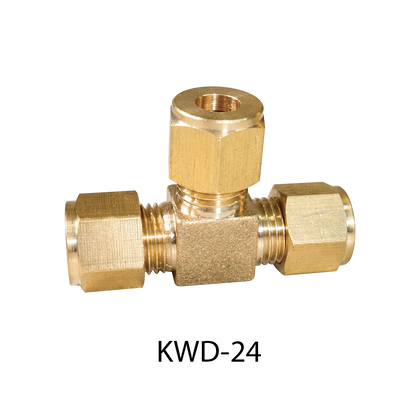

| KWD-24 | FW-ZJ Triple Spray | 6 | H59 | 130 bar |
| 8 | H59 | 130 bar | ||
| 9.52 | H59 | 130 bar |
