Durable. Precise. Built for Performance.

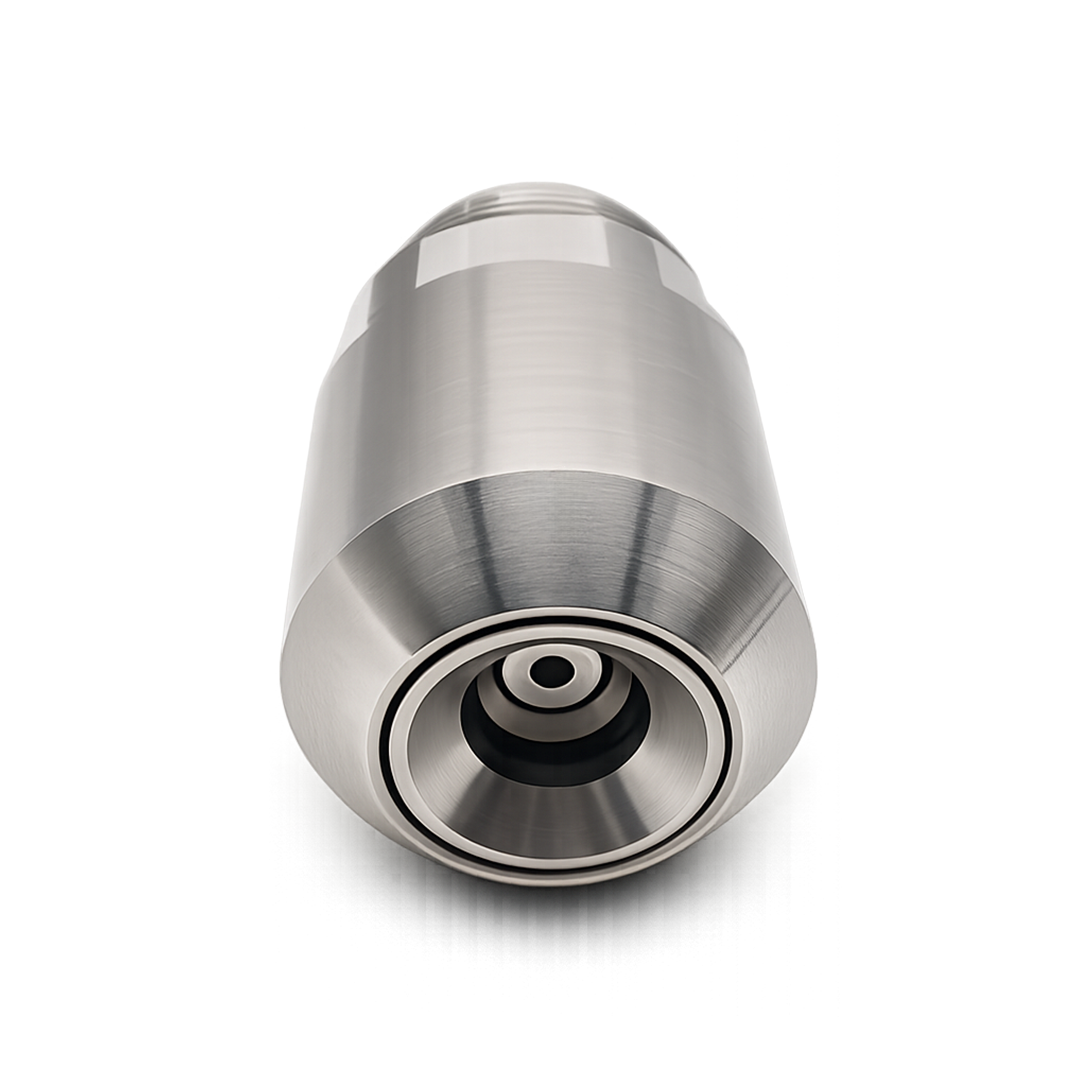

The External Mix Full Cone Atomizing Nozzle generates a uniform full cone spray pattern by mixing air and liquid outside the nozzle body. Its clog-resistant design and precise droplet control make it ideal for stable atomization and wide-area coverage in industrial applications.

Key Features

  • Uniform full cone spray pattern
  • External air-liquid mixing design
  • Clog-resistant construction
  • Precise droplet size control
  • Reliable industrial performance

Technical Specifications

Spray Pattern : Mist / Atomizing Full Cone
Orifice Diameter : -
Spray Angle : -
Flow Rate : -
Working Pressure : -
Connection Size(s) : -
Material : Stainless Steel, Brass

Speak with our team for more information.

Applications

  • Industrial cooling systems
  • Dust suppression (mining, ports, material handling)
  • Spray coating & surface treatment
  • Humidification systems
  • Chemical spraying processes

Learn More

👉 Contact us today for more information or a custom quote on the nozzles designed to optimize your systems.

Contact Us

Technical Specifications

Nozzle Model No. Liquid Cap and Air Cap No. Flow Rate at Different Pressure (L/min) Jet Size
Air Pressure (kg) Water (L/hr) Air (L/min) Air Pressure (kg) Water (L/hr) Air (L/min) Air Pressure (kg) Water (L/hr) Air (L/min) Air Pressure (kg) Water (L/hr) Air (L/min) Air Pressure (kg) Water (L/hr) Air (L/min) Air (kg) Liquid (kg) A Jet Angle B (cm) D (m)
SUII Liquid Cap 2050 Air Cap 62147 0.7 2.5 15.6 1.1 6.4 11.9 1.4 6.4 13.9 2.7 6.2 23 3.5 7.8 28 0.85 0.7 13° 30 2.7
0.85 1.8 19.0 1.4 5.0 15.0 1.7 5.5 16.7 2.8 5.7 25 3.7 7.3 29 1.7 1.5 13° 33 3.0
1.0 1.4 22 1.7 4.1 18.9 2.0 4.5 19.8 3.0 5.2 27 3.9 6.4 33 2.5 2.0 13° 36 3.4
1.8 3.4 20 2.2 3.4 24 3.1 4.7 29 4.2 5.5 38 3.1 3.0 14° 39 3.8
2.0 3.0 23 2.4 3.0 26 3.2 4.3 31 4.5 4.5 43 4.5 4.0 15° 44 4.4
2.1 2.6 25 2.5 2.5 28 3.4 3.9 33 4.6 4.1 45
2.2 2.0 27 2.7 2.3 31 3.7 3.0 38 4.8 3.7 47
SU12A Liquid Cap 2050 Air Cap 73160 0.7 2.5 18.7 1.4 5.7 27 1.7 6.7 29 2.2 9.2 34 2.8 11.9 39 0.85 0.7 12° 43 3.7
0.85 2.0 22 1.5 5.2 29 1.8 6.4 31 2.5 8.2 39 3.1 11.0 43 1.5 1.5 13° 46 4.0
1.0 1.6 26 1.7 4.8 32 2.0 5.9 34 2.8 7.2 44 3.4 10.1 47 2.4 2.0 13° 48 4.3
1.8 4.3 35 2.1 5.2 37 3.0 6.7 47 3.7 9.2 52 3.0 3.0 13° 51 4.6
2.0 3.9 37 2.2 4.8 40 3.1 6.3 49 3.9 8.4 58 3.9 4.0 15° 56 5.2
2.1 3.4 40 2.4 4.3 43 3.2 5.9 52 4.2 7.6 62
2.7 3.6 48 3.4 5.5 55 4.5 6.8 68
SU12 Liquid Cap 2050 Air Cap 73160 0.85 4.8 1.7 8.4 31 2.0 10.7 33 2.7 16.5 37 3.4 20 43 1.5 0.7 12° 48 4.0
1.1 4.1 21 1.8 7.5 35 2.1 9.8 37 2.8 15.4 38 3.7 18.4 47 2.5 1.5 13° 51 4.3
1.4 3.4 27 2.0 7.0 37 2.4 8.2 42 3.1 13.6 43 3.9 16.8 50 3.0 2.0 13° 53 4.6
1.5 3.1 33 2.2 5.7 44 2.7 6.8 48 3.4 11.8 49 4.2 15.2 55 3.4 3.0 14° 56 4.9
1.7 3.0 35 2.5 4.8 49 3.0 5.9 55 3.7 10.4 55 4.5 13.8 60 4.2 4.0 15° 60 5.3
1.8 2.9 39 2.8 4.1 54 3.2 5.0 59 3.9 9.1 61 4.8 12.4 65
2.0 2.8 41 3.1 3.6 59 3.5 4.1 65 4.2 7.9 65 4.9 11.8 68
SU22B Liquid Cap 40100 Air Cap 1401110 1.1 13.0 44 2.2 17.8 116 2.8 20 136 3.4 32 149 4.6 37 193 1.7 0.7 18° 66 4.9
1.4 8.9 76 2.5 13.1 130 3.1 16.3 149 3.9 25 170 5.3 29 220 2.8 1.5 20° 76 5.8
1.5 7.2 91 2.8 9.5 143 3.4 11.9 163 4.6 15.9 205 5.6 25 235 3.9 2.0 20° 81 6.7
1.7 5.8 98 3.1 7.0 157 3.9 7.0 187 5.3 9.1 240 6.0 21 250 5.3 3.0 21° 91 7.0
1.8 4.7 105 3.4 4.9 171 4.2 4.7 205 5.6 6.8 255 6.3 17.4 270 6.0 4.0 21° 97 8.5
2.0 3.6 112 3.5 4.2 178 4.6 3.0 220 6.0 5.0 275 6.7 14.0 290
2.1 2.7 119 6.3 3.6 290 7.0 11.0 305
SU22 Liquid Cap 60100 Air Cap 1401110 0.85 31 127 1.4 61 69 2.1 53 96 2.7 80 103 3.8 88 135 1.0 0.7 17° 61 6.1
1.0 25 57 1.5 54 76 2.4 41 112 3.0 69 117 4.2 73 156 1.8 1.5 18° 69 7.0
1.1 18.5 66 1.7 48 85 2.7 31 127 3.2 59 130 4.6 61 176 2.8 2.0 20° 76 7.6
1.3 12.9 75 1.8 41 93 2.8 26 136 3.5 49 146 4.9 48 196 3.5 3.0 20° 79 7.9
85 2.0 35 102 3.0 22 144 3.7 44 154 5.3 39 215 4.9 4.0 21° 91 9.1
2.1 30 110 3.8 37 161 5.6 31 240
2.2 25 119 3.9 35 170 6.0 23 260
SU42 Liquid Cap 100150 Air Cap 1891125 1.0 44 1.4 125 79 2.0 123 108 2.2 199 88 3.0 250 99 1.0 0.7 19° 89 6.1
1.1 32 86 1.5 106 91 2.1 108 119 2.5 174 110 3.2 225 120 1.7 1.5 20° 99 7.0
102 1.7 87 105 2.2 95 130 2.8 146 133 3.5 205 141 2.4 2.0 21° 104 7.6
1.8 70 118 2.4 79 143 3.1 121 154 3.8 182 163 3.1 3.0 21° 107 7.9
2.0 55 130 2.5 64 155 3.2 108 166 4.1 159 184 3.8 4.0 22° 117 9.1
2.7 52 166 3.4 95 176 4.6 121 225
2.8 42 178 3.5 84 187 4.9 93 255
Other sizes and material available upon request
