Dry Fog Nozzles
Durable. Precise. Built for Performance.

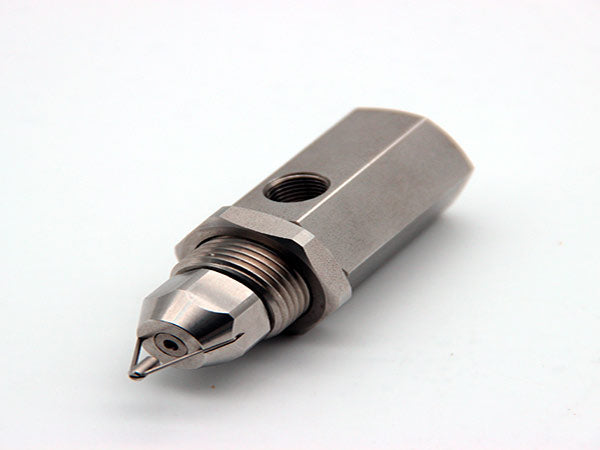

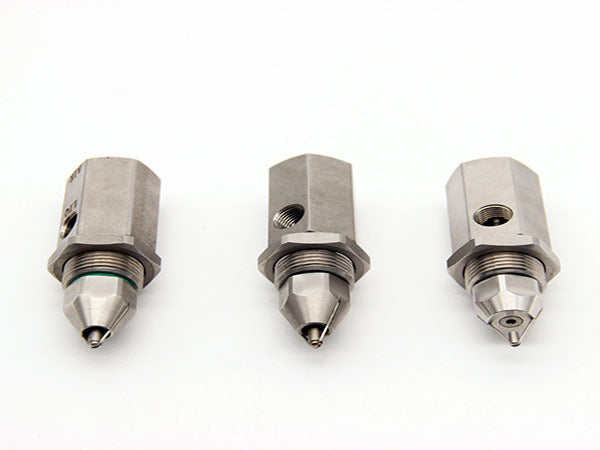

The Dry Fog Nozzle is a high-efficiency air atomizing nozzle designed to produce ultra-fine water mist for effective dust control. Using the principle of gas-liquid atomization, it generates fog droplets as small as 1–10 microns, which combine with airborne dust particles and cause them to settle.
Unlike traditional water spray systems, the dry fog nozzle creates a true dry mist that suppresses dust without wetting surfaces or equipment, making it ideal for environments where moisture must be minimized
Technical Specifications
Spray Pattern : Mist / Atomizing / Cone
Orifice Diameter : -
Spray Angle : 30°, 60°, 80°
Flow Rate : 0.1-5.0 L/min
Working Pressure : 1-5 bar
Connection Size(s) : 1/8", 1/4"
Material : Stainless Steel, Brass, 303L, 316L
Speak with our team for more information.
Applications
- Mining and mineral processing plants
- Coal handling and power generation facilities
- Steel mills, cement plants, and quarries
- Conveyor transfer points, crushers, and screeners
- Ports, bulk loading areas, and storage yards
- Tunnel construction and underground work
Learn More
👉 Contact us today for more information or a custom quote on the nozzles designed to optimize your systems.
Technical Specifications
| Nozzle Model No. | Liquid Cap and Air Cap No. | Flow Rate at Different Pressure (L/min) | Jet Size | ||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Air Pressure (kg) | Water (L/hr) | Air (L/min) | Air Pressure (kg) | Water (L/hr) | Air (L/min) | Air Pressure (kg) | Water (L/hr) | Air (L/min) | Air Pressure (kg) | Water (L/hr) | Air (L/min) | Air Pressure (kg) | Water (L/hr) | Air (L/min) | Air (kg) | Liquid (kg) | A Jet Angle | B (cm) | D (m) | ||
| SUII | Liquid Cap 2050 Air Cap 62147 | 0.7 | 2.5 | 15.6 | 1.1 | 6.4 | 11.9 | 1.4 | 6.4 | 13.9 | 2.7 | 6.2 | 23 | 3.5 | 7.8 | 28 | 0.85 | 0.7 | 13° | 30 | 2.7 |
| 0.85 | 1.8 | 19.0 | 1.4 | 5.0 | 15.0 | 1.7 | 5.5 | 16.7 | 2.8 | 5.7 | 25 | 3.7 | 7.3 | 29 | 1.7 | 1.5 | 13° | 33 | 3.0 | ||
| 1.0 | 1.4 | 22 | 1.7 | 4.1 | 18.9 | 2.0 | 4.5 | 19.8 | 3.0 | 5.2 | 27 | 3.9 | 6.4 | 33 | 2.5 | 2.0 | 13° | 36 | 3.4 | ||
| 1.8 | 3.4 | 20 | 2.2 | 3.4 | 24 | 3.1 | 4.7 | 29 | 4.2 | 5.5 | 38 | 3.1 | 3.0 | 14° | 39 | 3.8 | |||||
| 2.0 | 3.0 | 23 | 2.4 | 3.0 | 26 | 3.2 | 4.3 | 31 | 4.5 | 4.5 | 43 | 4.5 | 4.0 | 15° | 44 | 4.4 | |||||
| 2.1 | 2.6 | 25 | 2.5 | 2.5 | 28 | 3.4 | 3.9 | 33 | 4.6 | 4.1 | 45 | ||||||||||
| 2.2 | 2.0 | 27 | 2.7 | 2.3 | 31 | 3.7 | 3.0 | 38 | 4.8 | 3.7 | 47 | ||||||||||
| SU12A | Liquid Cap 2050 Air Cap 73160 | 0.7 | 2.5 | 18.7 | 1.4 | 5.7 | 27 | 1.7 | 6.7 | 29 | 2.2 | 9.2 | 34 | 2.8 | 11.9 | 39 | 0.85 | 0.7 | 12° | 43 | 3.7 |
| 0.85 | 2.0 | 22 | 1.5 | 5.2 | 29 | 1.8 | 6.4 | 31 | 2.5 | 8.2 | 39 | 3.1 | 11.0 | 43 | 1.5 | 1.5 | 13° | 46 | 4.0 | ||
| 1.0 | 1.6 | 26 | 1.7 | 4.8 | 32 | 2.0 | 5.9 | 34 | 2.8 | 7.2 | 44 | 3.4 | 10.1 | 47 | 2.4 | 2.0 | 13° | 48 | 4.3 | ||
| 1.8 | 4.3 | 35 | 2.1 | 5.2 | 37 | 3.0 | 6.7 | 47 | 3.7 | 9.2 | 52 | 3.0 | 3.0 | 13° | 51 | 4.6 | |||||
| 2.0 | 3.9 | 37 | 2.2 | 4.8 | 40 | 3.1 | 6.3 | 49 | 3.9 | 8.4 | 58 | 3.9 | 4.0 | 15° | 56 | 5.2 | |||||
| 2.1 | 3.4 | 40 | 2.4 | 4.3 | 43 | 3.2 | 5.9 | 52 | 4.2 | 7.6 | 62 | ||||||||||
| 2.7 | 3.6 | 48 | 3.4 | 5.5 | 55 | 4.5 | 6.8 | 68 | |||||||||||||
| SU12 | Liquid Cap 2050 Air Cap 73160 | 0.85 | 4.8 | 1.7 | 8.4 | 31 | 2.0 | 10.7 | 33 | 2.7 | 16.5 | 37 | 3.4 | 20 | 43 | 1.5 | 0.7 | 12° | 48 | 4.0 | |
| 1.1 | 4.1 | 21 | 1.8 | 7.5 | 35 | 2.1 | 9.8 | 37 | 2.8 | 15.4 | 38 | 3.7 | 18.4 | 47 | 2.5 | 1.5 | 13° | 51 | 4.3 | ||
| 1.4 | 3.4 | 27 | 2.0 | 7.0 | 37 | 2.4 | 8.2 | 42 | 3.1 | 13.6 | 43 | 3.9 | 16.8 | 50 | 3.0 | 2.0 | 13° | 53 | 4.6 | ||
| 1.5 | 3.1 | 33 | 2.2 | 5.7 | 44 | 2.7 | 6.8 | 48 | 3.4 | 11.8 | 49 | 4.2 | 15.2 | 55 | 3.4 | 3.0 | 14° | 56 | 4.9 | ||
| 1.7 | 3.0 | 35 | 2.5 | 4.8 | 49 | 3.0 | 5.9 | 55 | 3.7 | 10.4 | 55 | 4.5 | 13.8 | 60 | 4.2 | 4.0 | 15° | 60 | 5.3 | ||
| 1.8 | 2.9 | 39 | 2.8 | 4.1 | 54 | 3.2 | 5.0 | 59 | 3.9 | 9.1 | 61 | 4.8 | 12.4 | 65 | |||||||
| 2.0 | 2.8 | 41 | 3.1 | 3.6 | 59 | 3.5 | 4.1 | 65 | 4.2 | 7.9 | 65 | 4.9 | 11.8 | 68 | |||||||
| SU22B | Liquid Cap 40100 Air Cap 1401110 | 1.1 | 13.0 | 44 | 2.2 | 17.8 | 116 | 2.8 | 20 | 136 | 3.4 | 32 | 149 | 4.6 | 37 | 193 | 1.7 | 0.7 | 18° | 66 | 4.9 |
| 1.4 | 8.9 | 76 | 2.5 | 13.1 | 130 | 3.1 | 16.3 | 149 | 3.9 | 25 | 170 | 5.3 | 29 | 220 | 2.8 | 1.5 | 20° | 76 | 5.8 | ||
| 1.5 | 7.2 | 91 | 2.8 | 9.5 | 143 | 3.4 | 11.9 | 163 | 4.6 | 15.9 | 205 | 5.6 | 25 | 235 | 3.9 | 2.0 | 20° | 81 | 6.7 | ||
| 1.7 | 5.8 | 98 | 3.1 | 7.0 | 157 | 3.9 | 7.0 | 187 | 5.3 | 9.1 | 240 | 6.0 | 21 | 250 | 5.3 | 3.0 | 21° | 91 | 7.0 | ||
| 1.8 | 4.7 | 105 | 3.4 | 4.9 | 171 | 4.2 | 4.7 | 205 | 5.6 | 6.8 | 255 | 6.3 | 17.4 | 270 | 6.0 | 4.0 | 21° | 97 | 8.5 | ||
| 2.0 | 3.6 | 112 | 3.5 | 4.2 | 178 | 4.6 | 3.0 | 220 | 6.0 | 5.0 | 275 | 6.7 | 14.0 | 290 | |||||||
| 2.1 | 2.7 | 119 | 6.3 | 3.6 | 290 | 7.0 | 11.0 | 305 | |||||||||||||
| SU22 | Liquid Cap 60100 Air Cap 1401110 | 0.85 | 31 | 127 | 1.4 | 61 | 69 | 2.1 | 53 | 96 | 2.7 | 80 | 103 | 3.8 | 88 | 135 | 1.0 | 0.7 | 17° | 61 | 6.1 |
| 1.0 | 25 | 57 | 1.5 | 54 | 76 | 2.4 | 41 | 112 | 3.0 | 69 | 117 | 4.2 | 73 | 156 | 1.8 | 1.5 | 18° | 69 | 7.0 | ||
| 1.1 | 18.5 | 66 | 1.7 | 48 | 85 | 2.7 | 31 | 127 | 3.2 | 59 | 130 | 4.6 | 61 | 176 | 2.8 | 2.0 | 20° | 76 | 7.6 | ||
| 1.3 | 12.9 | 75 | 1.8 | 41 | 93 | 2.8 | 26 | 136 | 3.5 | 49 | 146 | 4.9 | 48 | 196 | 3.5 | 3.0 | 20° | 79 | 7.9 | ||
| 85 | 2.0 | 35 | 102 | 3.0 | 22 | 144 | 3.7 | 44 | 154 | 5.3 | 39 | 215 | 4.9 | 4.0 | 21° | 91 | 9.1 | ||||
| 2.1 | 30 | 110 | 3.8 | 37 | 161 | 5.6 | 31 | 240 | |||||||||||||
| 2.2 | 25 | 119 | 3.9 | 35 | 170 | 6.0 | 23 | 260 | |||||||||||||
| SU42 | Liquid Cap 100150 Air Cap 1891125 | 1.0 | 44 | 1.4 | 125 | 79 | 2.0 | 123 | 108 | 2.2 | 199 | 88 | 3.0 | 250 | 99 | 1.0 | 0.7 | 19° | 89 | 6.1 | |
| 1.1 | 32 | 86 | 1.5 | 106 | 91 | 2.1 | 108 | 119 | 2.5 | 174 | 110 | 3.2 | 225 | 120 | 1.7 | 1.5 | 20° | 99 | 7.0 | ||
| 102 | 1.7 | 87 | 105 | 2.2 | 95 | 130 | 2.8 | 146 | 133 | 3.5 | 205 | 141 | 2.4 | 2.0 | 21° | 104 | 7.6 | ||||
| 1.8 | 70 | 118 | 2.4 | 79 | 143 | 3.1 | 121 | 154 | 3.8 | 182 | 163 | 3.1 | 3.0 | 21° | 107 | 7.9 | |||||
| 2.0 | 55 | 130 | 2.5 | 64 | 155 | 3.2 | 108 | 166 | 4.1 | 159 | 184 | 3.8 | 4.0 | 22° | 117 | 9.1 | |||||
| 2.7 | 52 | 166 | 3.4 | 95 | 176 | 4.6 | 121 | 225 | |||||||||||||
| 2.8 | 42 | 178 | 3.5 | 84 | 187 | 4.9 | 93 | 255 | |||||||||||||
