Model:

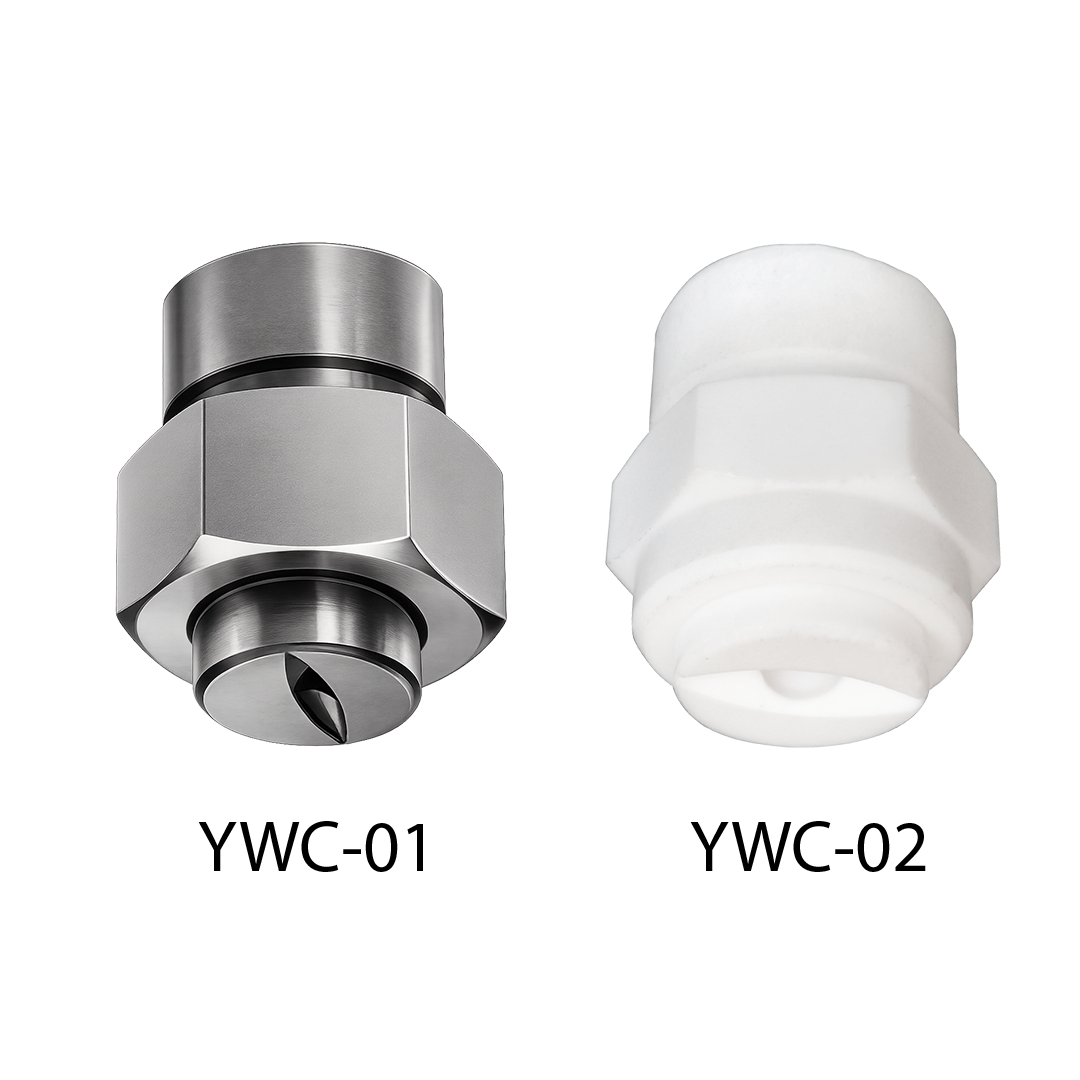

YWC-01, YWC-02

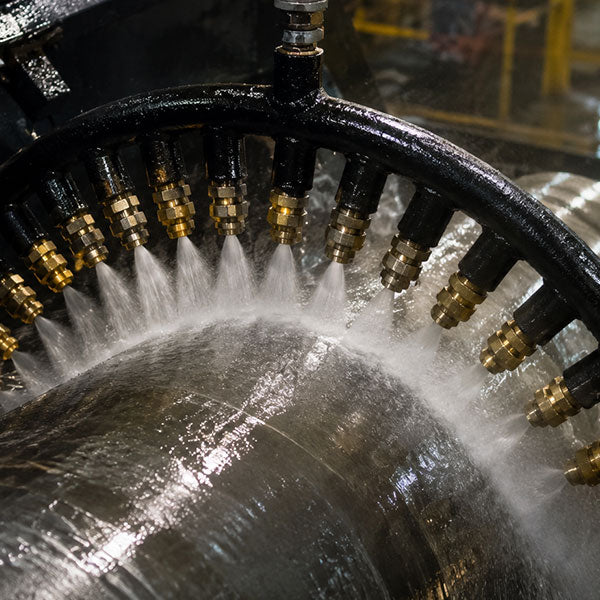

Dovetail Flat Fan Spray Nozzle | Industrial Spray Nozzle | KTZ
Durable. Precise. Built for Performance.
The dovetail slot flat fan nozzle is a specially designed industrial spray nozzle for long spray header bars and continuous production line cleaning systems. Featuring a unique dovetail self-positioning structure, this flat fan nozzle can automatically fix the spray direction after installation and replacement, eliminating repeated manual angle calibration. Fully processed by automatic precision machines, it provides uniform fan spray distribution, stable flow rate, zero leakage, and greatly reduces production line maintenance downtime. Widely used in steel metallurgy, papermaking, metal surface treatment, and industrial continuous rinsing processes.
Material:
Stainless Steel, Brass
Contact Us
Key Features
- Dovetail self-aligning structure — Automatically locks spray angle after replacement, no manual tuning required
- Precision integral machining — Consistent fan spray shape, even flow distribution, no streaky spraying
- Zero-leakage sealing performance — Stable working under long-term continuous pressure
- Fast plug-and-play replacement — No need to disassemble the entire spray header
- Full custom support — Multiple thread sizes, materials, flow rates for industrial header systems
Applications

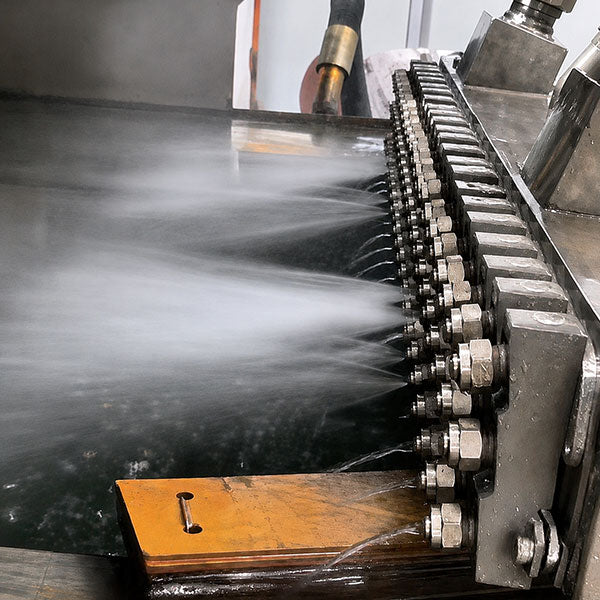

- Nozzle for spray header bar.
- Self‑aligning after replacement.

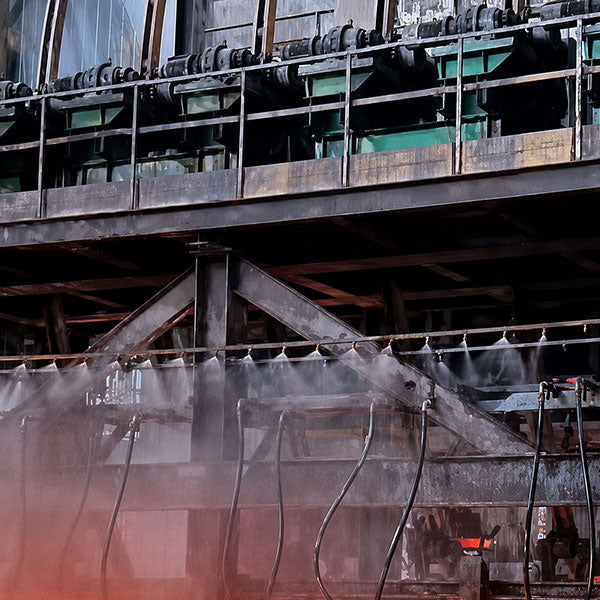

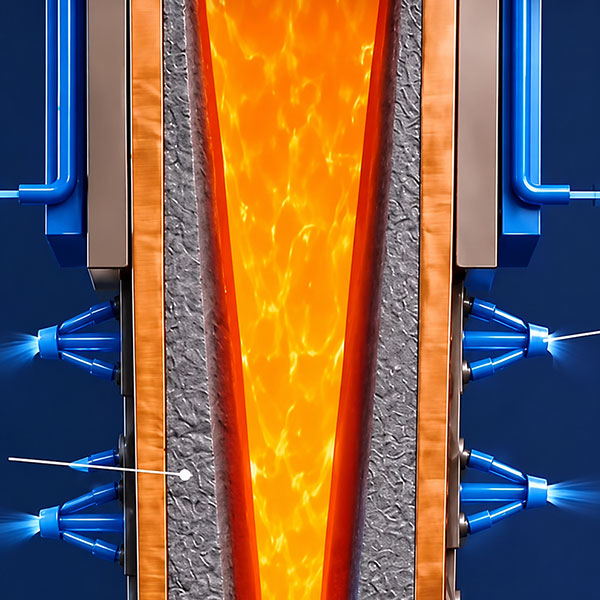

- Mainly used in steel mill, paper mill, metal surface‑treatment pickling‑rinsing lines, food and chemical continuous cleaning processes.
Technical Specifications
| Inlet Connector | Nozzle Model No. | Orifice Diameter mm | Flow Rate (L/min) | ||||||
|---|---|---|---|---|---|---|---|---|---|
| 0.5 kg | 1 kg | 2 kg | 3 kg | 5 kg | 7 kg | 10 kg | |||
|
1/4
3/8
|
010 | 0.70 | 0.16 | 0.23 | 0.32 | 0.40 | 0.50 | 0.60 | 0.71 |
| 014 | 0.90 | 0.23 | 0.32 | 0.45 | 0.55 | 0.71 | 0.84 | 1.00 | |
| 019 | 1.00 | 0.31 | 0.45 | 0.63 | 0.77 | 1.00 | 1.18 | 1.41 | |
| 031 | 1.20 | 0.50 | 0.70 | 1.00 | 1.22 | 1.58 | 1.86 | 2.23 | |
| 039 | 1.35 | 0.63 | 0.88 | 1.25 | 1.53 | 1.98 | 2.34 | 2.79 | |
| 050 | 1.50 | 0.80 | 1.13 | 1.60 | 1.96 | 2.53 | 2.99 | 3.58 | |
| 059 | 1.65 | 0.95 | 1.34 | 1.89 | 2.32 | 3.00 | 3.54 | 4.24 | |
| 077 | 2.00 | 1.25 | 1.77 | 2.50 | 3.06 | 3.95 | 4.67 | 5.59 | |
| 097 | 2.20 | 1.57 | 2.22 | 3.14 | 3.85 | 4.97 | 5.88 | 7.03 | |
| 12 | 2.50 | 2.00 | 2.82 | 3.99 | 4.89 | 6.31 | 7.47 | 8.93 | |
| 15 | 2.70 | 2.37 | 3.35 | 4.74 | 5.81 | 7.50 | 8.87 | 10.6 | |
| 49 | 5.00 | 7.96 | 11.3 | 15.9 | 19.5 | 25.2 | 29.8 | 35.6 | |
|
1/2
3/4
|
20 | 3.00 | 3.15 | 4.45 | 6.30 | 7.71 | 10.0 | 11.8 | 14.1 |
| 25 | 3.50 | 4.00 | 5.65 | 7.99 | 9.79 | 12.6 | 15.0 | 17.9 | |
| 31 | 4.00 | 4.98 | 7.04 | 9.96 | 12.2 | 15.8 | 18.6 | 22.3 | |
| 39 | 4.50 | 6.25 | 8.83 | 12.5 | 15.3 | 19.8 | 23.4 | 27.9 | |
| 50 | 5.00 | 8.00 | 11.3 | 16.0 | 19.6 | 25.3 | 29.9 | 35.8 | |
| 62 | 5.50 | 10.0 | 14.1 | 20.0 | 24.5 | 31.6 | 37.4 | 44.7 | |
| 77 | 6.00 | 12.5 | 17.7 | 25.0 | 30.6 | 39.5 | 46.7 | 55.9 | |
| 87 | 6.40 | 14.0 | 19.8 | 28.0 | 34.3 | 44.3 | 52.4 | 62.6 | |
| 104 | 7.20 | 16.7 | 23.7 | 33.5 | 41.0 | 52.9 | 62.6 | 74.9 | |
| 124 | 8.00 | 20.0 | 28.3 | 40.0 | 49.0 | 63.3 | 74.8 | 89.5 | |
| 155 | 9.00 | 25.0 | 35.3 | 50.0 | 61.2 | 79.0 | 93.5 | 112 | |
| 195 | 10.0 | 31.4 | 44.5 | 62.9 | 77.0 | 99.4 | 118 | 141 | |
| 1-1/4 | 124 | 8.00 | 20.0 | 28.3 | 40.0 | 49.0 | 63.2 | 74.8 | 89.5 |
| 195 | 10.0 | 31.4 | 44.5 | 62.9 | 77.0 | 99.4 | 118 | 141 | |
| 309 | 12.0 | 49.8 | 70.4 | 100 | 122 | 158 | 186 | 223 | |
| 496 | 15.0 | 80.0 | 113 | 160 | 196 | 253 | 299 | 358 | |
