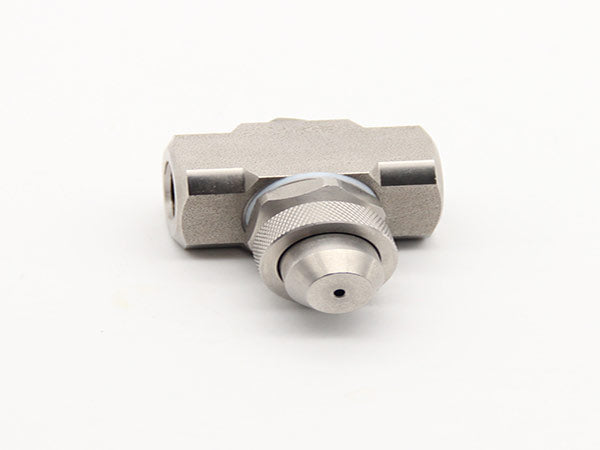

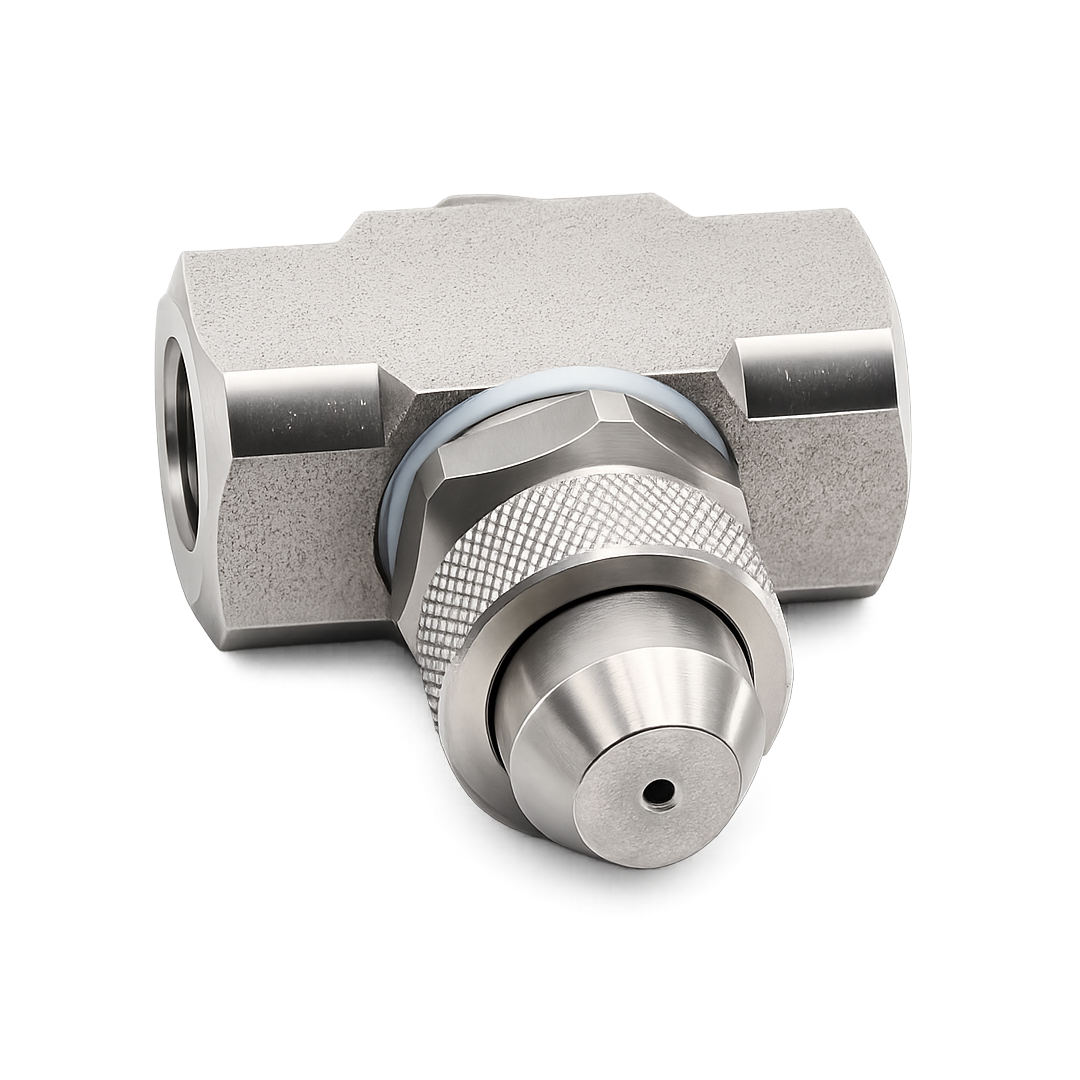

Air Atomizing Nozzle

Air Atomizing Nozzle

Durable. Precise. Built for Performance.

An Air Atomizing  Nozzle uses the combination of liquid and compressed air to produce extremely fine, uniform droplets. Compared with traditional hydraulic nozzles, air-assisted atomization delivers smaller particle size, better spray uniformity, and precise mist control, making it ideal for applications that require high-quality atomization, coating, cooling, or humidification

Key Features

  • Ultra-fine, consistent atomization
  • Adjustable flow rate and spray angle
  • Internal-mix, external-mix, and siphon-feed options
  • Low air consumption
  • Stable spray performance
  • OEM customization available
  • High durability for industrial use
  • Easy installation and maintenance
  • Factory-tested for flow and atomization quality

Technical Specifications

Spray Pattern : Mist / Atomizing
Orifice Diameter : -
Spray Angle : -
Flow Rate : -
Working Pressure : -
Connection Size(s) : 1/8", 1/4", 3/8"
Material : Stainless Steel, Brass

Speak with our team for more information.

Applications

  • Cooling & humidification
  • Dust suppression
  • Surface coating & lubrication
  • Disinfection & chemical spraying
  • Electronics and PCB manufacturing
  • Spraying in textile, paper, and food processing
  • Air-assisted painting & moisture control

Learn More

👉 Contact us today for more information or a custom quote on the nozzles designed to optimize your systems.

Contact Us

Technical Specifications

Nozzle Model No. Liquid Cap and Air Cap No. Flow Rate at Different Pressure (L/min) Jet Size
Air Pressure (kg) Water (L/hr) Air (L/min) Air Pressure (kg) Water (L/hr) Air (L/min) Air Pressure (kg) Water (L/hr) Air (L/min) Air Pressure (kg) Water (L/hr) Air (L/min) Air Pressure (kg) Water (L/hr) Air (L/min) Air (kg) Liquid (kg) A Jet Angle B (cm) D (m)
SUII Liquid Cap 2050 Air Cap 62147 0.7 2.5 15.6 1.1 6.4 11.9 1.4 6.4 13.9 2.7 6.2 23 3.5 7.8 28 0.85 0.7 13° 30 2.7
0.85 1.8 19.0 1.4 5.0 15.0 1.7 5.5 16.7 2.8 5.7 25 3.7 7.3 29 1.7 1.5 13° 33 3.0
1.0 1.4 22 1.7 4.1 18.9 2.0 4.5 19.8 3.0 5.2 27 3.9 6.4 33 2.5 2.0 13° 36 3.4
1.8 3.4 20 2.2 3.4 24 3.1 4.7 29 4.2 5.5 38 3.1 3.0 14° 39 3.8
2.0 3.0 23 2.4 3.0 26 3.2 4.3 31 4.5 4.5 43 4.5 4.0 15° 44 4.4
2.1 2.6 25 2.5 2.5 28 3.4 3.9 33 4.6 4.1 45
2.2 2.0 27 2.7 2.3 31 3.7 3.0 38 4.8 3.7 47
SU12A Liquid Cap 2050 Air Cap 73160 0.7 2.5 18.7 1.4 5.7 27 1.7 6.7 29 2.2 9.2 34 2.8 11.9 39 0.85 0.7 12° 43 3.7
0.85 2.0 22 1.5 5.2 29 1.8 6.4 31 2.5 8.2 39 3.1 11.0 43 1.5 1.5 13° 46 4.0
1.0 1.6 26 1.7 4.8 32 2.0 5.9 34 2.8 7.2 44 3.4 10.1 47 2.4 2.0 13° 48 4.3
1.8 4.3 35 2.1 5.2 37 3.0 6.7 47 3.7 9.2 52 3.0 3.0 13° 51 4.6
2.0 3.9 37 2.2 4.8 40 3.1 6.3 49 3.9 8.4 58 3.9 4.0 15° 56 5.2
2.1 3.4 40 2.4 4.3 43 3.2 5.9 52 4.2 7.6 62
2.7 3.6 48 3.4 5.5 55 4.5 6.8 68
SU12 Liquid Cap 2050 Air Cap 73160 0.85 4.8 1.7 8.4 31 2.0 10.7 33 2.7 16.5 37 3.4 20 43 1.5 0.7 12° 48 4.0
1.1 4.1 21 1.8 7.5 35 2.1 9.8 37 2.8 15.4 38 3.7 18.4 47 2.5 1.5 13° 51 4.3
1.4 3.4 27 2.0 7.0 37 2.4 8.2 42 3.1 13.6 43 3.9 16.8 50 3.0 2.0 13° 53 4.6
1.5 3.1 33 2.2 5.7 44 2.7 6.8 48 3.4 11.8 49 4.2 15.2 55 3.4 3.0 14° 56 4.9
1.7 3.0 35 2.5 4.8 49 3.0 5.9 55 3.7 10.4 55 4.5 13.8 60 4.2 4.0 15° 60 5.3
1.8 2.9 39 2.8 4.1 54 3.2 5.0 59 3.9 9.1 61 4.8 12.4 65
2.0 2.8 41 3.1 3.6 59 3.5 4.1 65 4.2 7.9 65 4.9 11.8 68
SU22B Liquid Cap 40100 Air Cap 1401110 1.1 13.0 44 2.2 17.8 116 2.8 20 136 3.4 32 149 4.6 37 193 1.7 0.7 18° 66 4.9
1.4 8.9 76 2.5 13.1 130 3.1 16.3 149 3.9 25 170 5.3 29 220 2.8 1.5 20° 76 5.8
1.5 7.2 91 2.8 9.5 143 3.4 11.9 163 4.6 15.9 205 5.6 25 235 3.9 2.0 20° 81 6.7
1.7 5.8 98 3.1 7.0 157 3.9 7.0 187 5.3 9.1 240 6.0 21 250 5.3 3.0 21° 91 7.0
1.8 4.7 105 3.4 4.9 171 4.2 4.7 205 5.6 6.8 255 6.3 17.4 270 6.0 4.0 21° 97 8.5
2.0 3.6 112 3.5 4.2 178 4.6 3.0 220 6.0 5.0 275 6.7 14.0 290
2.1 2.7 119 6.3 3.6 290 7.0 11.0 305
SU22 Liquid Cap 60100 Air Cap 1401110 0.85 31 127 1.4 61 69 2.1 53 96 2.7 80 103 3.8 88 135 1.0 0.7 17° 61 6.1
1.0 25 57 1.5 54 76 2.4 41 112 3.0 69 117 4.2 73 156 1.8 1.5 18° 69 7.0
1.1 18.5 66 1.7 48 85 2.7 31 127 3.2 59 130 4.6 61 176 2.8 2.0 20° 76 7.6
1.3 12.9 75 1.8 41 93 2.8 26 136 3.5 49 146 4.9 48 196 3.5 3.0 20° 79 7.9
85 2.0 35 102 3.0 22 144 3.7 44 154 5.3 39 215 4.9 4.0 21° 91 9.1
2.1 30 110 3.8 37 161 5.6 31 240
2.2 25 119 3.9 35 170 6.0 23 260
SU42 Liquid Cap 100150 Air Cap 1891125 1.0 44 1.4 125 79 2.0 123 108 2.2 199 88 3.0 250 99 1.0 0.7 19° 89 6.1
1.1 32 86 1.5 106 91 2.1 108 119 2.5 174 110 3.2 225 120 1.7 1.5 20° 99 7.0
102 1.7 87 105 2.2 95 130 2.8 146 133 3.5 205 141 2.4 2.0 21° 104 7.6
1.8 70 118 2.4 79 143 3.1 121 154 3.8 182 163 3.1 3.0 21° 107 7.9
2.0 55 130 2.5 64 155 3.2 108 166 4.1 159 184 3.8 4.0 22° 117 9.1
2.7 52 166 3.4 95 176 4.6 121 225
2.8 42 178 3.5 84 187 4.9 93 255
Other sizes and material available upon request
