Product Description

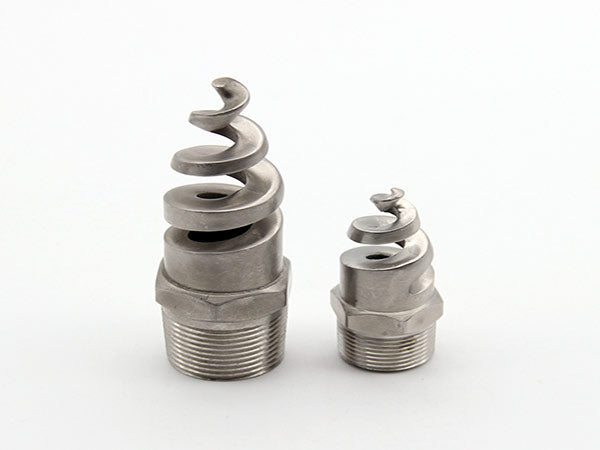

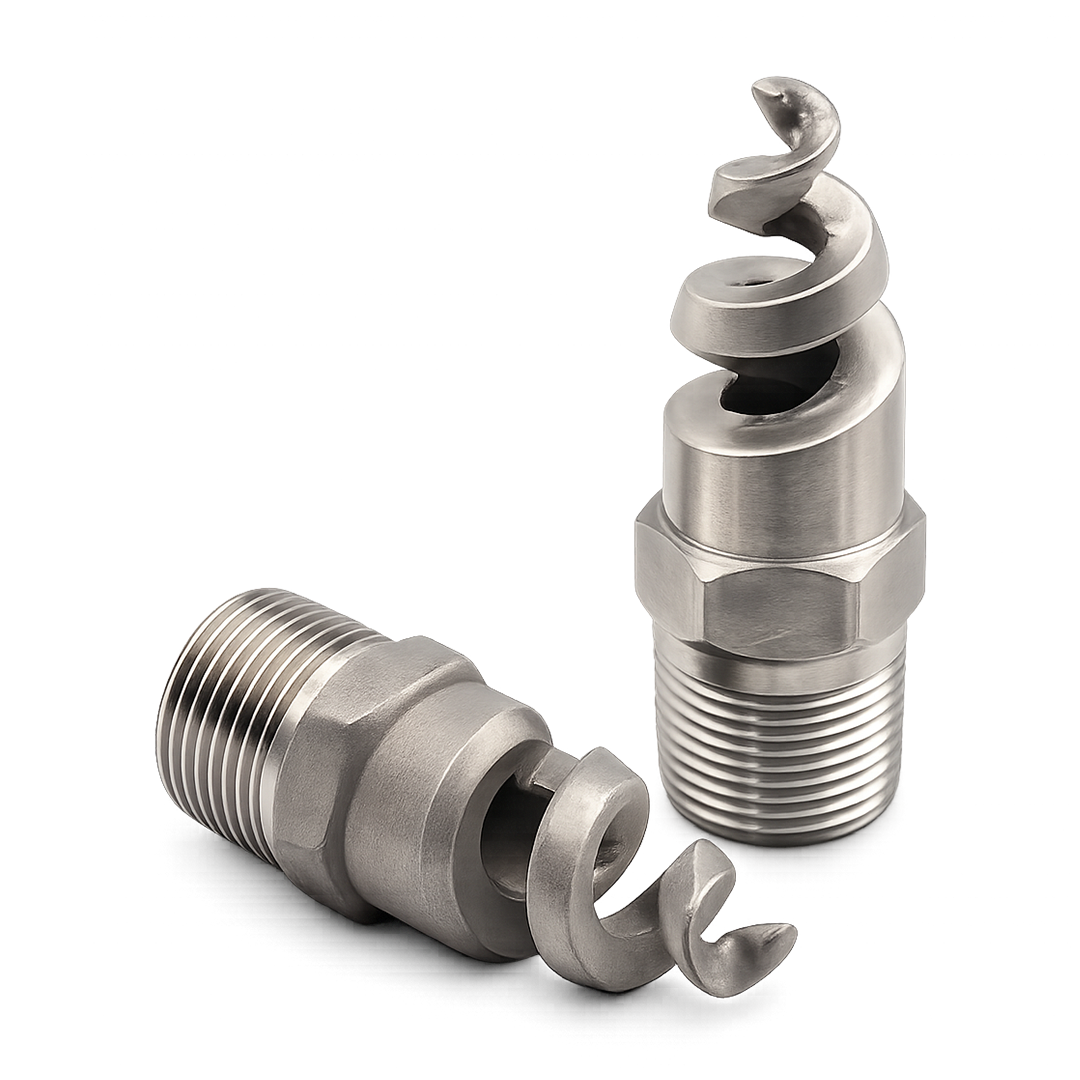

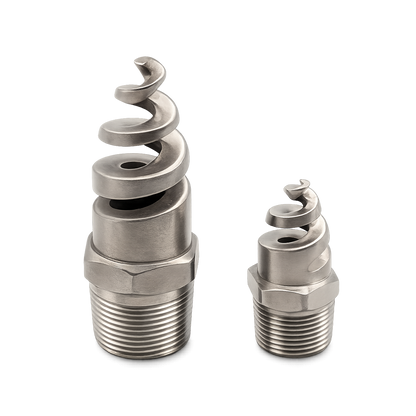

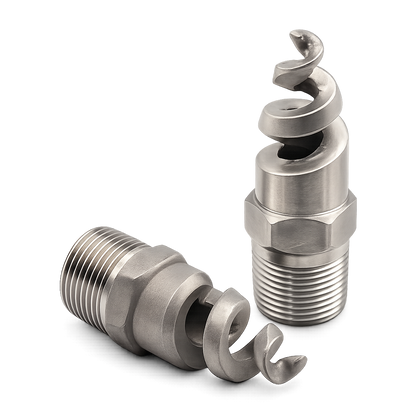

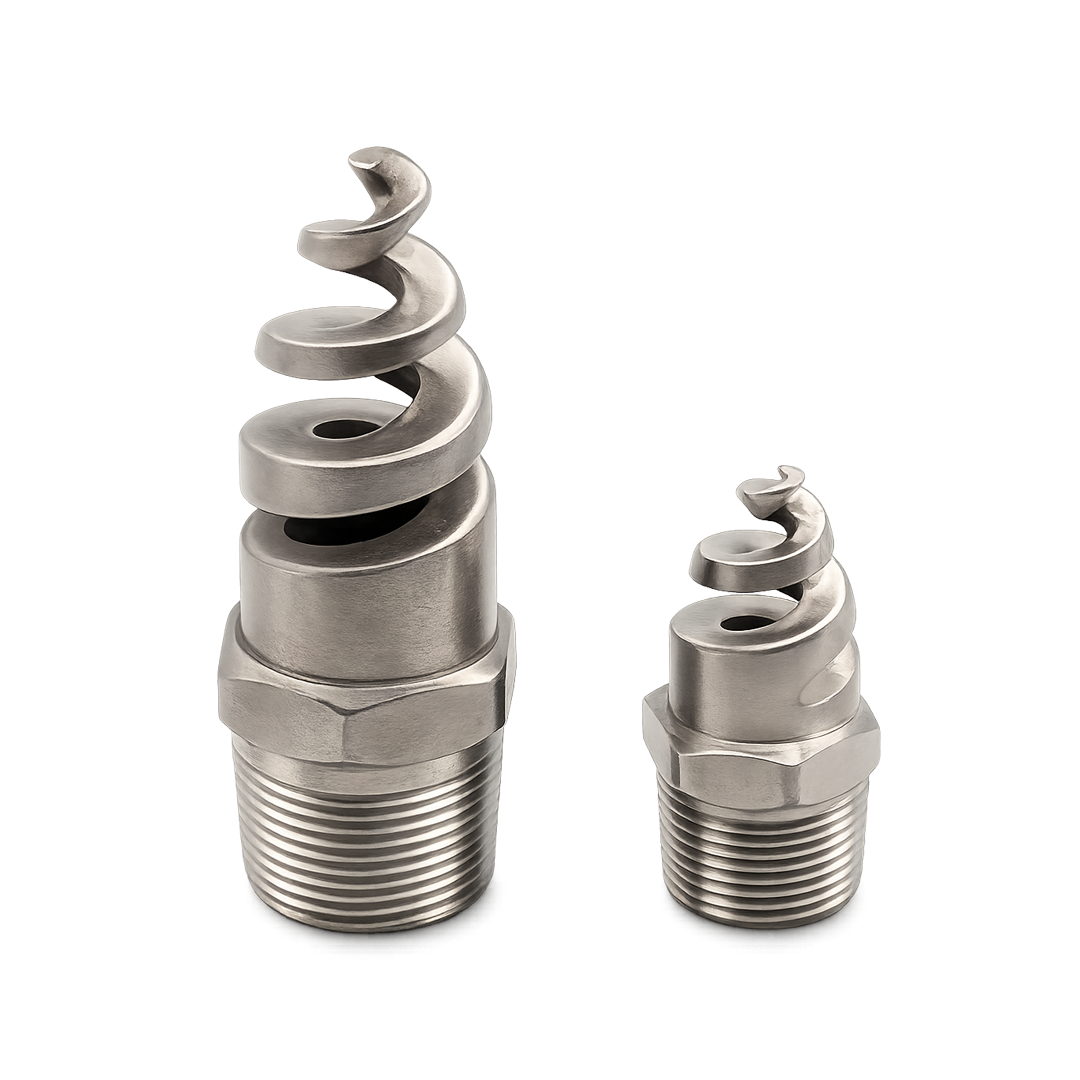

The Spiral Spray Nozzle features a unique multi-layer spiral design that produces a uniform full cone spray pattern with excellent atomization and wide coverage. Its open structure minimizes clogging while maintaining high flow capacity and low pressure loss, making it ideal for gas scrubbing, desulfurization, cooling, dust control, and exhaust gas treatment applications.

Key Features

  • Uniform full cone spray pattern
  • Multi-layer spiral atomization design
  • High flow capacity
  • Low pressure loss
  • Excellent anti-clogging performance
  • Consistent droplet distribution
  • Efficient atomization at low pressure
  • Corrosion-resistant construction
  • Long service life
  • Custom thread sizes, flow rates, and spray angles available

Technical Specifications

Spray Pattern : Mist / Atomizing (Full Cone)
Orifice Diameter : 2.4-15.9 mm.
Spray Angle : 60°, 90°, 120°, 150°
Flow Rate : 2.6-11,960 L/min
Working Pressure : -
Connection Size(s) : 1/4", 3/8", 1/2", 3/4", 1", 1-1/2", 2", 3", 4"
Material : Stainless Steel, Brass, Plastic, Ceramic

Speak with our team for more information.

Applications

  • Exhaust gas scrubbing & gas cooling
  • Product washing
  • Desulfurization
  • Dust Suppression

Learn More

👉 Contact us today for more information or a custom quote on the nozzles designed to optimize your systems.

Contact Us

Technical Specifications

Nozzle Model No. Liquid Cap and Air Cap No. Flow Rate at Different Pressure (L/min) Jet Size
Air Pressure (kg) Water (L/hr) Air (L/min) Air Pressure (kg) Water (L/hr) Air (L/min) Air Pressure (kg) Water (L/hr) Air (L/min) Air Pressure (kg) Water (L/hr) Air (L/min) Air Pressure (kg) Water (L/hr) Air (L/min) Air (kg) Liquid (kg) A Jet Angle B (cm) D (m)
SUII Liquid Cap 2050 Air Cap 62147 0.7 2.5 15.6 1.1 6.4 11.9 1.4 6.4 13.9 2.7 6.2 23 3.5 7.8 28 0.85 0.7 13° 30 2.7
0.85 1.8 19.0 1.4 5.0 15.0 1.7 5.5 16.7 2.8 5.7 25 3.7 7.3 29 1.7 1.5 13° 33 3.0
1.0 1.4 22 1.7 4.1 18.9 2.0 4.5 19.8 3.0 5.2 27 3.9 6.4 33 2.5 2.0 13° 36 3.4
1.8 3.4 20 2.2 3.4 24 3.1 4.7 29 4.2 5.5 38 3.1 3.0 14° 39 3.8
2.0 3.0 23 2.4 3.0 26 3.2 4.3 31 4.5 4.5 43 4.5 4.0 15° 44 4.4
2.1 2.6 25 2.5 2.5 28 3.4 3.9 33 4.6 4.1 45
2.2 2.0 27 2.7 2.3 31 3.7 3.0 38 4.8 3.7 47
SU12A Liquid Cap 2050 Air Cap 73160 0.7 2.5 18.7 1.4 5.7 27 1.7 6.7 29 2.2 9.2 34 2.8 11.9 39 0.85 0.7 12° 43 3.7
0.85 2.0 22 1.5 5.2 29 1.8 6.4 31 2.5 8.2 39 3.1 11.0 43 1.5 1.5 13° 46 4.0
1.0 1.6 26 1.7 4.8 32 2.0 5.9 34 2.8 7.2 44 3.4 10.1 47 2.4 2.0 13° 48 4.3
1.8 4.3 35 2.1 5.2 37 3.0 6.7 47 3.7 9.2 52 3.0 3.0 13° 51 4.6
2.0 3.9 37 2.2 4.8 40 3.1 6.3 49 3.9 8.4 58 3.9 4.0 15° 56 5.2
2.1 3.4 40 2.4 4.3 43 3.2 5.9 52 4.2 7.6 62
2.7 3.6 48 3.4 5.5 55 4.5 6.8 68
SU12 Liquid Cap 2050 Air Cap 73160 0.85 4.8 1.7 8.4 31 2.0 10.7 33 2.7 16.5 37 3.4 20 43 1.5 0.7 12° 48 4.0
1.1 4.1 21 1.8 7.5 35 2.1 9.8 37 2.8 15.4 38 3.7 18.4 47 2.5 1.5 13° 51 4.3
1.4 3.4 27 2.0 7.0 37 2.4 8.2 42 3.1 13.6 43 3.9 16.8 50 3.0 2.0 13° 53 4.6
1.5 3.1 33 2.2 5.7 44 2.7 6.8 48 3.4 11.8 49 4.2 15.2 55 3.4 3.0 14° 56 4.9
1.7 3.0 35 2.5 4.8 49 3.0 5.9 55 3.7 10.4 55 4.5 13.8 60 4.2 4.0 15° 60 5.3
1.8 2.9 39 2.8 4.1 54 3.2 5.0 59 3.9 9.1 61 4.8 12.4 65
2.0 2.8 41 3.1 3.6 59 3.5 4.1 65 4.2 7.9 65 4.9 11.8 68
SU22B Liquid Cap 40100 Air Cap 1401110 1.1 13.0 44 2.2 17.8 116 2.8 20 136 3.4 32 149 4.6 37 193 1.7 0.7 18° 66 4.9
1.4 8.9 76 2.5 13.1 130 3.1 16.3 149 3.9 25 170 5.3 29 220 2.8 1.5 20° 76 5.8
1.5 7.2 91 2.8 9.5 143 3.4 11.9 163 4.6 15.9 205 5.6 25 235 3.9 2.0 20° 81 6.7
1.7 5.8 98 3.1 7.0 157 3.9 7.0 187 5.3 9.1 240 6.0 21 250 5.3 3.0 21° 91 7.0
1.8 4.7 105 3.4 4.9 171 4.2 4.7 205 5.6 6.8 255 6.3 17.4 270 6.0 4.0 21° 97 8.5
2.0 3.6 112 3.5 4.2 178 4.6 3.0 220 6.0 5.0 275 6.7 14.0 290
2.1 2.7 119 6.3 3.6 290 7.0 11.0 305
SU22 Liquid Cap 60100 Air Cap 1401110 0.85 31 127 1.4 61 69 2.1 53 96 2.7 80 103 3.8 88 135 1.0 0.7 17° 61 6.1
1.0 25 57 1.5 54 76 2.4 41 112 3.0 69 117 4.2 73 156 1.8 1.5 18° 69 7.0
1.1 18.5 66 1.7 48 85 2.7 31 127 3.2 59 130 4.6 61 176 2.8 2.0 20° 76 7.6
1.3 12.9 75 1.8 41 93 2.8 26 136 3.5 49 146 4.9 48 196 3.5 3.0 20° 79 7.9
85 2.0 35 102 3.0 22 144 3.7 44 154 5.3 39 215 4.9 4.0 21° 91 9.1
2.1 30 110 3.8 37 161 5.6 31 240
2.2 25 119 3.9 35 170 6.0 23 260
SU42 Liquid Cap 100150 Air Cap 1891125 1.0 44 1.4 125 79 2.0 123 108 2.2 199 88 3.0 250 99 1.0 0.7 19° 89 6.1
1.1 32 86 1.5 106 91 2.1 108 119 2.5 174 110 3.2 225 120 1.7 1.5 20° 99 7.0
102 1.7 87 105 2.2 95 130 2.8 146 133 3.5 205 141 2.4 2.0 21° 104 7.6
1.8 70 118 2.4 79 143 3.1 121 154 3.8 182 163 3.1 3.0 21° 107 7.9
2.0 55 130 2.5 64 155 3.2 108 166 4.1 159 184 3.8 4.0 22° 117 9.1
2.7 52 166 3.4 95 176 4.6 121 225
2.8 42 178 3.5 84 187 4.9 93 255
Other sizes and material available upon request
