Durable. Precise. Built for Performance.

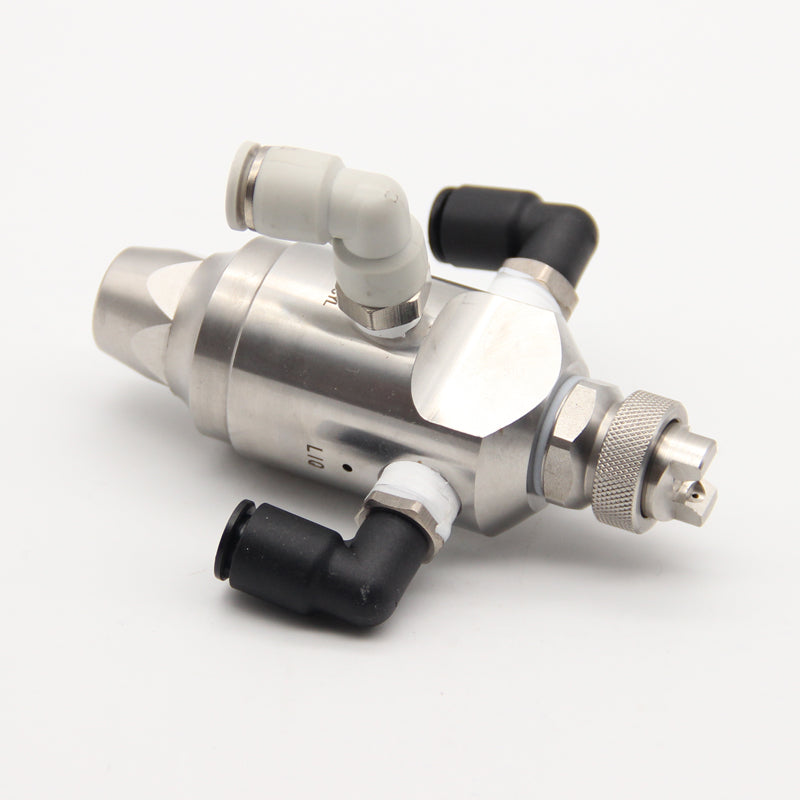

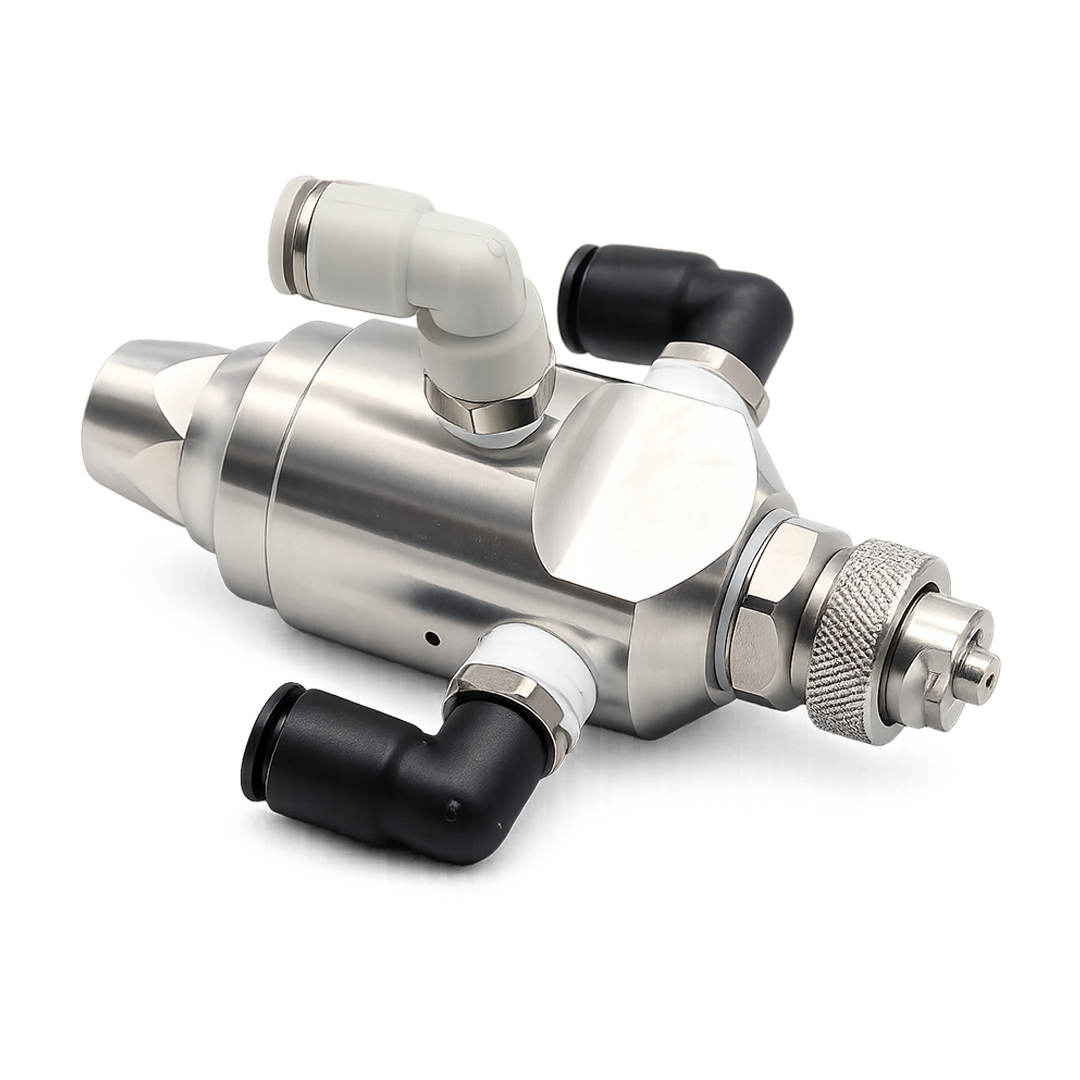

Automatic Atomizing Nozzle are designed for applications that require precise, on-demand atomization with automatic spray control.
These nozzles use compressed air and liquid to generate fine mist, and incorporate a built-in air-actuated or solenoid valve, allowing the spray to start and stop automatically in response to signal input.

With excellent control over spray timing, droplet size, and flow rate, automatic atomizing nozzles are widely used in humidification, cooling, coating, and lubrication systems.

Key Features

  • Automatic on/off control for precise spray timing
  • Fine atomization with uniform droplet distribution
  • Adjustable flow rate and multiple spray patterns available
  • Easy integration with PLC and automated control systems
  • Reduces overspray and improves process efficiency
  • Low air and liquid consumption
  • Suitable for high-speed continuous operation
  • Corrosion-resistant material options available
  • Long service life and stable performance in harsh environments

Technical Specifications

Spray Pattern : Flat Fan / Cone
Orifice Diameter : -
Spray Angle : 30°, 60°, 120°
Flow Rate : 0.1-5.0L/min
Working Pressure : 1-5 bar
Connection Size(s) : 1/8",1/4", 1/2"
Material : Stainless Steel, Brass

Speak with our team for more information.

Applications

  • Dust suppression and air humidification
  • Cooling and temperature control systems
  • Coating, lubrication, and moisture conditioning
  • Disinfection, deodorization, and cleaning systems
  • Textile, electronics, and chemical process industries

Learn More

👉 Contact us today for more information or a custom quote on the nozzles designed to optimize your systems.

Contact Us

Technical Specifications

Nozzle Model No. Liquid Cap and Air Cap No. Flow Rate at Different Pressure (L/min) Jet Size
Air Pressure (kg) Water (L/hr) Air (L/min) Air Pressure (kg) Water (L/hr) Air (L/min) Air Pressure (kg) Water (L/hr) Air (L/min) Air Pressure (kg) Water (L/hr) Air (L/min) Air Pressure (kg) Water (L/hr) Air (L/min) Air (kg) Liquid (kg) A (cm) B (cm) C (cm) D (cm)
SU13A Liquid Cap 2050 Air Cap 73328 0.7 5.5 24 1.3 9.1 31 2.0 8.6 42 2.7 11.2 52 3.9 12.0 69 1.1 0.7 25 38 46 2.6
0.85 4.7 27 1.5 7.7 36 2.2 7.5 47 3.0 10.1 56 4.6 9.7 81 2.1 1.5 36 48 66 3.0
1.0 4.1 31 1.8 6.5 42 2.5 6.2 52 3.2 9.1 62 5.3 7.5 93 2.8 2.0 38 53 76 3.2
1.1 3.5 34 2.1 5.4 47 2.8 5.2 57 3.5 8.1 66 6.0 5.3 104 3.5 3.0 47 61 86 3.4
1.3 3.0 37 2.4 4.3 52 3.1 4.2 63 4.2 5.4 78 6.3 4.3 110 6.0 4.0 56 74 94 4.0
1.4 2.5 40 2.7 3.3 57 3.2 3.7 65 4.6 4.2 85 6.7 3.3 116
1.5 2.0 44 2.8 2.8 60 3.4 3.2 68 4.9 3.1 91 7.0 2.4 122
SU13 Liquid Cap 2850 Air Cap 73328 0.85 8.2 19.8 1.4 14.4 27 2.1 13.5 36 2.7 19.1 42 4.6 16.1 69 1.1 0.7 36 46 71 2.1
1.0 6.8 23 1.7 11.9 32 2.4 11.4 42 3.0 17.1 46 4.9 13.8 76 2.1 1.5 43 61 81 2.4
1.1 5.5 27 2.0 9.5 37 2.7 9.2 47 3.2 15.1 52 5.3 11.5 83 3.0 2.0 51 66 89 2.6
1.3 4.1 30 2.1 8.3 40 3.0 7.1 53 3.2 13.1 57 5.6 9.3 90 3.5 3.0 58 76 97 2.7
1.4 2.9 34 2.2 7.1 43 3.2 5.0 59 4.2 8.1 72 6.0 7.3 97 5.6 4.0 58 76 97 3.2
2.4 6.1 46 3.4 4.0 63 4.6 5.9 79 6.3 5.6 104
2.5 5.1 49 3.5 3.3 66 4.9 4.0 86 6.7 4.3 112
SUN13 Liquid Cap 2850 Air Cap 73325 1.0 9.0 25 2.0 10.4 41 2.4 11.6 48 3.1 15.6 56 4.2 17.1 73 1.4 0.7 10 13 17 3.0
1.1 7.8 30 2.1 9.3 45 2.5 10.4 51 3.2 14.6 59 4.6 15.0 80 2.5 1.5 13 15 20 3.7
1.3 6.6 32 2.2 8.2 48 2.7 9.4 54 3.4 13.7 62 4.9 12.8 87 3.2 2.0 13 17 22 4.0
1.4 5.2 36 2.5 6.1 55 3.0 7.3 61 3.8 10.8 71 5.3 11.0 94 3.8 3.0 15 22 28 4.2
1.7 3.1 44 2.8 4.3 62 3.2 5.3 68 4.2 8.5 82 5.6 9.4 103 5.3 4.0 20 25 33 4.8
2.0 2.0 50 3.1 3.0 69 3.5 4.1 75 4.9 5.2 98 6.3 7.2 119
2.2 1.1 56 3.4 2.0 75 3.8 2.9 81 6.0 2.3 120 7.0 6.1 134
SU14 Liquid Cap 2850 Air Cap 73320 1.3 3.9 30 2.1 7.4 40 3.0 6.1 52 3.9 9.4 60 5.3 10.2 78 1.5 0.7 23 33 46 1.8
1.4 3.0 33 2.4 5.3 45 3.1 5.3 54 4.2 7.2 67 5.6 8.3 84 2.7 1.5 36 51 69 2.0
1.5 2.3 35 2.5 4.4 47 3.2 4.5 57 4.6 5.3 73 6.0 6.6 89 3.2 2.0 58 74 91 2.0
1.7 1.8 38 2.7 3.7 50 3.4 3.8 59 4.9 3.8 80 6.3 5.1 98 4.2 3.0 61 74 94 2.1
1.8 1.3 41 2.8 3.1 52 3.5 3.2 62 5.6 4.0 64 76 97 2.3
2.0 0.95 44 3.0 2.6 55 3.9 1.8 68
SUN23 Liquid Cap 60100 Air Cap 125340 1.0 17.0 23 2.0 24 44 2.4 28 51 3.4 38 72 3.9 65 75 1.1 0.7 10 13 15 2.4
1.1 11.0 27 2.1 18.9 50 2.5 23 59 3.5 33 80 4.2 53 89 2.1 1.5 10 13 17 3.0
1.3 7.6 33 2.2 14.4 56 2.7 18.9 66 3.7 28 89 4.6 40 108 2.8 2.0 13 17 22 3.4
1.4 3.2 40 2.4 10.6 63 2.8 15.1 74 3.8 23 97 4.9 30 127 3.7 3.0 15 20 28 3.6
2.5 7.2 71 3.0 11.7 79 3.9 19.7 105 5.3 21 149 4.9 4.0 20 25 35 4.0
4.2 13.1 120 5.6 13.8 173
4.6 7.2 138 6.3 3.2 225
SU23B Liquid Cap 40100 Air Cap 125328 2.7 19.6 93 3.5 27 112 4.6 3.3 137 1.4 0.7 15 18 20 3.0
1.1 11.2 54 2.1 18.0 79 2.7 19.6 93 3.5 27 112 4.6 3.3 137 1.4 0.7 15 18 20 3.0
1.3 8.5 60 2.2 15.8 84 2.8 17.3 98 3.7 25 116 4.9 28 149 2.4 1.5 23 28 33 3.2
1.4 6.5 65 2.4 13.6 89 3.0 15.2 103 3.8 23 121 5.3 24 161 3.0 2.0 25 33 46 3.4
1.5 5.0 71 2.5 11.6 95 3.1 13.2 109 3.9 21 126 5.6 19.7 174 3.7 3.0 30 38 46 3.5
1.7 3.8 77 3.2 11.4 114 4.1 18.9 132 6.0 15.7 187 5.3 4.0 33 41 48 4.0
4.2 17.0 137 6.3 12.4 200
SU23 Liquid Cap 60100 Air Cap 125328 0.85 27 33 1.8 38 55 2.4 39 67 3.2 58 76 4.6 59 106 1.1 0.7 18 23 30 3.4
1.0 20 38 2.1 28 66 2.7 30 87 3.5 47 87 5.3 40 132 2.4 1.5 23 30 41 3.5
1.1 15.9 45 2.2 24 71 3.0 24 97 3.8 38 97 5.6 32 145 3.2 2.0 25 33 43 3.7
1.3 12.5 48 2.4 21 76 3.2 17.8 103 3.9 34 103 6.0 26 158 3.9 3.0 30 38 48 3.8
1.4 10.2 56 2.5 17.8 82 3.4 15.1 113 4.2 27 113 6.3 20 172 6.0 4.0 33 41 51 4.4
1.5 7.6 62 2.7 15.1 87 3.5 12.9 126 4.6 20 126 6.7 15.9 185
3.7 10.6 140 4.9 14.8 140 7.0 12.7 198
SU43 Liquid Cap 100150 Air Cap 189351 1.0 29 90 1.8 56 117 2.1 100 119 3.0 126 140 181 4.1 140 1.0 0.7 18 20 25 3.4
1.1 18.9 108 2.0 40 133 2.2 79 133 3.1 110 151 193 4.2 125 1.8 1.5 25 20 43 3.8
2.4 62 147 3.2 95 163 225 4.6 89 2.4 2.0 25 30 46 4.3
2.5 48 162 3.4 78 184 265 4.9 58 3.4 3.0 33 41 53 4.6
2.7 36 177 3.5 62 193 305 5.3 34 4.9 4.0 36 43 58 5.2
Other sizes and material available upon request
