Durable. Precise. Built for Performance.

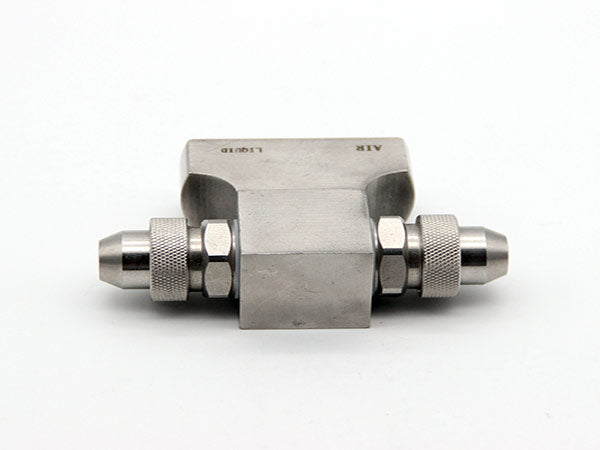

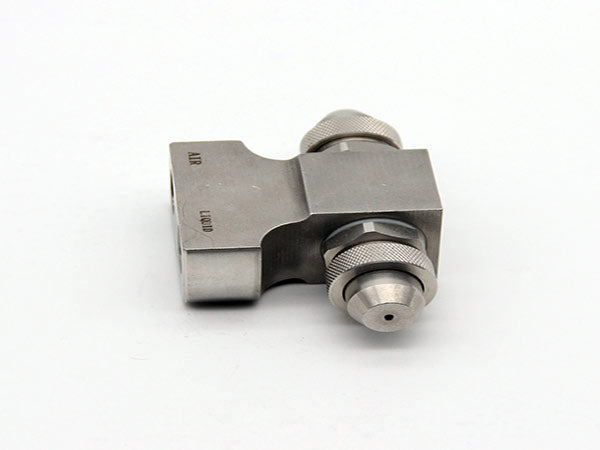

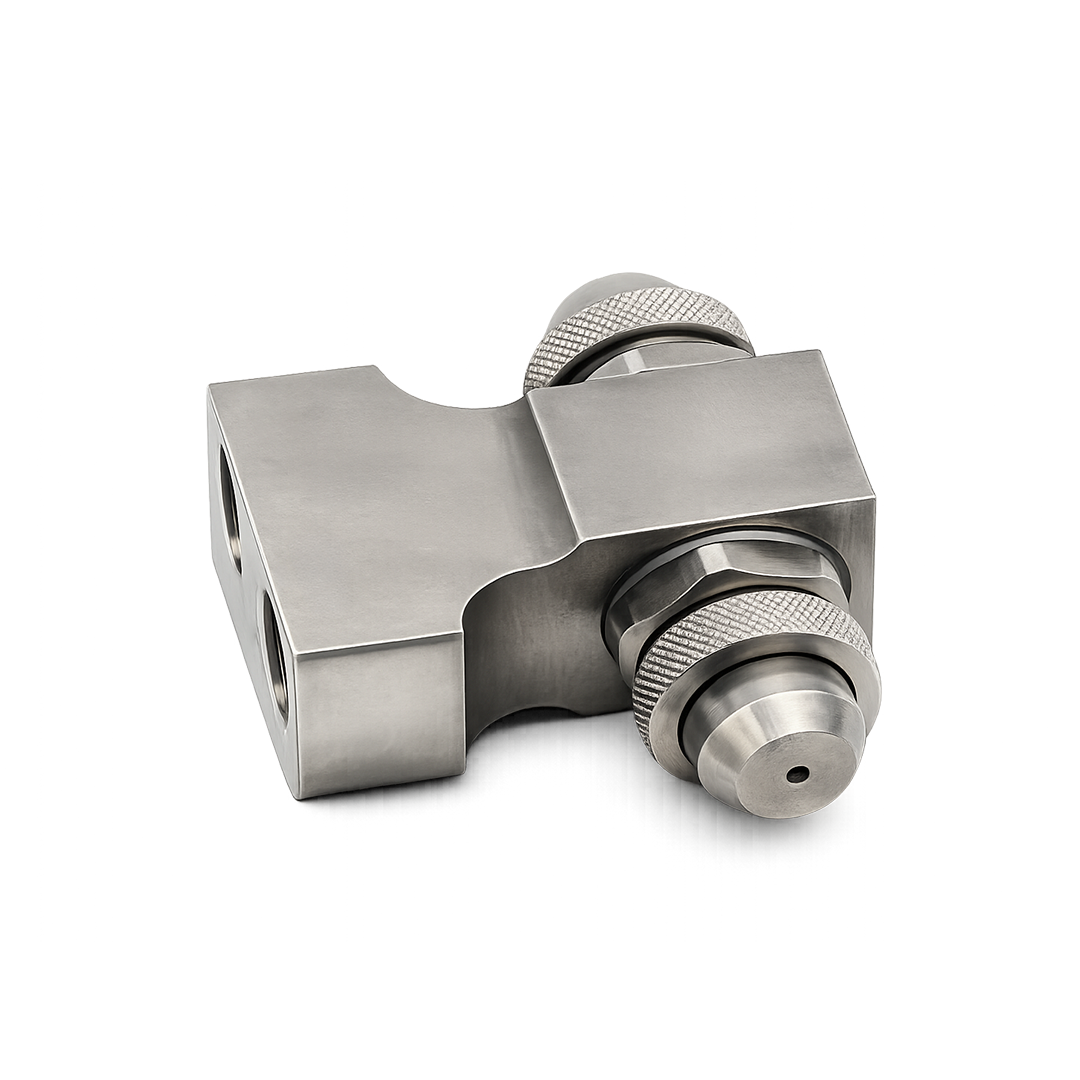

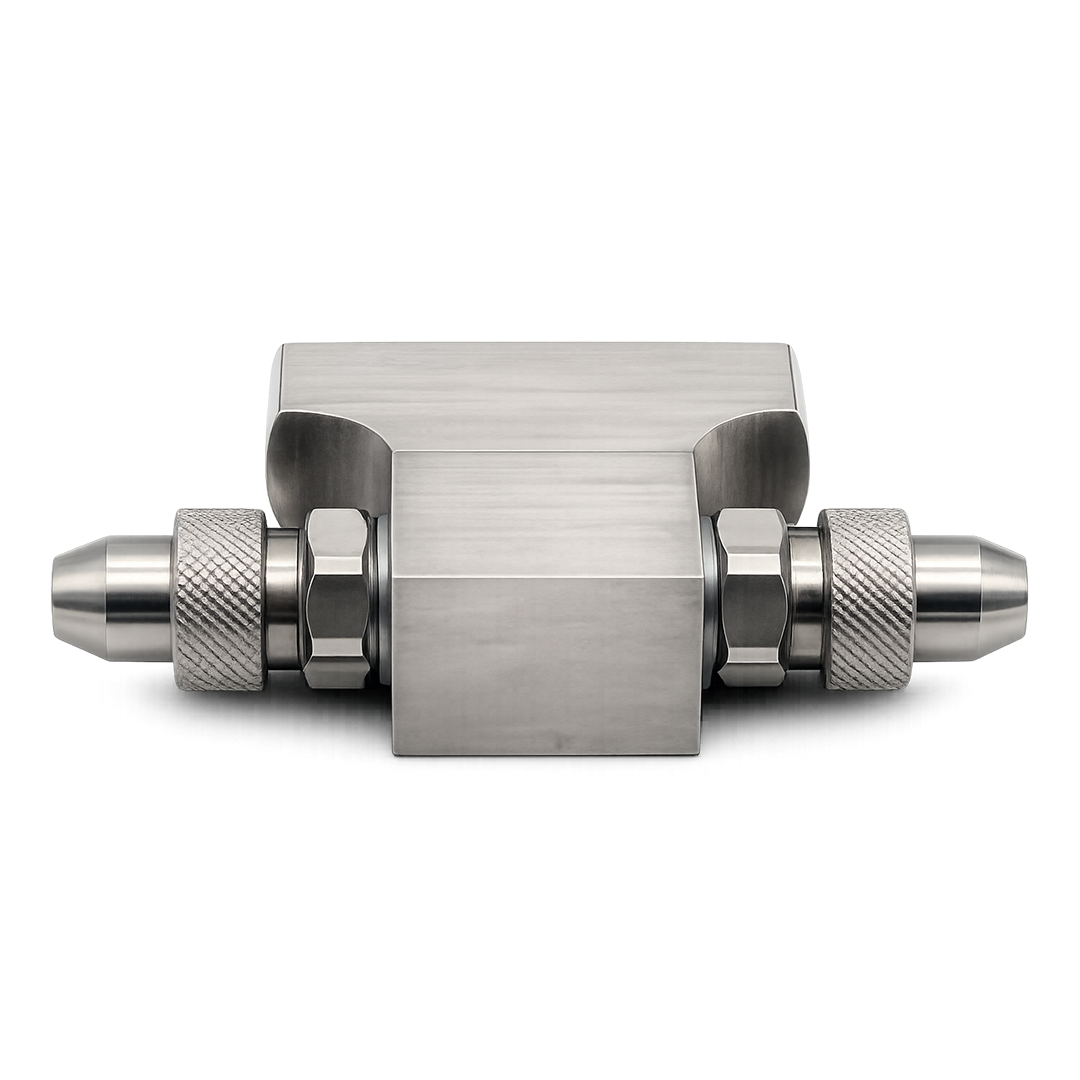

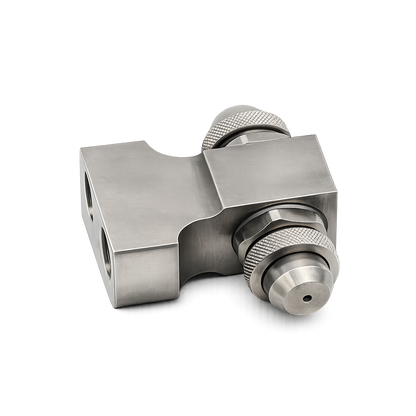

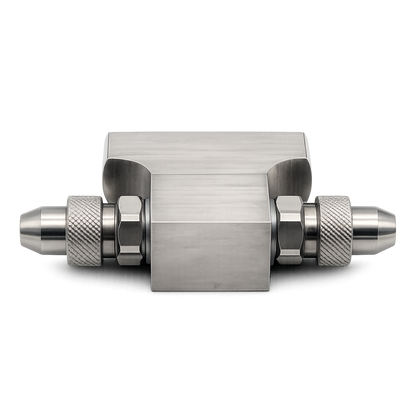

The Automatic Air-Actuated Air Atomizing Nozzle is designed for automated spraying applications that require precise liquid control and fine atomization. Using compressed air to automatically start and stop liquid flow, it delivers consistent spray performance for coating, humidification, cooling, dust suppression, and other intermittent spraying processes.

Key Features

  • Automatic air-actuated liquid control
  • Fine and consistent atomization
  • Fast switching up to 150 cycles per minute
  • Optional drip-free shutoff design
  • Optional self-cleaning needle to reduce clogging
  • Multiple spray patterns available
  • Durable nickel-plated brass or stainless steel construction
  • Suitable for automated and high-speed production lines

Technical Specifications

Spray Pattern : Mist / Atomizing
Orifice Diameter : -
Spray Angle : -
Flow Rate : -
Working Pressure : -
Connection Size(s) : -
Material : Stainless Steel, Brass

Speak with our team for more information.

Learn More

👉 Contact us today for more information or a custom quote on the nozzles designed to optimize your systems.

Contact Us

Technical Specifications

Nozzle Model No. Liquid Cap and Air Cap No. Flow Rate at Different Pressure (L/min) Jet Size
Air Pressure (kg) Water (L/hr) Air (L/min) Air Pressure (kg) Water (L/hr) Air (L/min) Air Pressure (kg) Water (L/hr) Air (L/min) Air Pressure (kg) Water (L/hr) Air (L/min) Air Pressure (kg) Water (L/hr) Air (L/min) Air (kg) Liquid (kg) A Jet Angle B (cm) D (m)
SUII Liquid Cap 2050 Air Cap 62147 0.7 2.5 15.6 1.1 6.4 11.9 1.4 6.4 13.9 2.7 6.2 23 3.5 7.8 28 0.85 0.7 13° 30 2.7
0.85 1.8 19.0 1.4 5.0 15.0 1.7 5.5 16.7 2.8 5.7 25 3.7 7.3 29 1.7 1.5 13° 33 3.0
1.0 1.4 22 1.7 4.1 18.9 2.0 4.5 19.8 3.0 5.2 27 3.9 6.4 33 2.5 2.0 13° 36 3.4
1.8 3.4 20 2.2 3.4 24 3.1 4.7 29 4.2 5.5 38 3.1 3.0 14° 39 3.8
2.0 3.0 23 2.4 3.0 26 3.2 4.3 31 4.5 4.5 43 4.5 4.0 15° 44 4.4
2.1 2.6 25 2.5 2.5 28 3.4 3.9 33 4.6 4.1 45
2.2 2.0 27 2.7 2.3 31 3.7 3.0 38 4.8 3.7 47
SU12A Liquid Cap 2050 Air Cap 73160 0.7 2.5 18.7 1.4 5.7 27 1.7 6.7 29 2.2 9.2 34 2.8 11.9 39 0.85 0.7 12° 43 3.7
0.85 2.0 22 1.5 5.2 29 1.8 6.4 31 2.5 8.2 39 3.1 11.0 43 1.5 1.5 13° 46 4.0
1.0 1.6 26 1.7 4.8 32 2.0 5.9 34 2.8 7.2 44 3.4 10.1 47 2.4 2.0 13° 48 4.3
1.8 4.3 35 2.1 5.2 37 3.0 6.7 47 3.7 9.2 52 3.0 3.0 13° 51 4.6
2.0 3.9 37 2.2 4.8 40 3.1 6.3 49 3.9 8.4 58 3.9 4.0 15° 56 5.2
2.1 3.4 40 2.4 4.3 43 3.2 5.9 52 4.2 7.6 62
2.7 3.6 48 3.4 5.5 55 4.5 6.8 68
SU12 Liquid Cap 2050 Air Cap 73160 0.85 4.8 1.7 8.4 31 2.0 10.7 33 2.7 16.5 37 3.4 20 43 1.5 0.7 12° 48 4.0
1.1 4.1 21 1.8 7.5 35 2.1 9.8 37 2.8 15.4 38 3.7 18.4 47 2.5 1.5 13° 51 4.3
1.4 3.4 27 2.0 7.0 37 2.4 8.2 42 3.1 13.6 43 3.9 16.8 50 3.0 2.0 13° 53 4.6
1.5 3.1 33 2.2 5.7 44 2.7 6.8 48 3.4 11.8 49 4.2 15.2 55 3.4 3.0 14° 56 4.9
1.7 3.0 35 2.5 4.8 49 3.0 5.9 55 3.7 10.4 55 4.5 13.8 60 4.2 4.0 15° 60 5.3
1.8 2.9 39 2.8 4.1 54 3.2 5.0 59 3.9 9.1 61 4.8 12.4 65
2.0 2.8 41 3.1 3.6 59 3.5 4.1 65 4.2 7.9 65 4.9 11.8 68
SU22B Liquid Cap 40100 Air Cap 1401110 1.1 13.0 44 2.2 17.8 116 2.8 20 136 3.4 32 149 4.6 37 193 1.7 0.7 18° 66 4.9
1.4 8.9 76 2.5 13.1 130 3.1 16.3 149 3.9 25 170 5.3 29 220 2.8 1.5 20° 76 5.8
1.5 7.2 91 2.8 9.5 143 3.4 11.9 163 4.6 15.9 205 5.6 25 235 3.9 2.0 20° 81 6.7
1.7 5.8 98 3.1 7.0 157 3.9 7.0 187 5.3 9.1 240 6.0 21 250 5.3 3.0 21° 91 7.0
1.8 4.7 105 3.4 4.9 171 4.2 4.7 205 5.6 6.8 255 6.3 17.4 270 6.0 4.0 21° 97 8.5
2.0 3.6 112 3.5 4.2 178 4.6 3.0 220 6.0 5.0 275 6.7 14.0 290
2.1 2.7 119 6.3 3.6 290 7.0 11.0 305
SU22 Liquid Cap 60100 Air Cap 1401110 0.85 31 127 1.4 61 69 2.1 53 96 2.7 80 103 3.8 88 135 1.0 0.7 17° 61 6.1
1.0 25 57 1.5 54 76 2.4 41 112 3.0 69 117 4.2 73 156 1.8 1.5 18° 69 7.0
1.1 18.5 66 1.7 48 85 2.7 31 127 3.2 59 130 4.6 61 176 2.8 2.0 20° 76 7.6
1.3 12.9 75 1.8 41 93 2.8 26 136 3.5 49 146 4.9 48 196 3.5 3.0 20° 79 7.9
85 2.0 35 102 3.0 22 144 3.7 44 154 5.3 39 215 4.9 4.0 21° 91 9.1
2.1 30 110 3.8 37 161 5.6 31 240
2.2 25 119 3.9 35 170 6.0 23 260
SU42 Liquid Cap 100150 Air Cap 1891125 1.0 44 1.4 125 79 2.0 123 108 2.2 199 88 3.0 250 99 1.0 0.7 19° 89 6.1
1.1 32 86 1.5 106 91 2.1 108 119 2.5 174 110 3.2 225 120 1.7 1.5 20° 99 7.0
102 1.7 87 105 2.2 95 130 2.8 146 133 3.5 205 141 2.4 2.0 21° 104 7.6
1.8 70 118 2.4 79 143 3.1 121 154 3.8 182 163 3.1 3.0 21° 107 7.9
2.0 55 130 2.5 64 155 3.2 108 166 4.1 159 184 3.8 4.0 22° 117 9.1
2.7 52 166 3.4 95 176 4.6 121 225
2.8 42 178 3.5 84 187 4.9 93 255
Other sizes and material available upon request
