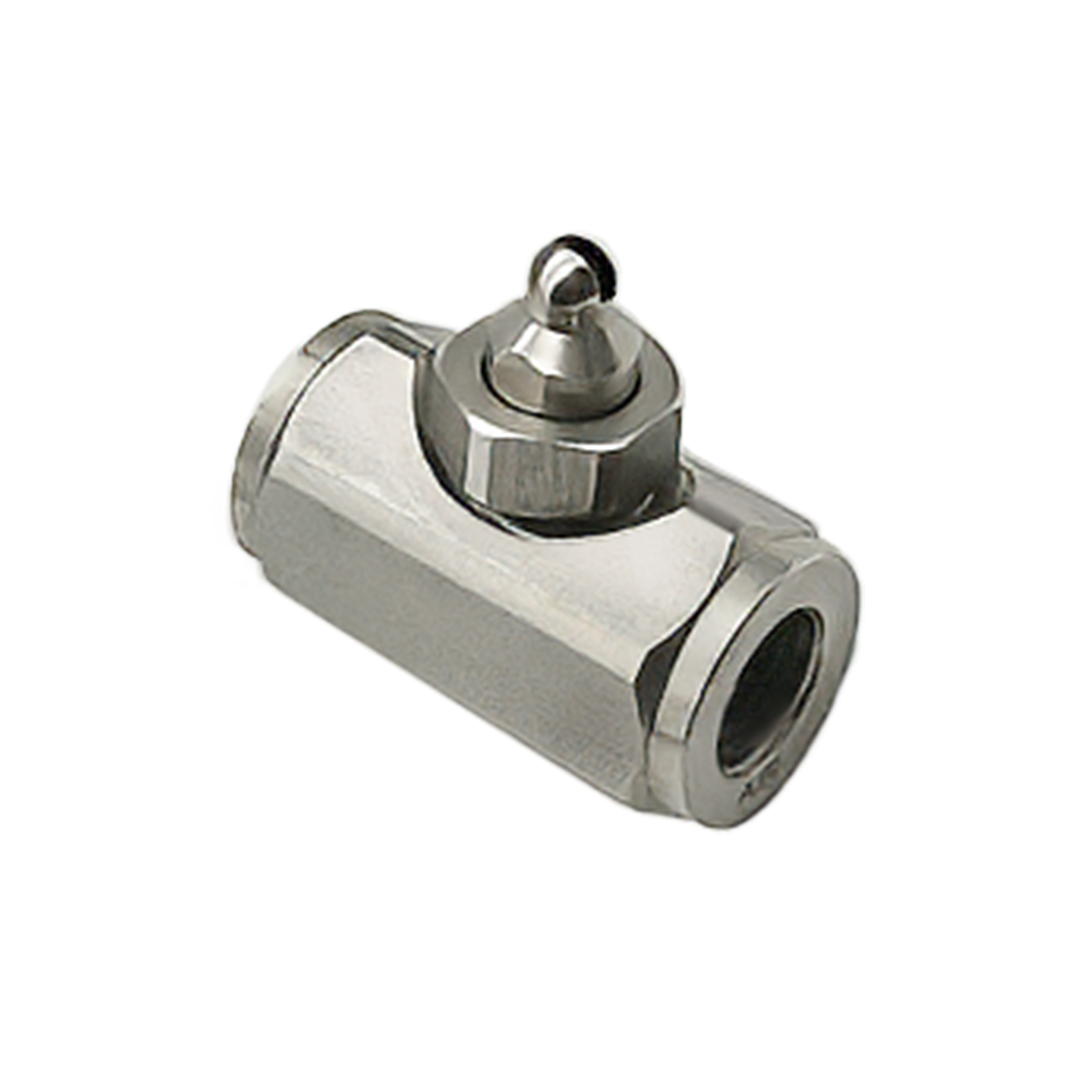

Two-Fluid Atomizing Nozzle | Air Atomizing Spray Nozzle

Two-Fluid Atomizing Nozzle | Air Atomizing Spray Nozzle

Durable. Precise. Built for Performance.

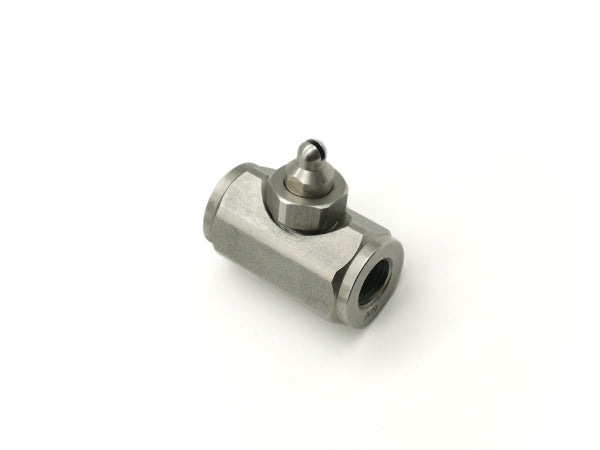

The Two-Fluid Atomizing Nozzle uses compressed air and liquid to produce ultra-fine, highly controllable mist droplets. Its advanced mixing technology delivers superior atomization performance for cooling, humidification, coating, lubrication, chemical dosing, and other industrial spraying applications.

Key Features

  • Ultra-fine atomization for improved evaporation efficiency
  • Precise spray control for enhanced process accuracy
  • Reduced water and chemical consumption
  • Excellent spray uniformity
  • Designed for continuous 24/7 operation
  • Reliable performance in demanding industrial environments

Technical Specifications

Spray Pattern : Mist / Atomizing
Orifice Diameter : 0.28-8.7 mm.
Spray Angle : 44°-124°
Flow Rate : 0.05-270 L/Min
Working Pressure : -
Connection Size(s) : 1/8”, 1/4”, 3/8”, 1/2”, 3/4”
Material : Stainless Steel, Brass, Ceramic, Plastic

Speak with our team for more information.

Application

  • Industrial cooling & humidification
  • Dust suppression and dry fogging
  • Coating, painting, and chemical spraying
  • Food processing, metalworking, electronics manufacturing
  • Surface lubrication for stamping & CNC machining
  • Odor control & environmental treatment

Learn More

👉 Contact us today for more information or a custom quote on the nozzles designed to optimize your systems.

Contact Us

Technical Specifications

Nozzle Model No. Liquid Cap and Air Cap No. Flow Rate at Different Pressure (L/min) Jet Size
Air Pressure (kg) Water (L/hr) Air (L/min) Air Pressure (kg) Water (L/hr) Air (L/min) Air Pressure (kg) Water (L/hr) Air (L/min) Air Pressure (kg) Water (L/hr) Air (L/min) Air Pressure (kg) Water (L/hr) Air (L/min) Air (kg) Liquid (kg) A (cm) B (cm) C (cm) D (cm)
SU13A Liquid Cap 2050 Air Cap 73328 0.7 5.5 24 1.3 9.1 31 2.0 8.6 42 2.7 11.2 52 3.9 12.0 69 1.1 0.7 25 38 46 2.6
0.85 4.7 27 1.5 7.7 36 2.2 7.5 47 3.0 10.1 56 4.6 9.7 81 2.1 1.5 36 48 66 3.0
1.0 4.1 31 1.8 6.5 42 2.5 6.2 52 3.2 9.1 62 5.3 7.5 93 2.8 2.0 38 53 76 3.2
1.1 3.5 34 2.1 5.4 47 2.8 5.2 57 3.5 8.1 66 6.0 5.3 104 3.5 3.0 47 61 86 3.4
1.3 3.0 37 2.4 4.3 52 3.1 4.2 63 4.2 5.4 78 6.3 4.3 110 6.0 4.0 56 74 94 4.0
1.4 2.5 40 2.7 3.3 57 3.2 3.7 65 4.6 4.2 85 6.7 3.3 116
1.5 2.0 44 2.8 2.8 60 3.4 3.2 68 4.9 3.1 91 7.0 2.4 122
SU13 Liquid Cap 2850 Air Cap 73328 0.85 8.2 19.8 1.4 14.4 27 2.1 13.5 36 2.7 19.1 42 4.6 16.1 69 1.1 0.7 36 46 71 2.1
1.0 6.8 23 1.7 11.9 32 2.4 11.4 42 3.0 17.1 46 4.9 13.8 76 2.1 1.5 43 61 81 2.4
1.1 5.5 27 2.0 9.5 37 2.7 9.2 47 3.2 15.1 52 5.3 11.5 83 3.0 2.0 51 66 89 2.6
1.3 4.1 30 2.1 8.3 40 3.0 7.1 53 3.2 13.1 57 5.6 9.3 90 3.5 3.0 58 76 97 2.7
1.4 2.9 34 2.2 7.1 43 3.2 5.0 59 4.2 8.1 72 6.0 7.3 97 5.6 4.0 58 76 97 3.2
2.4 6.1 46 3.4 4.0 63 4.6 5.9 79 6.3 5.6 104
2.5 5.1 49 3.5 3.3 66 4.9 4.0 86 6.7 4.3 112
SUN13 Liquid Cap 2850 Air Cap 73325 1.0 9.0 25 2.0 10.4 41 2.4 11.6 48 3.1 15.6 56 4.2 17.1 73 1.4 0.7 10 13 17 3.0
1.1 7.8 30 2.1 9.3 45 2.5 10.4 51 3.2 14.6 59 4.6 15.0 80 2.5 1.5 13 15 20 3.7
1.3 6.6 32 2.2 8.2 48 2.7 9.4 54 3.4 13.7 62 4.9 12.8 87 3.2 2.0 13 17 22 4.0
1.4 5.2 36 2.5 6.1 55 3.0 7.3 61 3.8 10.8 71 5.3 11.0 94 3.8 3.0 15 22 28 4.2
1.7 3.1 44 2.8 4.3 62 3.2 5.3 68 4.2 8.5 82 5.6 9.4 103 5.3 4.0 20 25 33 4.8
2.0 2.0 50 3.1 3.0 69 3.5 4.1 75 4.9 5.2 98 6.3 7.2 119
2.2 1.1 56 3.4 2.0 75 3.8 2.9 81 6.0 2.3 120 7.0 6.1 134
SU14 Liquid Cap 2850 Air Cap 73320 1.3 3.9 30 2.1 7.4 40 3.0 6.1 52 3.9 9.4 60 5.3 10.2 78 1.5 0.7 23 33 46 1.8
1.4 3.0 33 2.4 5.3 45 3.1 5.3 54 4.2 7.2 67 5.6 8.3 84 2.7 1.5 36 51 69 2.0
1.5 2.3 35 2.5 4.4 47 3.2 4.5 57 4.6 5.3 73 6.0 6.6 89 3.2 2.0 58 74 91 2.0
1.7 1.8 38 2.7 3.7 50 3.4 3.8 59 4.9 3.8 80 6.3 5.1 98 4.2 3.0 61 74 94 2.1
1.8 1.3 41 2.8 3.1 52 3.5 3.2 62 5.6 4.0 64 76 97 2.3
2.0 0.95 44 3.0 2.6 55 3.9 1.8 68
SUN23 Liquid Cap 60100 Air Cap 125340 1.0 17.0 23 2.0 24 44 2.4 28 51 3.4 38 72 3.9 65 75 1.1 0.7 10 13 15 2.4
1.1 11.0 27 2.1 18.9 50 2.5 23 59 3.5 33 80 4.2 53 89 2.1 1.5 10 13 17 3.0
1.3 7.6 33 2.2 14.4 56 2.7 18.9 66 3.7 28 89 4.6 40 108 2.8 2.0 13 17 22 3.4
1.4 3.2 40 2.4 10.6 63 2.8 15.1 74 3.8 23 97 4.9 30 127 3.7 3.0 15 20 28 3.6
2.5 7.2 71 3.0 11.7 79 3.9 19.7 105 5.3 21 149 4.9 4.0 20 25 35 4.0
4.2 13.1 120 5.6 13.8 173
4.6 7.2 138 6.3 3.2 225
SU23B Liquid Cap 40100 Air Cap 125328 2.7 19.6 93 3.5 27 112 4.6 3.3 137 1.4 0.7 15 18 20 3.0
1.1 11.2 54 2.1 18.0 79 2.7 19.6 93 3.5 27 112 4.6 3.3 137 1.4 0.7 15 18 20 3.0
1.3 8.5 60 2.2 15.8 84 2.8 17.3 98 3.7 25 116 4.9 28 149 2.4 1.5 23 28 33 3.2
1.4 6.5 65 2.4 13.6 89 3.0 15.2 103 3.8 23 121 5.3 24 161 3.0 2.0 25 33 46 3.4
1.5 5.0 71 2.5 11.6 95 3.1 13.2 109 3.9 21 126 5.6 19.7 174 3.7 3.0 30 38 46 3.5
1.7 3.8 77 3.2 11.4 114 4.1 18.9 132 6.0 15.7 187 5.3 4.0 33 41 48 4.0
4.2 17.0 137 6.3 12.4 200
SU23 Liquid Cap 60100 Air Cap 125328 0.85 27 33 1.8 38 55 2.4 39 67 3.2 58 76 4.6 59 106 1.1 0.7 18 23 30 3.4
1.0 20 38 2.1 28 66 2.7 30 87 3.5 47 87 5.3 40 132 2.4 1.5 23 30 41 3.5
1.1 15.9 45 2.2 24 71 3.0 24 97 3.8 38 97 5.6 32 145 3.2 2.0 25 33 43 3.7
1.3 12.5 48 2.4 21 76 3.2 17.8 103 3.9 34 103 6.0 26 158 3.9 3.0 30 38 48 3.8
1.4 10.2 56 2.5 17.8 82 3.4 15.1 113 4.2 27 113 6.3 20 172 6.0 4.0 33 41 51 4.4
1.5 7.6 62 2.7 15.1 87 3.5 12.9 126 4.6 20 126 6.7 15.9 185
3.7 10.6 140 4.9 14.8 140 7.0 12.7 198
SU43 Liquid Cap 100150 Air Cap 189351 1.0 29 90 1.8 56 117 2.1 100 119 3.0 126 140 181 4.1 140 1.0 0.7 18 20 25 3.4
1.1 18.9 108 2.0 40 133 2.2 79 133 3.1 110 151 193 4.2 125 1.8 1.5 25 20 43 3.8
2.4 62 147 3.2 95 163 225 4.6 89 2.4 2.0 25 30 46 4.3
2.5 48 162 3.4 78 184 265 4.9 58 3.4 3.0 33 41 53 4.6
2.7 36 177 3.5 62 193 305 5.3 34 4.9 4.0 36 43 58 5.2
Other sizes and material available upon request
