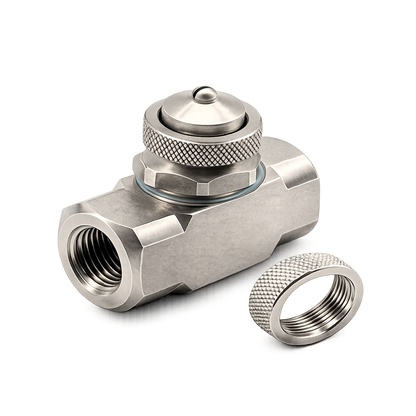

Adjustable Two-Fluid Atomizing Nozzle | Air Atomizing Spray Nozzle
Adjustable Two-Fluid Atomizing Nozzle | Air Atomizing Spray Nozzle
Adjustable Two-Fluid Atomizing Nozzle | Air Atomizing Spray Nozzle

Adjustable Two-Fluid Atomizing Nozzle | Air Atomizing Spray Nozzle

Durable. Precise. Built for Performance.

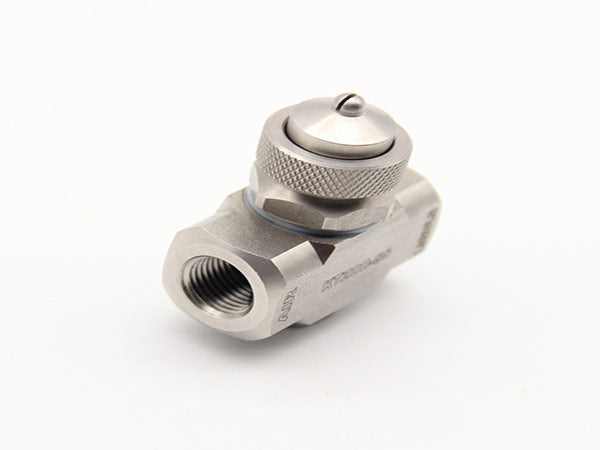

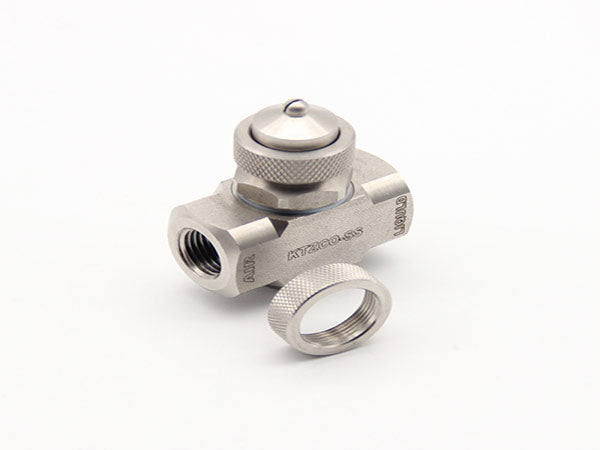

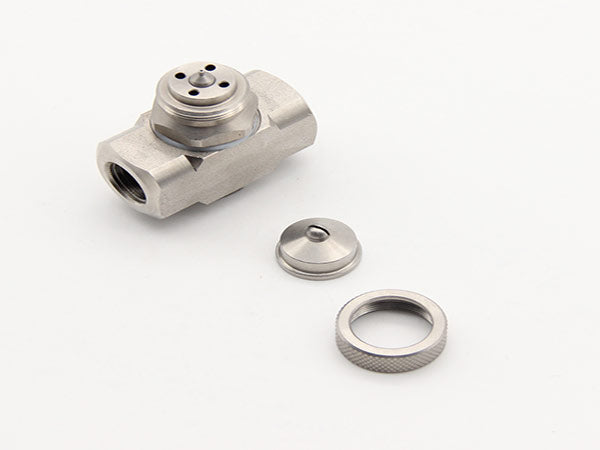

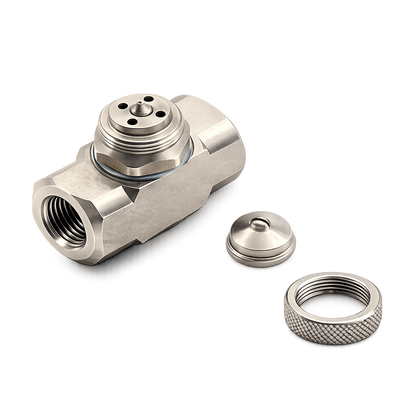

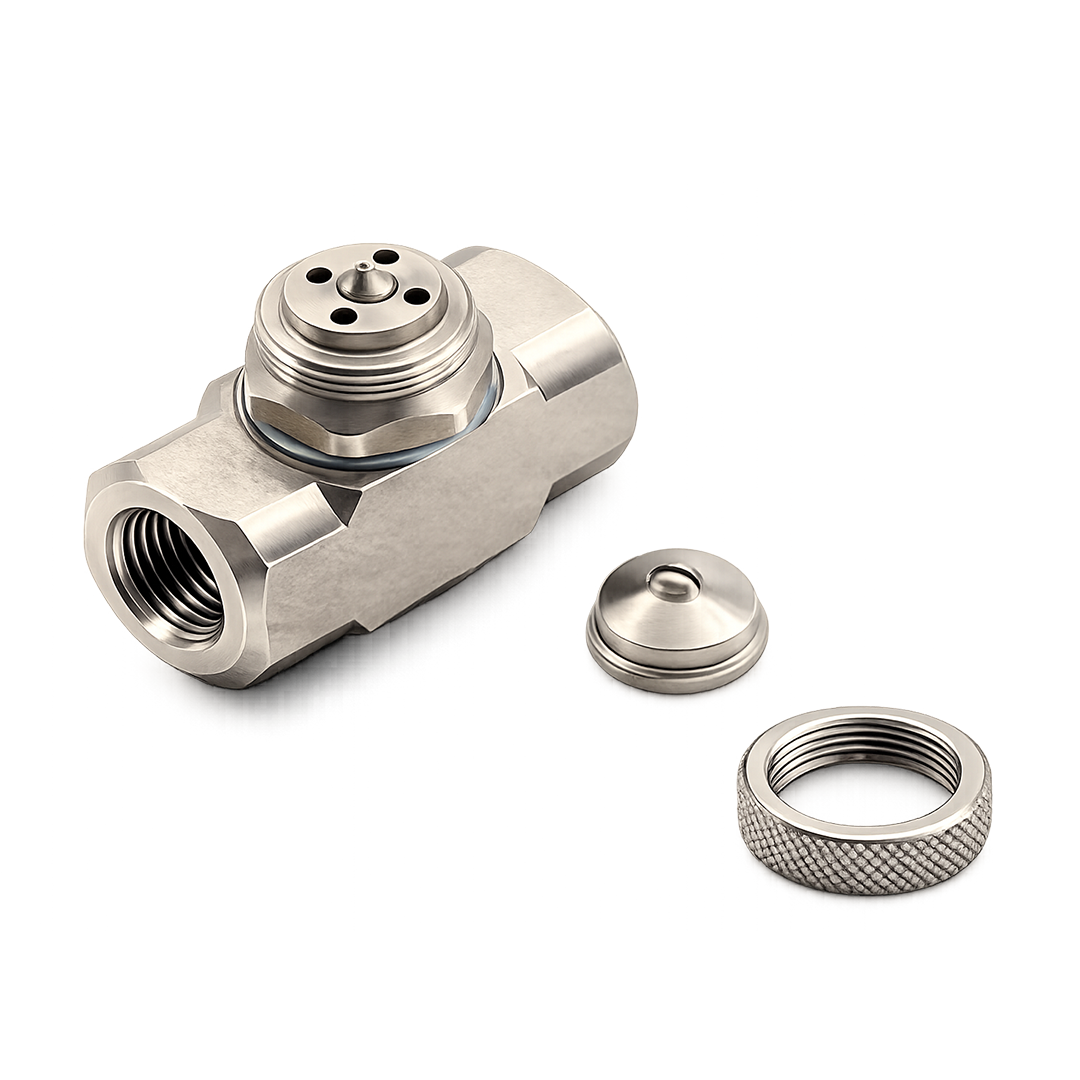

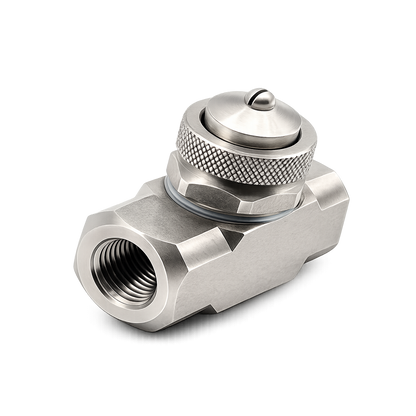

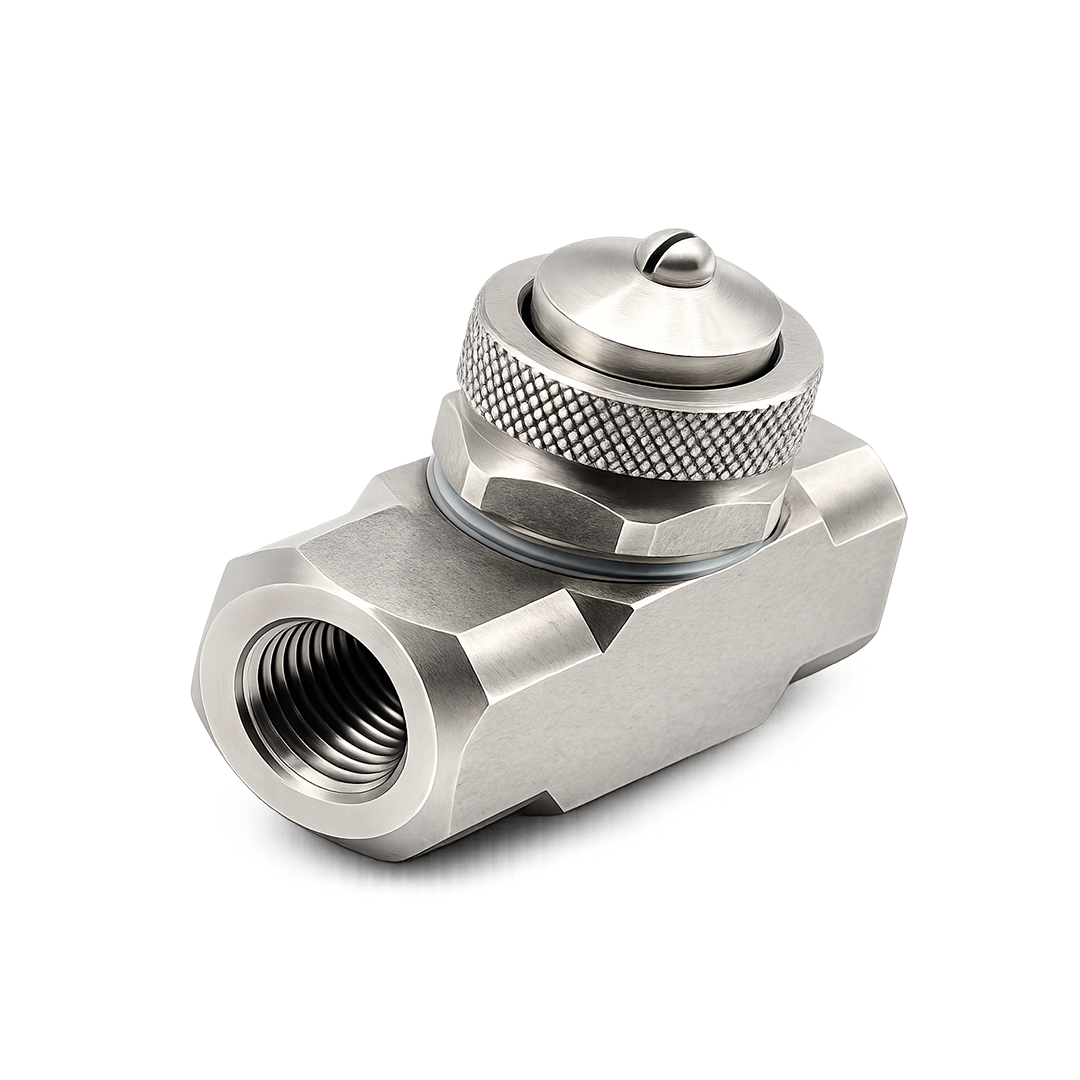

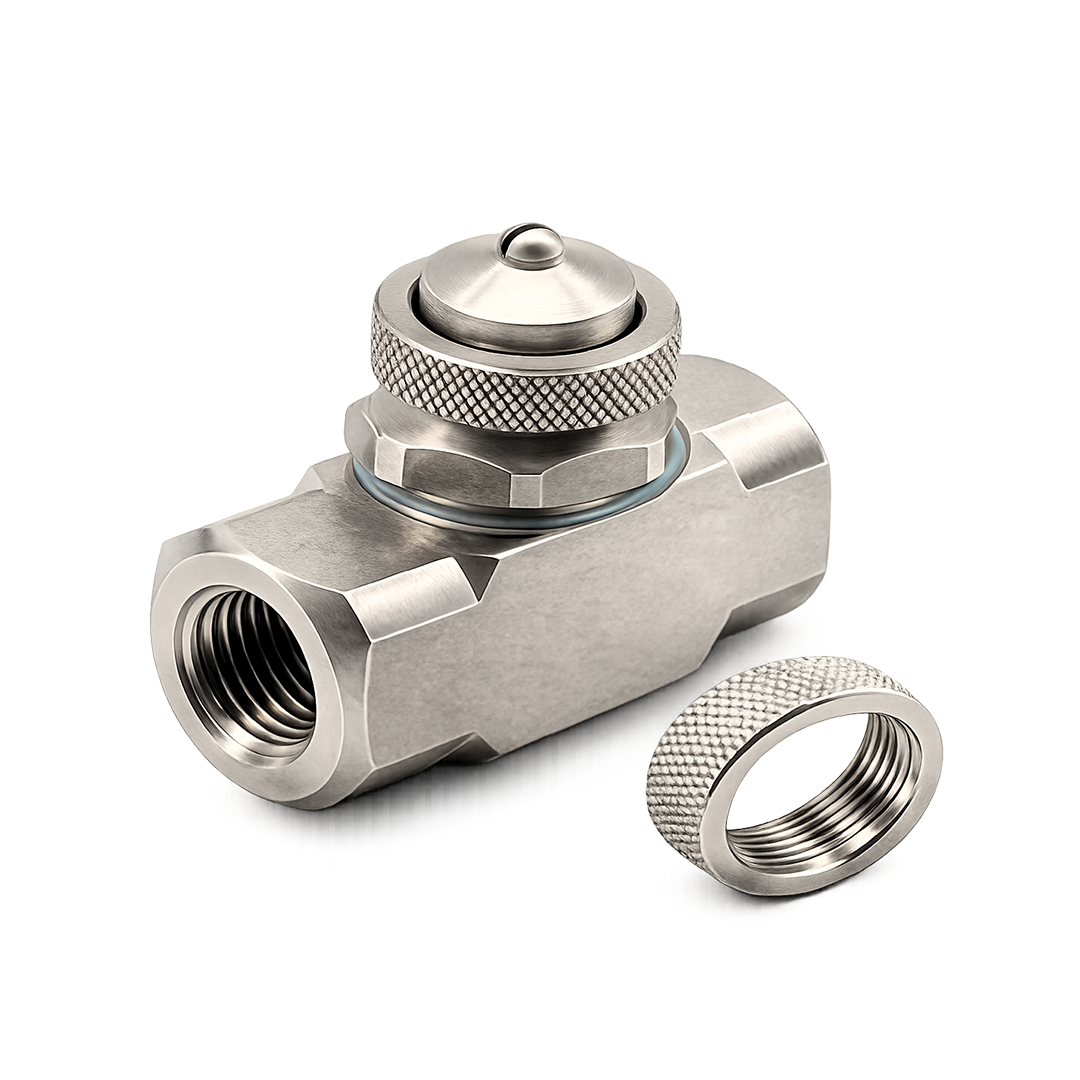

The Adjustable Two-Fluid Atomizing Nozzle uses compressed air and liquid to produce a fine, uniform spray with excellent atomization performance. Its adjustable design allows precise control for coating, cooling, humidification, and dust suppression applications. Available in multiple spray patterns, it is widely used in electronics, food processing, painting, and other industrial processes.

Key Features

  • Adjustable spray pattern and flow control
  • Fine, uniform atomization
  • Round, flat, and wide-angle spray options
  • Corrosion-resistant construction
  • Stable spray performance
  • Suitable for coating, cooling, humidification, and dust control
  • Long service life and low maintenance requirements

Technical Specifications

Spray Pattern : Multiple
Orifice Diameter : -
Spray Angle : -
Flow Rate : -
Working Pressure : -
Connection Size(s) : -
Material : Stainless Steel

Speak with our team for more information.

Applications

  • Coating and painting
  • Cooling and humidification
  • Dust suppression
  • Electronics manufacturing
  • Food processing
  • Industrial spraying systems

Learn More

👉 Contact us today for more information or a custom quote on the nozzles designed to optimize your systems.

Contact Us

Technical Specifications

Nozzle Model No. Liquid Cap and Air Cap No. Flow Rate at Different Pressure (L/min) Jet Size
Air Pressure (kg) Water (L/hr) Air (L/min) Air Pressure (kg) Water (L/hr) Air (L/min) Air Pressure (kg) Water (L/hr) Air (L/min) Air Pressure (kg) Water (L/hr) Air (L/min) Air Pressure (kg) Water (L/hr) Air (L/min) Air (kg) Liquid (kg) A (cm) B (cm) C (cm) D (cm)
SU13A Liquid Cap 2050 Air Cap 73328 0.7 5.5 24 1.3 9.1 31 2.0 8.6 42 2.7 11.2 52 3.9 12.0 69 1.1 0.7 25 38 46 2.6
0.85 4.7 27 1.5 7.7 36 2.2 7.5 47 3.0 10.1 56 4.6 9.7 81 2.1 1.5 36 48 66 3.0
1.0 4.1 31 1.8 6.5 42 2.5 6.2 52 3.2 9.1 62 5.3 7.5 93 2.8 2.0 38 53 76 3.2
1.1 3.5 34 2.1 5.4 47 2.8 5.2 57 3.5 8.1 66 6.0 5.3 104 3.5 3.0 47 61 86 3.4
1.3 3.0 37 2.4 4.3 52 3.1 4.2 63 4.2 5.4 78 6.3 4.3 110 6.0 4.0 56 74 94 4.0
1.4 2.5 40 2.7 3.3 57 3.2 3.7 65 4.6 4.2 85 6.7 3.3 116
1.5 2.0 44 2.8 2.8 60 3.4 3.2 68 4.9 3.1 91 7.0 2.4 122
SU13 Liquid Cap 2850 Air Cap 73328 0.85 8.2 19.8 1.4 14.4 27 2.1 13.5 36 2.7 19.1 42 4.6 16.1 69 1.1 0.7 36 46 71 2.1
1.0 6.8 23 1.7 11.9 32 2.4 11.4 42 3.0 17.1 46 4.9 13.8 76 2.1 1.5 43 61 81 2.4
1.1 5.5 27 2.0 9.5 37 2.7 9.2 47 3.2 15.1 52 5.3 11.5 83 3.0 2.0 51 66 89 2.6
1.3 4.1 30 2.1 8.3 40 3.0 7.1 53 3.2 13.1 57 5.6 9.3 90 3.5 3.0 58 76 97 2.7
1.4 2.9 34 2.2 7.1 43 3.2 5.0 59 4.2 8.1 72 6.0 7.3 97 5.6 4.0 58 76 97 3.2
2.4 6.1 46 3.4 4.0 63 4.6 5.9 79 6.3 5.6 104
2.5 5.1 49 3.5 3.3 66 4.9 4.0 86 6.7 4.3 112
SUN13 Liquid Cap 2850 Air Cap 73325 1.0 9.0 25 2.0 10.4 41 2.4 11.6 48 3.1 15.6 56 4.2 17.1 73 1.4 0.7 10 13 17 3.0
1.1 7.8 30 2.1 9.3 45 2.5 10.4 51 3.2 14.6 59 4.6 15.0 80 2.5 1.5 13 15 20 3.7
1.3 6.6 32 2.2 8.2 48 2.7 9.4 54 3.4 13.7 62 4.9 12.8 87 3.2 2.0 13 17 22 4.0
1.4 5.2 36 2.5 6.1 55 3.0 7.3 61 3.8 10.8 71 5.3 11.0 94 3.8 3.0 15 22 28 4.2
1.7 3.1 44 2.8 4.3 62 3.2 5.3 68 4.2 8.5 82 5.6 9.4 103 5.3 4.0 20 25 33 4.8
2.0 2.0 50 3.1 3.0 69 3.5 4.1 75 4.9 5.2 98 6.3 7.2 119
2.2 1.1 56 3.4 2.0 75 3.8 2.9 81 6.0 2.3 120 7.0 6.1 134
SU14 Liquid Cap 2850 Air Cap 73320 1.3 3.9 30 2.1 7.4 40 3.0 6.1 52 3.9 9.4 60 5.3 10.2 78 1.5 0.7 23 33 46 1.8
1.4 3.0 33 2.4 5.3 45 3.1 5.3 54 4.2 7.2 67 5.6 8.3 84 2.7 1.5 36 51 69 2.0
1.5 2.3 35 2.5 4.4 47 3.2 4.5 57 4.6 5.3 73 6.0 6.6 89 3.2 2.0 58 74 91 2.0
1.7 1.8 38 2.7 3.7 50 3.4 3.8 59 4.9 3.8 80 6.3 5.1 98 4.2 3.0 61 74 94 2.1
1.8 1.3 41 2.8 3.1 52 3.5 3.2 62 5.6 4.0 64 76 97 2.3
2.0 0.95 44 3.0 2.6 55 3.9 1.8 68
SUN23 Liquid Cap 60100 Air Cap 125340 1.0 17.0 23 2.0 24 44 2.4 28 51 3.4 38 72 3.9 65 75 1.1 0.7 10 13 15 2.4
1.1 11.0 27 2.1 18.9 50 2.5 23 59 3.5 33 80 4.2 53 89 2.1 1.5 10 13 17 3.0
1.3 7.6 33 2.2 14.4 56 2.7 18.9 66 3.7 28 89 4.6 40 108 2.8 2.0 13 17 22 3.4
1.4 3.2 40 2.4 10.6 63 2.8 15.1 74 3.8 23 97 4.9 30 127 3.7 3.0 15 20 28 3.6
2.5 7.2 71 3.0 11.7 79 3.9 19.7 105 5.3 21 149 4.9 4.0 20 25 35 4.0
4.2 13.1 120 5.6 13.8 173
4.6 7.2 138 6.3 3.2 225
SU23B Liquid Cap 40100 Air Cap 125328 2.7 19.6 93 3.5 27 112 4.6 3.3 137 1.4 0.7 15 18 20 3.0
1.1 11.2 54 2.1 18.0 79 2.7 19.6 93 3.5 27 112 4.6 3.3 137 1.4 0.7 15 18 20 3.0
1.3 8.5 60 2.2 15.8 84 2.8 17.3 98 3.7 25 116 4.9 28 149 2.4 1.5 23 28 33 3.2
1.4 6.5 65 2.4 13.6 89 3.0 15.2 103 3.8 23 121 5.3 24 161 3.0 2.0 25 33 46 3.4
1.5 5.0 71 2.5 11.6 95 3.1 13.2 109 3.9 21 126 5.6 19.7 174 3.7 3.0 30 38 46 3.5
1.7 3.8 77 3.2 11.4 114 4.1 18.9 132 6.0 15.7 187 5.3 4.0 33 41 48 4.0
4.2 17.0 137 6.3 12.4 200
SU23 Liquid Cap 60100 Air Cap 125328 0.85 27 33 1.8 38 55 2.4 39 67 3.2 58 76 4.6 59 106 1.1 0.7 18 23 30 3.4
1.0 20 38 2.1 28 66 2.7 30 87 3.5 47 87 5.3 40 132 2.4 1.5 23 30 41 3.5
1.1 15.9 45 2.2 24 71 3.0 24 97 3.8 38 97 5.6 32 145 3.2 2.0 25 33 43 3.7
1.3 12.5 48 2.4 21 76 3.2 17.8 103 3.9 34 103 6.0 26 158 3.9 3.0 30 38 48 3.8
1.4 10.2 56 2.5 17.8 82 3.4 15.1 113 4.2 27 113 6.3 20 172 6.0 4.0 33 41 51 4.4
1.5 7.6 62 2.7 15.1 87 3.5 12.9 126 4.6 20 126 6.7 15.9 185
3.7 10.6 140 4.9 14.8 140 7.0 12.7 198
SU43 Liquid Cap 100150 Air Cap 189351 1.0 29 90 1.8 56 117 2.1 100 119 3.0 126 140 181 4.1 140 1.0 0.7 18 20 25 3.4
1.1 18.9 108 2.0 40 133 2.2 79 133 3.1 110 151 193 4.2 125 1.8 1.5 25 20 43 3.8
2.4 62 147 3.2 95 163 225 4.6 89 2.4 2.0 25 30 46 4.3
2.5 48 162 3.4 78 184 265 4.9 58 3.4 3.0 33 41 53 4.6
2.7 36 177 3.5 62 193 305 5.3 34 4.9 4.0 36 43 58 5.2
Other sizes and material available upon request
