Model:

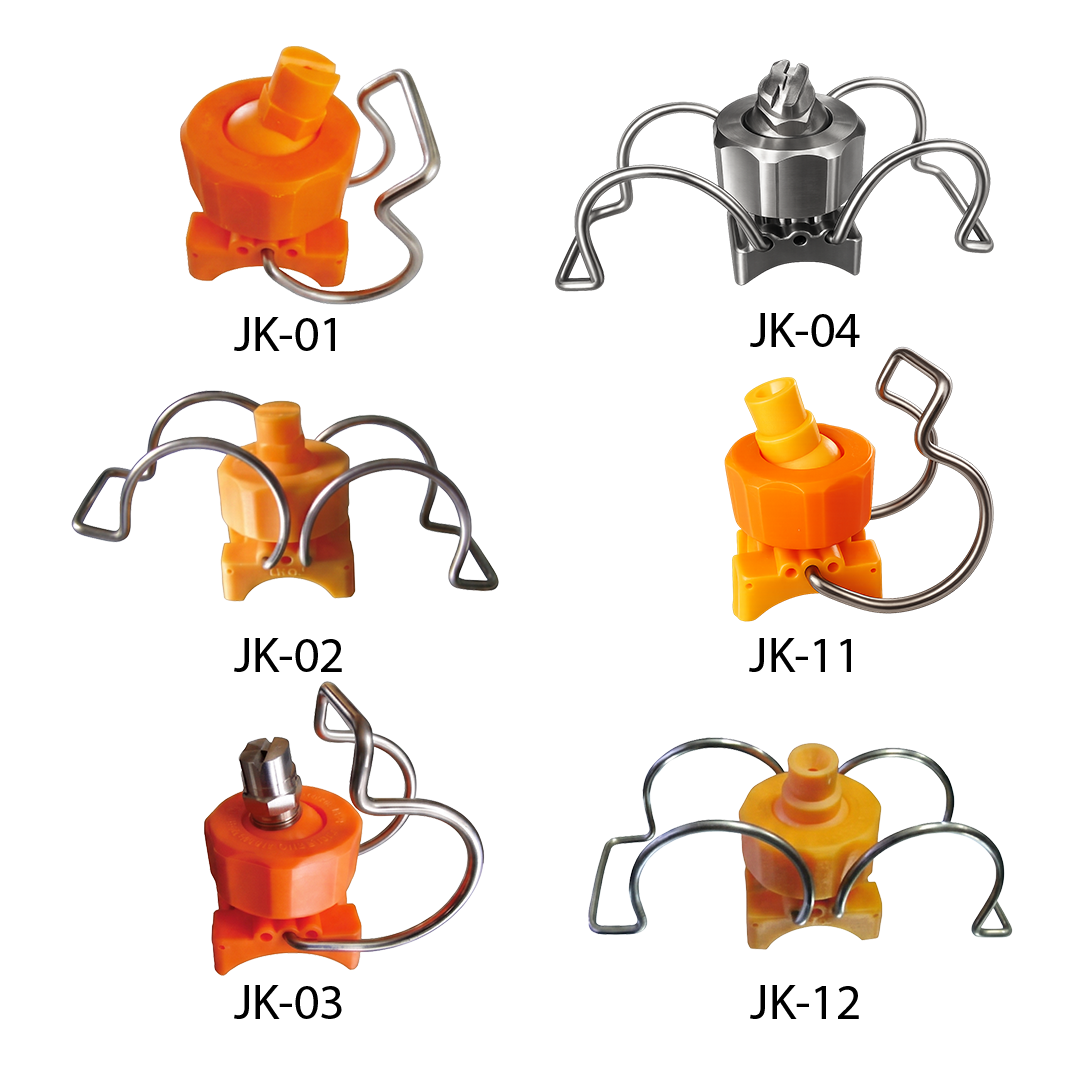

JK-01, JK-02, JK-03, JK-04, JK-11, JK-12
Adjustable Ball Spray Nozzle | Clip-On & Threaded Spray Nozzle
Durable. Precise. Built for Performance.
The Adjustable Ball Spray Nozzle is designed for flexible spray direction control in industrial cleaning and surface treatment systems. It is available with clip-on or threaded connections and supports flat fan, full cone, and hollow cone spray patterns. The adjustable ball design allows the spray direction to be quickly and precisely positioned during installation, helping maintain the optimal spray angle for different processing requirements.
Material:
Stainless Steel, Plastic
Contact Us
Key Features
- Adjustable Spray Direction – Quickly position the nozzle to the required spraying angle.
- Two Connection Options – Available in clip-on and threaded designs.
- Multiple Spray Patterns – Flat fan, full cone, and hollow cone options.
- Flexible Nozzle Configuration – Spray tips can be connected directly to the ball body or combined with threaded and quick-release ball components.
- Easy Installation & Adjustment – Designed for convenient installation, positioning, and maintenance.
- Multiple Materials Available – Material options can be selected according to operating conditions.
Applications

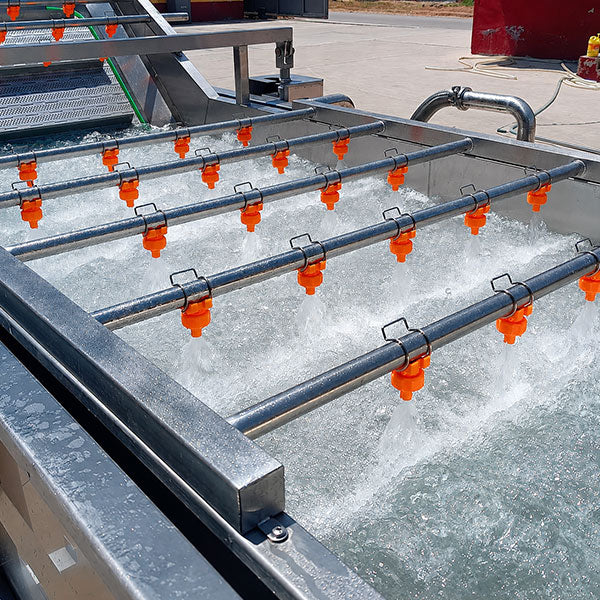

- Metal Parts Cleaning
- Industrial Washing & Rinsing
- Acid Pickling
- Degreasing
- Phosphating

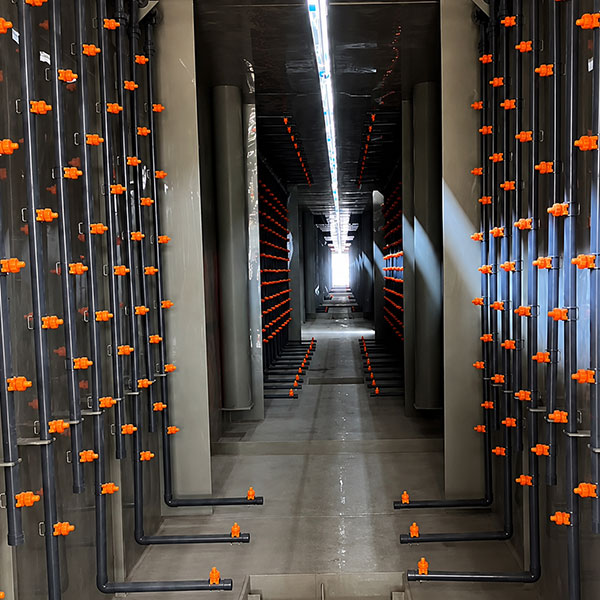

- Pretreatment Spray Lines
- Surface Treatment Equipment
Technical Specifications (Fan-shaped spray)
| Nozzle Model No. (Spray Angle 3kg) | Flow Rate (L/min) | ||||||||
|---|---|---|---|---|---|---|---|---|---|
| 50° | 65° | 80° | 95° | 0.7 kg | 1 kg | 1.5 kg | 2 kg | 3 kg | 4 kg |
| 6510 | 8010 | 9510 | 1.9 | 2.3 | 2.8 | 3.2 | 3.9 | 4.6 | |
| 6515 | 8015 | 9515 | 2.4 | 3.4 | 4.0 | 4.6 | 5.9 | 6.8 | |
| 5020 | 6520 | 8020 | 9520 | 3.8 | 4.6 | 5.6 | 9.5 | 7.9 | 9.1 |
| 5030 | 6530 | 8030 | 9530 | 5.7 | 6.8 | 8.4 | 9.7 | 11.8 | 13.7 |
| 5040 | 6540 | 8040 | 9540 | 7.6 | 9.1 | 11.2 | 12.9 | 15.8 | 18.2 |
| 5050 | 6550 | 8050 | 9550 | 9.5 | 11.4 | 14.0 | 16.1 | 19.7 | 23 |
| 5060 | 6560 | 8060 | 9560 | 11.4 | 13.7 | 16.7 | 19.3 | 24 | 27 |
| 5070 | 6570 | 8070 | 9570 | 13.3 | 16.0 | 19.5 | 23 | 28 | 32 |
Technical Specifications (Solid cone spray)
| Nozzle Model No. | Flow Rate (L/min) | Spray Angle | ||||||
|---|---|---|---|---|---|---|---|---|
| 0.7 kg | 1 kg | 1.5 kg | 2 kg | 3 kg | 4 kg | 1.5 kg | 4 kg | |
| 6.5B | 2.5 | 2.8 | 3.5 | 4.0 | 4.8 | 5.5 | 50° | 48° |
| 8B | 3.2 | 3.6 | 4.5 | 5.2 | 6.3 | 7.3 | 69° | 71° |
| 10B | 3.8 | 5.1 | 5.6 | 6.4 | 7.9 | 9.1 | 67° | 64° |
| 12.5B | 4.6 | 5.4 | 6.0 | 7.3 | 8.7 | 9.8 | 67° | 59° |
| 15B | 5.7 | 6.7 | 8.1 | 9.3 | 10.2 | 12.7 | 67° | 61° |
| 25B | 9.5 | 10.5 | 13.5 | 15.4 | 18.6 | 21.0 | 67° | 62° |
| 30B | 11.4 | 13.4 | 14.5 | 18.1 | 22 | 25 | 90° | 83° |
Technical Specifications (Hollow cone spray)
| Nozzle Model No. | Flow Rate (L/min) | Spray Angle | ||||||||
|---|---|---|---|---|---|---|---|---|---|---|
| 0.3 kg | 0.7 kg | 1 kg | 1.5 kg | 2 kg | 3 kg | 4 kg | 1.5 kg | 1.5 kg | 4 kg | |
| 15-30.1A | 6.2 | 8.8 | 10.4 | 12.6 | 14.5 | 17.6 | 20.2 | 46° | 49° | 51° |
| 25-30.1A | 7.5 | 10.7 | 12.7 | 15.4 | 17.6 | 21.4 | 24.6 | 45° | 47° | 50° |
| 55-50.1A | 13.5 | 19.0 | 22.7 | 27.8 | 31.8 | 38.7 | 44.4 | 38° | 46° | 48° |
| 55-50.3A | 14.0 | 19.2 | 23.0 | 28.0 | 32.0 | 39.2 | 45.2 | 75° | 75° | 76° |
