Adjustable Ball Nozzle | Customizable Spray Nozzle

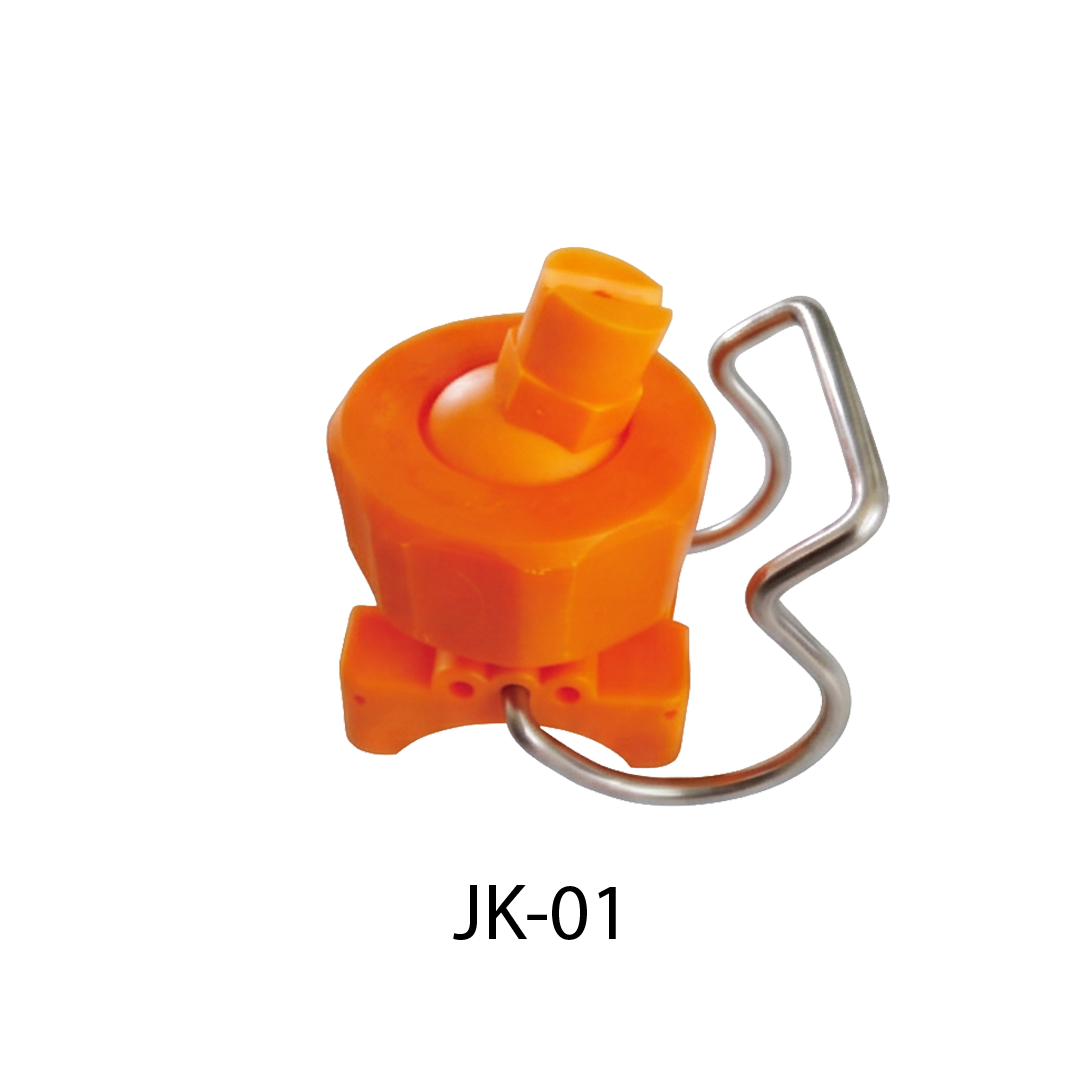

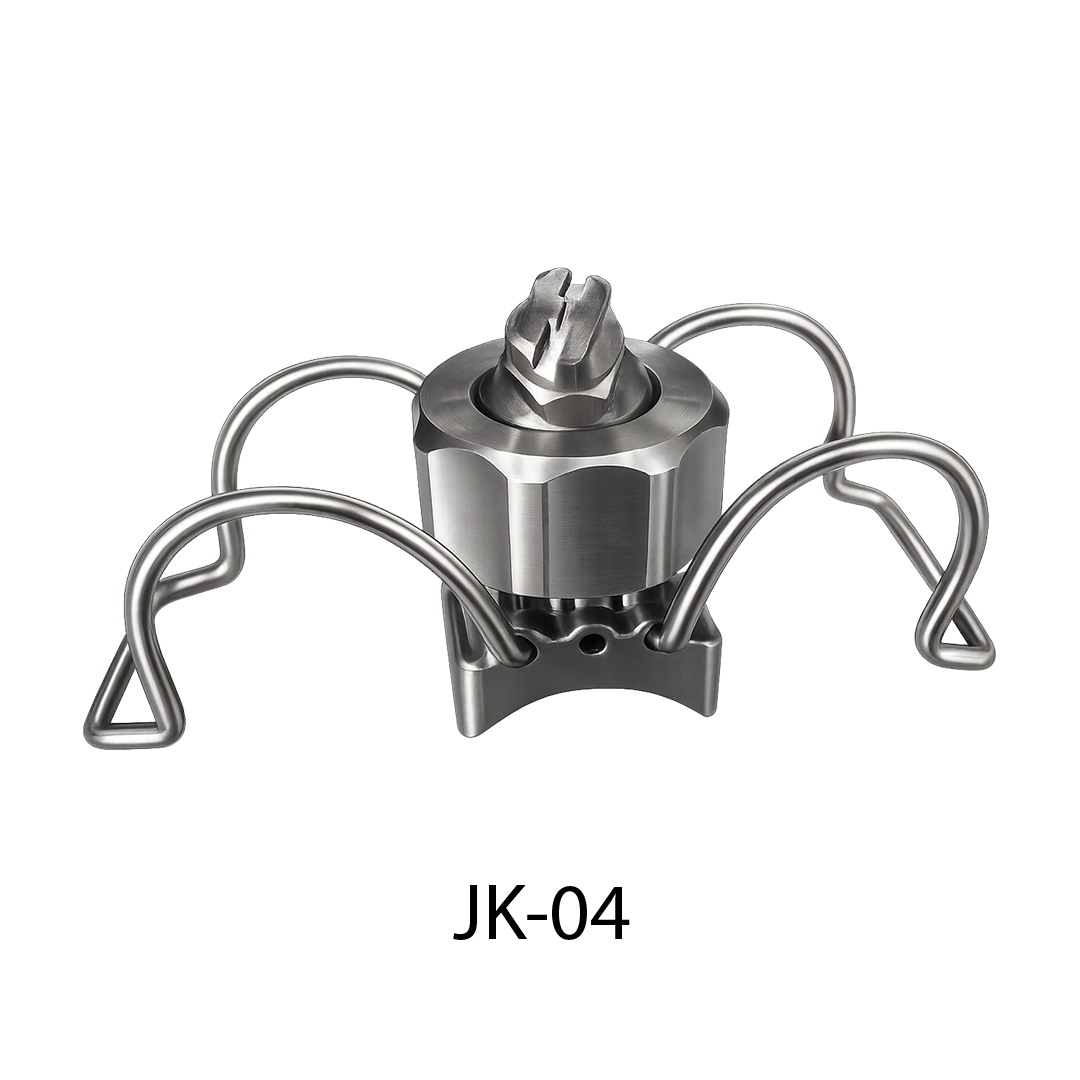

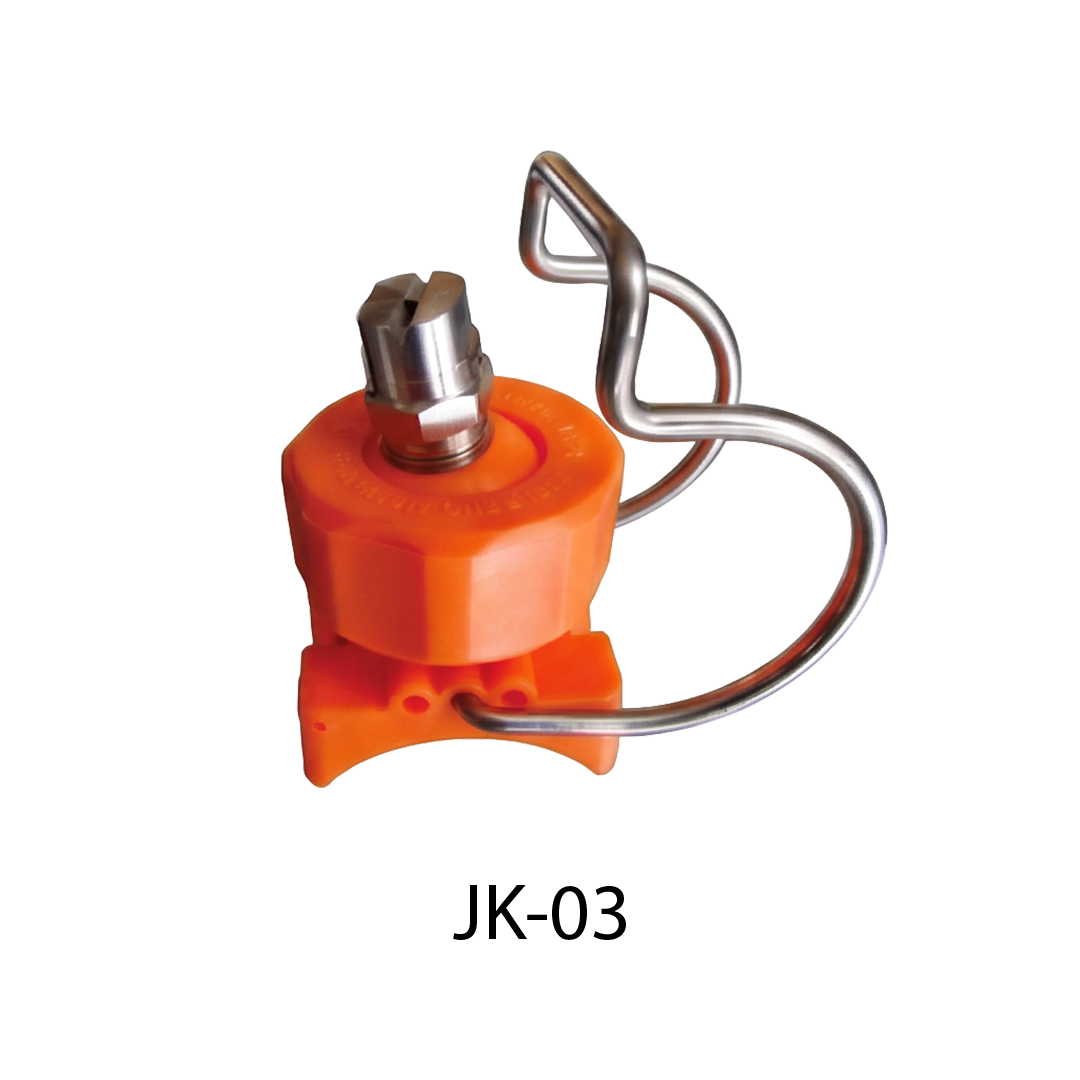

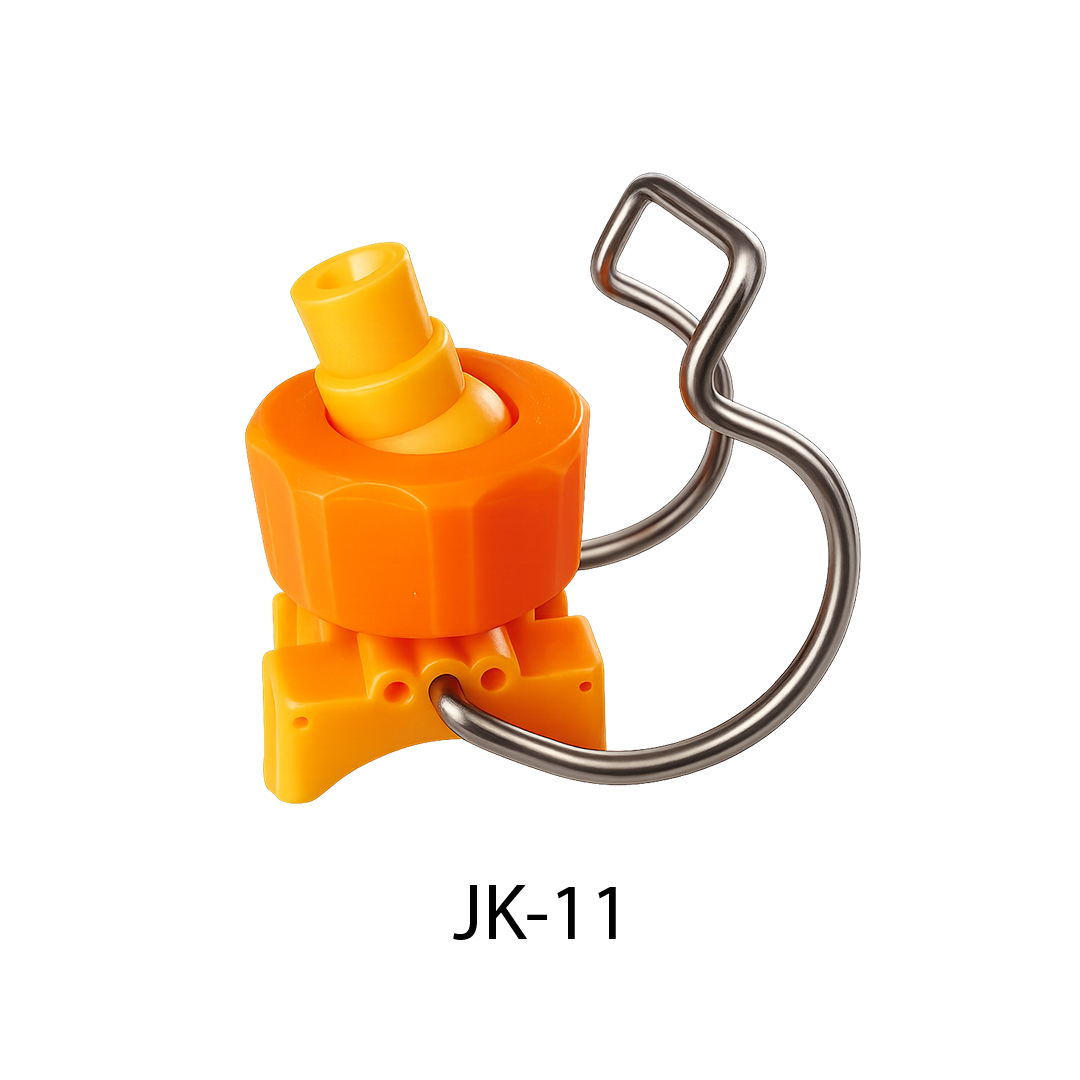

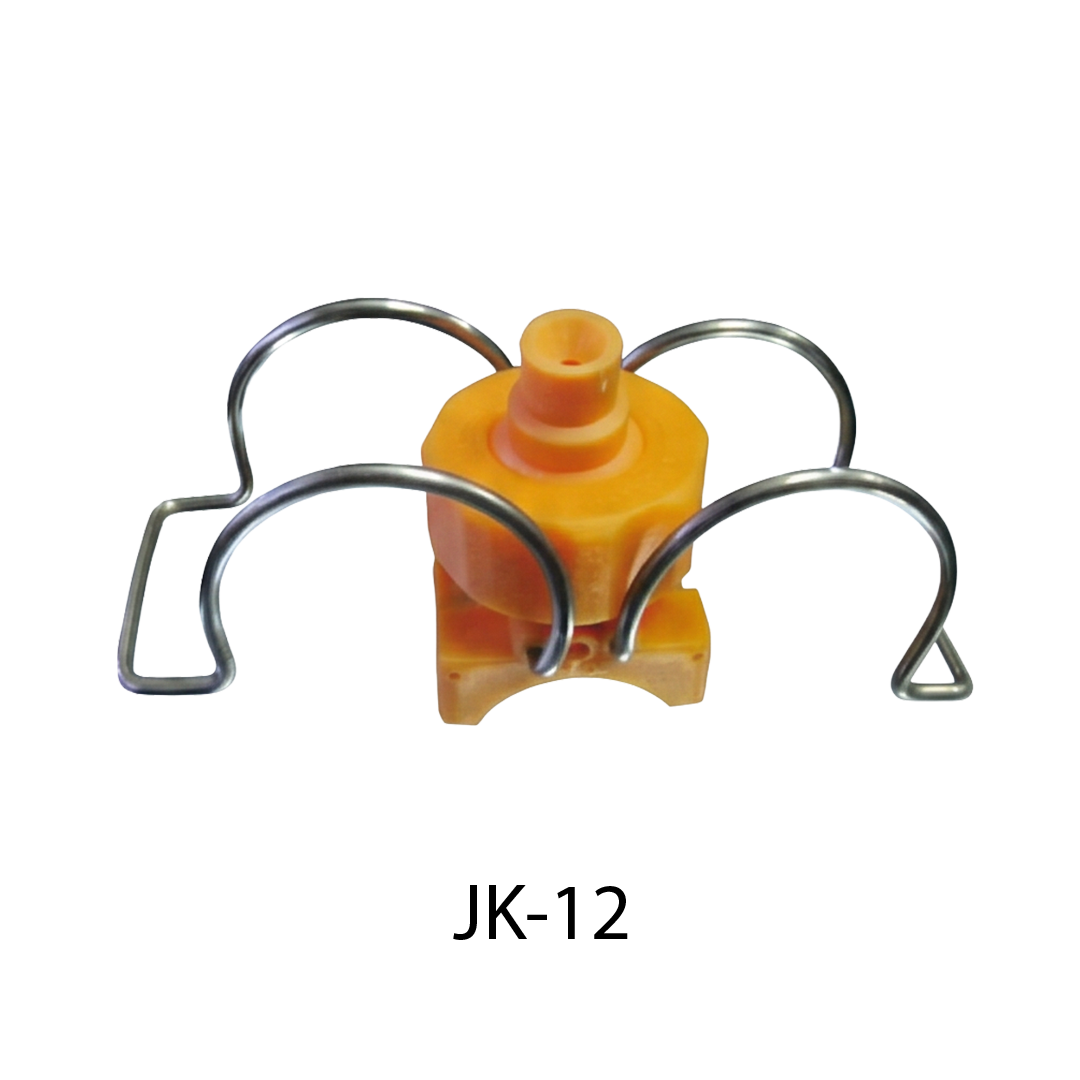

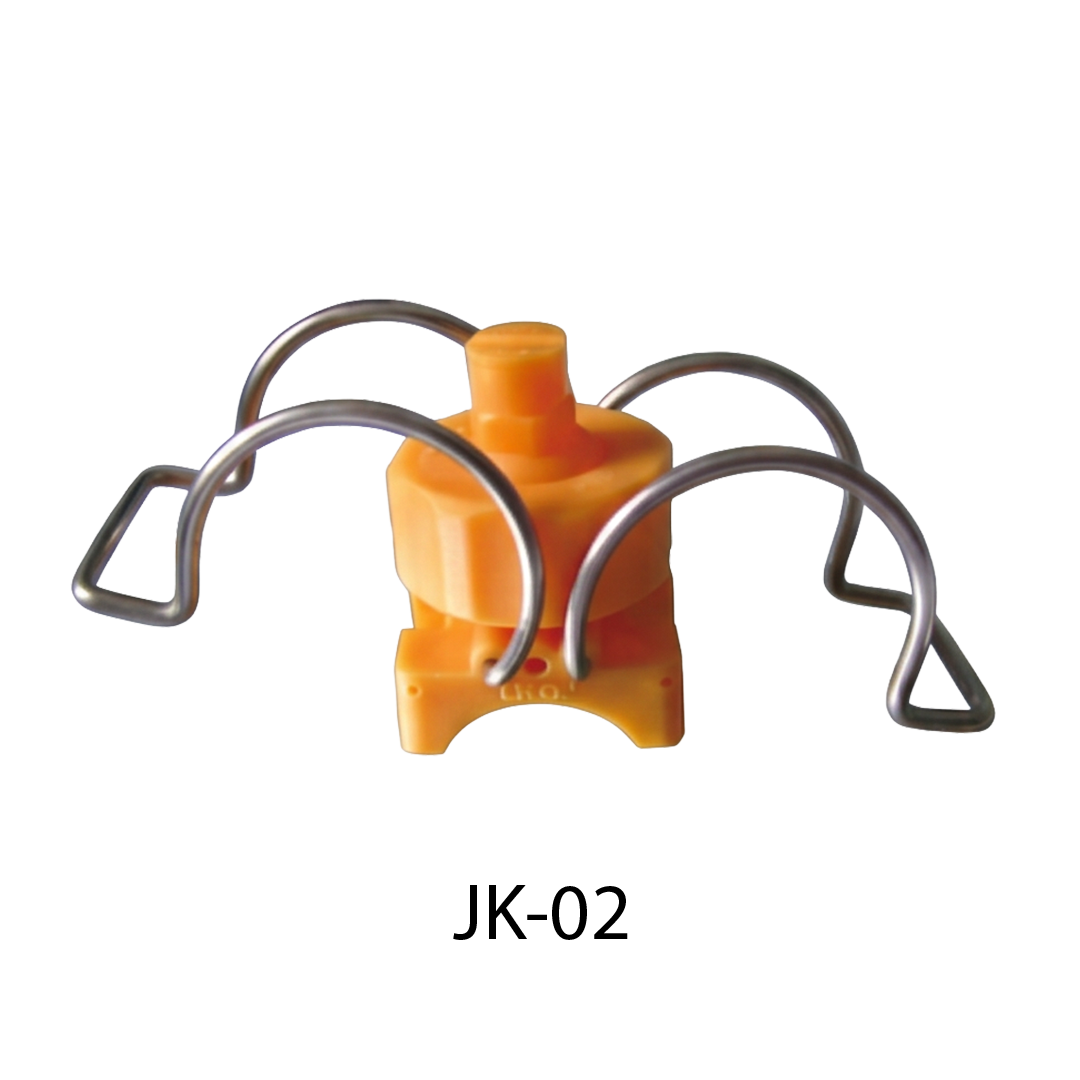

Model: JK-01, JK-02, JK-03, JK-04, JK-11, JK-12

Adjustable Ball Nozzle | Customizable Spray Nozzle

Durable. Precise. Built for Performance.

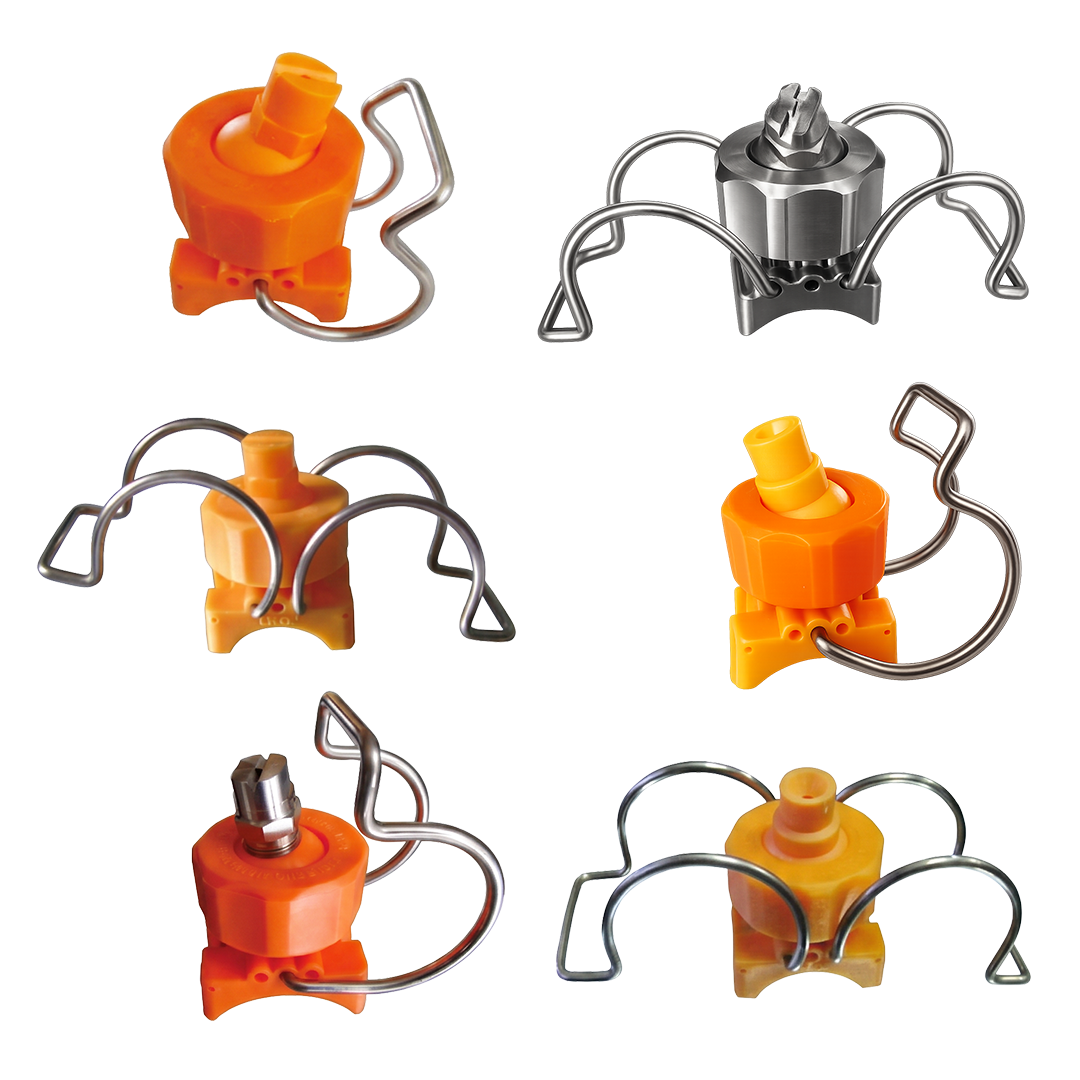

Adjustable Ball Nozzles are designed to provide a flexible and precise spray direction control in various industrial spraying systems. The nozzle consists of a threaded base and a spherical ball design, allowing users to easily adjust the spray angle and direction without removing the nozzle from the pipe or manifold. Come in different materials such as stainless steel, brass, or plastic for corrosion resistance.

Material: Stainless Steel, Plastic

Nozzle Model No. (Spray Angle 3kg)				Flow Rate (L/min)
50°	65°	80°	95°	0.7 kg	1 kg	1.5 kg	2 kg	3 kg	4 kg
	6510	8010	9510	1.9	2.3	2.8	3.2	3.9	4.6
	6515	8015	9515	2.4	3.4	4.0	4.6	5.9	6.8
5020	6520	8020	9520	3.8	4.6	5.6	9.5	7.9	9.1
5030	6530	8030	9530	5.7	6.8	8.4	9.7	11.8	13.7
5040	6540	8040	9540	7.6	9.1	11.2	12.9	15.8	18.2
5050	6550	8050	9550	9.5	11.4	14.0	16.1	19.7	23
5060	6560	8060	9560	11.4	13.7	16.7	19.3	24	27
5070	6570	8070	9570	13.3	16.0	19.5	23	28	32

Nozzle Model No.	Flow Rate (L/min)						Spray Angle
Nozzle Model No.	0.7 kg	1 kg	1.5 kg	2 kg	3 kg	4 kg	1.5 kg	4 kg
6.5B	2.5	2.8	3.5	4.0	4.8	5.5	50°	48°
8B	3.2	3.6	4.5	5.2	6.3	7.3	69°	71°
10B	3.8	5.1	5.6	6.4	7.9	9.1	67°	64°
12.5B	4.6	5.4	6.0	7.3	8.7	9.8	67°	59°
15B	5.7	6.7	8.1	9.3	10.2	12.7	67°	61°
25B	9.5	10.5	13.5	15.4	18.6	21.0	67°	62°
30B	11.4	13.4	14.5	18.1	22	25	90°	83°

Nozzle Model No.	Flow Rate (L/min)							Spray Angle
Nozzle Model No.	0.3 kg	0.7 kg	1 kg	1.5 kg	2 kg	3 kg	4 kg	1.5 kg	1.5 kg	4 kg
15-30.1A	6.2	8.8	10.4	12.6	14.5	17.6	20.2	46°	49°	51°
25-30.1A	7.5	10.7	12.7	15.4	17.6	21.4	24.6	45°	47°	50°
55-50.1A	13.5	19.0	22.7	27.8	31.8	38.7	44.4	38°	46°	48°
55-50.3A	14.0	19.2	23.0	28.0	32.0	39.2	45.2	75°	75°	76°
