Model: LW-01, LW-02

Adjustable Ball Nozzle | Customizable Spray Nozzle

Durable. Precise. Built for Performance.

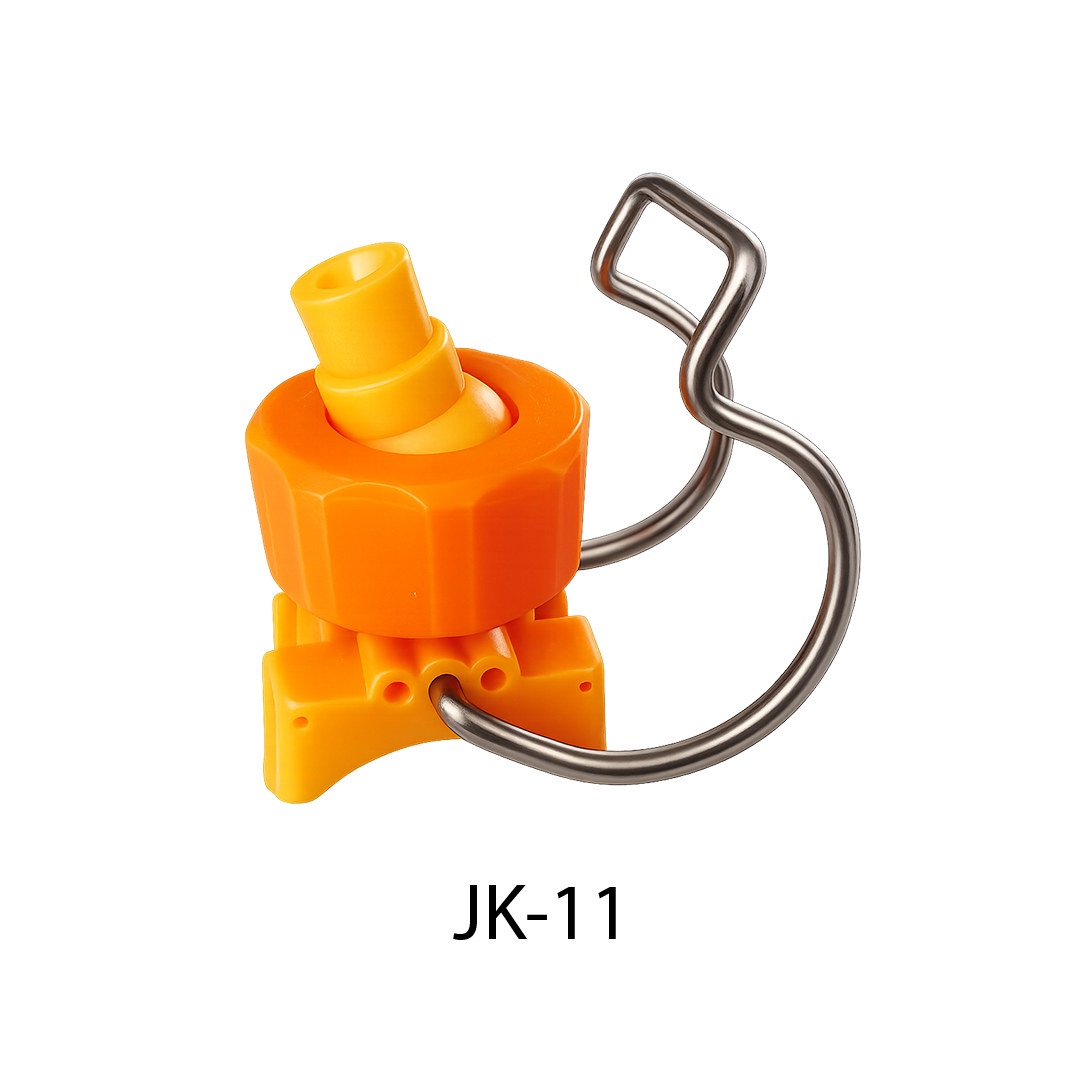

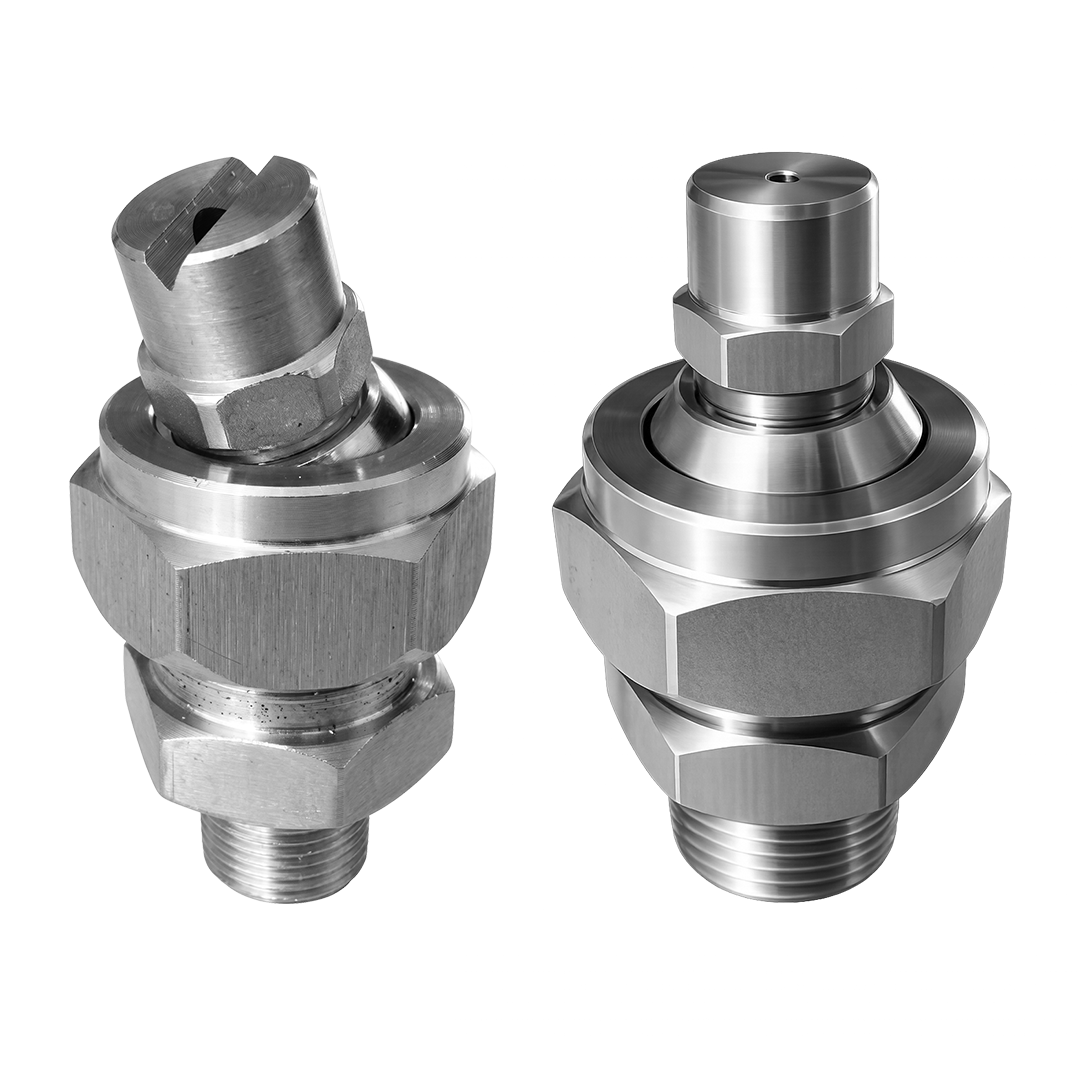

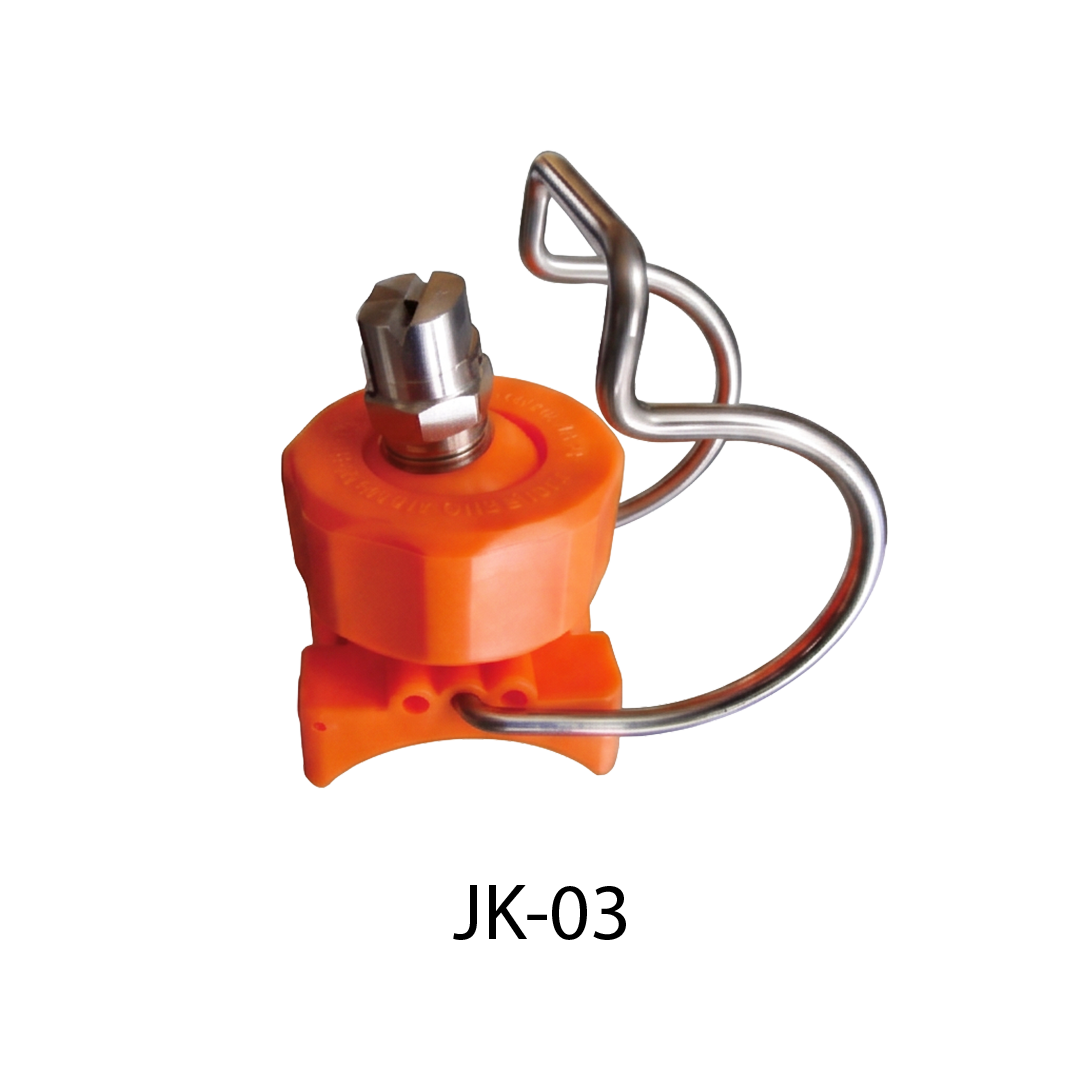

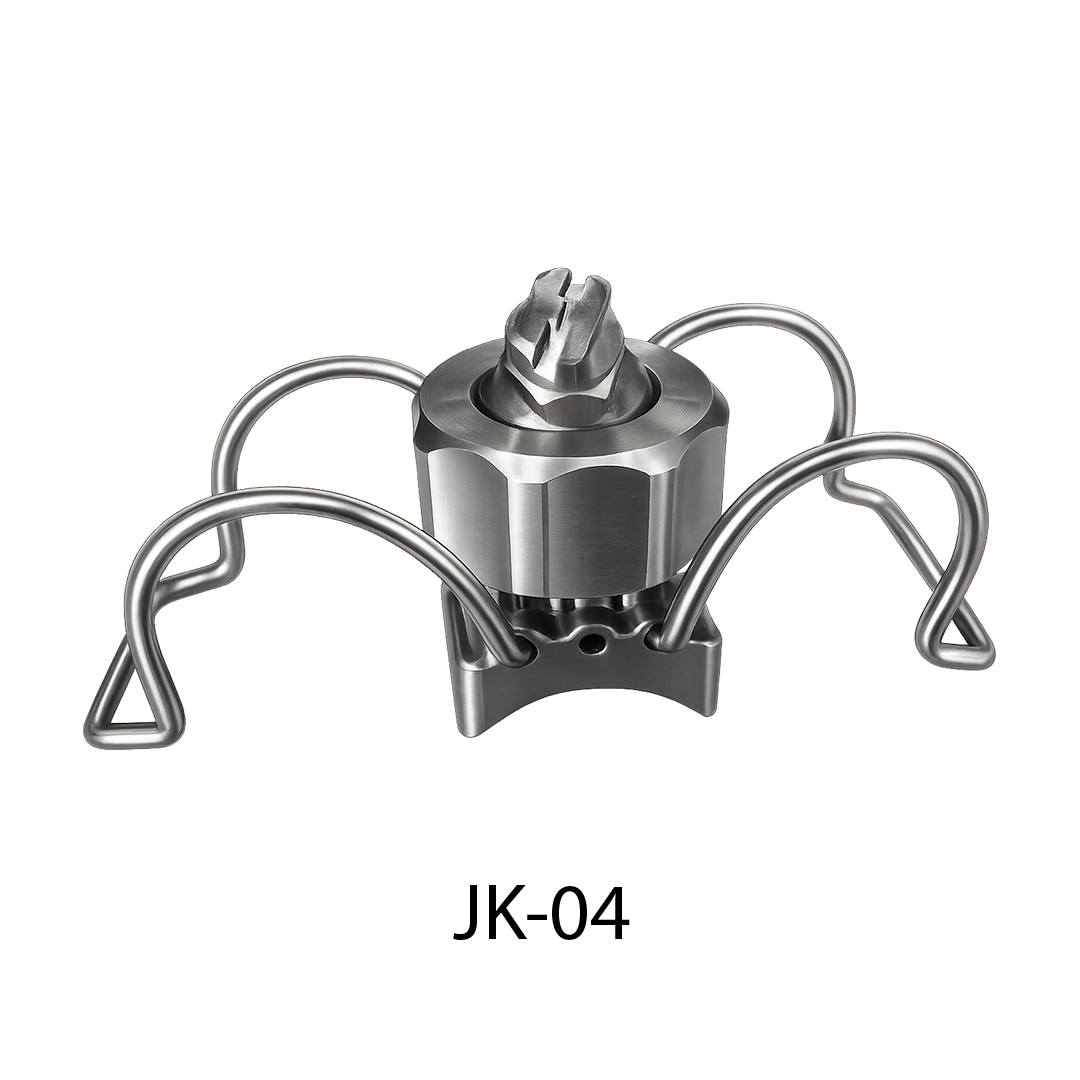

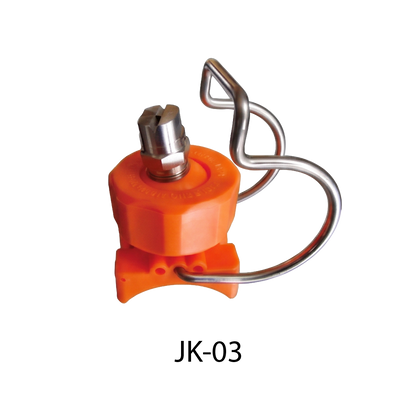

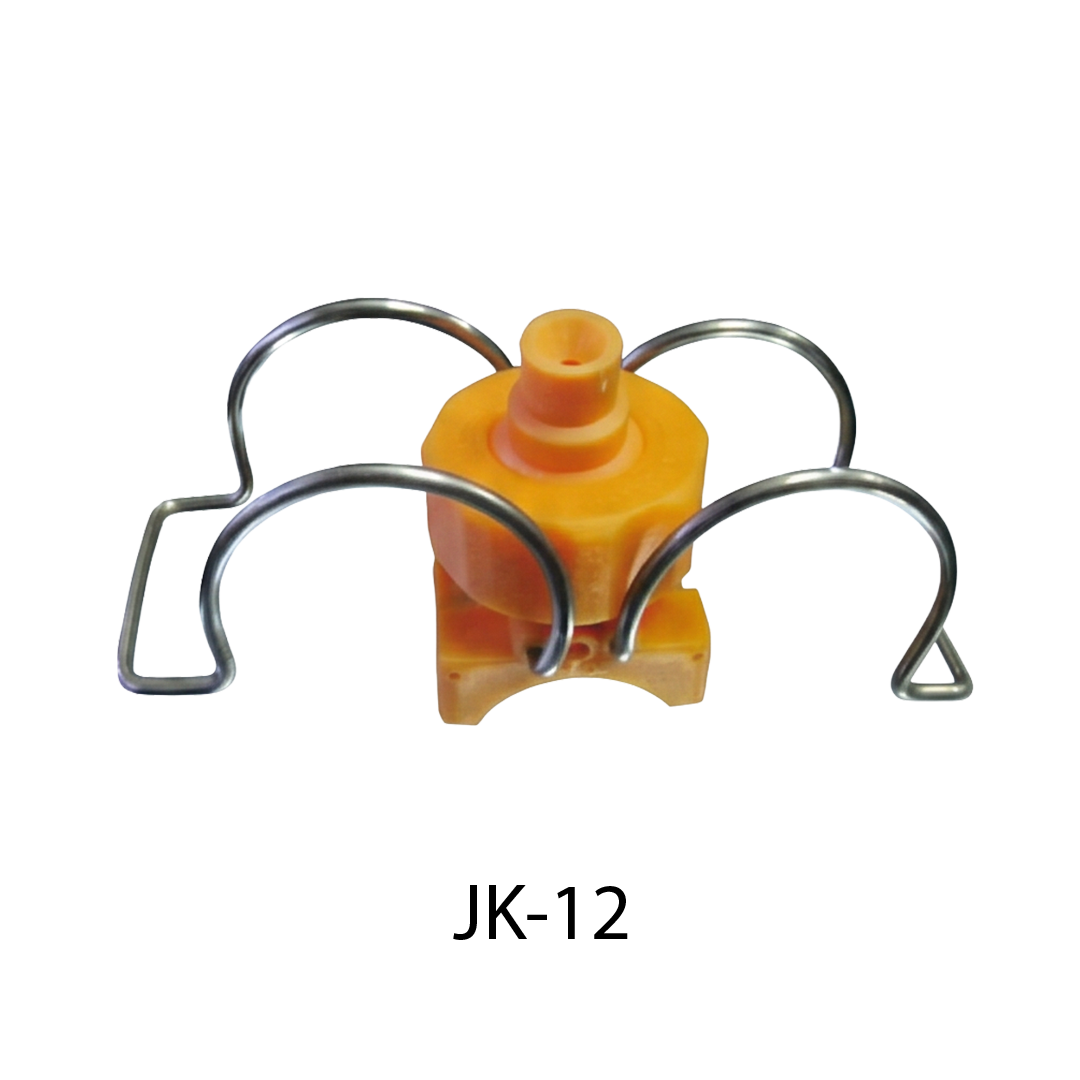

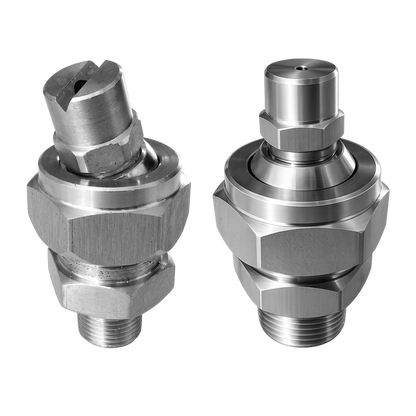

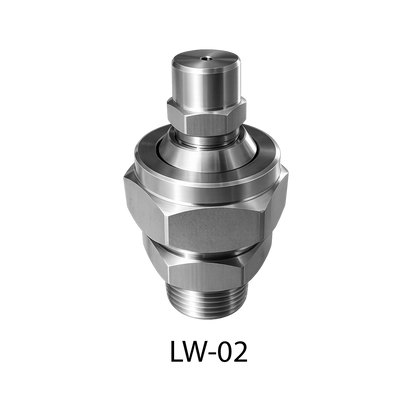

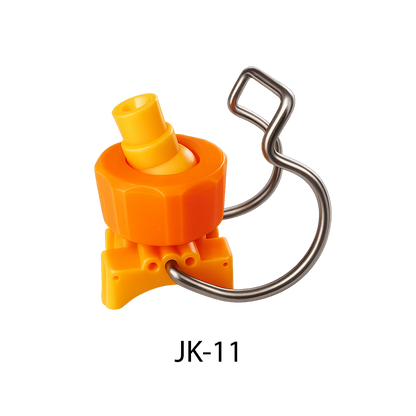

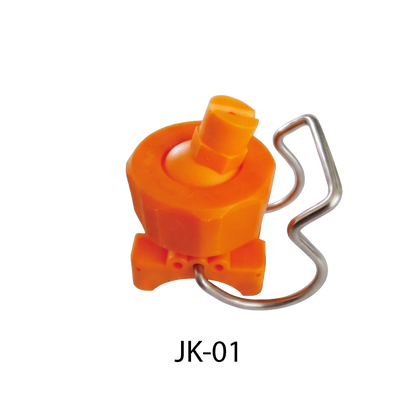

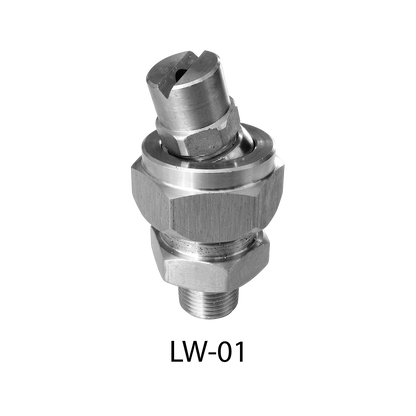

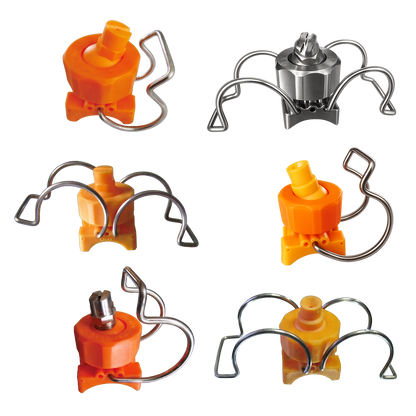

Adjustable Ball Nozzles are designed to provide a flexible and precise spray direction control in various industrial spraying systems. The nozzle consists of a threaded base and a spherical ball design, allowing users to easily adjust the spray angle and direction without removing the nozzle from the pipe or manifold. Come in different materials such as stainless steel, brass, or plastic for corrosion resistance.
Material: Stainless Steel, Brass, Plastic
Contact Us

Technical Specification (Fan-shaped spray)

Nozzle Model No. Orifice Diameter mm Flow Rate (L/min)
15° 25° 40° 50° 1 kg 2 kg 3 kg 4 kg 5 kg 6 kg 7 kg 10 kg 20 kg
1530 2530 4030 5030 3.6 6.8 9.7 11.8 13.7 15.3 16.7 18.1 22 31
1540 2540 4040 5040 4.0 9.1 12.9 15.8 18.2 20 22 24 29 41
1550 2550 4050 5050 4.4 11.4 16.1 19.7 23 25 28 30 36 51
1560 2560 4060 5060 4.8 13.7 19.3 24 27 31 33 36 43 61
1570 2570 4070 5070 5.2 16.0 23 28 32 36 39 42 50 71
15100 25100 40100 50100 6.4 23 32 39 46 51 56 60 72 102
15120 25120 40120 50120 6.7 27 39 47 55 61 67 72 86 122
15150 25150 40150 50150 7.5 34 48 59 68 76 84 90 108 153
15200 25200 40200 50200 8.7 46 64 79 91 102 112 121 144 205
15250 9.5 57 81 99 114 127 140 151 180 255
50400 12.7 91 139 158 182 205 225 240 290 410
15500 25500 50500 13.1 114 161 197 230 255 280 300 360 510
50580 13.9 132 187 230 265 295 325 350 420 600
25750 50750 15.9 171 240 295 340 385 420 455 540 770
151000 251000 501000 18.3 230 325 395 455 510 560 610 720 1020
501500 22.6 340 485 600 690 770 840 910 1080 1530
502000 25.2 460 650 790 910 1020 1120 1210 1440 2040
Other sizes and material available upon request

Technical Specification (Solid cone spray)

External Thread Nozzle Model No. Flow Rate (L/min) Spray Angle
1.5 kg 2 kg 3 kg 4 kg 5 kg 6 kg 7 kg 10 kg 1.5 kg 6.0 kg
1/8 2.0B 1.1 1.2 1.5 1.7 1.9 2.0 2.2 2.6 50° 46°
3.0B 1.6 1.9 2.2 2.5 2.8 3.1 3.3 3.9 65° 59°
1/4 3.5B 1.9 2.2 2.6 3.0 3.3 3.6 3.9 4.5 50° 46°
5B 2.7 3.1 3.7 4.2 4.7 5.1 5.5 6.5 65° 59°
3/8 6.5B 3.5 4.0 4.8 5.5 6.1 6.7 7.1 8.4 50° 46°
8B 3.6 4.8 5.8 6.6 7.2 7.8 8.8 9.4 55° 61°
10B 5.4 6.2 7.4 8.5 9.4 10.2 11.0 13.0 67° 61°
1/2 12.5B 6.8 7.7 9.3 10.6 11.8 12.8 13.4 16.2 69° 68°
15B 8.1 9.3 11.2 12.7 14.1 15.4 16.5 19.4 64° 61°
Other sizes and material available upon request

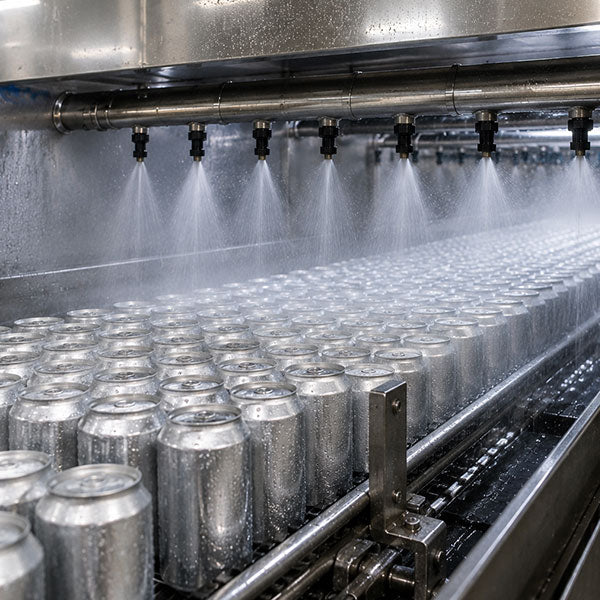

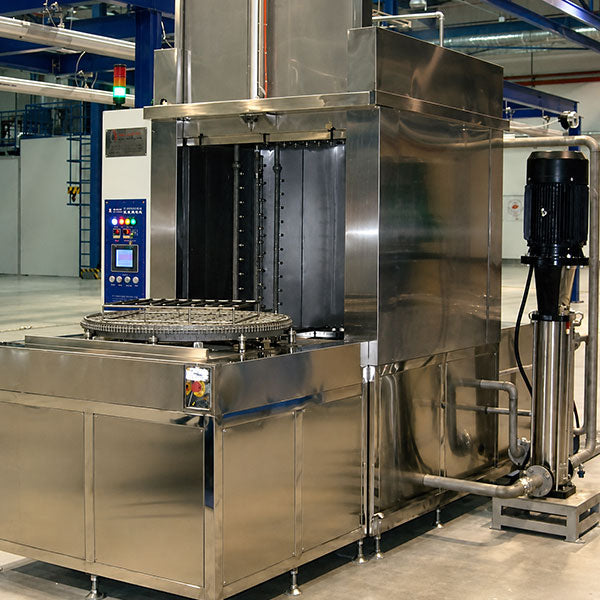

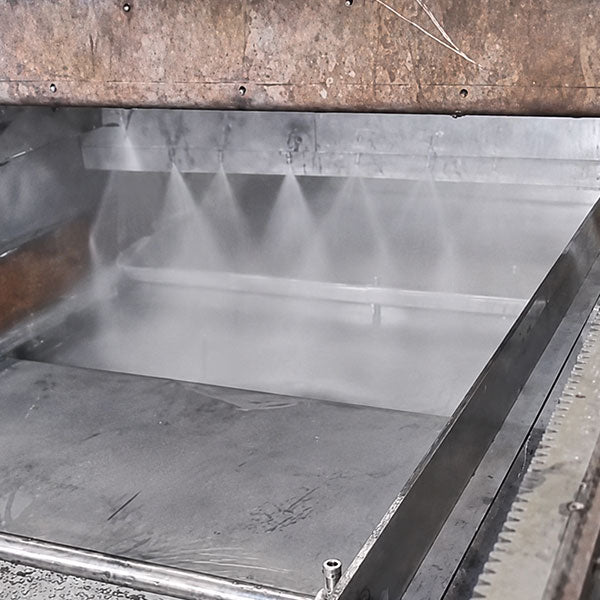

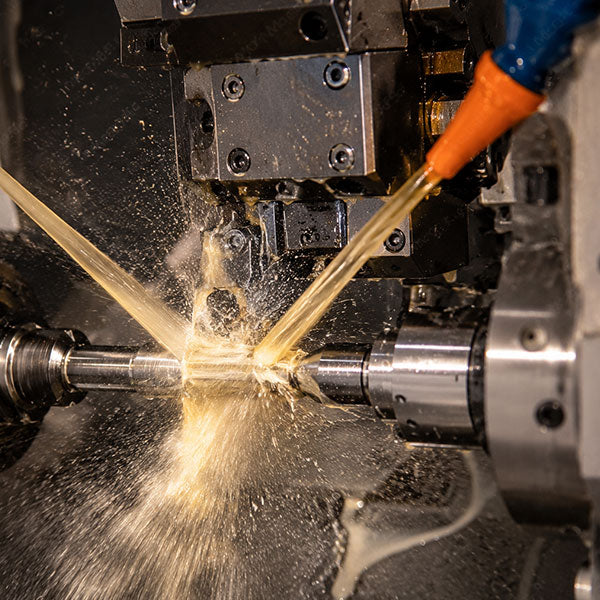

Applications
