Model:
LW-01, LW-02, LW-03

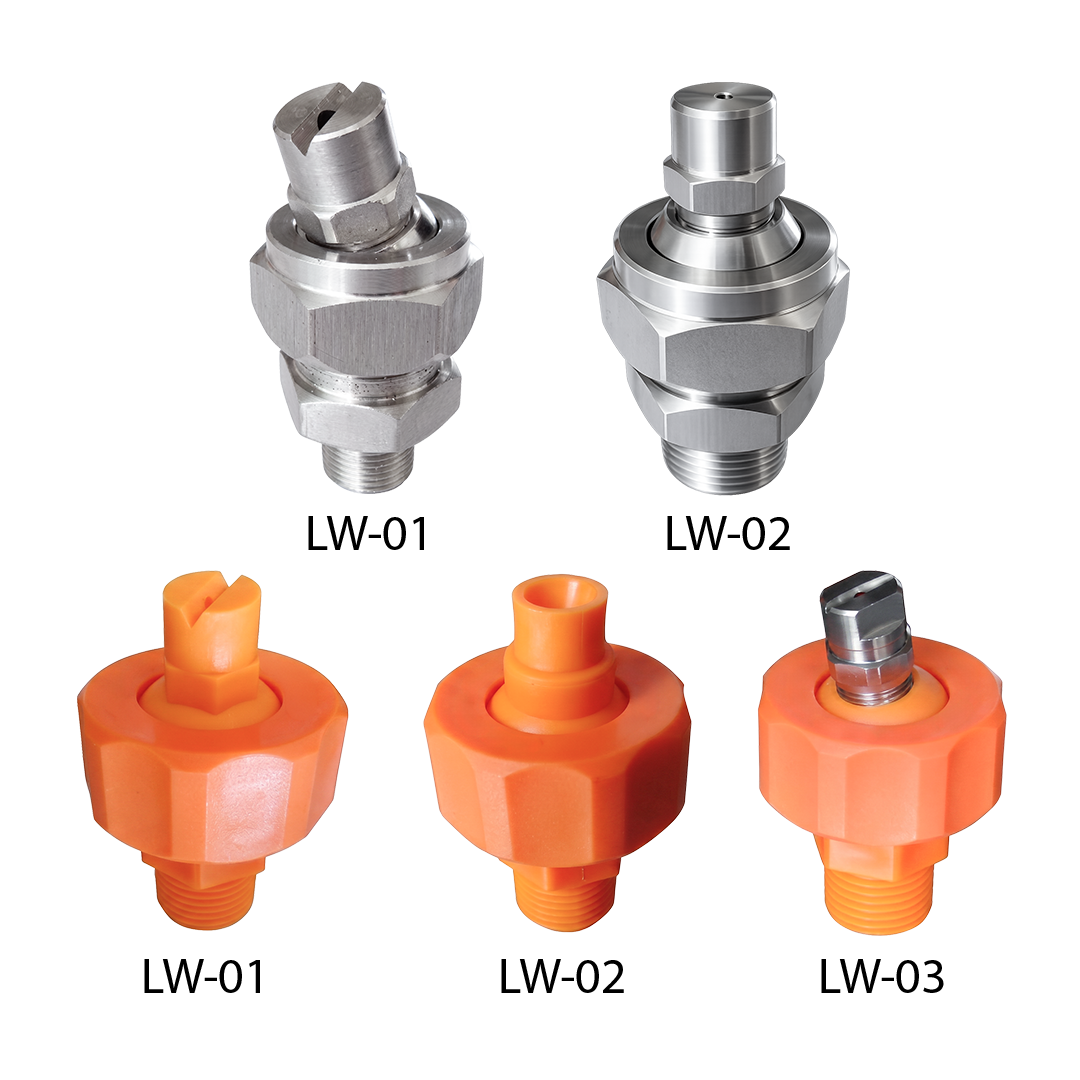

Adjustable Threaded Ball Joint Base for Spray Nozzles
Durable. Precise. Built for Performance.
The Adjustable Threaded Ball Joint Base is designed for flexible positioning of industrial spray nozzles. Its swivel ball structure allows the spray direction to be adjusted after installation, helping achieve accurate nozzle alignment and targeted spray coverage without modifying the piping system. Suitable for cleaning, cooling, surface treatment and other industrial spray applications.
Material:
Stainless Steel, Brass, Plastic
Contact Us
Key Features
- Adjustable ball joint for flexible spray direction
- Precise nozzle positioning and spray alignment
- Threaded design for secure and convenient installation
- Allows directional adjustment without changing pipe layout
- Compatible with various industrial spray nozzle types
- Available in stainless steel and other materials*
- Multiple thread sizes and configurations available*
- OEM and custom options available*
Applications

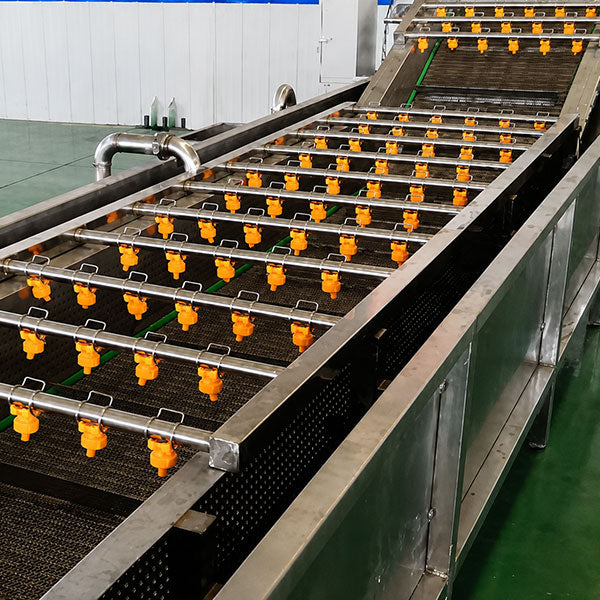

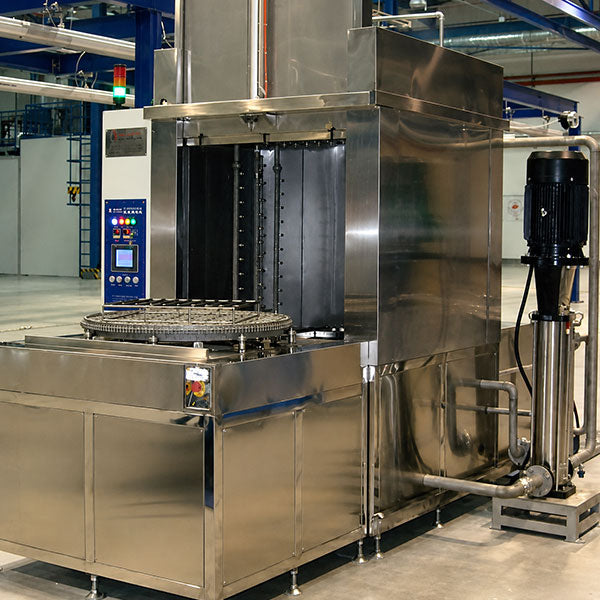

- Industrial cleaning and washing
- Surface treatment and pretreatment

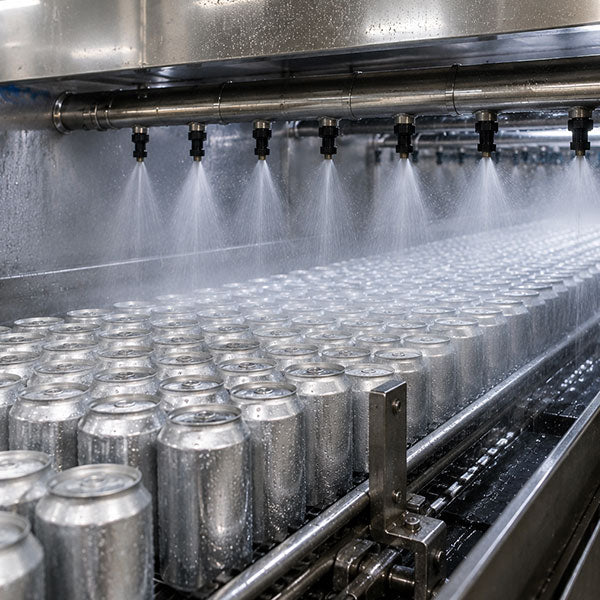

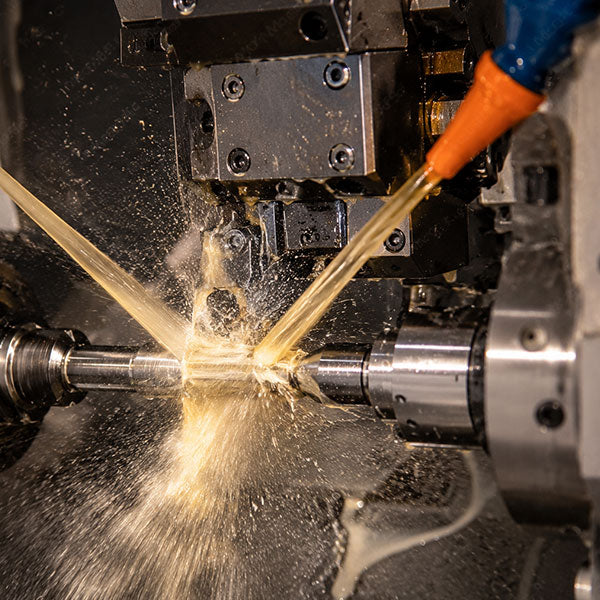

- Cooling and rinsing
- Coating and chemical spraying
- Dust suppression

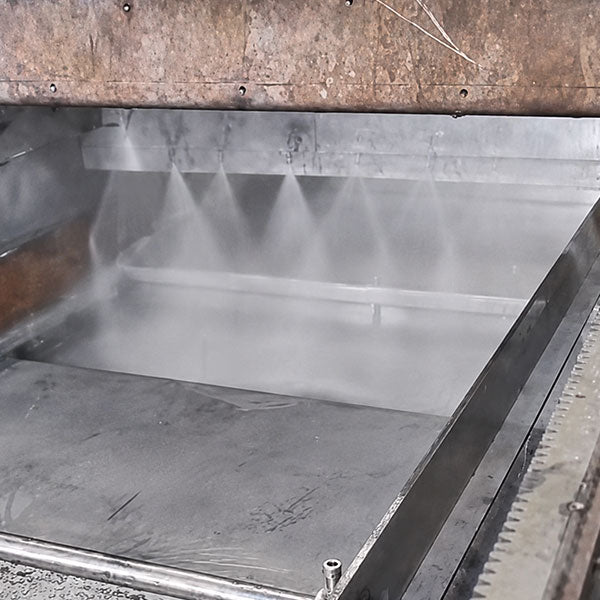

- Degreasing and phosphating

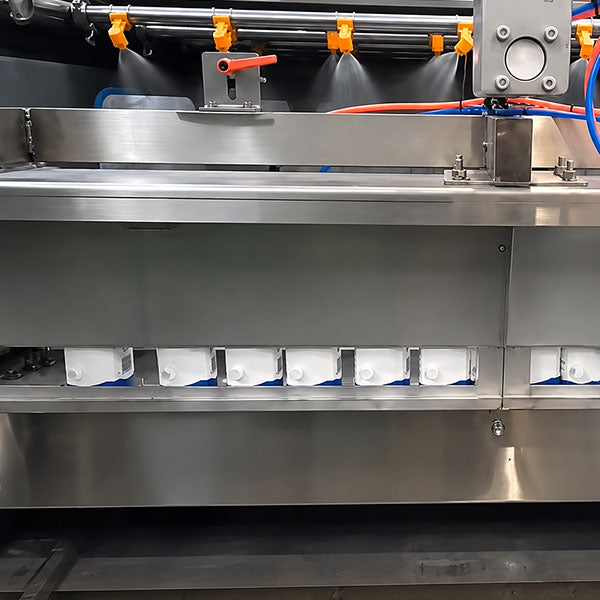

- Spray header and manifold systems
- Equipment requiring adjustable spray positioning
Technical Specification (Fan-shaped spray)
| Nozzle Model No. | Orifice Diameter mm | Flow Rate (L/min) | |||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 15° | 25° | 40° | 50° | 1 kg | 2 kg | 3 kg | 4 kg | 5 kg | 6 kg | 7 kg | 10 kg | 20 kg | |
| 1530 | 2530 | 4030 | 5030 | 3.6 | 6.8 | 9.7 | 11.8 | 13.7 | 15.3 | 16.7 | 18.1 | 22 | 31 |
| 1540 | 2540 | 4040 | 5040 | 4.0 | 9.1 | 12.9 | 15.8 | 18.2 | 20 | 22 | 24 | 29 | 41 |
| 1550 | 2550 | 4050 | 5050 | 4.4 | 11.4 | 16.1 | 19.7 | 23 | 25 | 28 | 30 | 36 | 51 |
| 1560 | 2560 | 4060 | 5060 | 4.8 | 13.7 | 19.3 | 24 | 27 | 31 | 33 | 36 | 43 | 61 |
| 1570 | 2570 | 4070 | 5070 | 5.2 | 16.0 | 23 | 28 | 32 | 36 | 39 | 42 | 50 | 71 |
| 15100 | 25100 | 40100 | 50100 | 6.4 | 23 | 32 | 39 | 46 | 51 | 56 | 60 | 72 | 102 |
| 15120 | 25120 | 40120 | 50120 | 6.7 | 27 | 39 | 47 | 55 | 61 | 67 | 72 | 86 | 122 |
| 15150 | 25150 | 40150 | 50150 | 7.5 | 34 | 48 | 59 | 68 | 76 | 84 | 90 | 108 | 153 |
| 15200 | 25200 | 40200 | 50200 | 8.7 | 46 | 64 | 79 | 91 | 102 | 112 | 121 | 144 | 205 |
| 15250 | 9.5 | 57 | 81 | 99 | 114 | 127 | 140 | 151 | 180 | 255 | |||
| 50400 | 12.7 | 91 | 139 | 158 | 182 | 205 | 225 | 240 | 290 | 410 | |||
| 15500 | 25500 | 50500 | 13.1 | 114 | 161 | 197 | 230 | 255 | 280 | 300 | 360 | 510 | |
| 50580 | 13.9 | 132 | 187 | 230 | 265 | 295 | 325 | 350 | 420 | 600 | |||
| 25750 | 50750 | 15.9 | 171 | 240 | 295 | 340 | 385 | 420 | 455 | 540 | 770 | ||
| 151000 | 251000 | 501000 | 18.3 | 230 | 325 | 395 | 455 | 510 | 560 | 610 | 720 | 1020 | |
| 501500 | 22.6 | 340 | 485 | 600 | 690 | 770 | 840 | 910 | 1080 | 1530 | |||
| 502000 | 25.2 | 460 | 650 | 790 | 910 | 1020 | 1120 | 1210 | 1440 | 2040 | |||
Technical Specification (Solid cone spray)
| External Thread | Nozzle Model No. | Flow Rate (L/min) | Spray Angle | ||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| 1.5 kg | 2 kg | 3 kg | 4 kg | 5 kg | 6 kg | 7 kg | 10 kg | 1.5 kg | 6.0 kg | ||
| 1/8 | 2.0B | 1.1 | 1.2 | 1.5 | 1.7 | 1.9 | 2.0 | 2.2 | 2.6 | 50° | 46° |
| 3.0B | 1.6 | 1.9 | 2.2 | 2.5 | 2.8 | 3.1 | 3.3 | 3.9 | 65° | 59° | |
| 1/4 | 3.5B | 1.9 | 2.2 | 2.6 | 3.0 | 3.3 | 3.6 | 3.9 | 4.5 | 50° | 46° |
| 5B | 2.7 | 3.1 | 3.7 | 4.2 | 4.7 | 5.1 | 5.5 | 6.5 | 65° | 59° | |
| 3/8 | 6.5B | 3.5 | 4.0 | 4.8 | 5.5 | 6.1 | 6.7 | 7.1 | 8.4 | 50° | 46° |
| 8B | 3.6 | 4.8 | 5.8 | 6.6 | 7.2 | 7.8 | 8.8 | 9.4 | 55° | 61° | |
| 10B | 5.4 | 6.2 | 7.4 | 8.5 | 9.4 | 10.2 | 11.0 | 13.0 | 67° | 61° | |
| 1/2 | 12.5B | 6.8 | 7.7 | 9.3 | 10.6 | 11.8 | 12.8 | 13.4 | 16.2 | 69° | 68° |
| 15B | 8.1 | 9.3 | 11.2 | 12.7 | 14.1 | 15.4 | 16.5 | 19.4 | 64° | 61° | |
