Model: CP-01

90° Side Spray Wide Angle Flat Fan Spray Nozzle

Durable. Precise. Built for Performance.
The Side Spray Wide Angle Flat Fan Spray Nozzle produces a broad flat fan spray from a side-oriented outlet, providing wide and uniform coverage in areas where conventional straight spray nozzles may be difficult to install. Its compact design makes it suitable for cleaning, washing, cooling, rinsing, and other industrial spray applications with limited installation space.
Material: Stainless Steel, Brass, Plastic
Contact Us

Key Features

  • Fixed 90° side spray direction
  • Wide angle flat fan spray pattern
  • Uniform liquid distribution
  • Compact design for restricted installation spaces
  • Suitable for manifold and spray header systems
  • Multiple flow rates and connection sizes available
  • Stainless steel and other materials available
  • OEM and custom configurations available

Applications

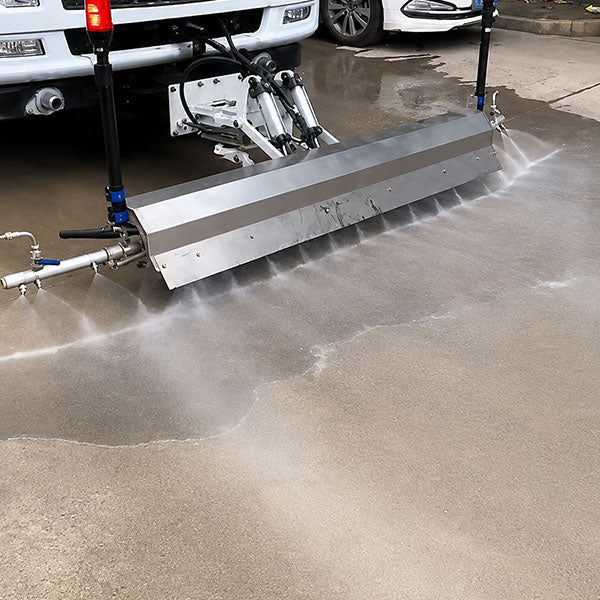

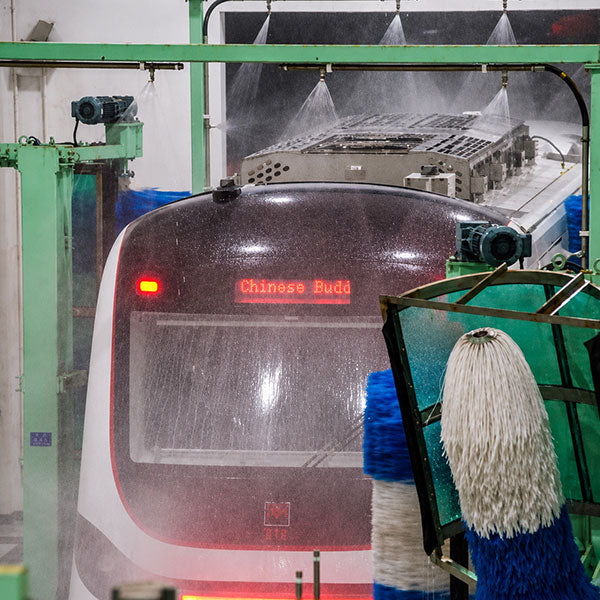

  • Industrial cleaning and washing
  • Parts and product cleaning
  • Surface pretreatment
  • Cooling and rinsing
  • Chemical spraying
  • Spray header systems
  • Equipment cleaning

Technical Specifications

Inlet Connector Nozzle Model No. Orifice Diameter mm Flow Rate (L/min) Spray Angle
0.2 kg 0.5 kg 0.7 kg 1 kg 2 kg 3 kg 5 kg 10 kg
1/8 016 0.41 0.05 0.08 0.10 0.11 0.16 0.20 0.26 0.36 105°
024 0.61 0.10 0.16 0.19 0.23 0.32 0.40 0.51 0.72 105°
028 0.71 0.15 0.24 0.29 0.34 0.48 0.59 0.76 1.08 105°
033 0.84 0.20 0.32 0.38 0.46 0.65 0.79 1.02 1.44 105°
041 1.04 0.31 0.48 0.57 0.68 0.97 1.18 1.53 2.16 145°
046 1.17 0.41 0.65 0.76 0.91 1.29 1.58 2.04 2.88 145°
052 1.32 0.51 0.81 0.95 1.14 1.61 1.97 2.55 3.60 145°
057 1.45 0.61 0.97 1.14 1.37 1.93 2.37 3.06 4.32 145°
065 1.65 0.82 1.29 1.53 1.82 2.58 3.16 4.08 5.77 145°
1/8 or 1/4 073 1.85 1.02 1.61 1.91 2.28 3.22 3.95 5.10 7.21 145°
093 2.36 1.53 2.42 2.86 3.42 4.83 5.92 7.64 10.8 145°
104 2.64 2.04 3.22 3.81 4.56 6.45 7.89 10.2 14.4 145°
116 2.95 2.45 3.87 4.58 5.47 7.73 9.47 12.2 17.3 145°
125 3.18 2.55 4.03 4.77 5.70 8.06 9.87 12.7 18.0 145°
129 3.28 3.06 4.83 5.72 6.84 9.67 11.8 15.3 21.6 145°
141 3.58 3.67 5.80 6.86 8.20 11.6 14.2 18.3 25.9 145°
148 3.76 4.08 6.45 7.63 9.12 12.9 15.8 20.4 28.8 145°
1/4 156 3.96 4.48 7.09 8.39 10.0 14.2 17.4 22.4 31.7 145°
161 4.09 4.89 7.73 9.15 10.9 15.5 18.9 24.5 34.6 145°
173 4.39 5.50 8.70 10.3 12.3 17.4 21.3 27.5 38.9 145°
3/8 187 4.75 6.11 9.67 11.4 13.7 19.3 23.7 30.6 43.2 145°
196 4.98 7.1 11.3 13.3 16.0 22.6 27.6 35.7 50.4 145°
209 5.31 7.6 12.0 14.2 17.0 24.0 29.4 38.0 53.8 145°
221 5.61 9.2 14.5 17.2 20.5 29.0 35.5 45.9 64.9 145°
1/2 209 5.31 7.6 12.0 14.2 17.0 24.0 29.4 38.0 53.8 145°
218 5.54 8.2 12.9 15.3 18.2 25.8 31.6 40.8 57.7 145°
250 6.35 10.7 16.9 20.0 23.9 33.8 41.4 53.5 75.7 145°
256 6.55 12.2 19.3 22.9 27.3 38.7 47.4 61.1 86.5 145°
281 7.14 14.3 22.6 26.7 31.9 45.1 55.3 71.3 101 145°
312 7.92 16.3 25.8 30.5 36.5 51.6 63.2 81.5 115 145°
375 9.53 24.5 38.7 45.8 54.7 77.3 94.7 122 173 145°
3/4 316 8.03 18.3 29.0 34.3 41.0 58.0 71.0 92 130 145°
332 8.43 20.4 32.2 38.1 45.6 64.5 78.9 102 144 145°
348 8.84 22.4 35.5 41.9 50.1 70.9 86.8 112 159 145°
368 9.35 24.5 38.7 45.8 54.7 77.3 94.7 122 173 145°
406 10.3 28.5 45.1 53.4 63.8 90.2 111 143 202 145°
437 11.1 32.6 51.6 61.0 72.9 103 126 163 231 145°
453 11.5 36.7 58.0 68.6 82.0 116 142 183 259 145°
484 12.3 42.8 67.7 80.1 95.7 135 166 214 303 145°
500 12.7 48.9 77.3 91.5 109 155 189 245 346 145°
1 578 14.7 61.1 96.7 114 137 193 237 306 432 145°
625 15.9 74.1 118 139 166 235 288 372 526 145°
703 17.9 91.7 145 172 205 290 355 459 649 145°
750 19.1 107 169 200 239 338 414 535 757 145°
Other sizes and material available upon request
